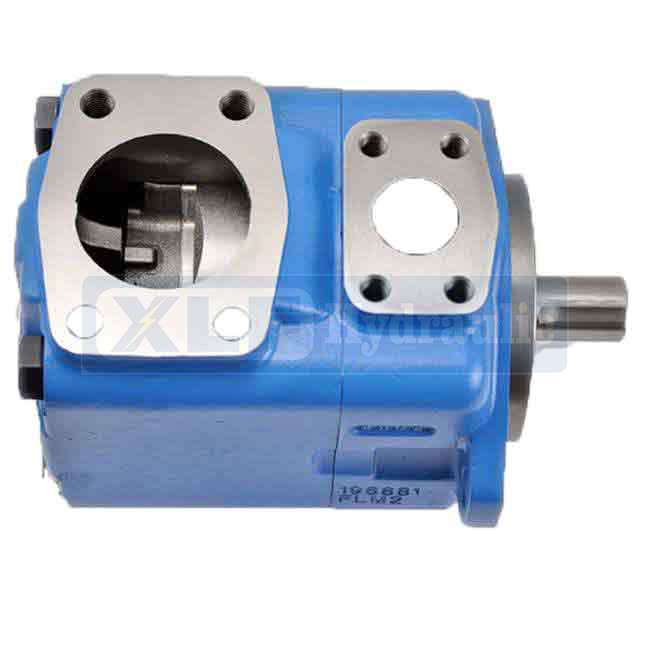

XLF-45M High Speed Vickers 45M Hydraulic Vane Motor With Longer Service Life

Key attributes

Industry-specific attributes

Warranty
1 Year
Motor Type
Vane Motor
Displacement
8-900

Other attributes

Weight
12
Showroom Location
None
Place of Origin
Jiangsu, China
Pressure
hydraulic pressure
Structure
hydraulic systerm
Power
2000-56000
Dimension(L*W*H)
40*45*60
Brand Name
tpf
Maximum Flow Rate
2700ml.r
Code
45M Series
Material
Cast Iron
Net Weight
12kgs-34kgs
Flange
Rhomb -flange
Warranty
1 Year After Shipping
Ports
Side Ports
Rotate
left or right or bi-direction
Displacement
2cc To 75cc
Condition
100%new
Place of Origin
Zhejiang, China

Packaging and delivery

Packaging Details
carton ,plywood

Port
shanghai

Selling Units:
Single item

Single package size:
10X15X30 cm

Single gross weight:
7.000 kg

Supply Ability

Supply Ability
30000 Piece/Pieces per Month

Quantity:
Availability:





Inquire Add to Basket

Model:
45M
Brand:
XLF
Code:
VP0003

Product Description

Specification

叶片泵系列_91

系列号 Series	定子规格-标称扭矩额定值 Ring size-Nominal torque Rating (Ib.in/100psi)	安装法兰和油口连接 Mounting fange and port connections	轴伸形式 Shaft type	盖端位置 Cover position	设计号 Design number	特姀石颋 Special suffixes
25M	42、55、65	A-SAE 2- 螺栓安装法兰和 SAE 4- 螺栓法兰连接 A-SAE type 2- bolt mounting flange SAE 4-bolt flanged port connections	1-直轴带键 11-花键 1-Straight keyed 11-Splined	A-端盖油口与売体油口反向 B-端盖油口与壳体油口逆时针转90” C-端盖油口与壳体油口同向 D-端盖油口与壳体油口顺时针转90° A-Cover port opposite body port B-Cover port 90° count- erclockwise from body port C-Port connections in line D-Cover port 90° clock- wise from body port	20	无 No
35M	80、95、115
45M	130、155、185
50M	220、255、300					114、124

型号系列 Model Series	扭矩Torque Nm/6,9 bar (lb in/100 psi)	排量 Displacement cm3/r (in3/r)	在1200r/min下要求的流量输入 Flow input/required @1200 r/min L/min (USgpm)	最高转速和压力 Maximum speed & pressures
25M	4,7 (42) 6,2 (55) 7,3 (65)	43,9 (2.68) 57,7 (3.52) 68,7 (4.19)	52,6 (13.9) 69,3 (18.3) 82,5 (21.8)	3600 r/min @ 34 bar (500 psi) t 4000 r/min 34 bar (500 psi)+ 2600 r/min @ 155 bar (2250 psi) t 3000 r/min @ 172 bar (2500 psi)+

35M	9,0 (80) 10,7 (95) 13,0 (115)	83,6 (5.10) 100,3 (6.12) 121,9 (7.44)	100,3 (26.5) 120,4 (31.8) 146,1(38.6)
45M	14.7 (130) 17,5 (155) 20,9 (185)	138,0 (8.42) 163,2 (9.96) 193,2(11.79)	165,4 (43.7) 195,7 (51.7) 232,0 (61.3)
50M	24,9 (220)	231,2 (14.11) 268,1 (16.36) 317,1 (19.35)	277,5 (73.3) 321,8 (85.0) 380,4 (100.5)	2800 r/min @ 34 bar (500 psi)t 3200 r/min @ 34 bar (500 psi) $ 2200 r/min @ 155 bar (2250 psi) t 2400 r/min 172 bar (2500 psi) +
	28,8 (255) 33,9 (300)

Products Description

Basic motor construction consists principally of a body, cover, drive cartridge and shaft. Rotary motion is developed in the cartridge, which principally consists of a ring, rotor, ten vanes and two pressure plates. The rotor is splined and mates with the output shaft, which is supported by a ball bearing in the body and a bushing bearing in the cover pressure plate. The vanes slide radically in the rotor slots and follow the elliptical cam contour of the ring as the rotor turns. These vanes are held against
the ring by a combination of spring and centrifugal forces.
Port connections are located in the body and cover. Direction of shaft rotation is governed by the direction of fluid flow through
these ports. Pressure is sealed from one port to the other by a Teflon sealing ring in the body on the periphery of the ring.
Drainage is ported through an external connection in the cover.
The cartridge is bolted together and can be serviced as a complete assembly. Locating pins position the ring with respect to the
pressure plates, and in like manner, two torque pins position the cartridge in the cover. The cover can be assembled in four
positions with respect to the body. Changing of the port positions is accomplished by rotating the cover and cartridge.
