XLF-SQP SQP Series SQP32 SQP42 SQP43 Single And Double Hydraulic Pump SQP32-25-12-86CC-12 SQP32-38-21Q-8-AA-18

XLF-SQP SQP Series SQP32 SQP42 SQP43 Single And Double Hydraulic Pump SQP32-25-12-86CC-12 SQP32-38-21Q-8-AA-18

Key attributes

Industry-specific attributes

Warranty
1 Year
Displacement
Other
Pump Type
Vane Pump

Other attributes

Showroom Location
None
Place of Origin
China
Weight
97
Brand Name
XLF
Pressure
.
Structure
.
Power
.
Dimension(L*W*H)
.
Maximum Flow Rate
.
After Warranty Service
Online support
Warranty
12 Months
Standard or Nonstandard
Standard Hydraulic
DELIVERY TIME
1-15 Days
MOQ
1 Piece

Packaging and delivery

Packaging Details
hydraulic pump parts package: Standard export wooden case or as your requirement

Port
XIAMEN

Selling Units:
Single item

Single package size:
40X40X30 cm

Single gross weight:
100.000 kg

Supply Ability

Supply Ability
2000 Set/Sets per Month

Quantity:
Availability:





Inquire Add to Basket

Model:
XLF
Brand:
SQP
Code:
VP0017

Product Description

Product Description

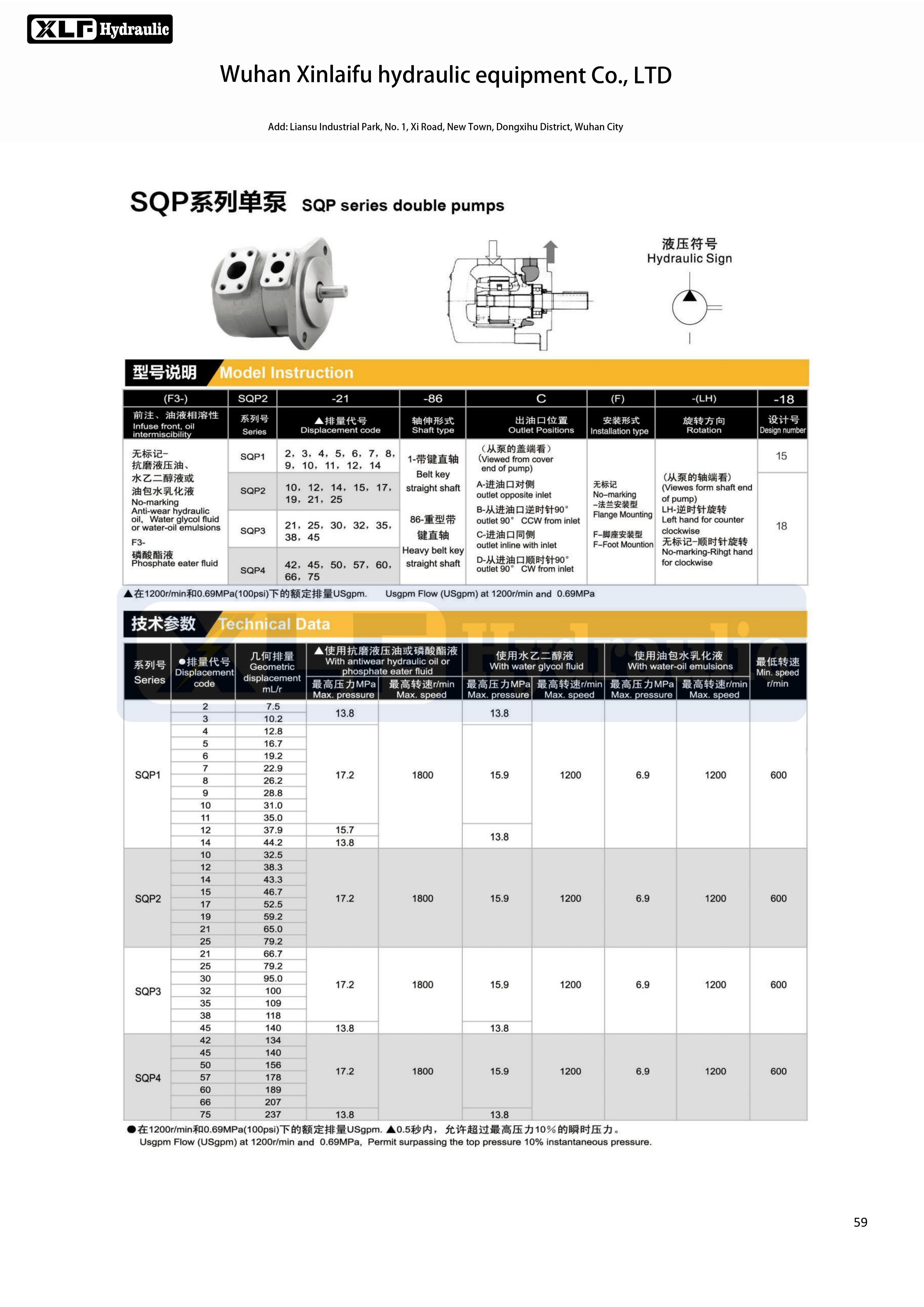

Model Instruction

前注、油液相溶性 Infuse front, oil intermiscibility	系列号 Series	排量代号 Displacement code	轴伸形式 Shaft type	出油口位置 Outlet Positions	安装形式 Installation type	旋转方向 Rotation	设计号 Design number
无标记- 抗磨液压油、水乙二醇液或油包水乳化液 No-marking Anti-wear hydraulic oil, Water glycol fluid or water-oil emulsions F3- 磷酸酯液 Phosphate eater fluid	SQP1	2.3.4.5.6.7,8. 9. 10. 11.12. 14	1-带键直轴 Belt key straight shaft 86-重型带键直轴 Heavy belt key straight shaft	（从泵的盖端看） (Viewed from cover end of pump) A-进油口对侧 outlet opposite inlet B-从进油口逆时针90° outlet 90º CCW from inlet C-进油口同侧 outlet inline with inlet D-从进油口顺时针90° outilet 90" CW from inlet	无标记 No–marking 一法兰安装型 Flange Mounting F-脚座安装型 F-Foot Mountion	（从泵的轴端看） (Viewes form shaft end of pump) LH-逆时针旋转 Left hand for counter clockwise 无标记-顺时针旋转 No-marking-Rihgt hand for clockwise	15
	SQP2	10. 12. 14. 15. 17. 19, 21, 25					18
	SQP3	21, 25, 30, 32, 35, 38, 45
	SQP4	42, 45, 50, 57, 60, 66,75

Technical Data

系列号 Series	排量代号 Displacement	几何排量 Geometric	使用抗磨液压油或磷酸酯液 With antiwear hydraulic oil or phosphate eater fluid		使用水乙二醇液 With water glycol fluid		使用油包水乳化液 With water-oil emulsions		最低转速 Min. speed r/min
	code	displacement mL/r	最高压力MPa Max. pressure	最高转速r/min Max. speed	最高压力MPa Max. pressure	最高转速r/min Max.speed	最高压力MPa Max. pressure	最高转速r/min Max. speed
SQP1	2	7.5	13.8	1800	13.8	1200	6.9	1200	600
	3	10.2
	4	12.8	17.2		15.9
	5	16.7
	6	19.2
	7	22.9
	8	26.2
	9	28.8
	10	31
	11	35
	12	37.9	15.7		13.8
	14	44.2	13.8
SQP2	10	32.5	17.2	1800	15.9	1200	6.9	1200	600
	12	38.3
	14	43.3
	15	46.7
	17	52.5
	19	59.2
	21	65
	25	79.2
SQP3	21	66.7	17.2	1800	15.9	1200	6.9	1200	600
	25	79.2
	30	95
	32	100
	35	109
	38	118
	45	140	13.8		13.8
SQP4	42	134	17.2	1800	15.9	1200	6.9	1200	600
	45	140
	50	156
	57	178
	60	189
	66	207
	75	237	13.8		13.8
