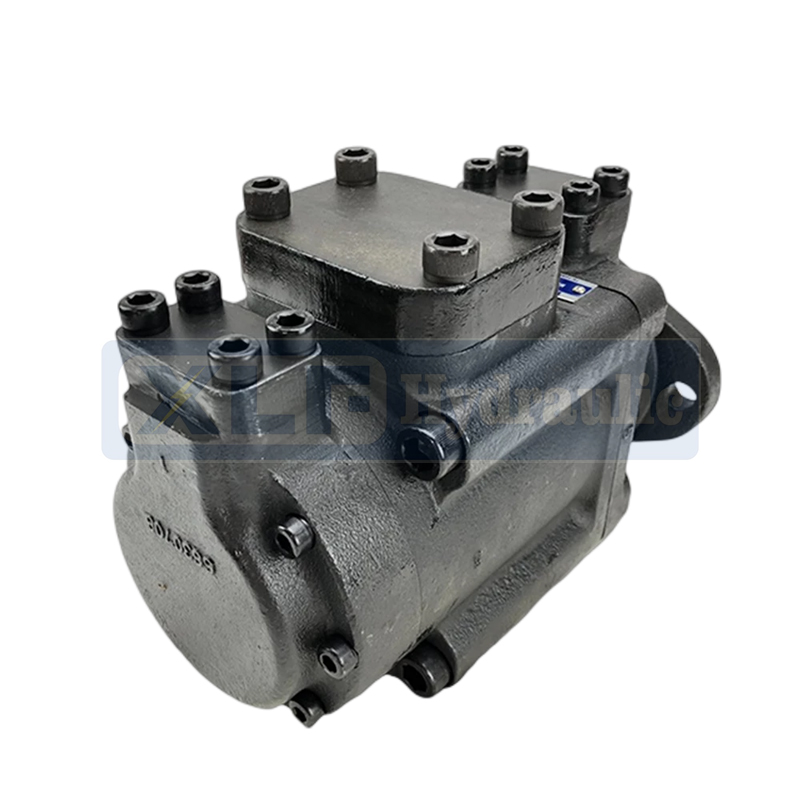

PFED
XLF
VP0015
PFED- | 4131 | 045/ | 022/ | 1 | D | TO |
PFE系列 定量叶片泵 PEF series fixed displacement vane pump | 系列号 Series | 双联泵大排量侧 几何排量(mlr) Double pump larger displacement volume side geometric displacement(ml/r) | 双联泵小排量侧 几何排量(ml/r) Double pump smaller displacement volume side geometric displacement(ml/r) | 轴伸型式 Shaft type | 旋向 (从轴端看) Direction of rotation (viewed from shaft end) | 油口位置 Port orientation |
PFED: 双联泵系列 PFED: double pump series | 3121 | 16、22、28、36、44 | 5、6、8、10、12、16 | 1一圆柱形轴伸(标准型) Cylindrical type (standard) 2一圆柱形轴伸 (ISO/DIS3019) Cylindrical type (ISO/DIS3019) 3一圆柱形轴伸 Cylindrical type(high torque) 5-花键轴伸 Splined type 6一花键轴伸 Splined type | D:顺时针 CW S:逆时针 CCW | 见油口位置示意图【进 口与两个出口共有TO (标准)、VG、等32组 位置关系】 See port orientation table [ inlet and two outlet ports can be oriented in any of thirty two relative positions: TO,VG] |
4121 | 29、37、45、56、70、85 | 5、6、8、10、12、16 | ||||
4131 | 29、37、45、56、70、85 | 16、22、28、36、44 | ||||
5121 | 90、 110、 129、150 | 5、6、8、10、12、16 | ||||
5131 | 90、110、129、150 | 16、22、28、36、44 | ||||
5141 | 90、 110、 129、 150 | 29、37、45、56、70、85 | ||||
Technical Data
系列号 Series | A | B1 | B2 | C | φD | E1 | E2 | E3 | H | L | φN | Q |
PFED-3121 | 210 | 87.5 | 74.5 | 27.5 | 82.5 | 70 | 82.6 | 70 | 6.4 | 106 | 95 | 11.1 |
PFED-4121 | 237 | 101.6 | 76.9 | 38 | 101.6 | 76.2 | 84 | 76.2 | 9.7 | 146 | 120 | 14.3 |
PFED-4131 | 254 | 101.6 | 88.1 | 38 | 101.6 | 76.2 | 84 | 76.2 | 9.7 | 146 | 120 | 14.3 |
PFED-5121 | 248.5 | 106.6 | 83.4 | 38 | 127 | 82.6 | 89 | 76.2 | 12.7 | 181 | 148 | 17.5 |
PFED-5131 | 270.1 | 111.9 | 91.7 | 38 | 127 | 82.6 | 89 | 76.2 | 12.7 | 181 | 148 | 17.5 |
PFED-5141 | 290 | 114.3 | 109.5 | 38 | 127 | 82.6 | 89 | 74.7 | 12.7 | 181 | 148 | 17.5 |
系列号 Series | φS | U1 | U2 | U3 | φW1 | φW2 | φW3 | J1 | J2 | J3 | X1 | X2 | ×3 | φY |
PFED-3121 | 114 | 38.1 | 77.8 | 47.6 | 11 | 51 | 19 | 17.5 | 42.9 | 22.2 | M8×15 | M12×20 | M10×17 | 47 |
PFED-4121 | 134 | 38.1 | 77.8 | 52.4 | 11 | 51 | 25 | 17.5 | 42.9 | 26.2 | M8×15 | M12×20 | M12× 20 | 76 |
PFED-4131 | 134 | 47.6 | 89 | 52.4 | 19 | 63 | 25 | 22.2 | 50.8 | 26.2 | M10× 20 | M12× 22 | M12× 20 | 76 |
PFED-5121 | 158 | 38.1 | 89 | 58.7 | 11 | 63 | 32 | 17.5 | 50.8 | 30.2 | M8×15 | M12× 22 | M12× 20 | 76 |
PFED-5131 | 158 | 47.6 | 106.4 | 58.7 | 19 | 70 | 32 | 22.2 | 62 | 30.2 | M10×20 | M16×17 | M12× 20 | 76 |
PFED-5141 | 158 | 52.4 | 106.4 | 58.7 | 25 | 75 | 32 | 26.2 | 62 | 30.2 | M10×20 | M16×17 | M12× 20 | 76 |
To protect your rights please read the following carefully Pump Start-up Procedure Preparation Prior to Start-up The reservoir and circuit should be clean and free of dirt and debris prior to filling with fluid. Circuit Cleanup The reservoir should be charged with filtered hydraulic fluid. The fluid level should be sufficient to prevent vortexing at the suction connection to the pump inlet. It is good practice to clean the system by flushing and filtering, using an external slave pump. Filling Pump and Removing Air If the pump is mounted above the fluid level, it should be filled with fluid through the outlet port. If the pump is mounted below the fluid level, the pump outlet fitting (or other downstream fitting or plug) can be loosened to allow fluid to displace the air. It may be necessary to loosen the fill cap on the reservoir to allow the fluid to flow freely. When a solid stream of fluid with no observed air begins to drain through the loosened fitting, the fitting should be retightened. An air bleed valve in the outlet circuit is also recommended to remove trapped air. If such a device is used, the pump should be filled with fluid before start-up. In some cases, it may be possible to prime the pump by running the engine starter for five to ten seconds with the throttle and/or ignition switch in the "off" position. It will be necessary to loosen a fitting or plug in the pump outlet to allow air to escape. Pump Start-up All controls should be placed in the neutral position so the pump is unloaded when started. Start the engine and run at low idle. Once the pump is started, it should prime and pump within a few seconds. If it does not, make sure there are no restrictions between the reservoir and the inlet to the pump, and that there are no air leaks in the inlet line and connections. Also, make sure that trapped air can escape from the outlet. Run at low engine idle for approximately five minutes. Then, while observing the reservoir fluid level, operate the implements. Extend all actuators to maximum safe limits to completely fill the system with fluid. Do not run with the fluid level below the "low" limit. Add fluid to the reservoir to bring the fluid to the proper fill level.
PFED- | 4131 | 045/ | 022/ | 1 | D | TO |
PFE系列 定量叶片泵 PEF series fixed displacement vane pump | 系列号 Series | 双联泵大排量侧 几何排量(mlr) Double pump larger displacement volume side geometric displacement(ml/r) | 双联泵小排量侧 几何排量(ml/r) Double pump smaller displacement volume side geometric displacement(ml/r) | 轴伸型式 Shaft type | 旋向 (从轴端看) Direction of rotation (viewed from shaft end) | 油口位置 Port orientation |
PFED: 双联泵系列 PFED: double pump series | 3121 | 16、22、28、36、44 | 5、6、8、10、12、16 | 1一圆柱形轴伸(标准型) Cylindrical type (standard) 2一圆柱形轴伸 (ISO/DIS3019) Cylindrical type (ISO/DIS3019) 3一圆柱形轴伸 Cylindrical type(high torque) 5-花键轴伸 Splined type 6一花键轴伸 Splined type | D:顺时针 CW S:逆时针 CCW | 见油口位置示意图【进 口与两个出口共有TO (标准)、VG、等32组 位置关系】 See port orientation table [ inlet and two outlet ports can be oriented in any of thirty two relative positions: TO,VG] |
4121 | 29、37、45、56、70、85 | 5、6、8、10、12、16 | ||||
4131 | 29、37、45、56、70、85 | 16、22、28、36、44 | ||||
5121 | 90、 110、 129、150 | 5、6、8、10、12、16 | ||||
5131 | 90、110、129、150 | 16、22、28、36、44 | ||||
5141 | 90、 110、 129、 150 | 29、37、45、56、70、85 | ||||
Technical Data
系列号 Series | A | B1 | B2 | C | φD | E1 | E2 | E3 | H | L | φN | Q |
PFED-3121 | 210 | 87.5 | 74.5 | 27.5 | 82.5 | 70 | 82.6 | 70 | 6.4 | 106 | 95 | 11.1 |
PFED-4121 | 237 | 101.6 | 76.9 | 38 | 101.6 | 76.2 | 84 | 76.2 | 9.7 | 146 | 120 | 14.3 |
PFED-4131 | 254 | 101.6 | 88.1 | 38 | 101.6 | 76.2 | 84 | 76.2 | 9.7 | 146 | 120 | 14.3 |
PFED-5121 | 248.5 | 106.6 | 83.4 | 38 | 127 | 82.6 | 89 | 76.2 | 12.7 | 181 | 148 | 17.5 |
PFED-5131 | 270.1 | 111.9 | 91.7 | 38 | 127 | 82.6 | 89 | 76.2 | 12.7 | 181 | 148 | 17.5 |
PFED-5141 | 290 | 114.3 | 109.5 | 38 | 127 | 82.6 | 89 | 74.7 | 12.7 | 181 | 148 | 17.5 |
系列号 Series | φS | U1 | U2 | U3 | φW1 | φW2 | φW3 | J1 | J2 | J3 | X1 | X2 | ×3 | φY |
PFED-3121 | 114 | 38.1 | 77.8 | 47.6 | 11 | 51 | 19 | 17.5 | 42.9 | 22.2 | M8×15 | M12×20 | M10×17 | 47 |
PFED-4121 | 134 | 38.1 | 77.8 | 52.4 | 11 | 51 | 25 | 17.5 | 42.9 | 26.2 | M8×15 | M12×20 | M12× 20 | 76 |
PFED-4131 | 134 | 47.6 | 89 | 52.4 | 19 | 63 | 25 | 22.2 | 50.8 | 26.2 | M10× 20 | M12× 22 | M12× 20 | 76 |
PFED-5121 | 158 | 38.1 | 89 | 58.7 | 11 | 63 | 32 | 17.5 | 50.8 | 30.2 | M8×15 | M12× 22 | M12× 20 | 76 |
PFED-5131 | 158 | 47.6 | 106.4 | 58.7 | 19 | 70 | 32 | 22.2 | 62 | 30.2 | M10×20 | M16×17 | M12× 20 | 76 |
PFED-5141 | 158 | 52.4 | 106.4 | 58.7 | 25 | 75 | 32 | 26.2 | 62 | 30.2 | M10×20 | M16×17 | M12× 20 | 76 |
To protect your rights please read the following carefully Pump Start-up Procedure Preparation Prior to Start-up The reservoir and circuit should be clean and free of dirt and debris prior to filling with fluid. Circuit Cleanup The reservoir should be charged with filtered hydraulic fluid. The fluid level should be sufficient to prevent vortexing at the suction connection to the pump inlet. It is good practice to clean the system by flushing and filtering, using an external slave pump. Filling Pump and Removing Air If the pump is mounted above the fluid level, it should be filled with fluid through the outlet port. If the pump is mounted below the fluid level, the pump outlet fitting (or other downstream fitting or plug) can be loosened to allow fluid to displace the air. It may be necessary to loosen the fill cap on the reservoir to allow the fluid to flow freely. When a solid stream of fluid with no observed air begins to drain through the loosened fitting, the fitting should be retightened. An air bleed valve in the outlet circuit is also recommended to remove trapped air. If such a device is used, the pump should be filled with fluid before start-up. In some cases, it may be possible to prime the pump by running the engine starter for five to ten seconds with the throttle and/or ignition switch in the "off" position. It will be necessary to loosen a fitting or plug in the pump outlet to allow air to escape. Pump Start-up All controls should be placed in the neutral position so the pump is unloaded when started. Start the engine and run at low idle. Once the pump is started, it should prime and pump within a few seconds. If it does not, make sure there are no restrictions between the reservoir and the inlet to the pump, and that there are no air leaks in the inlet line and connections. Also, make sure that trapped air can escape from the outlet. Run at low engine idle for approximately five minutes. Then, while observing the reservoir fluid level, operate the implements. Extend all actuators to maximum safe limits to completely fill the system with fluid. Do not run with the fluid level below the "low" limit. Add fluid to the reservoir to bring the fluid to the proper fill level.
