XLF Low Pressure Double Vane Pump VP20-20-FA3 /VP30-30-FA3 /VP40-40-FA3 Hydraulic Pump

Specification

item	value
Warranty	1 Year
After Warranty Service	Video technical support, Online support
Local Service Location	None
Showroom Location	None
Brand Name	LUOSHENG
Place of Origin	China
After-sales Service Provided	Online support
Displacement	Other
Pump Type	Vane Pump
Product name	Hydraulic Pump
Pressure	High Pressure
Theory	Axial Flow Pump
Application	Machinery
Material	cast iron
Color	Black
Type	Fittings

Quantity:
Availability:





Inquire Add to Basket

Model:
VP20-20-FA3 /VP30-30-FA3 /VP40-40-FA3
Brand:
XLF
Code:
VP0010

Product Description

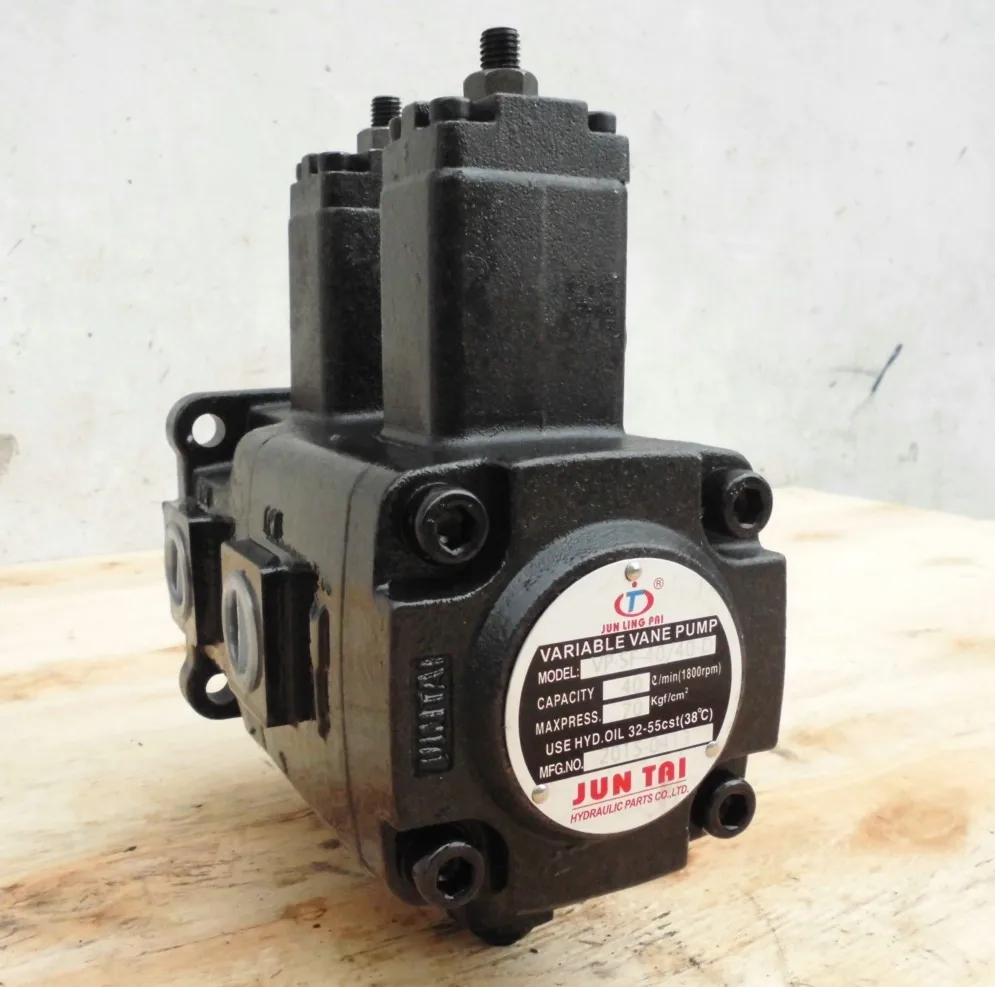

low pressuie variable displacement Double vane pump make in china

Low pressure variable displacement Double Vane Pump make in china

Characteristic:

1, use precision machining technology, can automaticly adjust displacement and complement under setting pressure. decrease the loss of load power ,high efficiency , low temperature , energy saving.

2, low noise, response promptly, high efficiency and steady operation.

3, simple structure, simple operation, easy to maintain.

4, include adjusting screw, can adjust the displacement and pressure randomly, widely apply for lathe machine and show making machine,etc.

5, long working life, steady structure, small volume, can connect with motor directly, save space, durability and so on.

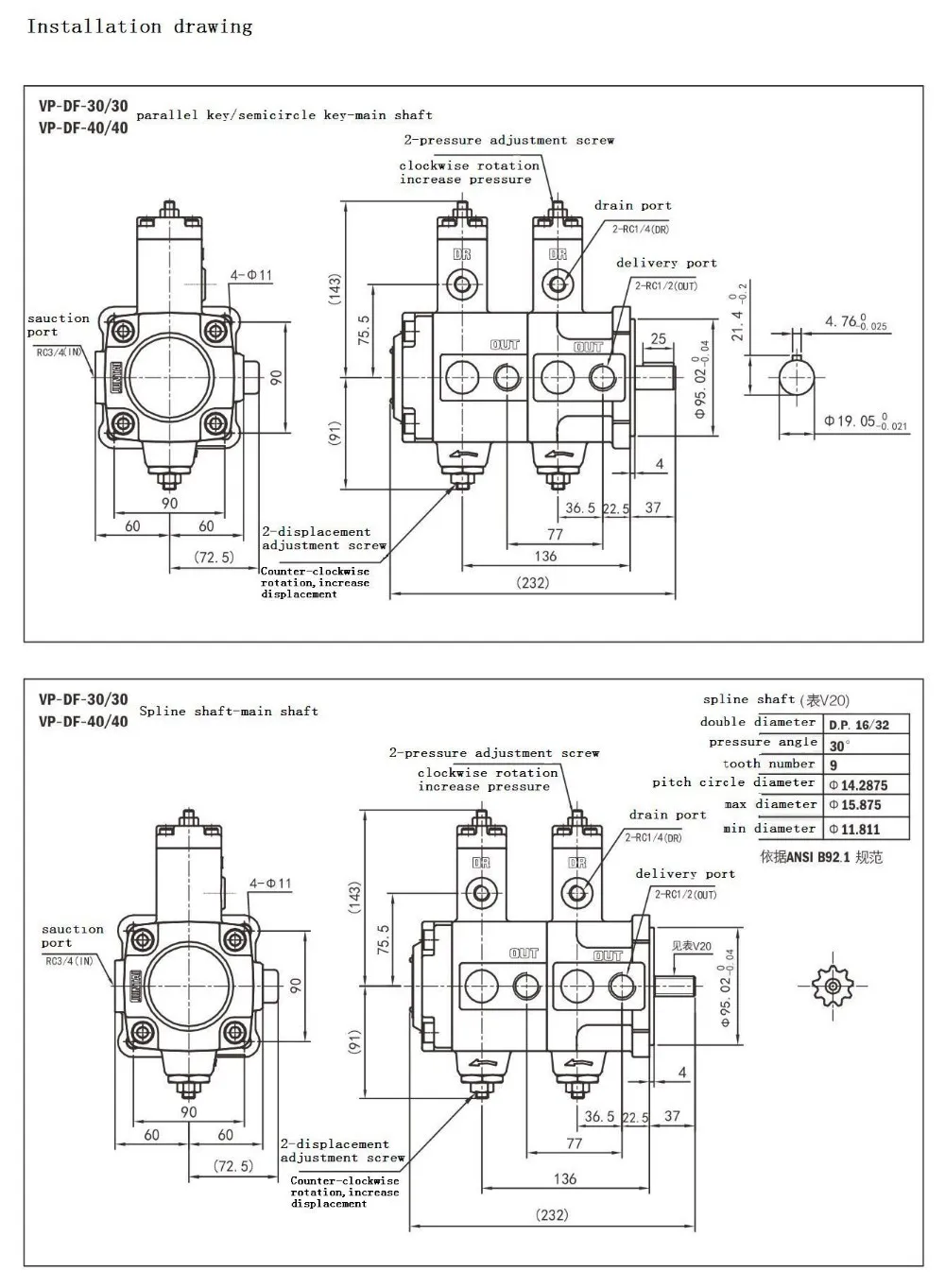

Installation drawing

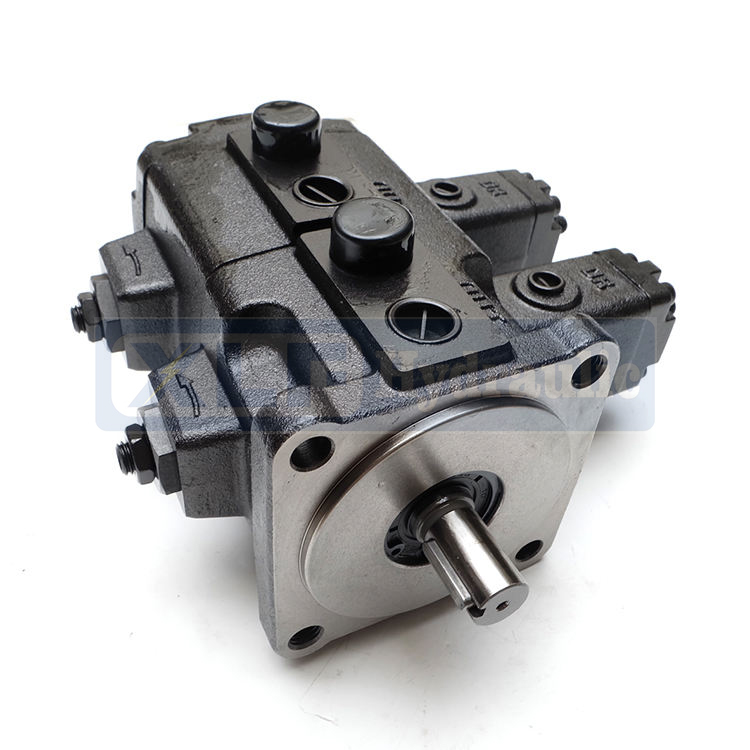

Low pressure variable displacement Double Vane Pump make in china
