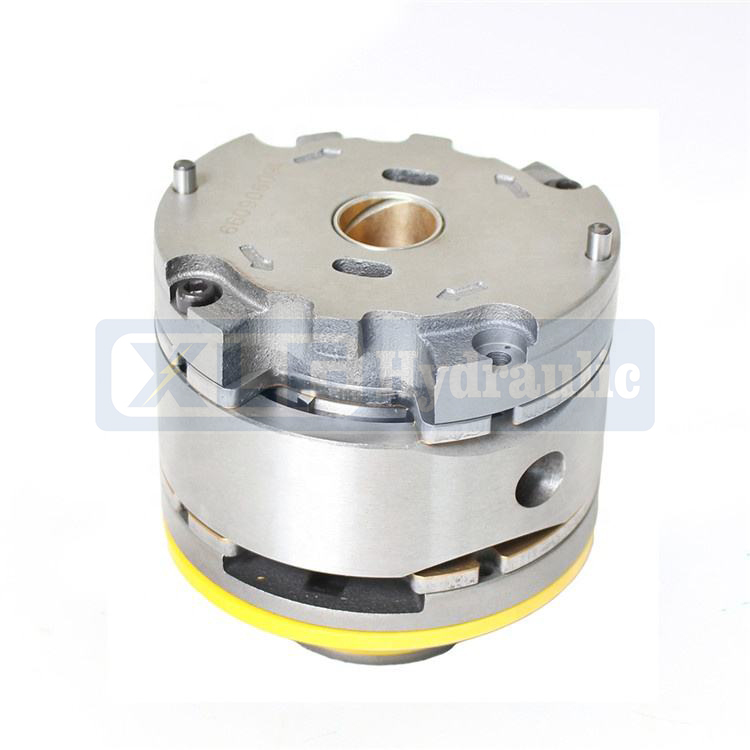

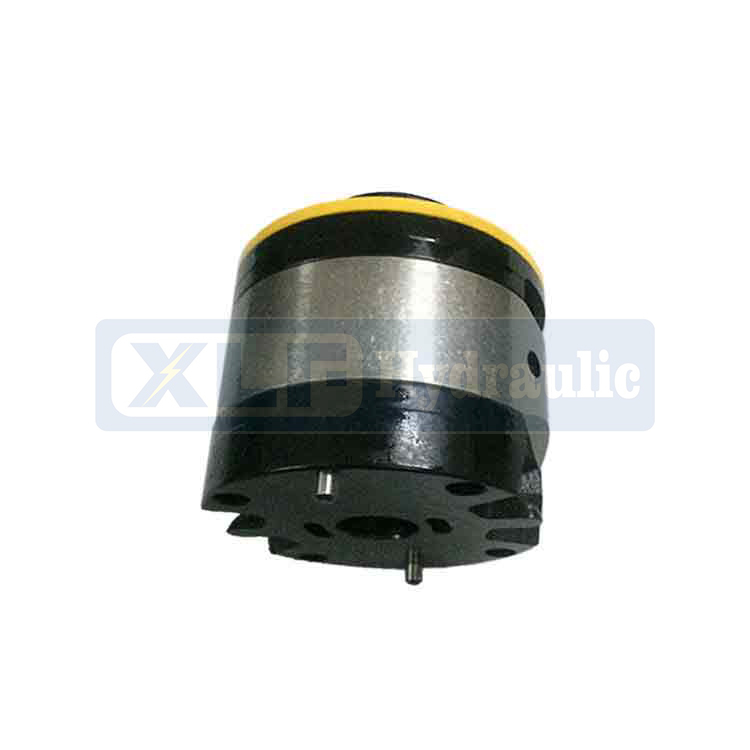

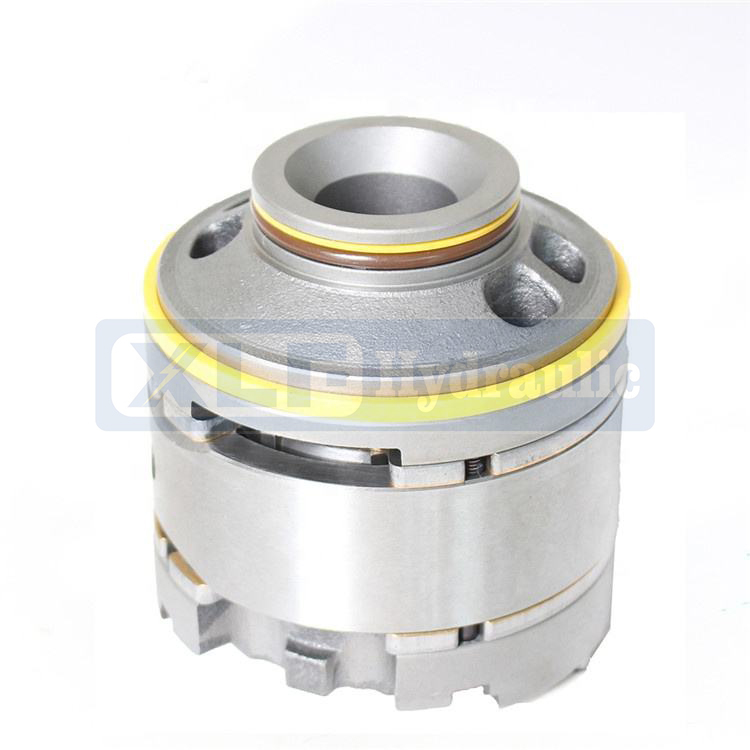

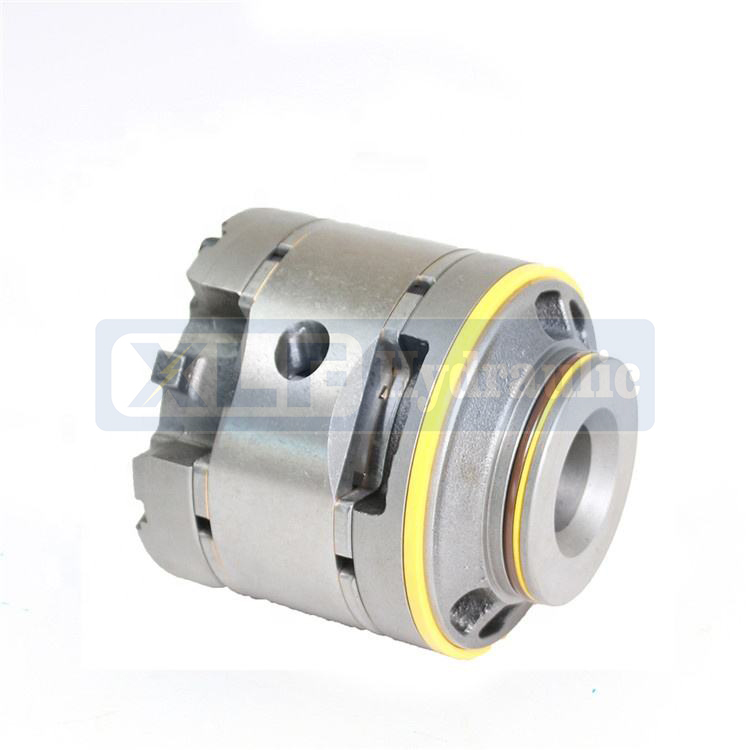

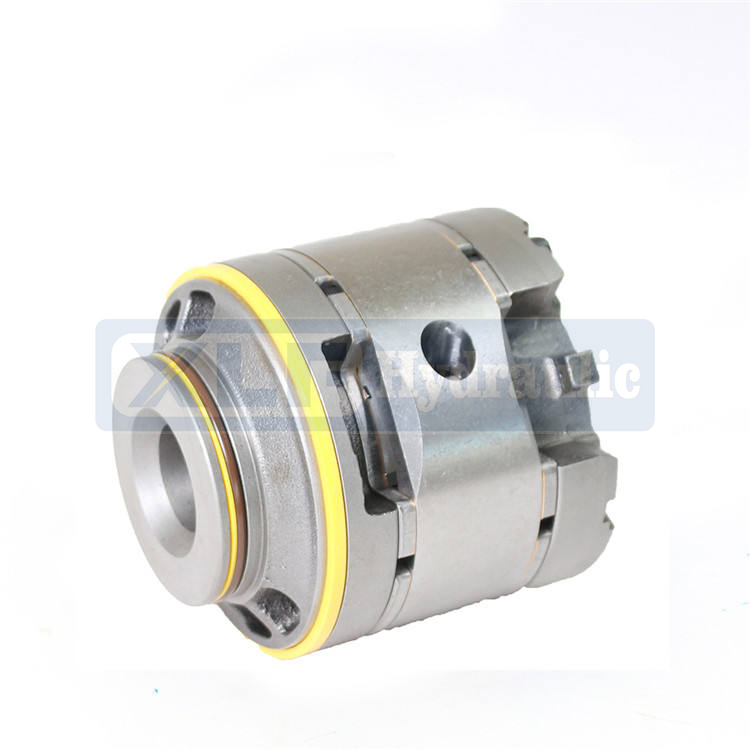

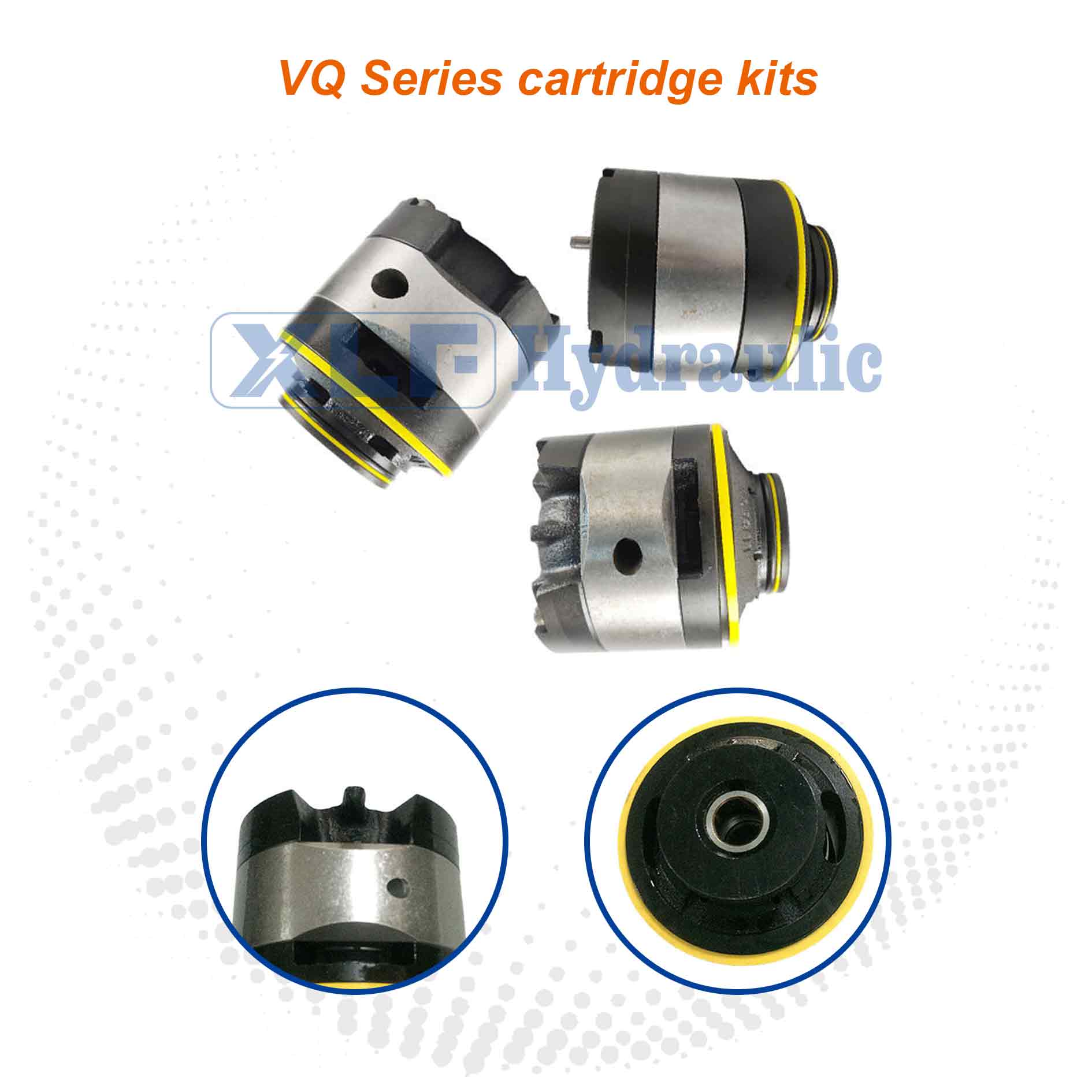

XLF-VQ VQ Series Cartridge for Vane pumps 28VQH 30VQ Cartridge kits

Key attributes

Industry-specific attributes

Warranty
1 Year
Displacement
Other
Pump Type
Cartridge kits

Other attributes

Showroom Location
None
Place of Origin
Fujian, China
Weight
30
Brand Name
XLF
Pressure
Hydraulic
Structure
standard
Power
30
Dimension(L*W*H)
standard
Maximum Flow Rate
standard
Standard or Nonstandard
Standard
MOQ
1 Piece
Delivery time
1-15days
Shipment
Support Express . Sea freight . Land freight .Air freight
After Warranty Service
Video technical support
After-sales Service Provided
Online support
Payment Terms
TT\Western Union\ Trade Assurance
Material
Cast Iron

Quantity:
Availability:





Inquire Add to Basket

Model:
VQ KIT
Brand:
XLF
Code:
VP0027

Product Description

Product Description

Technical data

前注 Note	泵芯标记 Cartridge mark	系列号Series	排量代号Flow code	旋转方向Rotation	设计号 Design number
无标记No-marking	PC-单泵泵芯双联泵轴端泵芯 Cartridge kit of single pump double pump shaft end PCT-双联泵盖端泵芯 Cartridge kit of double pump cover end	20VQ	2、3、4、5、6、7、 8、 9、 10. 11、 12、 14	（从泵的轴端看） (Viewed from cover end of pump) R-顺时针旋转 R-Right hand for clockwise L-逆时针旋转 L-Left hand for clockwise	10
石油系油 Petroleum series oil
		25VQ	10、12、 14、 15、 17、 19、 21、25
乳化液 emulsification fluid
水-乙二醇 water glycol-fluid		35VQ	21、 25、 30、 32、 35、38、 45
F3:磷酸酯液
F3: phosphate ester		45VQ	42、 45、 50、 57、 60、66、75
fluid

系列号Series	DA	B	C	中D	E	OF	OG	H	K	M（挡圈）Gasket	N（O形圈）O-Ring
20VQ	82.55	81.5	70.1	47.2	61.5	4.8	76.2	7	73.8	82.76×76.26×3.5	40×3.55
25VQ	96.8	98.8	87	52.2	71.2	4.8	90.5	7	88.19	97×91×3.5	44×3.53
35VQ	114.3	117.7	105	72.2	90.3	6.4	108	7	103.94	114.5×108.5×3.5	63.09×3.53
45VQ	133.35	141.1	129.6	80.2	105.5	6.4	127	11	123.8	133.6×127.6×3.5	71×3.55
