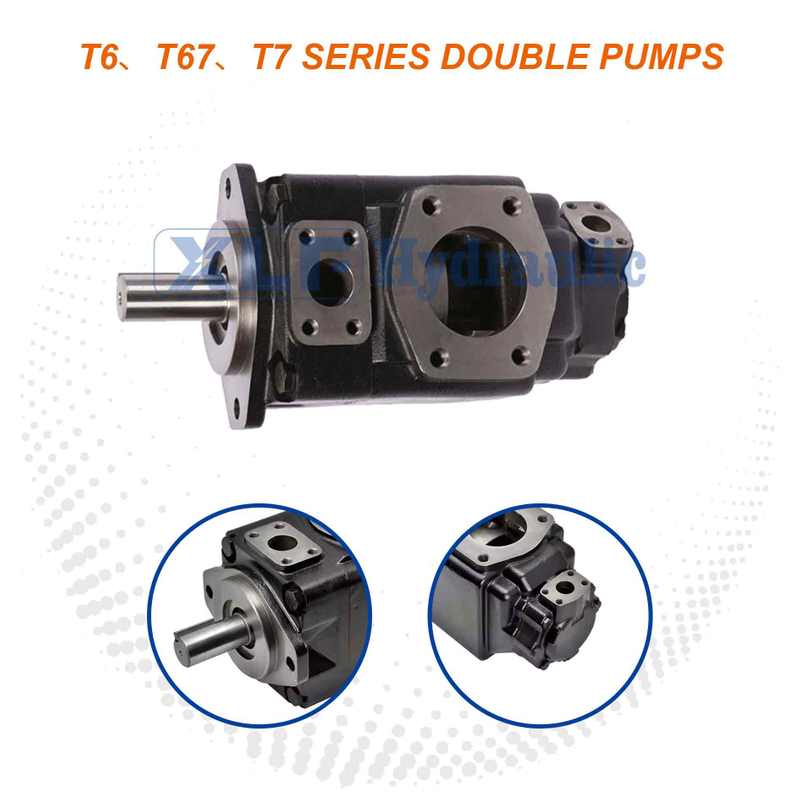

XLF-T6 T7 Double Pump Hydraulic T6 T7 Double Pump Triple Pump High Pressure Hydraulic Single Steering Vane Two Way Hydraul Pump

XLF-T6 T7 Double Pump Hydraulic T6 T7 Double Pump Triple Pump High Pressure Hydraulic Single Steering Vane Two Way Hydraul Pump

Key attributes

Industry-specific attributes

Warranty
1 Year
Displacement
Other
Pump Type
Vane Pump

Other attributes

Showroom Location
None
Place of Origin
Zhejiang, China
Weight
75
Pressure
/
Structure
/
Power
/
Dimension(L*W*H)
44*26*25
Maximum Flow Rate
/
Type
Hydrulaic Vane Pump
Warranty
12 months
Product name
T7 Vane Pumps
Material
cast iron
Pressure
29Mpa
Application
Construction Machinery
Usage
Hydraulic Machinery Industry
MOQ
2pcs
Standard or Nonstandard
Standad
Package
Carton Box

Quantity:
Availability:





Inquire Add to Basket

Model:
T6\T7Double Pump
Brand:
XLF
Code:
VP0021

Product Description

Product Description

Installation Dimensions

油口/Oil port			法兰 Flange	安装尺寸/Install Dimension(mm)
油口/Oil port			法兰 Flange	A1	B1	中C1	D1	T1口螺纹Thread
T6CC	P1	1*	FO8	26.2	52.4	25.4	76.2	3/8*-16UNCx19.0
	P2	01&11: 3/4*	F06	22.2	47.6	19	76.2	3/8"-16UNCx19.0
	P2	00&10: 1*	F08	26.2	52.4	25.4	74.7	3/8"-16UNCx19.0
	S	10&11:2-1/2*	F20	50.8	88.9	63.5	84.1	1/2°-13UNC×23.9
	S	00801: 3*	F24	61.9	106.4	76.2	84.1	5/8"-11UNC×28.4
T6DC	P1	00801: 1-1/4*	F10	30.2	58.7	31.8	82.6	7/16*-14UNC×22.3
	P1	M1:1-1/4*	F10	30.2	58.7	31.8	82.6	M12×22.3
	P2	01: 3/4*	F06	22.2	47.6	19	74.7	3/8*-16UNCx19.0
		00: 1*	FO8	26.2	52.4	25.4	74.7	3/8*-16UNCx19.0
		M1: 3/4'	F06	22.2	47.6	19	74.7	M10×19
	S	00801: 3'	F24	61.9	106.4	76.2	88.9	5/8"-11UNCx28.4
	S	M1: 3*	F24	61.9	106.4	76.2	88.9	M16×29
T6EC	P1	1-1/2*	F12	35.7	69.9	38.1	98.6	1/2*-13UNC×23.4
	P2	1"	FO8	26.2	52.4	25.4	74.7	3/8*-16UNCx19.0
	S	3-1/2*	F28	69.9	120.7	88.9	102.4	5/8*-11UNCx29.5
T6ED	P1	1-1/2*	F12	35.7	69.9	38.1	98.6	1/2"-13UNCx23.4
	P2	1-1/4*	F10	30.2	58.7	31.8	82.6	7/16"-14UNC×24.0
	S	4*	F32	77.8	130.2	101.6	102.4	5/8"-11UNC×30.0
T6EE(S)	P1	1-1/2*	F12	35.7	69.9	38.1	139.7	1/2"-13UNC×30
	P2	1-1/2*	F12	35.7	69.9	37.1	98.6	1/2°-13UNC×23.4
	S	4*	F32	77.8	130.2	101.6	115	5/8"-11UNC×30

油口/Oil port			法兰 Flange	安装尺寸/Install Dimension(mm)
油口/Oil port			法兰 Flange	A1	B1	OC1	D1	T1口螺纹Thread
T7BB(S)	P1	01: 3/4"	F06	22.2	47.6	19	76.2	3/8"-16UNC×19.0
	P1	00:1'	F08	26.2	52.4	25.4	76.2	3/8"-16UNC×19.0
	P2	3/4*	F06	22.2	47.6	19	76.2	3/8"-16UNC×19.0
	S	2-1/2*	F20	50.8	88.9	63.5	84.1	1/2"-13UNC×23.9
T7DB(S)	P1	01:1-1/4*	F10	30.2	58.7	31.8	82.6	7/16"-14UNC×22.3
	P1	M1: 1-1/4"	F10	30.2	58.7	31.8	82.6	M12×22.3
	P2	01: 3/4*	F06	22.2	47.6	19	74.7	3/8“-16UNCx19.0
		00:1*	FO8	26.2	52.4	25.4	74.7	3/8“-16UNCx19.0
		M1:3/4*	F06	22.2	47.6	19	74.7	M10×19
	S	3*	F24	61.9	106.4	76.2	88.9	5/8"-11UNCx29
	S	M1: 3*	F24	61.9	106.4	76.2	88.9	M16×29
T7EB(S)	P1	1-1/2*	F12	35.7	69.9	38.1	98.6	1/2"-13UNCx23.4
	P2	3/4*	F06	22.2	47.6	19	74.7	3/8"-16UNCx19.0
	S	3-1/2*	F28	69.9	120.7	88.9	102.4	5/8"-11UNCx29.5
T67CB	P1	1"	FO8	26.2	52.4	25.4	76.2	3/8"-16UNCx19.0
	P2	3/4*	F06	22.2	47.6	19	76.2	3/8"-16UNCx19.0
	S	2-1/2*	F20	50.8	88.9	63.5	84.1	1/2"-13UNCx23.9
T67DB	P1	1-1/4*	F10	30.2	58.7	31.8	82.6	7/16*-14UNC×22.3
	P2	3/4*	F06	22.2	47.6	19	76.2	3/8"-16UNC×19.0
	S	3*	F24	61.9	106.4	76.2	88.9	5/8"-11UNCx24.0
T67EB	P1	1-1/2*	F12	35.7	69.9	38.1	98.6	1/2"-13UNCx23.4
	P2	3/4*	F06	22.2	47.6	19	74.7	3/8"-16UNCx19.0
	S	3-1/2*	F28	69.9	120.7	88.9	102.4	5/8"-11UNC×24.0

油口/Oil port			法兰 Flange	安装尺寸/Install Dimension(mm)
油口/Oil port			法兰 Flange	A1	B1	C1	D1	T1口螺纹Thread
T7DD(S)	P1	1-1/4*	F10	30.2	58.7	31.8	101.6	7/16*-14UNC×22.3
	P2	1-1/4*	F10	30.2	58.7	31.8	101.6	7/16"-14UNC×24
	S	4	F32	77.8	130.2	101.6	114.9	5/8"-11UNCx30
T7ED(S)	P1	1-1/2*	F12	35.7	69.9	37.1	98.6	1/2"-13UNC×23.4
	P2	1-1/4*	F10	30.2	58.7	31.8	101.6	7/16"-14UNC×24
	S	4*	F32	77.8	130.2	101.6	102.4	5/8"-11UNC×30
T7EE(S)	P1	2001-1-2	F12	35.7	69.9	38.1	139.7	1/2"-13UNC×30
	P2	1-1/2*	F12	35.7	69.9	37.1	98.6	1/2"-13UNC×23.4
	S	4"	F32	77.8	130.2	101.6	115	5/8"-11UNCx30
T67DC	P1	1-1/4"	F10	30.2	58.7	31.8	82.6	7/16*-14UNC×22.3
	P2	1"	FO8	26.2	52.4	25.4	74.7	3/8"-16UNC×19.0
	S	3*	F24	61.9	106.4	76.2	88.9	5/8"-11UNC×28.5
T67EC	P1	1-1/2*	F12	35.7	69.9	37.1	98.6	1/2"-13UNC×23.4
	P2	1"	FO8	26.2	52.4	25.4	74.7	3/8"-16UNC×19.0
	S	3-1/2*	F28	69.9	120.7	88.9	102.4	5/8"-11UNC×29.5

Technical Data

型号Model	轴伸代号Shaft code	最大扭矩Max torque(N.m)	L1	L2	DIA	K1xK2	H1	M1
T7BB	5		70	40	25.006/24.993	8.00×7.00		28.22
T7BBS	1	238	58.2	31.7	22.225/22.200	4.76x4.71		24.53
	2	357	71.4	38.1	25.400/25.370	6.35×6.30		28.22
	3		40.7	24.5			SAE J498b 1级，径节16/32,13牙 SAEJ498b class 1,Diametral pitch 16/32,13T
			45.5	24.5			SAEJ498b 1级,径节16/32,15牙 SAE J498b class 1,Diametral pitch 16/32,15T
T7DB	5		87.9	50	32.018/32.002	10.00×8.00		35
T7DBS	1		83.6	49.3	31.75/31.70	7.94×7.89		35.27
	2		73.2	38.1	31.75/31.70	7.94×7.89		35.27
	3		55.2	38	SAE J498b 1级,程节12/24,14牙 SAE J498b ciass 1,Diametral pitch 12/24,14T
	4		77.7	48.02	SAEJ498b 1级,程节12/24,14牙 SAE J498b class 1,Diametral pitch 12/24,14T
T7DD	5		68	50	31.018/32.002	10.00×8.00		35
T7DDS	1		84	49.3	31.75/31.70	7.94x7.89		35.27
	2		91	50.8	38.10/38.05	9.52x9.47		40.36
	3		56	38	SAE J498b 1级，径节12/24,14牙 SAE J498b class 1,Diametral pitch 12/24,14T
	4		46	24.5			SAE J498b 1假,径节16/32, 15牙 SAE J498b class 1,Diametral pitch 16/32,15T
T7EB、T7ED	5		90	50	38.018/38.002	10.00xB.00		41.3
T7EBS. T7EDS	1		90.9	50.8	38.10/38.05	9.52×9.47		42.36
	2		61.9	38.1	31.75/31.70	7.94×7.89		35.27
	3		55.9	38.1	SAEJ498b1假,径节12/24,14牙 SAE J498b class 1,Diametral pitch12/24,14T
	4		62.2	31.5	SAE J498b 1假,径节12/24,17牙 SAE J498b class1,Diametral pitch 12/24,17T
T7EE	2		92	63	45.000/44.975	14.00x9.00		48.5
T7EES	1		90.9	63.5	38.100/38.075	9.52×9.47		42.36
	3		62.2	31.5				SAE J496b 1假，径节12/24,17牙 SAE J49Bb class 1,Diametral pitch 12/24,17T
	4		75	48.8	SAEJ498b1级，径节8/16，13牙			SAE J498b class 1,Dlametral pitch 8/16,13T
T67CB. T6CC	1	238	58.2	31.7	22.225/22.200	4.76x4.71		24.53
	2	357	71.4	38.1	25.400/25.370	6.35×6.30		28.22
	3	545	45.5	24.5	SAE J498b 1级,程节16/32, 15牙 SAE J498b class 1,Diametral pitch 16/32.15T
	5	343	40.7	24.5	SAE J498b 1镊.径节16/32,13牙 SAEJ498b class 1,Diametral pitch 16/32,13T
T67DB T67DC. T6DC	1	721	83.6	49.3	31.750/31.700	7.94×7.89		35.27
	2	577	73.2	38.1	31.750/31.700	7.94×7.89		35.27
	3		55.2	38	SAE J498b 1假,径节 12/24, 14牙 SAE J498b dlass 1,Diametral pitch 12/24,14T
	4		77.7	48	SAEJ498b1级,径节12/24,14牙 SAEJ498b class 1,Diametral pitch 12/24,14T
	5		83.4	60	34.900/34.875	7.94x7.89		38.42
T67EB、 T67EC、 T6EC. T6ED	1		90.9	50.8	38.100/38.050	9.52×9.47		42.36
	2	577	61.9	38.1	31.750/31.700	7.94x7.89		35.27
	3		55.7	38	SAEJ498b1级,径节12/24,14牙 SAEJ498b class 1,Diametral pitch 12/24,14T
	4		62.2	31.5			SAE J498b 1级,径节12/24, 17牙 SAE J498b class 1,Diametral pitch 12/24,17T
