XLF-SQP SQP SQP21 SQP31 SQP32 SQP41 SQP42 SQP43 Double Vane Pump SQP32-30-12-86BB-18

Key attributes

Industry-specific attributes

Warranty
1 Year
Displacement
Other
Pump Type
Vane Pump

Other attributes

Showroom Location
None
Place of Origin
Zhejiang, China
Weight
80
Pressure
/
Structure
/
Power
/
Dimension(L*W*H)
41.5*26*24cm
Maximum Flow Rate
/
Type
Hydrulaic Vane Double Pump
Product name
SQP Vane Pump
Pressure
21Mpa
Material
Cast-iron
Model
SQP21,SQP31 SQP32,SQP41,SQP42,SQP43
Power
Hydrulic
Application
Construction Machinery
Usage
for Shoe Machinery
Standard or Nonstandard
Standad
Package
Carton Box+Wooden Box

Quantity:
Availability:





Inquire Add to Basket

Model:
SQP
Brand:
XLF
Code:
VP0018

Product Description

Product Description

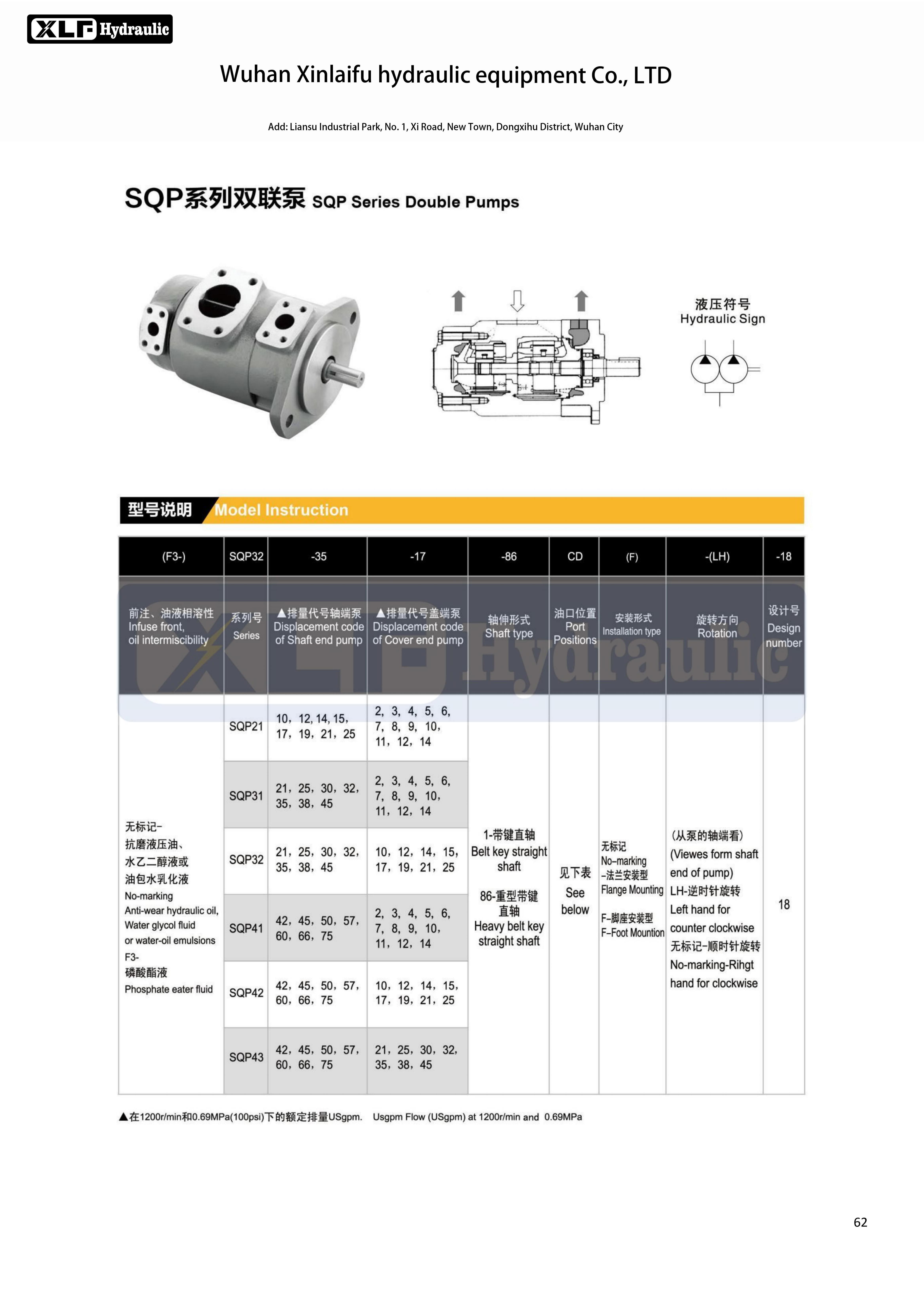

Model Instruction

(F3-)	SQP32	-35	-17	-86	CD	(F)	(LH)	设计号 Design number
前注、油液相溶性 Infuse front. oil intermiscibility	系列号 Series	排量代号轴端泵 Displacement code of Shaft end pump	排量代号盖端泵 Displacement code of Cover end pump	轴伸形式 Shaft type	油口位置 Port Positions	安装形式 instalafion Iype	旋转方向 Rotation	18
无标记- 抗磨液压油、水乙二醇液或油包水乳化液 No-marking Anti-wear hydraulic oil,. Water glycol fiuid or water-oil emulsions F3- 磷酸磞液 Phosphate eater fluid	SQP21	10, 12,14,15, 17. 19. 21. 25	2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 14	1-带键直轴 Belt key straight shafft 86-重型带键直轴 Heavy belt key straight shaft	见下表 See below	无标记 No-marking -法兰安装型 Flange Mounting F-脚座安装型	（从泵的轴端看） end of pump) LH-逆时针旋转 Left hand for counter clockwise No-marking-Rihgt
	SQP31	21. 25. 30. 32. 35. 38. 45	2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 14
	SQP32	21, 25, 30, 32. 35, 38. 45	10. 12. 14. 15, 17. 19. 21. 25
	SQP41	42, 45, 50, 57, 60. 66.75	2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 14
	SQP42	42. 45, 50. 57, 60, 66,75	10. 12. 14. 15. 17, 19, 21. 25
	SQP43	42, 45, 50, 57, 60,66,75	21, 25, 30, 32. 35, 38, 45

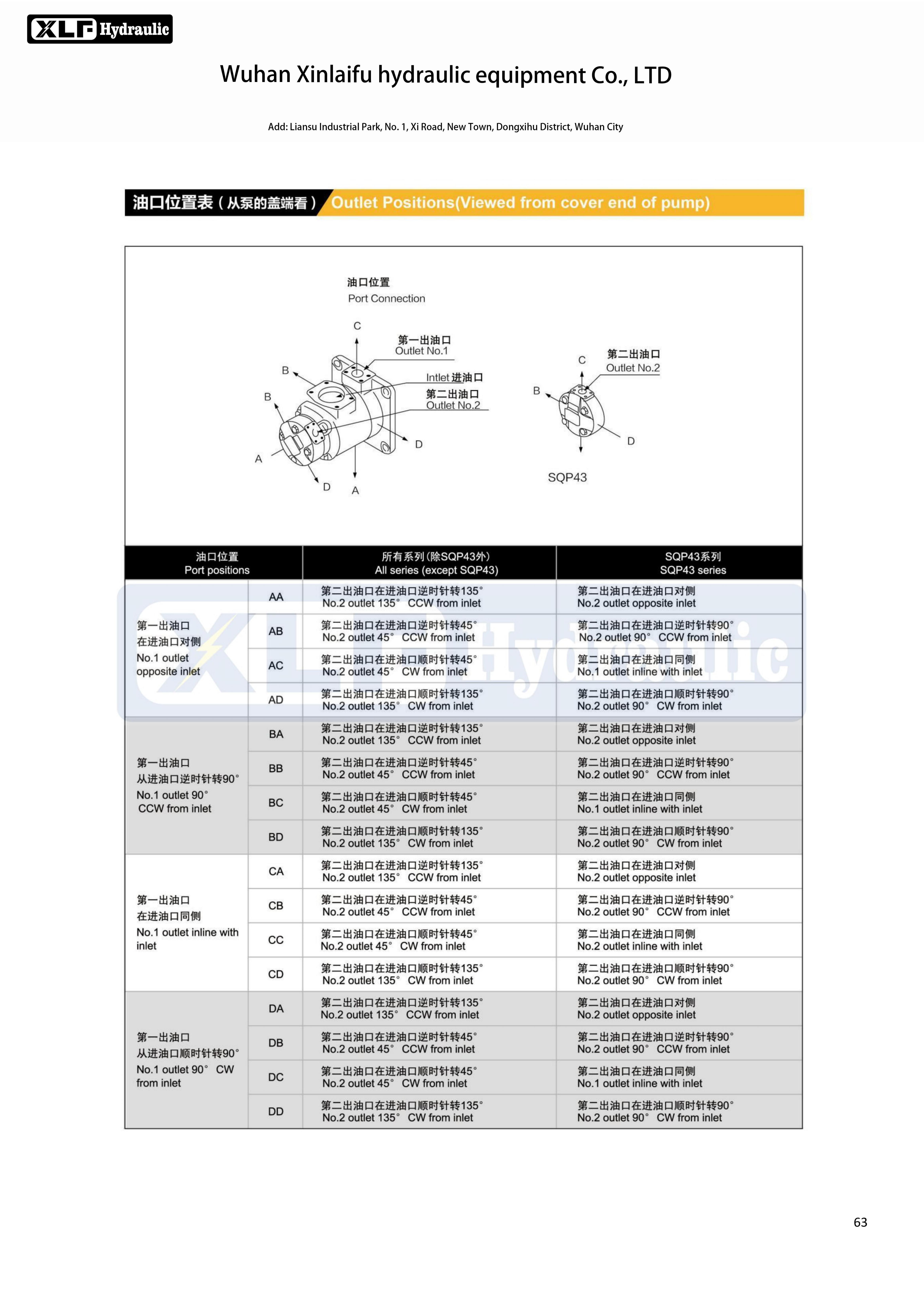

Outlet Positions(Viewed from cover end of pump)

油口位置Port positions	所有系列(除SQP43外)All series (except SQP43)	SQP43系列SQP43 series
第一出油口在进油口对侧 No.1 outlet opposite inlet	AA	第二出油口在进油口逆时针转135° No.2 outlet 135* CCW from inlet
	AB	第二出油口在进油口逆时针转45” No.2 outlet 45* CCW from inlet
	AC	第二出油口在进油口顺时针转45” No.2 outlet 45* CW from inlet
	AD	第二出油口在进油口顺时针转135” No.2 outlet 135* CW from inlet
第一出油口从进油口逆时针转90 No.1 outlet 90" CCW from inlet	BA	第二出油口在进油口逆时针转135” No.2 outlet 135* CCW from inlet
	BB	第二出油口在进油口逆时针转45 No.2 outlet 45* CCW from inlet
	BC	第二出油口在进油口顺时针转45 No.2 outlet 45" CW from inlet
	BD	第二出油口在进油口顺时针转135” No.2 outlet 135* CW from inlet
第一出油口在进油口同侧 No.1 outlet inline with inlet	CA	第二出油口在进油口逆时针转135 No.2 outlet 135* CCW from inlet
	CB	第二出油口在进油口逆时针转45 No.2 outlet 45* CCW from inlet
	C	第二出油口在进油口顺时针转45 No.2 outlet 45" CW from inlet
	CD	第二出油口在进油口顺时针转135* No.2 outlet 135* CW from inlet
第一出油口从进油口顺时针转90 No.1 outiet 90" CW from inlet	DA	第二出油口在进油口逆时针转135° No.2 outlet 135* CCW from inlet
	DB	第二出油口在进油口逆时针转45” No.2 outlet 45" CCW from inlet
	DC	第二出油口在进油口顺时针转45 No.2 outlet 45* CW from inlet
	DD	第二出油口在进油口顺时针转135” No.2 outlet 135* CW from inlet
