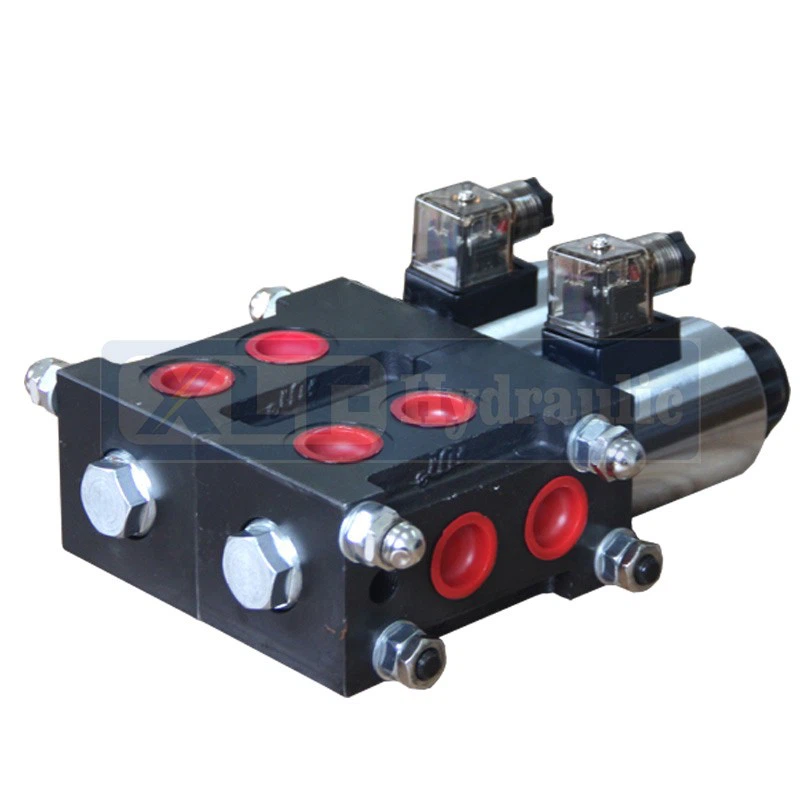

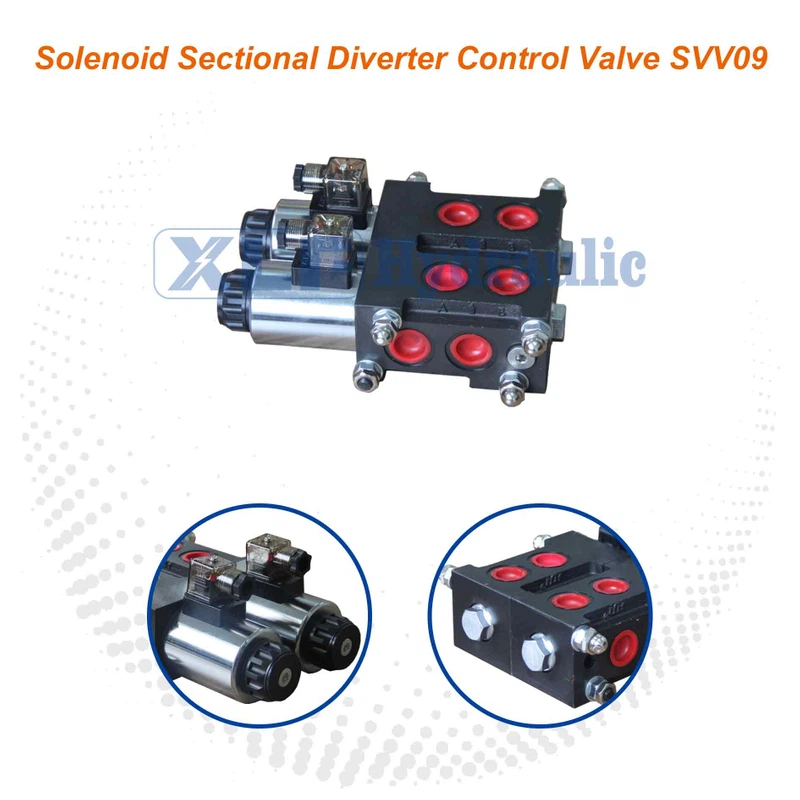

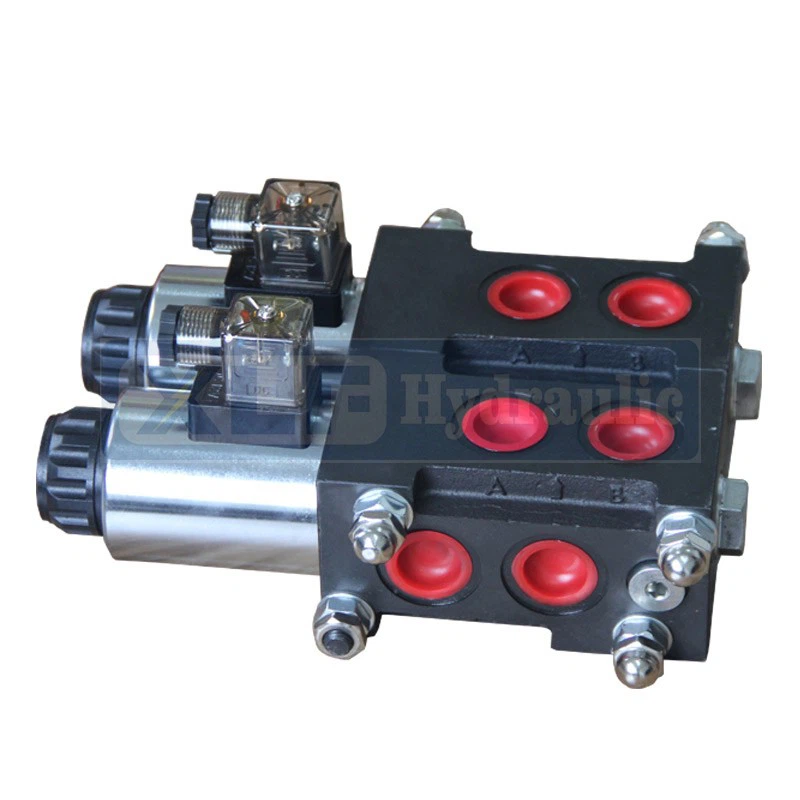

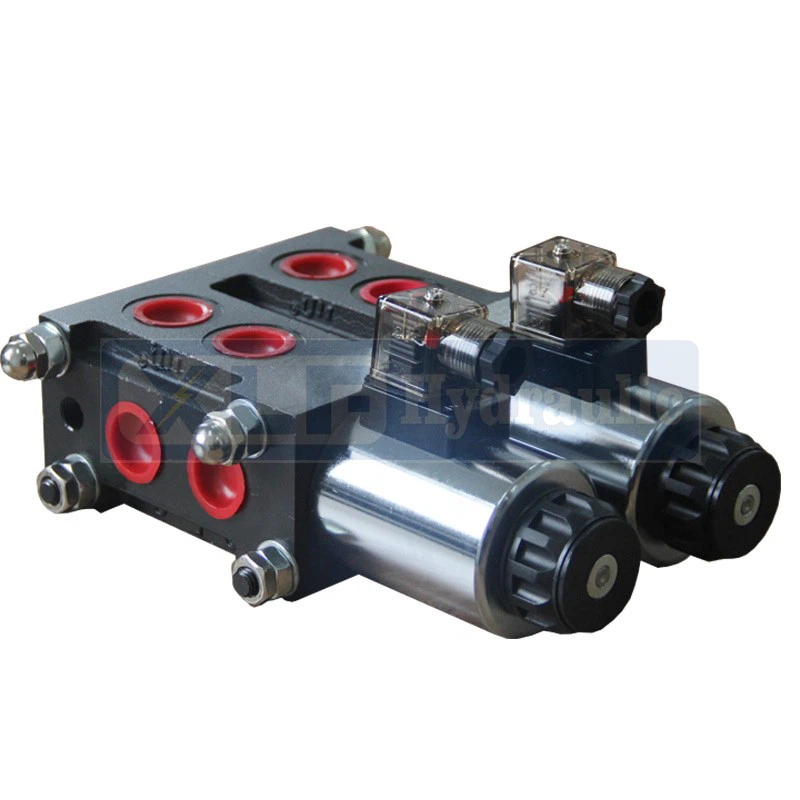

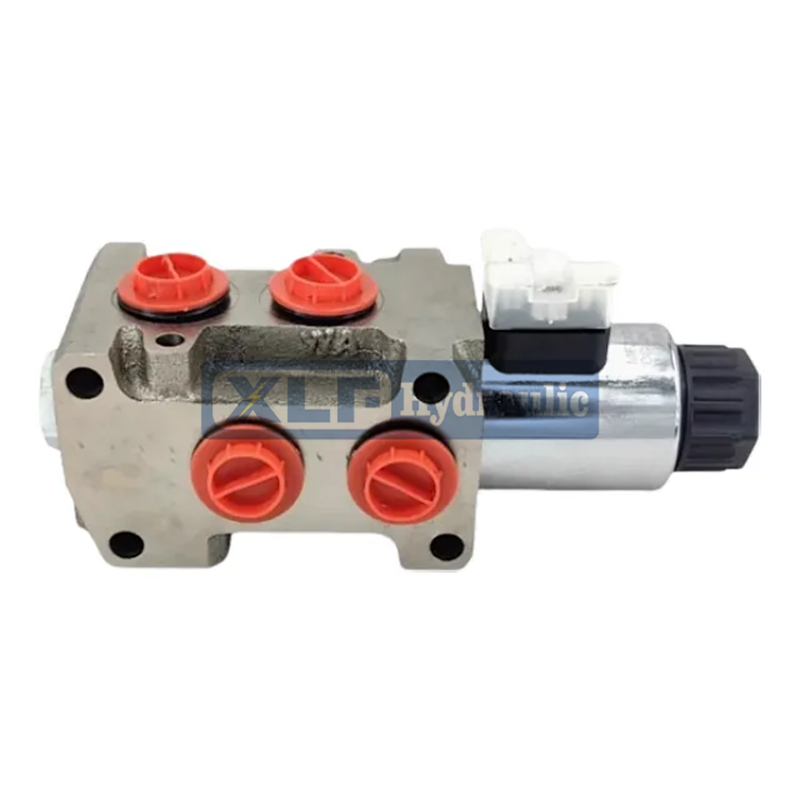

Flanged Solenoid Sectional Diverter 2 Spool Directional Control Valve SVV09

Flanged Solenoid Sectional Diverter 2 Spool Directional Control Valve SVV09

In medium-sized hydraulic equipment such as mini excavators, agricultural harvesters, and logistics forklifts, precise control of multi-action movements is key to operational efficiency. These devices often need to coordinate two independent actions-for example, a mini excavator must control both the arm lifting and bucket rotation, requiring a valve that can manage dual circuits without interference. The Flanged Solenoid Sectional Diverter 2 Spool Directional Control Valve SVV09 is designed to meet this demand, combining a dual-spool structure with electromagnetic control to enable smooth switching between actions. As a 2 spool directional control valve, it features two independent valve spools that regulate oil flow to separate hydraulic cylinders, ensuring actions like "arm lifting + bucket dumping" can be executed simultaneously or sequentially without mutual interference.​

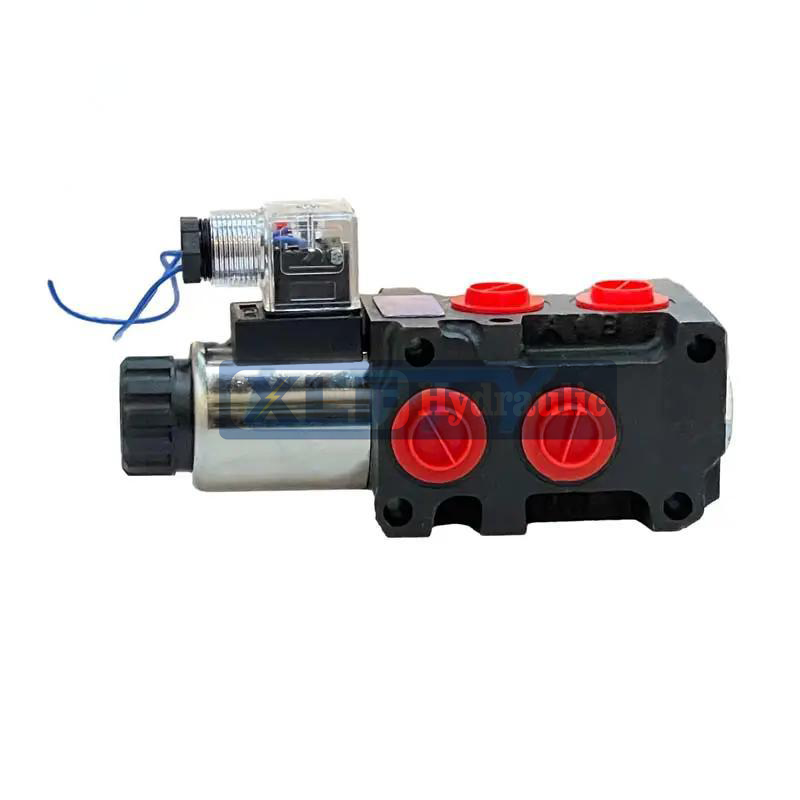

The flanged solenoid valve design of the SVV09 enhances its integration with hydraulic systems. Its flange connection ensures a tight seal with the equipment's oil tank or pump, reducing leakage risks even during frequent vibration-critical for agricultural harvesters working on uneven farmland or forklifts in busy warehouses. This reliable connection, paired with its dual-spool control, makes the SVV09 hydraulic valve a versatile choice for Small and medium-sized equipment.​

The 2 spool directional control valve structure of the SVV09 solves the problem of single-spool valves being unable to handle concurrent actions. When a mini excavator operates, it needs to lift the arm (requiring 50L/min oil flow) while adjusting the bucket angle (needing 30L/min). A single-spool valve would force sequential operation, slowing work; the SVV09's dual spools, as a 2 spool directional control valve, manage both flows independently, cutting operation time by 40%. Its spools are precision-machined to ensure consistent flow regulation, avoiding sudden jolts that could damage fragile loads.​

The flanged solenoid valve design also boosts durability. Unlike threaded valves that may loosen under vibration, the SVV09's flange connection locks firmly to the equipment frame, maintaining seal integrity even after 10,000+ cycles of operation. This stability is vital for agricultural harvesters, where loose valves could cause oil leakage and downtime during peak harvest seasons. The SVV09 hydraulic valve further reinforces this with high-strength cast iron housing, resisting corrosion from crop residues or warehouse humidity.​

• Dual-Spool Coordination: The SVV09 hydraulic valve uses two synchronized spools in its 2 spool directional control valve design. Operators can adjust the spool stroke via solenoid signals to control flow rate (20-80L/min), enabling precise speed control for both actions-for example, slow bucket dumping when handling delicate fruits, paired with steady arm lifting.​
• Flanged Sealing Reliability: As a flanged solenoid valve, it integrates a rubber O-ring between the flange and equipment interface, achieving a pressure resistance of up to 21MPa. This prevents oil leakage even when the valve switches between circuits, a common issue with threaded valves in vibrating environments.​
• Compact & Lightweight: The SVV09 hydraulic valve weighs only 4.5kg, 30% lighter than dual-spool valves of similar capacity, fitting easily into the tight spaces of mini excavators or forklifts. Its sectional design also allows adding a check valve section if needed, adapting to future equipment upgrades.​
• Low-Power Operation: The flanged solenoid valve's coil uses energy-efficient design, consuming only 15W of power-ideal for battery-powered equipment like electric forklifts, extending operation time between charges.

1. 6-way with alternating spool; it's sectional type to obtain 8-way or 10 way circuit.

2. It's possible to flange mounting a block with cross return anti-shock valves.

3. Coils with several feeding voltage are available.

4. They are used as link between two consumers and the basic directional valve, when we want to control both consumers alternately by means of one basic directional control valve.

5. Diverters are used to add an extra facility to the directional control valve when it is needed for a sequence of operations such as a safety operation or to control a selected hydraulic cylinder.

6. The stackable circuit selector valves allow one single drive fo 6 users with 5 diverters connected in series.

7. Please note the drainline must be connected back to tank at all times.
