F5100 Series High Pressure Fixed Displacement Piston Pump for Industrial Machinery
Condition:New without factory packaging
Model:0 510 525 311
Pressure:280 BAR
RPM:3500 RPM
Shipping Weight:10.6 lbs
Shipping Dimensions:8.5 x 7.75 x 6.5 in
SKU:D963875 (VIT08)
Category:Hydraulic Gear Pumps

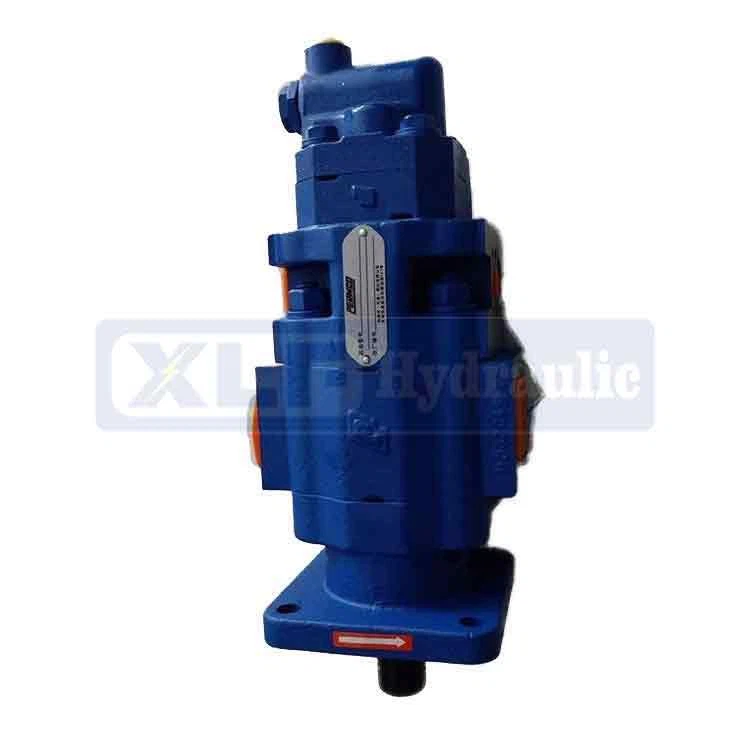

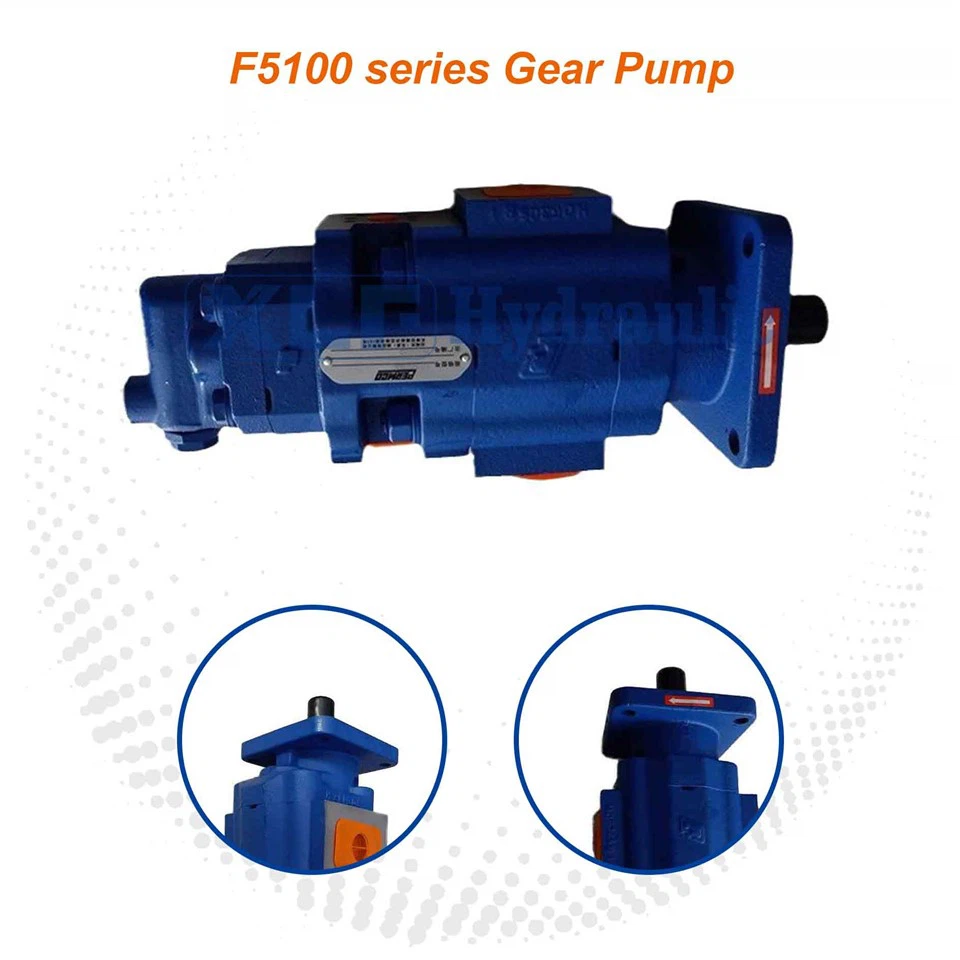

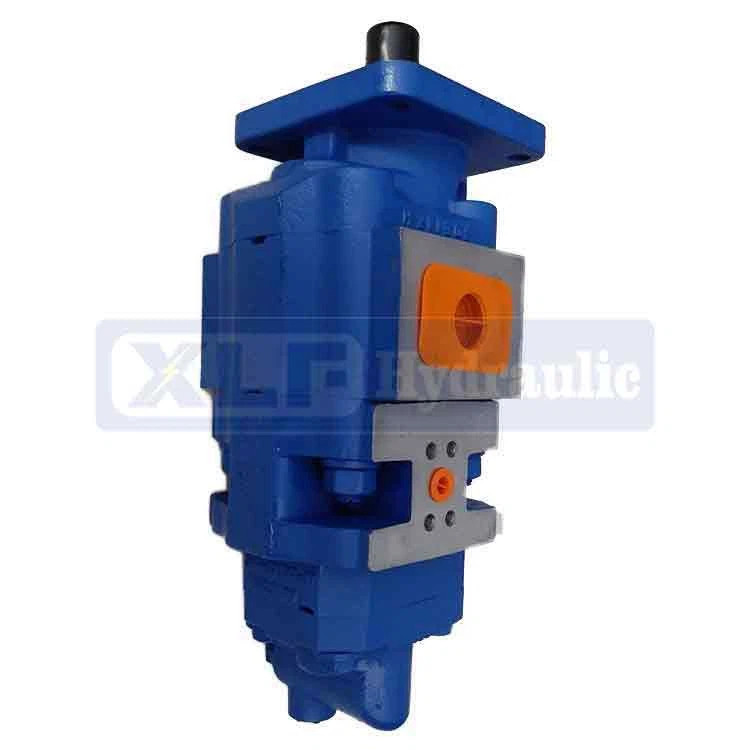

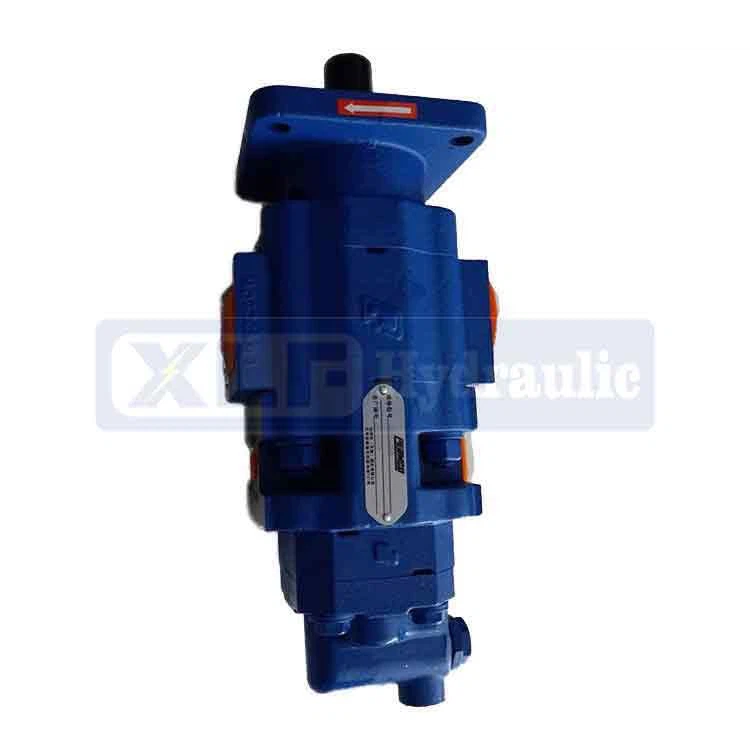

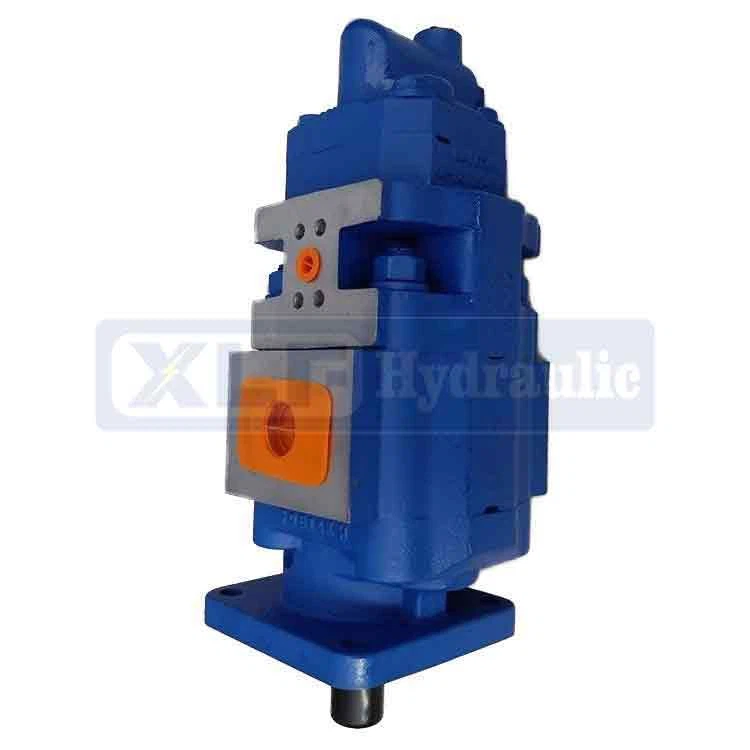

F5100 series high pressure gear pump displacement from 25 to 80 ml/r, the highest pressure can reach 25 MPa, the unique secondary seal structure can effectively improve the performance of the pump, side plate structure advanced, surface coating treatment, pressure and wear resistance, there are many types of connection can be designed as a single pump or multi-pump requirements
| displacement ml/rev | Shell E mm | Rated | Max | Working Speed RPM Max Min | Input Power KW |
| Pressure | Pressure | ||||
| MPa | MPa | ||||
| 25 | 35 | 21 | 25 | 2400 600 | 18.7 |
| 32 | 39 | 21 | 25 | 2400 600 | 27.9 |
| 40 | 43 | 21 | 25 | 2400 600 | 37.3 |
| 50 | 49 | 21 | 25 | 2400 600 | 46.6 |
| 63 | 56 | 21 | 25 | 2400 600 | 55.9 |
| 80 | 66 | 21 | 25 | 2400 600 | 74.5 |
