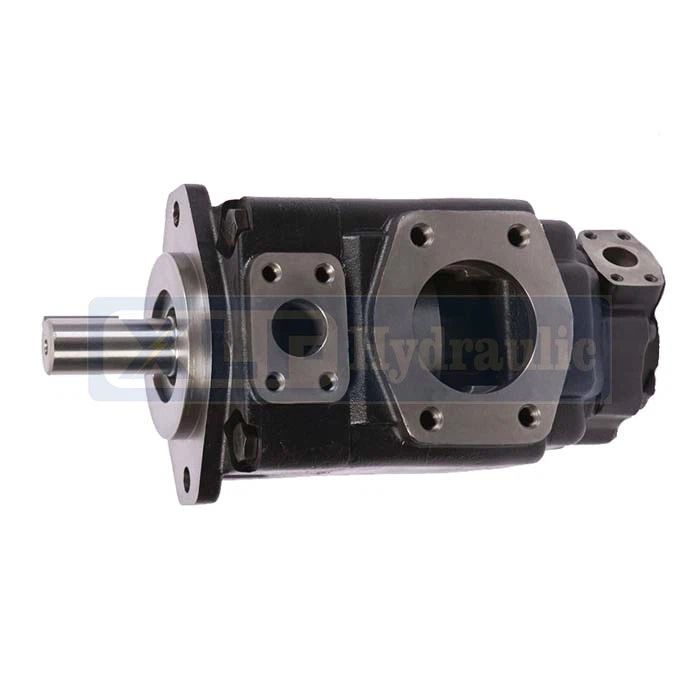

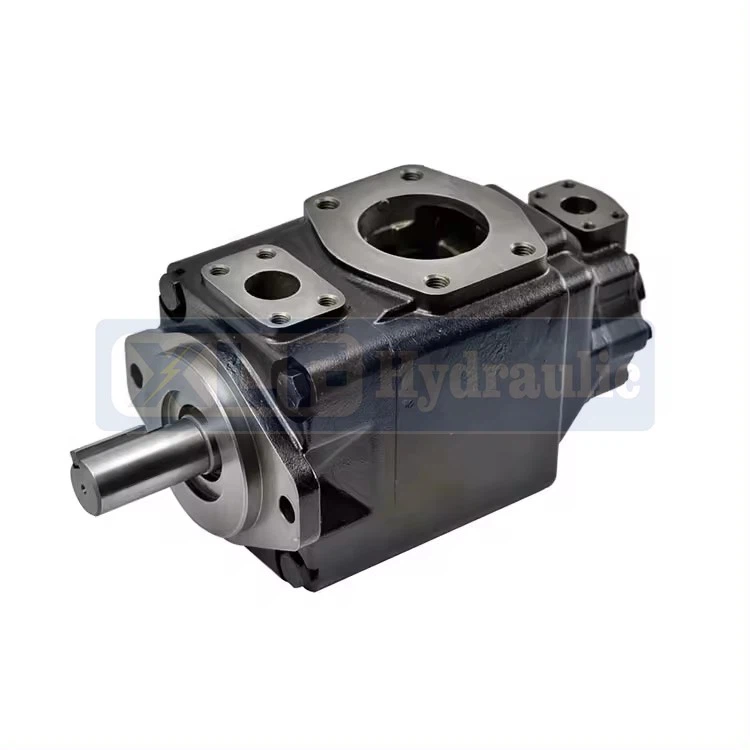

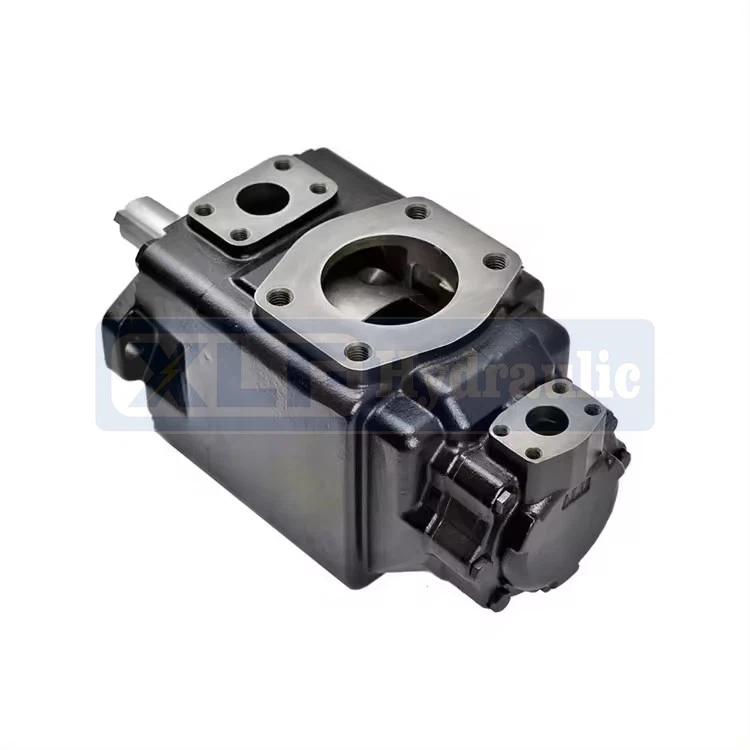

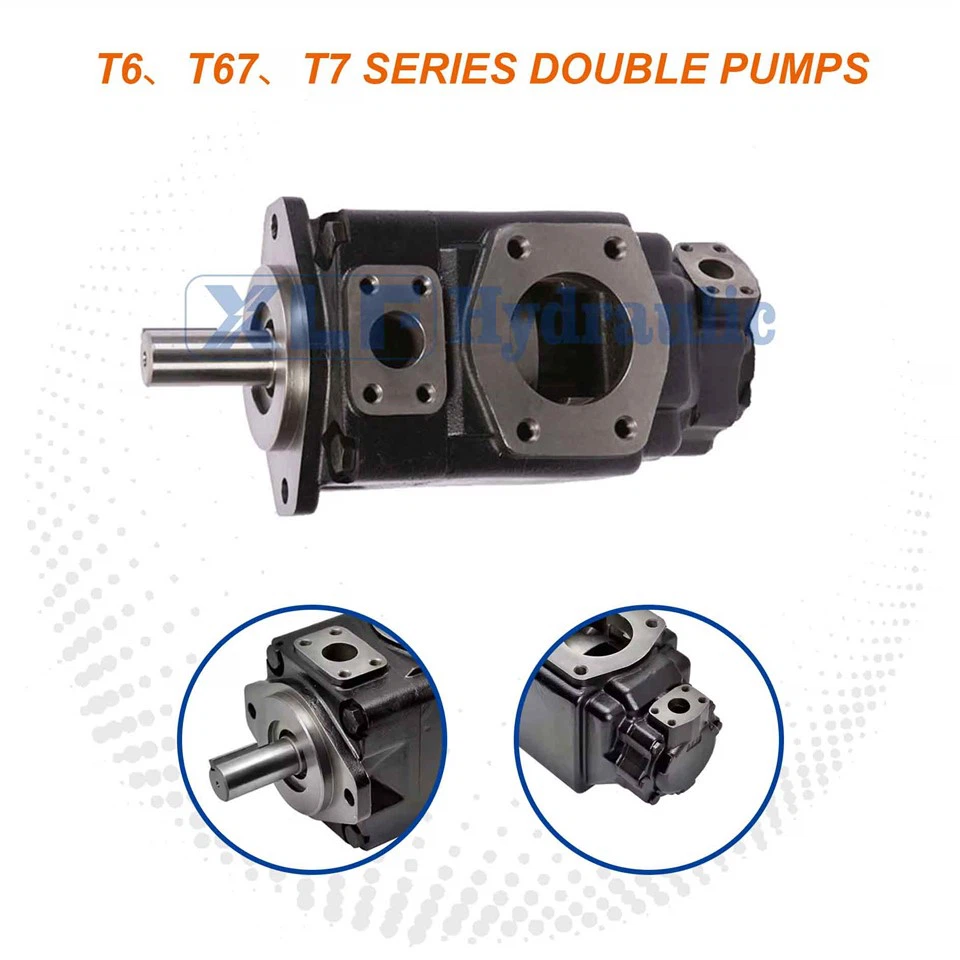

Parker T6 T7 High Pressure Hydraulic Single Steering Vane Two Way Hydraul Pump
Key attributes：Industry-specific attributes
Warranty：1 Year
Pump Type：Vane Pump
Other attributes：Showroom Location
Place of Origin：Zhejiang, China
Weight：75
Warranty：1 Year
Pump Type：Vane Pump
Other attributes：Showroom Location
Place of Origin：Zhejiang, China
Weight：75
Send Inquiry
Product Introduction
Installation Dimensions
| Oil port | Flange | Install Dimension(mm) | ||||||
| A1 | B1 | 中C1 | D1 | T1Thread | ||||
| T6CC | P1 | 1* | FO8 | 26.2 | 52.4 | 25.4 | 76.2 | 3/8*-16UNCx19.0 |
| P2 | 01&11: 3/4* | F06 | 22.2 | 47.6 | 19 | 76.2 | 3/8"-16UNCx19.0 | |
| 00&10: 1* | F08 | 26.2 | 52.4 | 25.4 | 74.7 | |||
| S | 10&11:2-1/2* | F20 | 50.8 | 88.9 | 63.5 | 84.1 | 1/2°-13UNC×23.9 | |
| 00801: 3* | F24 | 61.9 | 106.4 | 76.2 | 84.1 | 5/8"-11UNC×28.4 | ||
| T6DC | P1 | 00801: 1-1/4* | F10 | 30.2 | 58.7 | 31.8 | 82.6 | 7/16*-14UNC×22.3 |
| M1:1-1/4* | F10 | 30.2 | 58.7 | 31.8 | 82.6 | M12×22.3 | ||
| P2 | 01: 3/4* | F06 | 22.2 | 47.6 | 19 | 74.7 | 3/8*-16UNCx19.0 | |
| 00: 1* | FO8 | 26.2 | 52.4 | 25.4 | 74.7 | |||
| M1: 3/4' | F06 | 22.2 | 47.6 | 19 | 74.7 | M10×19 | ||
| S | 00801: 3' | F24 | 61.9 | 106.4 | 76.2 | 88.9 | 5/8"-11UNCx28.4 | |
| M1: 3* | F24 | 61.9 | 106.4 | 76.2 | 88.9 | M16×29 | ||
| T6EC | P1 | 1-1/2* | F12 | 35.7 | 69.9 | 38.1 | 98.6 | 1/2*-13UNC×23.4 |
| P2 | 1" | FO8 | 26.2 | 52.4 | 25.4 | 74.7 | 3/8*-16UNCx19.0 | |
| S | 3-1/2* | F28 | 69.9 | 120.7 | 88.9 | 102.4 | 5/8*-11UNCx29.5 | |
| T6ED | P1 | 1-1/2* | F12 | 35.7 | 69.9 | 38.1 | 98.6 | 1/2"-13UNCx23.4 |
| P2 | 1-1/4* | F10 | 30.2 | 58.7 | 31.8 | 82.6 | 7/16"-14UNC×24.0 | |
| S | 4* | F32 | 77.8 | 130.2 | 101.6 | 102.4 | 5/8"-11UNC×30.0 | |
| T6EE(S) | P1 | 1-1/2* | F12 | 35.7 | 69.9 | 38.1 | 139.7 | 1/2"-13UNC×30 |
| P2 | 1-1/2* | F12 | 35.7 | 69.9 | 37.1 | 98.6 | 1/2°-13UNC×23.4 | |
| S | 4* | F32 | 77.8 | 130.2 | 101.6 | 115 | 5/8"-11UNC×30 | |
| Oil port | Flange | Install Dimension(mm) | ||||||
| A1 | B1 | OC1 | D1 | T1 Thread | ||||
| T7BB(S) | P1 | 01: 3/4" | F06 | 22.2 | 47.6 | 19 | 76.2 | 3/8"-16UNC×19.0 |
| 00:1' | F08 | 26.2 | 52.4 | 25.4 | 76.2 | |||
| P2 | 3/4* | F06 | 22.2 | 47.6 | 19 | 76.2 | 3/8"-16UNC×19.0 | |
| S | 2-1/2* | F20 | 50.8 | 88.9 | 63.5 | 84.1 | 1/2"-13UNC×23.9 | |
| T7DB(S) | P1 | 01:1-1/4* | F10 | 30.2 | 58.7 | 31.8 | 82.6 | 7/16"-14UNC×22.3 |
| M1: 1-1/4" | F10 | 30.2 | 58.7 | 31.8 | 82.6 | M12×22.3 | ||
| P2 | 01: 3/4* | F06 | 22.2 | 47.6 | 19 | 74.7 | 3/8"-16UNCx19.0 | |
| 00:1* | FO8 | 26.2 | 52.4 | 25.4 | 74.7 | |||
| M1:3/4* | F06 | 22.2 | 47.6 | 19 | 74.7 | M10×19 | ||
| S | 3* | F24 | 61.9 | 106.4 | 76.2 | 88.9 | 5/8"-11UNCx29 | |
| M1: 3* | F24 | 61.9 | 106.4 | 76.2 | 88.9 | M16×29 | ||
| T7EB(S) | P1 | 1-1/2* | F12 | 35.7 | 69.9 | 38.1 | 98.6 | 1/2"-13UNCx23.4 |
| P2 | 3/4* | F06 | 22.2 | 47.6 | 19 | 74.7 | 3/8"-16UNCx19.0 | |
| S | 3-1/2* | F28 | 69.9 | 120.7 | 88.9 | 102.4 | 5/8"-11UNCx29.5 | |
| T67CB | P1 | 1" | FO8 | 26.2 | 52.4 | 25.4 | 76.2 | 3/8"-16UNCx19.0 |
| P2 | 3/4* | F06 | 22.2 | 47.6 | 19 | 76.2 | 3/8"-16UNCx19.0 | |
| S | 2-1/2* | F20 | 50.8 | 88.9 | 63.5 | 84.1 | 1/2"-13UNCx23.9 | |
| T67DB | P1 | 1-1/4* | F10 | 30.2 | 58.7 | 31.8 | 82.6 | 7/16*-14UNC×22.3 |
| P2 | 3/4* | F06 | 22.2 | 47.6 | 19 | 76.2 | 3/8"-16UNC×19.0 | |
| S | 3* | F24 | 61.9 | 106.4 | 76.2 | 88.9 | 5/8"-11UNCx24.0 | |
| T67EB | P1 | 1-1/2* | F12 | 35.7 | 69.9 | 38.1 | 98.6 | 1/2"-13UNCx23.4 |
| P2 | 3/4* | F06 | 22.2 | 47.6 | 19 | 74.7 | 3/8"-16UNCx19.0 | |
| S | 3-1/2* | F28 | 69.9 | 120.7 | 88.9 | 102.4 | 5/8"-11UNC×24.0 | |
| Oil port | Flange | Install Dimension(mm) | ||||||
| A1 | B1 | C1 | D1 | T1Thread | ||||
| T7DD(S) | P1 | 1-1/4* | F10 | 30.2 | 58.7 | 31.8 | 101.6 | 7/16*-14UNC×22.3 |
| P2 | 1-1/4* | F10 | 30.2 | 58.7 | 31.8 | 101.6 | 7/16"-14UNC×24 | |
| S | 4 | F32 | 77.8 | 130.2 | 101.6 | 114.9 | 5/8"-11UNCx30 | |
| T7ED(S) | P1 | 1-1/2* | F12 | 35.7 | 69.9 | 37.1 | 98.6 | 1/2"-13UNC×23.4 |
| P2 | 1-1/4* | F10 | 30.2 | 58.7 | 31.8 | 101.6 | 7/16"-14UNC×24 | |
| S | 4* | F32 | 77.8 | 130.2 | 101.6 | 102.4 | 5/8"-11UNC×30 | |
| T7EE(S) | P1 | 2001-1-2 | F12 | 35.7 | 69.9 | 38.1 | 139.7 | 1/2"-13UNC×30 |
| P2 | 1-1/2* | F12 | 35.7 | 69.9 | 37.1 | 98.6 | 1/2"-13UNC×23.4 | |
| S | 4" | F32 | 77.8 | 130.2 | 101.6 | 115 | 5/8"-11UNCx30 | |
| T67DC | P1 | 1-1/4" | F10 | 30.2 | 58.7 | 31.8 | 82.6 | 7/16*-14UNC×22.3 |
| P2 | 1" | FO8 | 26.2 | 52.4 | 25.4 | 74.7 | 3/8"-16UNC×19.0 | |
| S | 3* | F24 | 61.9 | 106.4 | 76.2 | 88.9 | 5/8"-11UNC×28.5 | |
| T67EC | P1 | 1-1/2* | F12 | 35.7 | 69.9 | 37.1 | 98.6 | 1/2"-13UNC×23.4 |
| P2 | 1" | FO8 | 26.2 | 52.4 | 25.4 | 74.7 | 3/8"-16UNC×19.0 | |
| S | 3-1/2* | F28 | 69.9 | 120.7 | 88.9 | 102.4 | 5/8"-11UNC×29.5 | |
Technical Data
| Model | Shaft code | Max torque(N.m) | L1 | L2 | DIA | K1xK2 | H1 | M1 |
| T7BB | 5 | 70 | 40 | 25.006/24.993 | 8.00×7.00 | 28.22 | ||
| T7BBS | 1 | 238 | 58.2 | 31.7 | 22.225/22.200 | 4.76x4.71 | 24.53 | |
| 2 | 357 | 71.4 | 38.1 | 25.400/25.370 | 6.35×6.30 | 28.22 | ||
| 3 | 40.7 | 24.5 | SAEJ498b class 1,Diametral pitch 16/32,13T | |||||
| 45.5 | 24.5 | SAE J498b class 1,Diametral pitch 16/32,15T | ||||||
| T7DB | 5 | 87.9 | 50 | 32.018/32.002 | 10.00×8.00 | 35 | ||
| T7DBS | 1 | 83.6 | 49.3 | 31.75/31.70 | 7.94×7.89 | 35.27 | ||
| 2 | 73.2 | 38.1 | 31.75/31.70 | 7.94×7.89 | 35.27 | |||
| 3 | 55.2 | 38 | SAE J498b ciass 1,Diametral pitch 12/24,14T | |||||
| 4 | 77.7 | 48.02 | J498b class 1,Diametral pitch 12/24,14T | |||||
| T7DD | 5 | 68 | 50 | 31.018/32.002 | 10.00×8.00 | 35 | ||
| T7DDS | 1 | 84 | 49.3 | 31.75/31.70 | 7.94x7.89 | 35.27 | ||
| 2 | 91 | 50.8 | 38.10/38.05 | 9.52x9.47 | 40.36 | |||
| 3 | 56 | 38 | SAE J498b class 1,Diametral pitch 12/24,14T | |||||
| 4 | 46 | 24.5 | SAE J498b class 1,Diametral pitch 16/32,15T | |||||
| T7EB,T7ED | 5 | 90 | 50 | 38.018/38.002 | 10.00xB.00 | 41.3 | ||
| T7EBS. T7EDS | 1 | 90.9 | 50.8 | 38.10/38.05 | 9.52×9.47 | 42.36 | ||
| 2 | 61.9 | 38.1 | 31.75/31.70 | 7.94×7.89 | 35.27 | |||
| 3 | 55.9 | 38.1 | SAE J498b class 1,Diametral pitch12/24,14T | |||||
| 4 | 62.2 | 31.5 | SAE J498b class1,Diametral pitch 12/24,17T | |||||
| T7EE | 2 | 92 | 63 | 45.000/44.975 | 14.00x9.00 | 48.5 | ||
| T7EES | 1 | 90.9 | 63.5 | 38.100/38.075 | 9.52×9.47 | 42.36 | ||
| 3 | 62.2 | 31.5 | SAE J49Bb class 1,Diametral pitch 12/24,17T | |||||
| 4 | 75 | 48.8 | SAEJ498b,8/16,13 | SAE J498b class 1,Dlametral pitch 8/16,13T | ||||
| T67CB. T6CC | 1 | 238 | 58.2 | 31.7 | 22.225/22.200 | 4.76x4.71 | 24.53 | |
| 2 | 357 | 71.4 | 38.1 | 25.400/25.370 | 6.35×6.30 | 28.22 | ||
| 3 | 545 | 45.5 | 24.5 | SAE J498b class 1,Diametral pitch 16/32.15T | ||||
| 5 | 343 | 40.7 | 24.5 | SAEJ498b class 1,Diametral pitch 16/32,13T | ||||
| T67DB T67DC. T6DC | 1 | 721 | 83.6 | 49.3 | 31.750/31.700 | 7.94×7.89 | 35.27 | |
| 2 | 577 | 73.2 | 38.1 | 31.750/31.700 | 7.94×7.89 | 35.27 | ||
| 3 | 55.2 | 38 | SAE J498b dlass 1,Diametral pitch 12/24,14T | |||||
| 4 | 77.7 | 48 | SAEJ498b class 1,Diametral pitch 12/24,14T | |||||
| 5 | 83.4 | 60 | 34.900/34.875 | 7.94x7.89 | 38.42 | |||
| T67EB, T67EC, T6EC. T6ED | 1 | 90.9 | 50.8 | 38.100/38.050 | 9.52×9.47 | 42.36 | ||
| 2 | 577 | 61.9 | 38.1 | 31.750/31.700 | 7.94x7.89 | 35.27 | ||
| 3 | 55.7 | 38 | SAEJ498b class 1,Diametral pitch 12/24,14T | |||||
| 4 | 62.2 | 31.5 | SAE J498b class 1,Diametral pitch 12/24,17T | |||||
Product Description
