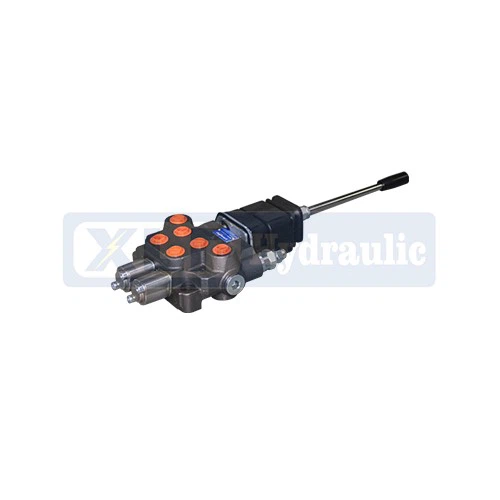

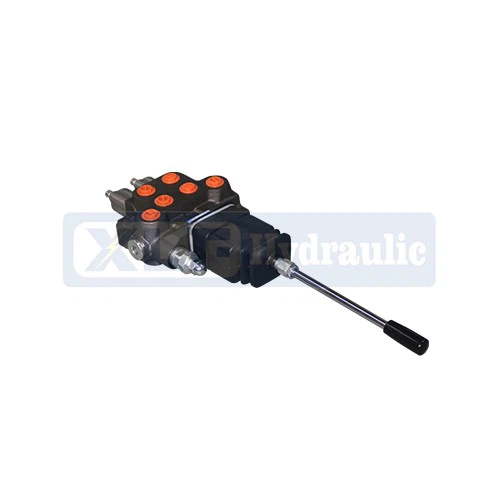

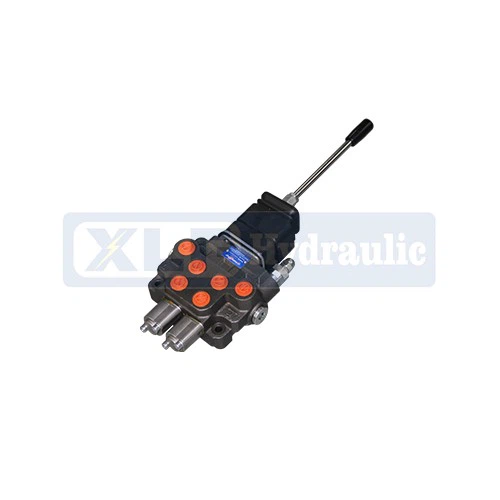

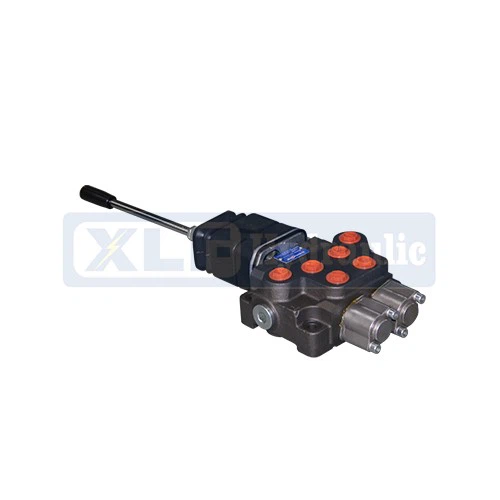

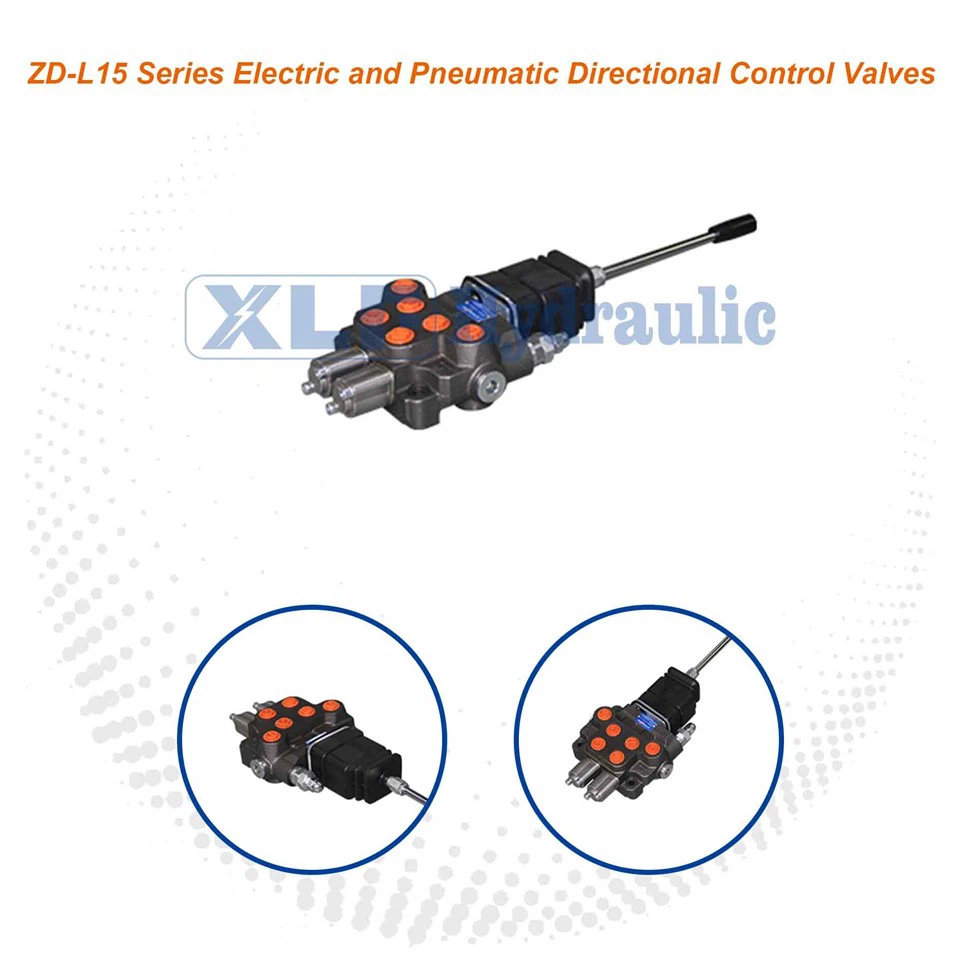

ZD-L15 Series Hydraulic Monoblock Solenoid Control Valve For Excavators
Warranty:1.5 years
Valve type:Directional Control Valve
Other attributes:Showroom Location
Place of Origin:Jiangsu, China
Weight:20
Product Description
ZT-L20 valve is designed by our company, which is medium-nigh pressure integrity way directionchanged valve, over-flow valve, over load valve,single way valve and oiloffset valve etc may beinstalled per different customer's requirements. Over-flow valve may adjust the system pressure.over-load valve may combined the working pressure of single oil cylinder, singleoil eylinglevalve is toprevent oil returning, direction changed valve function have A,0,Y,Petc, it may be combined random.The directional changed level has two installg ways for different operation. The valve is used parallelconnection oil route. it has pressure releasing outlet to connect other hydraulic components toprovide power source. The sealing is specially designed sith good sealing. The valve is widely used inthe hydraulic system of forklift environment vehicle and light loading machines.
Parameters and character
1 Inner check valve: The check valve inside the valve body to insure the hydraulic oil will not be returned.
2 Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
3 Oil way: Parallel circuit, with power beyond.
4 Control Way: pneumatic control, manual control

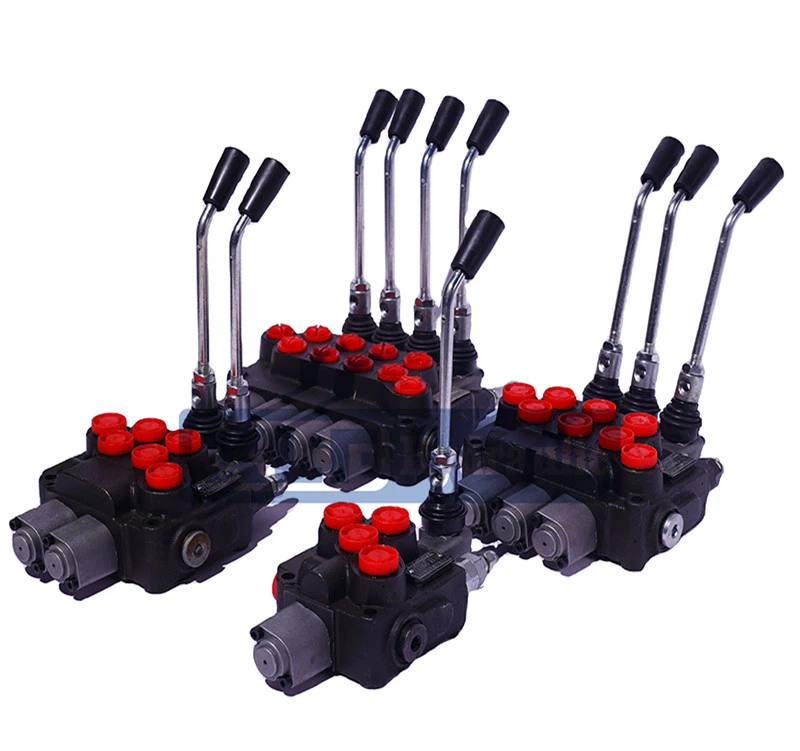

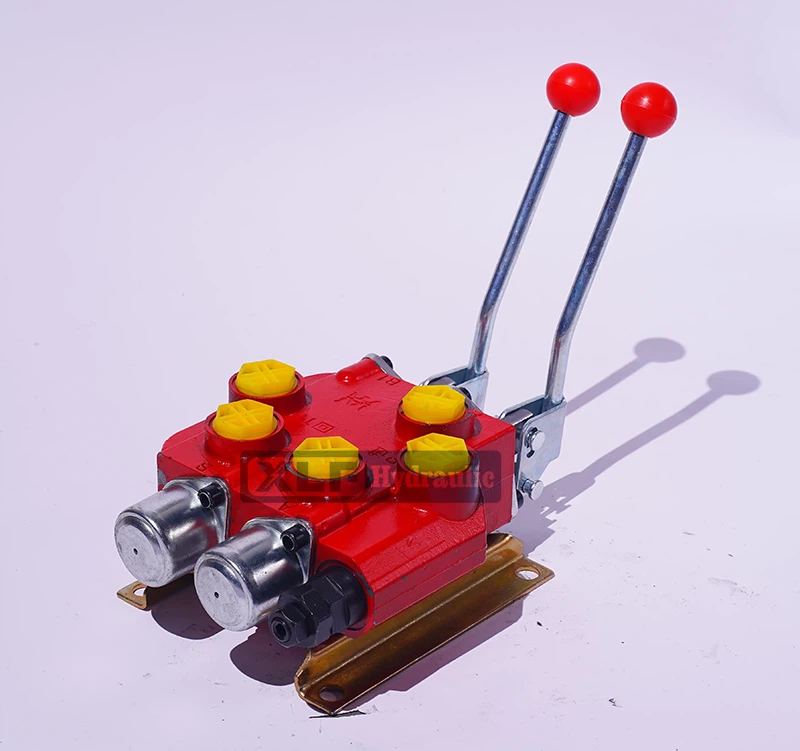

5 Valve construction: monoblock construction, 2-4 levers are available to be assembled as you requests.
6 Spool Function: O,A,Y etc.
Parameters
|
Nom.Pressure (MPa) |
Max.Pressure (MPa) |
Nom.Flow rate (L/min) |
Max.Flow rate (L/min) |
Back Pressure (MPa) |
Hydraulic Oil |
||
|
Tem.rang (℃) |
Visc.rang (mm2/S) |
Filtrating Accuracy (μm) |
|||||
|
20 |
31 |
50 |
60 |
≤1 |
-20～+80 |
10～400 |
≤10 |
|
Nominal Pressure (Mpa) |
Max. pressure (Mpa) |
Nom. flow (L/min ) |
Allowable Back. pressure (Mpa) |
Hydranlic Oil |
||
|
Tem.range (℃) |
Visc.range (mm2/s) |
Filtrating accuracy (μm) |
||||
|
20 |
31 |
90 |
≤1 |
-20~+80 |
10~400 |
≤10 |
