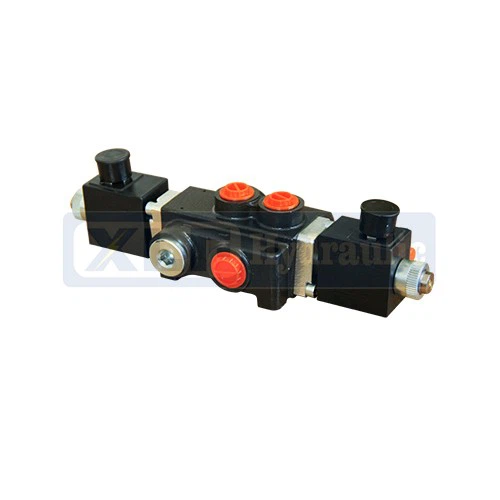

20250603_093058_121

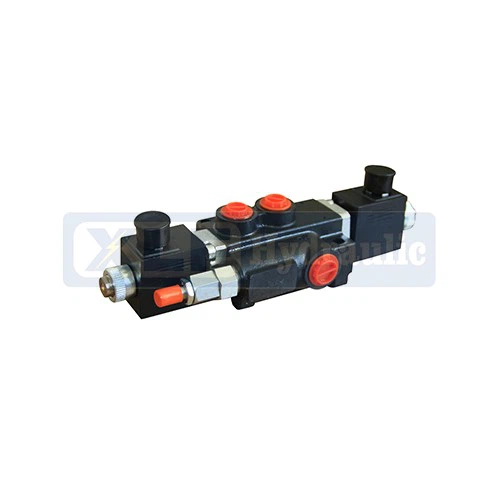

20250603_093058_122

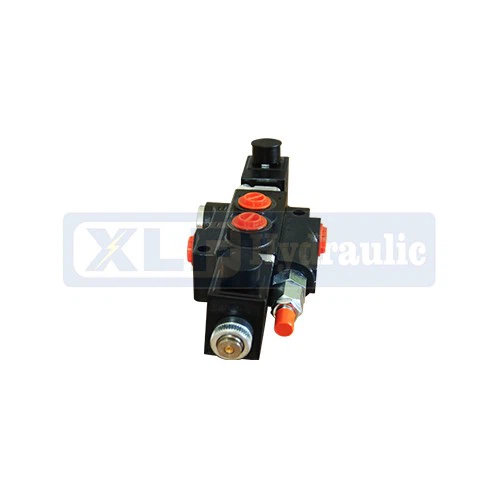

20250603_093058_123

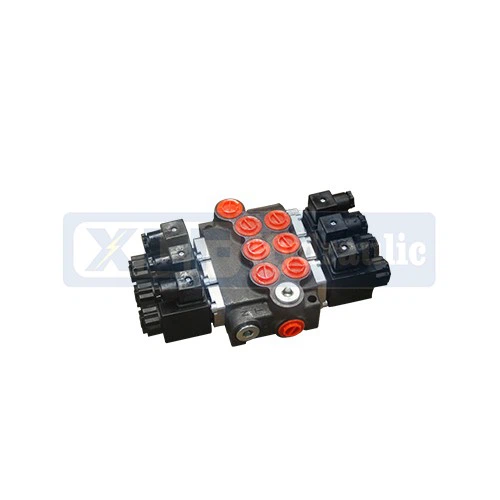

20250603_093058_124

Z50 Series Hydraulic Solenoid Operated Monoblock Hydraulic Directional Control Valve

Z50 series valves with middle-high pressure monoblock construction is developed based on Europe technology.

Send Inquiry

Product Introduction

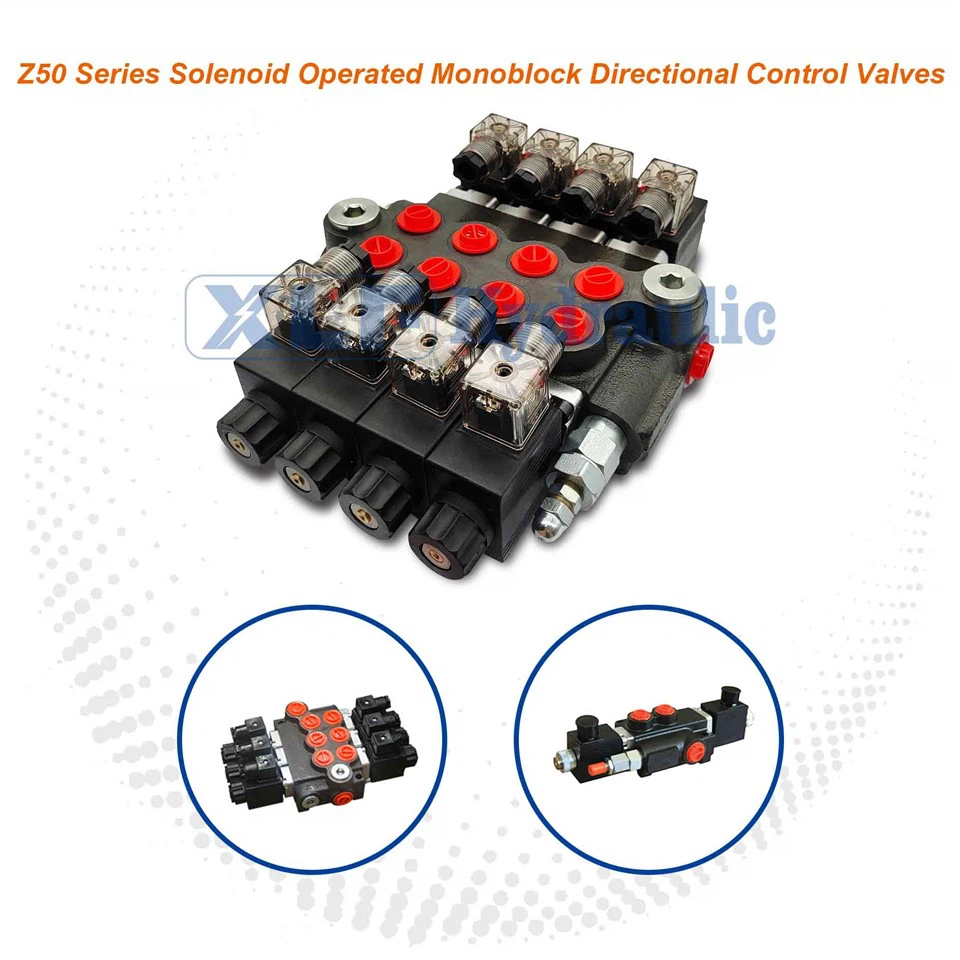

Z50 Series Hydraulic Solenoid Operated Monoblock Hydraulic Directional Control Valve

The precise control core of industrial hydraulic systems

In industrial hydraulic systems-such as those in machine tools, automated production lines, and material handling equipment-stable and precise control of hydraulic oil flow direction is crucial. The Z50 Series Hydraulic Solenoid Operated Monoblock Hydraulic Directional Control Valve is designed to meet this demand, serving as a key component that bridges the control signal and the execution mechanism. As a high-performance monoblock hydraulic directional control valve, it integrates the valve body, spool, and solenoid actuator into a single structure, avoiding the leakage risks of split-type valves and ensuring efficient transmission of control commands. The z50 hydraulic valve is particularly suitable for scenarios requiring rapid response, such as automated stamping lines, where even a 0.1-second delay may affect production efficiency.

Core advantage: Balancing response speed and operational stability

The z50 hydraulic valve stands out in industrial applications with its dual advantages of fast response and stable operation. Its solenoid actuator adopts a high-sensitivity coil design, which can complete spool switching within 30ms-this speed is 40% faster than ordinary solenoid valves, ensuring that the execution mechanism (such as a hydraulic cylinder) can act immediately according to the control signal. As a professional monoblock hydraulic directional control valve, its integrated 阀体 (valve body) is forged from high-strength cast iron, which can withstand a working pressure of 250 bar and maintain structural stability even in high-vibration environments (such as industrial centrifuges).

Another highlight of the z50 hydraulic valve is its precise flow control. The optimized internal flow channel design reduces pressure loss by 25% compared to traditional valves, ensuring that the hydraulic oil reaches the execution mechanism with sufficient pressure after passing through the valve. For the monoblock hydraulic directional control valve, this not only improves the efficiency of the entire hydraulic system but also reduces energy consumption. In addition, its sealing structure uses imported fluorine rubber seals, which can resist the erosion of hydraulic oil and extend the service life to more than 8,000 hours of continuous operation.

Product Description

Z50 series valves with middle-high pressure monoblock construction is developed based on Europe technology.

The monoblock directional control valves-solenoid operated, offer perfect choice whether you are designing a new system or just simply trying to get more out of your current system. With two special spools and 7 different monoblock housings these valves can meet the specific needs of your application and hydraulic schemes by their double acting in 3 positions A and D spools.

Parameters and character

1 Inner check valve: The check valve inside the valve body is to insure the hydraulic oil will not be returned.

2 Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.

3 Oil way: Parallel circuit, power beyond option

4 Coils, Connector ISO4400: 12VDC, 24VDC

5 Threads: P,T-G1/2, SAE10, A,B-G3/8,SAE8

6 Valve construction: Monoblock construction, 1-7 levers.

7 Precise bore honing and spool grinding results in less cross-port leakage and less wasted energy. These precise valves also allow for interchangeable spools for easy on place maintenance.
