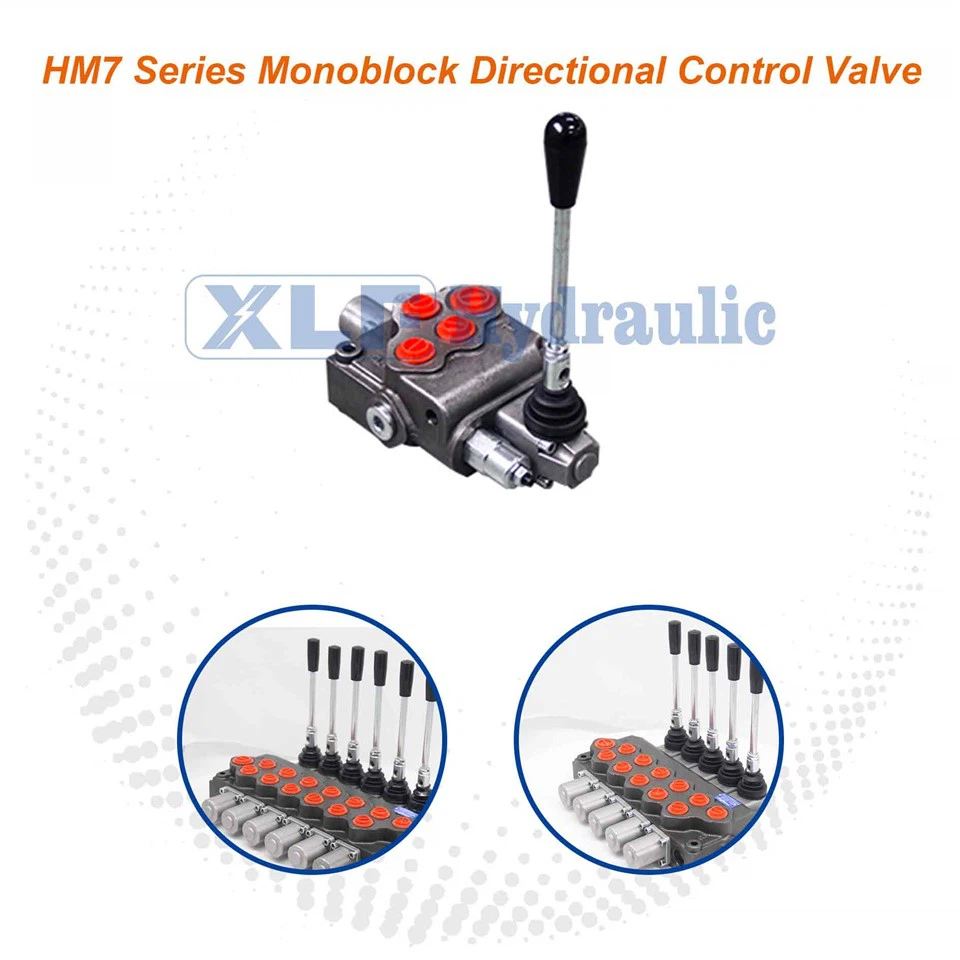

HM7 Series 6 Way Hydraulic Diverter Valve For Wheeled Tractor

HM7 Series 6 Way Hydraulic Diverter Valve For Wheeled Tractor

Unlock the full potential of your wheeled tractor's hydraulic system. The HM7 Series Monoblock 6 Way Hydraulic Diverter Valve is engineered to deliver sophisticated flow management, enabling seamless control of multiple functions or attachments simultaneously. As a robust HM7 hydraulic valve solution, it efficiently directs pump flow to where it's needed most, boosting productivity and operational flexibility on the farm or job site.

• Comprehensive 6-Way Flow Diverting: Precisely splits a single pump inlet into up to six independently controlled outlet flows. This advanced capability establishes the HM7 as a true 6 Way Hydraulic Diverter Valve, ideal for tractors requiring complex implement control.
• Robust Monoblock Construction: Fabricated from a single piece of high-strength cast iron, the HM7 hydraulic valve ensures superior leak resistance, structural integrity and longevity - even under demanding conditions and high-pressure cycles.
• Optimized for Wheeled Tractor Integration: Designed with the specific mounting configurations, flow demands and space constraints of modern wheeled tractors in mind, it enables straightforward installation and optimal performance.
• Precise & Responsive Control: Engineered spools and optimized flow paths deliver accurate flow regulation to each function, ensuring smooth operation of implements such as loaders, grapples, augers or hydraulic motors.
• High-Pressure Capability: Built to withstand the rigors of agricultural and industrial use, it reliably handles the high pressures typical of tractor hydraulic systems.
• Space-Saving Design: The integrated monoblock design significantly reduces plumbing complexity and saves valuable space compared to stacking multiple single valves, simplifying your tractor's hydraulic layout.

◆Multi-Function Front-End Loaders: Simultaneously control lift, tilt and auxiliary functions (e.g., grapple open/close, 4-in-1 bucket) - a capability made

◆Complex Rear Implements: Operate implements requiring multiple independent circuits (e.g., seeders with multiple metering units, balers with twine/tie mechanisms, spreaders with variable rate control).

◆Hydraulic Attachment Systems: Easily switch between and control various hydraulic attachments (augers, post hole diggers, mowers, snow blowers) using dedicated valve sections, all supported by the reliable performance of the HM7 hydraulic valve.

◆Steering & Implement Combination: Manage tractor steering alongside demanding hydraulic implements without flow compromise.

◆Any application where a single pump must efficiently power multiple, independently controlled hydraulic functions on a wheeled tractor.

In addition to the aforementioned advantages, the HM7 Series stands out with its versatile design attributes: It offers simple, compact yet heavy-duty monoblock valves available in 1 to 6 sections, compatible with both open and closed center hydraulic systems.

1. It comes fitted with a main pressure relief valve and a load check valve, providing dual protection for the hydraulic system to prevent overpressure damage and ensure stable operation.
2. Various circuit configurations are available, including parallel, series, and tandem circuits, allowing flexible adaptation to different hydraulic system layouts and functional requirements.
3. An optional power beyond port is offered (exclusively for parallel or tandem circuits), enabling more flexible expansion of the hydraulic system and enhancing its adaptability to complex working conditions.
4. It features 20 mm (0.79 in) diameter interchangeable spools, facilitating quick replacement and maintenance, which helps reduce downtime and improve operational efficiency.
5. A wide range of service ports and circuit valves are provided, meeting the connection needs of different hydraulic components and ensuring seamless integration into various systems.
6. Multiple spool control kits are available, including manual, pneumatic, hydraulic, electro-hydraulic, and remote control with flexible cables, offering operators diverse control options to suit different operational scenarios.

Other special port size, please contact with your sales representative.
