Gft 24 T3 5076 Track Planetary Gearboxes For Atlas Copco Drilling Rig D60-10lf

Wuhan Xinlaifu Hydraulic Equipment Co., Ltd. is one of the leading manufacturers and suppliers of Gft 24 T3 5076 Track Planetary Gearboxes For Atlas Copco Drilling Rig D60-10lf in China. With abundant experience, we warmly welcome you to buy high quality customized products at competitive price from our factory. Also, OEM&ODM service is available.

Item	Track Planetary Gearbox
Model	GFT 24 T3 5076
Direction Of Rotation	Reversible
Fastening	Multi Bolt Flange Mount Standard Type
Maximum Pressure	320 Bar
Material	Carburized Quenched Alloy Steel Cast Iron Housing
Highlight	Three Stage Planetary Track Drive Gearbox Integrated Wet Multi Disc Parking Brake Full Interchange For Atlas Copco D60 10lf Drilling Rig Heavy Duty Mining Machinery Spare Part

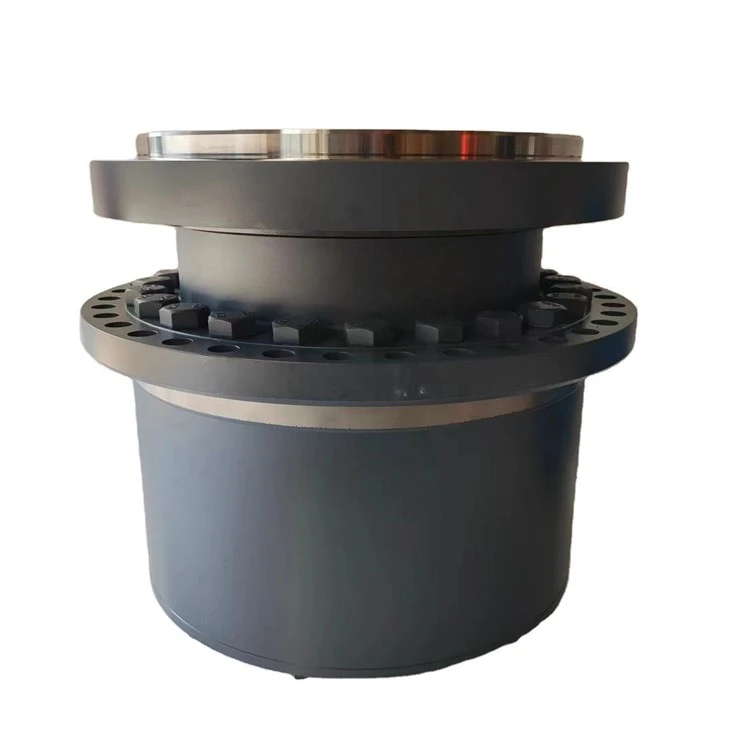

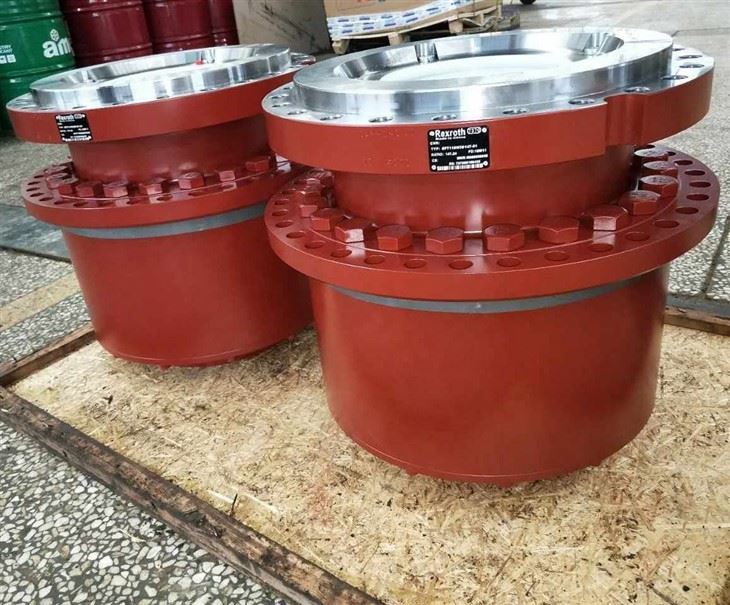

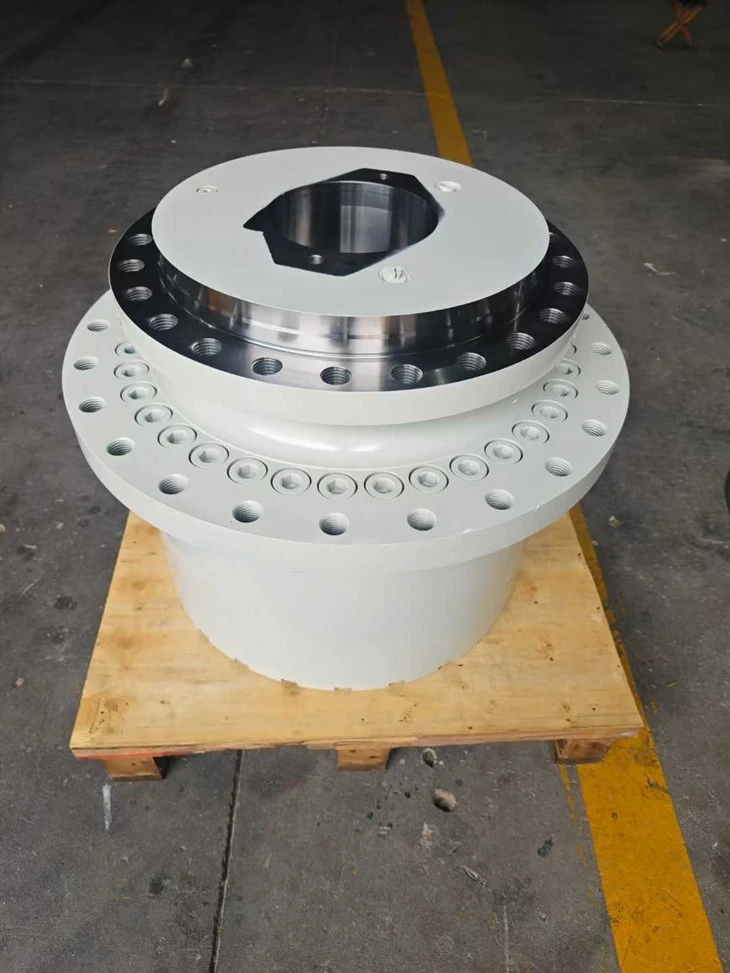

GFT 24 T3 5076 track planetary gearbox is a heavy duty travel final drive replacement part matching Atlas Copco D60 10lf crawler drilling rig. It adopts three stage planetary reduction structure integrated with built in wet multi disc parking brake, which works with hydraulic piston motor to convert high speed low pressure hydraulic power into low speed high torque output to drive the crawler track. The whole unit fully matches original installation dimension oil port and brake interface of mining drilling rig, and can realize direct plug and play replacement without extra modification. It is a core hydraulic transmission spare part for open pit mining crawler equipment.

• High strength transmission structure Internal gear set is made of carburized quenched alloy steel, with stable 24000 N m rated output torque and strong resistance to impact and heavy load, adapting to rugged rocky mining terrain.
• Built in safety parking brake Negative pressure wet multi disc brake locks the crawler tightly when hydraulic supply stops, effectively preventing equipment sliding on mine slopes and greatly improving operation safety.
• Excellent leak proof sealing performance Equipped with full set high temperature fluorine rubber sealing parts and double lip rotary oil seal, it can avoid hydraulic oil leakage under harsh working environment with heavy dust mud and stone splash.
• Stable hydraulic pressure resistance Supports maximum 320 bar working hydraulic pressure and maintains transmission efficiency above 90 percent, capable of long time continuous heavy duty running within wide temperature range.
• Compact integrated design It combines load bearing reduction and braking functions in one assembly, which simplifies installation steps and shortens machine maintenance downtime.
• Cost effective replacement solution The shell adopts anti rust black oxide treatment to extend service life, with much lower purchase cost compared with original factory gearbox to cut mining equipment maintenance budget.
• Perfect matching compatibility It can be perfectly matched with A2FE A10FE series hydraulic travel piston motor, all mounting hole sizes and pipeline positions are consistent with original parts.

This planetary track gearbox is specially designed for Atlas Copco D60 10lf crawler drilling rig. It is widely used in open pit mine blasting hole drilling rock excavation quarry exploitation and large scale mountain foundation construction projects. It also fits other similar heavy crawler mining equipment working in dusty muddy rugged mine sites that require stable low speed high torque crawler walking power.
