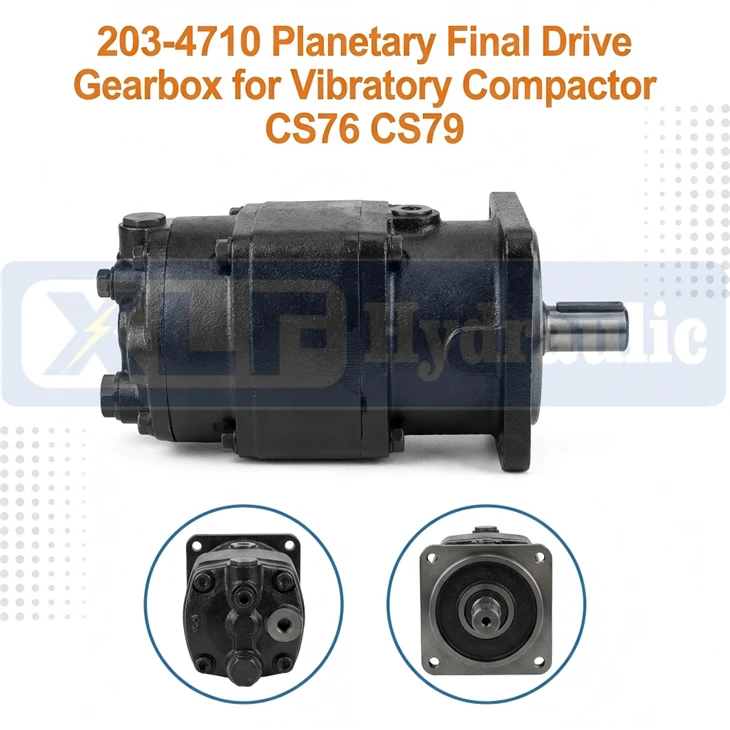

203-4710 Planetary Final Drive Gearbox For Vibratory Compactor CS76 CS79
video

203-4710 Planetary Final Drive Gearbox For Vibratory Compactor CS76 CS79

203 4710 planetary final drive gearbox is OEM replacement wheel side drive assembly specially designed for Caterpillar CS76 CS79 vibratory soil compactor. It adopts high strength planetary gear set to convert high speed hydraulic input into stable low speed high torque power for roller wheel walking system. This integrated gearbox matches original mounting dimension oil port and brake interface perfectly for direct plug and play replacement without extra modification. Equipped with reliable leak proof sealing structure and built in parking brake it can bear heavy continuous compaction load and adapt to harsh dusty road construction working conditions as cost effective spare part for pavement and soil compaction projects.
Send Inquiry
Product Introduction

Wuhan Xinlaifu Hydraulic Equipment Co., Ltd. is one of the leading manufacturers and suppliers of 203-4710 planetary final drive gearbox for vibratory compactor cs76 cs79 in China. With abundant experience, we warmly welcome you to buy high quality customized products at competitive price from our factory. Also, OEM&ODM service is available.



hydraulic-motor01

Technical parameters



product-1024-1024
Type Planetary Final Drive Gearbox
Brand XLF Hydraulic
Model No. 203 4710
Speed 0 RPM To 15 RPM
Flow 30 Lpm To 120 Lpm
Torque 32000 Nm To 46000 Nm
Shaft Splined Wheel Side Output Shaft
Mounting Multi Bolt Flange Standard Type
Highlight Three Stage Planetary Wheel Drive Gearbox With Integrated Parking Brake Full Interchange For Vibratory Compactor CS76 CS79 Heavy Duty Road Construction Replacement Spare Part

Product Overview



203 4710 planetary final drive gearbox is OEM replacement wheel side drive assembly specially matched for Caterpillar CS76 CS79 vibratory compactor. It adopts three stage planetary reduction structure with built in wet multi disc parking brake to convert high speed hydraulic power into low speed high torque output for steel roller walking system. All mounting flange oil port and brake interface keep fully consistent with original compactor parts so users can finish direct replacement without extra cutting or modification. This heavy duty drive unit can stand long time continuous compaction impact and dust mud environment as reliable hydraulic spare part for road construction machinery.



Product Features



  • High strength alloy steel planetary gear set delivers stable large output torque with strong resistance to heavy load and frequent vibration from road compaction operation
  • Built in anti slip parking brake locks roller wheel firmly when hydraulic supply stops avoiding equipment sliding on slope construction ground and improving overall operation safety
  • Complete high temperature sealing assembly effectively prevents hydraulic oil leakage under dusty muddy outdoor road building working conditions
  • Maintains stable transmission efficiency under standard construction hydraulic pressure supporting all day long continuous heavy duty compaction work within wide ambient temperature range
  • Integrated compact structure combines reduction load bearing and brake function in one unit to simplify installation steps and lower machine maintenance time cost
  • Surface anti rust black oxide treatment extends whole service life of gearbox its purchasing cost is much lower than original factory spare part to reduce road construction team equipment maintenance budget
  • Perfectly matched with mainstream hydraulic piston travel motor fully compatible with Caterpillar CS76 CS79 vibratory soil compactor original hydraulic pipeline layout



Application scenarios

This 203 4710 planetary final drive gearbox is exclusively designed for Caterpillar CS76 CS79 vibratory compactor used in highway foundation compaction city road asphalt paving rural road reconstruction and airport ground leveling projects. It also fits all kinds of medium sized single drum vibratory compactors working in open air road construction sites that need stable low speed high torque walking power to finish soil and asphalt compaction tasks.

03

04

05

06

07

08

09

10

11

12

13

14



MAIN SPECIFICATION



Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5



Technical data for BMR with 31.75 and 32 shaft



Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1250 960 750 600 475 378 310 240 190 155
int. 1520 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 380 450 540 550 580
int. 83 126 220 280 340 430 500 610 690 690
peak 105 165 270 320 370 460 560 710 840 830
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 11 10 9 7.5
int. 9.8 11.2 15 15 14.5 14 13 12 10 9
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 17.5 17.5 17.5 13.5 11.5
int. 16.5 17.5 20 20 20 20 20 20 17.5 15
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 21 17.5
Max. flow (L/min) cont. 45 50 60 60 60 60 60 60 60 60
int. 55 60 75 75 75 75 75 75 75 75
Weight (kg)   6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.
