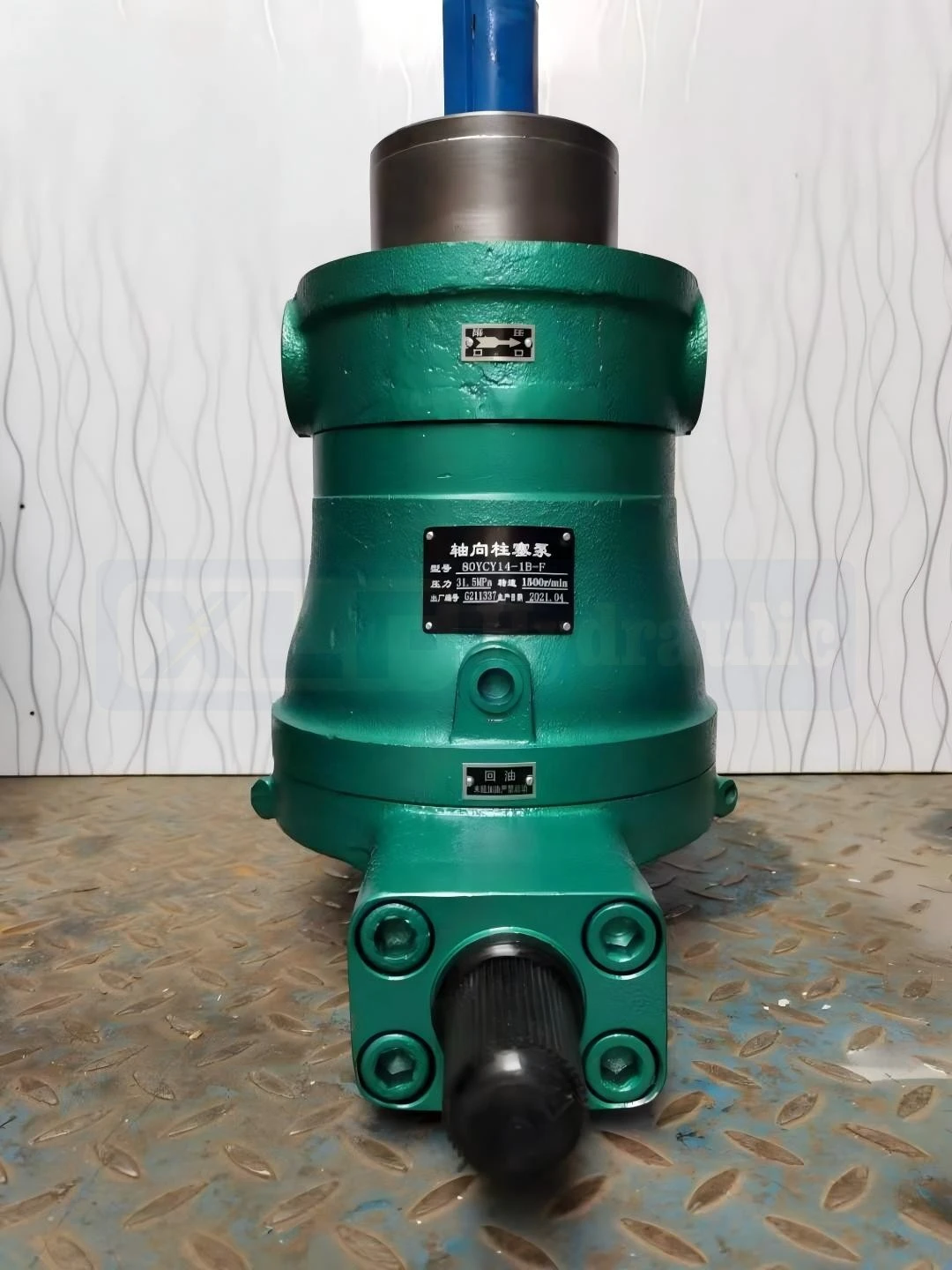

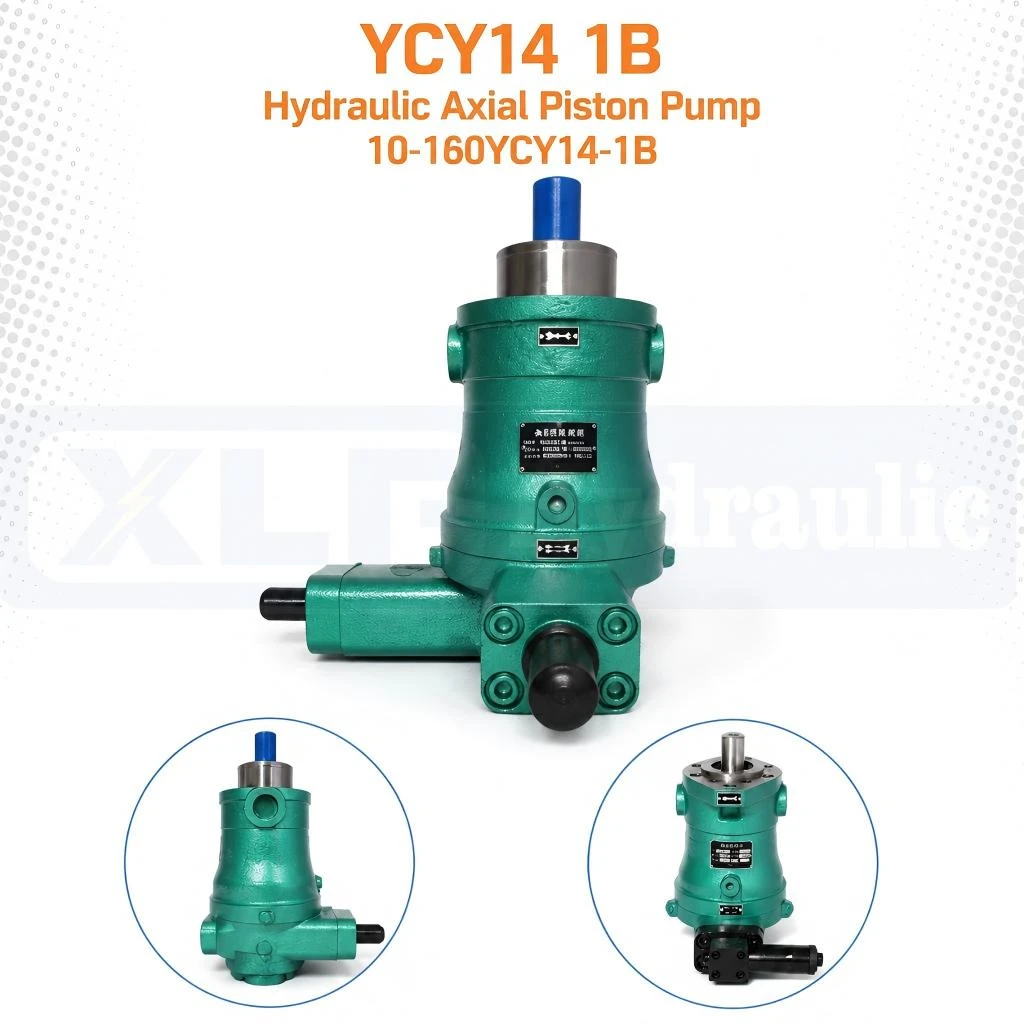

YCY14‑1B Hydraulic Axial Piston Pump 10‑160YCY14‑1B
Wuhan Xinlaifu Hydraulic Equipment Co., Ltd. is one of the leading manufacturers and suppliers of ycy14‑1b hydraulic axial piston pump 10‑160ycy14‑1b in China. With abundant experience, we warmly welcome you to buy high quality customized products at competitive price from our factory. Also, OEM&ODM service is available.
Technical specifications
| Item | Specification |
|---|---|
| Part Number | 10YCY14-1B, 25YCY14-1B, 40YCY14-1B, 63YCY14-1B, 80YCY14-1B, 160YCY14-1B |
| Product Type | Pressure-compensated Variable Displacement Axial Piston Pump |
| Applicable Machine | Excavators, Loaders, Cranes, Press Machines, Injection Molding Machines, Metallurgical & Mining Equipment |
| Brand Reference | CY14-1B Series (interchangeable with domestic OEM equivalents) |
| Application | Industrial hydraulic power units, heavy-duty machinery hydraulic systems |
| Material | Cast Iron Body, Steel Piston & Drive Shaft |
| Displacement | 10 / 25 / 40 / 63 / 80 / 160 ml/r (cc/rev) |
| Working Pressure | Rated 31.5 MPa (315 bar); Peak 35-40 MPa (short-term) |
| Installation Form | Flange Mounted (SAE / GB standard) |
| Working Condition | Mineral anti-wear hydraulic oil ISO VG32 / VG46, NAS 9 cleanliness; -20°C to 80°C |
| Sealing Type | NBR / FKM Oil Seal |
| Weight | 10YCY ~12kg; 25YCY ~35kg; 40YCY ~40kg; 63YCY ~63kg; 80YCY ~65kg; 160YCY ~128kg |
| Control Type | Pressure Compensation (Y-type automatic variable displacement) |
| Rotation | Clockwise viewed from shaft end; reversible on request |
| Rated Speed | 1500 r/min (up to 3000 r/min for small displacement models) |
| Remark | In stock, factory direct supply, direct replacement for OEM hydraulic systems |
Product Overview
YCY14‑1B series is pressure‑compensated variable‑displacement axial piston pump. Full model range includes 10YCY14‑1B, 25YCY14‑1B, 40YCY14‑1B, 63YCY14‑1B, 80YCY14‑1B, 160YCY14‑1B.
Built with heavy‑duty cast‑iron housing, this hydraulic pump delivers stable high‑pressure output for diverse industrial hydraulic systems. Widely used for metallurgy, mining, press machinery and injection molding equipment.
Available in stock with factory‑direct supply. It serves as reliable direct‑replacement hydraulic component for original equipment.
Features and Advantages
Features
- Pressure‑compensated variable displacement structure, Y‑type automatic variable control
- Full model range:10YCY14‑1B,25YCY14‑1B,40YCY14‑1B,63YCY14‑1B,80YCY14‑1B,160YCY14‑1B
- Heavy‑duty cast‑iron pump housing
- Stable high‑pressure performance for continuous heavy‑load operation
- Standard GB mounting interface, easy installation and replacement
- Multiple seal options to fit diverse hydraulic media
- Complete displacement options for different industrial system requirements
Advantages
- Stable output pressure, reduces system energy consumption
- Robust mechanical structure, long service life under harsh working conditions
- Direct OEM replacement, compatible with mainstream industrial hydraulic systems
- Fast delivery, multiple models available in stock
- Factory‑supported quality, cost‑effective alternative solution
- Low noise operation for metallurgy, mining and heavy‑duty machinery
Typical applications
The 10YCY14-1B, 25YCY14-1B, 40YCY14-1B, 63YCY14-1B, 80YCY14-1B and 160YCY14-1B axial piston pumps are high-pressure variable displacement hydraulic components, specially designed for heavy-duty industrial hydraulic systems. With stable pressure output and adaptive load performance, this YCY14-1B series fits a wide range of industrial and mechanical scenarios, serving as universal replacement hydraulic pumps for global engineering and manufacturing equipment.
- Hydraulic Press & Forging Machinery – Ideal for stamping, forging and pressing equipment, supporting low-speed high-torque and high-pressure stable operation to meet metal forming process demands.
- Injection & Plastic Machinery – Matches the variable pressure and flow requirements of injection molding machines, extrusion machines and plastic hydraulic systems, improving equipment operating efficiency.
- Mining & Metallurgical Equipment – Adaptable to harsh working conditions of mining machinery, rolling mills and metallurgical hydraulic units, ensuring continuous and stable operation of heavy-load equipment.
- Engineering & Construction Machinery – Widely used in loaders, cranes and hydraulic power units, providing reliable hydraulic power for mobile engineering equipment.
- Machine Tool & Industrial Automation – Applied in precision machine tool hydraulic systems and automated production lines, featuring low noise and stable pressure for long-cycle industrial operation.
- Marine & General Industrial Hydraulic Systems – Suitable for deck machinery and various industrial hydraulic equipment, supporting diversified high-pressure hydraulic transmission needs.
FAQ
1. Q: What is a YCY14-1B axial piston pump?
A: The YCY14-1B is a pressure-compensated variable displacement axial piston pump, including 10YCY14-1B, 25YCY14-1B, 40YCY14-1B, 63YCY14-1B, 80YCY14-1B and 160YCY14-1B models. It is a high-pressure hydraulic pump designed for heavy-duty industrial hydraulic systems.
2. Q: What are the main applications for YCY14-1B pumps?
A: YCY14-1B series pumps are widely used in hydraulic presses, injection molding machines, mining equipment, metallurgical machinery, construction machinery, machine tools and general industrial hydraulic systems for stable high-pressure power transmission.
3. Q: Are YCY14-1B pumps available in stock?
A: Yes. Full series YCY14-1B axial piston pumps, from 10YCY14-1B to 160YCY14-1B, are in stock and support fast factory direct delivery and OEM replacement.
4. Q: What is the working pressure of YCY14-1B hydraulic pump?
A: The YCY14-1B series features a rated working pressure of 31.5MPa, providing stable and reliable high-pressure performance for continuous heavy-load industrial operation.
5. Q: Is the YCY14-1B pump easy to replace?
A: Absolutely. 10YCY14-1B, 25YCY14-1B, 40YCY14-1B, 63YCY14-1B, 80YCY14-1B and 160YCY14-1B adopt standard mounting dimensions, which are fully compatible with original hydraulic systems for direct replacement.
6. Q: What are the advantages of YCY14-1B variable piston pump?
A: YCY14-1B pumps feature automatic pressure compensation, stable pressure output, low noise, durable cast iron structure and strong adaptability to harsh industrial working conditions.
7. Q: What displacement options does the YCY14-1B series provide?
A: This series covers complete displacement specifications: 10cc, 25cc, 40cc, 63cc, 80cc and 160cc, corresponding to 10YCY14-1B, 25YCY14-1B, 40YCY14-1B, 63YCY14-1B, 80YCY14-1B and 160YCY14-1B.
8. Q: What working conditions are suitable for YCY14-1B pumps?
A: YCY14-1B axial piston pumps adapt to heavy-duty, long-cycle and high-pressure working scenarios, ideal for mining, metallurgy, forging, plastic machinery and engineering hydraulic equipment.
Model Displacement
YCY14‑1B Series Axial Piston Pump Technical Specification Table
| Model | Nominal Displacement (ml/r) | Rated Pressure (MPa) | Peak Pressure (MPa) | Rated Speed (r/min) | Max Theoretical Torque (N·m) | Max Drive Power (kW@1000rpm) | Weight (kg) | Control Type | Installation |
|---|---|---|---|---|---|---|---|---|---|
| 10YCY14‑1B | 10 | 31.5 | 35 | 1500 | 54.6 | 5.7 | 12 | Pressure‑compensated variable | Flange Mount (GB standard) |
| 25YCY14‑1B | 25 | 31.5 | 35 | 1500 | 134.9 | 14.1 | 35 | Pressure‑compensated variable | Flange Mount (GB standard) |
| 40YCY14‑1B | 40 | 31.5 | 35 | 1500 | 201.5 | 22.6 | 40 | Pressure‑compensated variable | Flange Mount (GB standard) |
| 63YCY14‑1B | 63 | 31.5 | 35 | 1500 | 339.9 | 35.8 | 63 | Pressure‑compensated variable | Flange Mount (GB standard) |
| 80YCY14‑1B | 80 | 31.5 | 35 | 1500 | 405.1 | 46.6 | 65 | Pressure‑compensated variable | Flange Mount (GB standard) |
| 160YCY14‑1B | 160 | 31.5 | 35 | 1000 | 880.3 | 92.2 | 128 | Pressure‑compensated variable | Flange Mount (GB standard) |
General Technical Parameters (shared for whole series)
| Item | Specification |
|---|---|
| Pump Type | Pressure‑compensated variable‑displacement axial piston pump |
| Body Material | Cast‑iron housing, steel piston & drive shaft |
| Seal Material | NBR, FKM optional |
| Hydraulic Oil | ISO VG32 / VG46 anti‑wear mineral hydraulic oil |
| Oil Cleanliness | NAS 9 or better |
| Operating Temperature | -20℃ ~ +80℃ |
| Rotation Direction | Clockwise viewed from shaft end, reversible on request |
| Remark | In stock, direct OEM replacement, factory supply |
