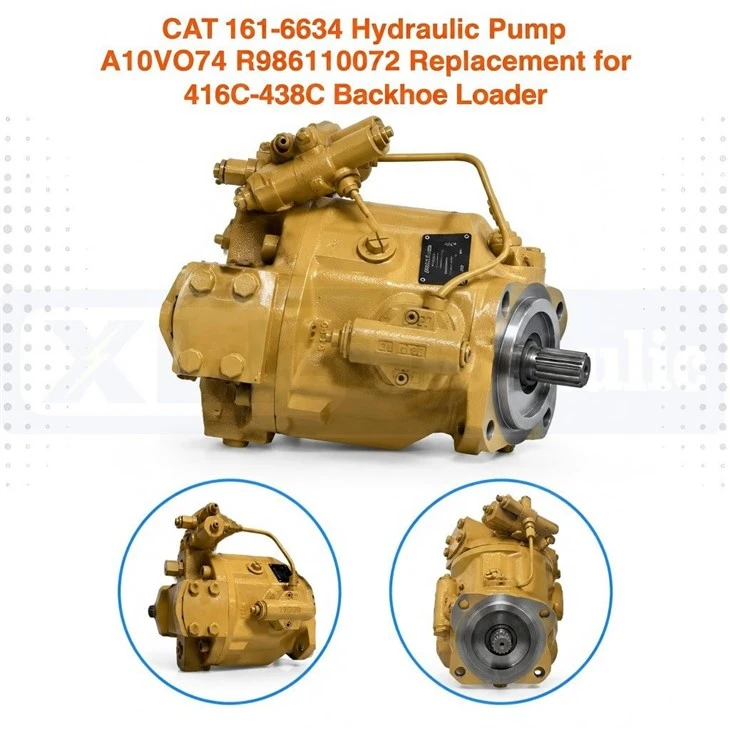

CAT 161-6634 Hydraulic Pump A10VO74 R986110072 Replacement For 416C-438C Backhoe Loader

Q1: Which CAT backhoe loaders does the 161-6634 fit?

The 161-6634 fits 416C, 426C, 428C, 436C, and 438C Backhoe Loaders equipped with the 3054 engine. Some sources also list compatibility with 420D, 430D, 432D, 442D, 424D, and 428D models. Confirm your machine's model and serial number before ordering.

Q2: What is the difference between 161-6634, A10VO74, and R986110072?

All three refer to a pump that fits the same application, but they come from different sources:

161-6634 - Caterpillar's original part number

A10VO74 - Bosch Rexroth's equivalent pump series with 74 cc displacement

R986110072 - Bosch Rexroth Series 52/53 pump configured as a direct replacement for CAT 161-6634

The R986110072 is the most direct Rexroth replacement - engineered to match the CAT original in mounting, shaft, and port configuration.

Q3: Why do some sources list 74 cc and others list 71 cc?

The 74 cc/rev figure comes from the Bosch Rexroth R986110072 specification and is the most commonly cited displacement for this pump family. Some suppliers list 71 cc/rev based on their own measurement or a different reference pump. The actual displacement of your original CAT pump should be confirmed against the machine's data plate or by consulting a CAT dealer with your serial number.

Practical impact: The difference between 71 and 74 cc is approximately 4%. In most applications, this is within acceptable tolerance and will not noticeably affect machine performance. However, if your machine is operating at the limits of its hydraulic capacity, confirm the exact specification before ordering.

Q4: How do I confirm the rotation direction?

The 161-6634 is configured for clockwise rotation (viewed from the shaft end). Before ordering, confirm the rotation of your existing pump:

Disengage the engine (fuel disabled)

Observe the input shaft rotation as the engine is cranked

Match R (clockwise) or L (counterclockwise) accordingly

Installing a pump with the wrong rotation direction will destroy the pump immediately on startup.

Q5: What should I check before installing the new pump?

Four items before installation:

Suction line condition - a collapsing or restricted suction hose can cavitate the new pump within minutes

Pre-fill the pump - fill with clean hydraulic oil and purge air before startup, especially if mounted vertically

System relief valve setting - confirm it is set to the correct pressure for your machine (3600 PSI nominal)

Case drain routing - ensure the drain line returns to the highest available tank port and is not shared in a way that exceeds case pressure limits

Q6: Is the A10VO74 the same as the A10VSO74?

The A10VO74 and A10VSO74 are closely related - both are Bosch Rexroth A10VO series pumps with 74 cc displacement. The "S" in A10VSO typically indicates a specific configuration variant (such as through-drive capability or control type). For replacement purposes, both will fit the same mounting footprint, but control configuration may differ. Confirm your machine's control requirements (DFR, DFR1, etc.) before ordering.

Q7: What warranty is provided?

Warranty terms vary by supplier. Typical coverage for the 161-6634 is 6 to 12 months from date of shipment. Confirm the specific warranty terms with your supplier before purchase.

Q8: Do you provide test reports?

Yes. We can provide performance verification data for the pump before shipment, including flow and pressure test results. Test videos are available upon request.
