Rexroth A6VE Series 63 Axial Drive Motor for Crawler Bulldozers
Applications: Crawler excavators
Sizes 28 and 250
Nominal pressure 400 bar (size 28)
Nominal pressure 350 bar (size 250)
Maximum pressure 450 bar (size 28)
Maximum pressure 400 bar (size 250)
Open and closed circuits
Product technical data
XLF-A6VE Axial Piston Fixed Pump Features
1. Fully interchangeable with the original brand
2. Very competitive price
3. Low noise, high efficiency, high reliability, long service life
4. Small size, high power density
5. Excellent oil absorption properties.
6. 1 year warranty
7. For engineering equipment, Marine and boating and industrial equipment, etc.
8. For axial piston pump with open loop.
9. Continuous working pressure up to 280 bar, instantaneous maximum working pressure up to 450 bar.
10. Flow proportional to drive speed and displacement and can be achieved by adjusting the variable lock Angle
11. There are constant pressure, constant power pressure, constant voltage flow and other control methods, as well as the reaction rate control
12. Drive shaft can withstand axial and radial loads
13. Sae and iso mounting flange
14. For the structure of the axis of passage and for a multi-loop system
15. Start at any time under pressure.
The main hydraulic piston pumps and hydraulic motor in our factory . We can provide a pretty good replacement for these original series products, if you are looking for these models, we are just the right supplier you deserve cooperation for a long time.
XLF-A6VE Axial Piston Fixed Pump Product detail picture

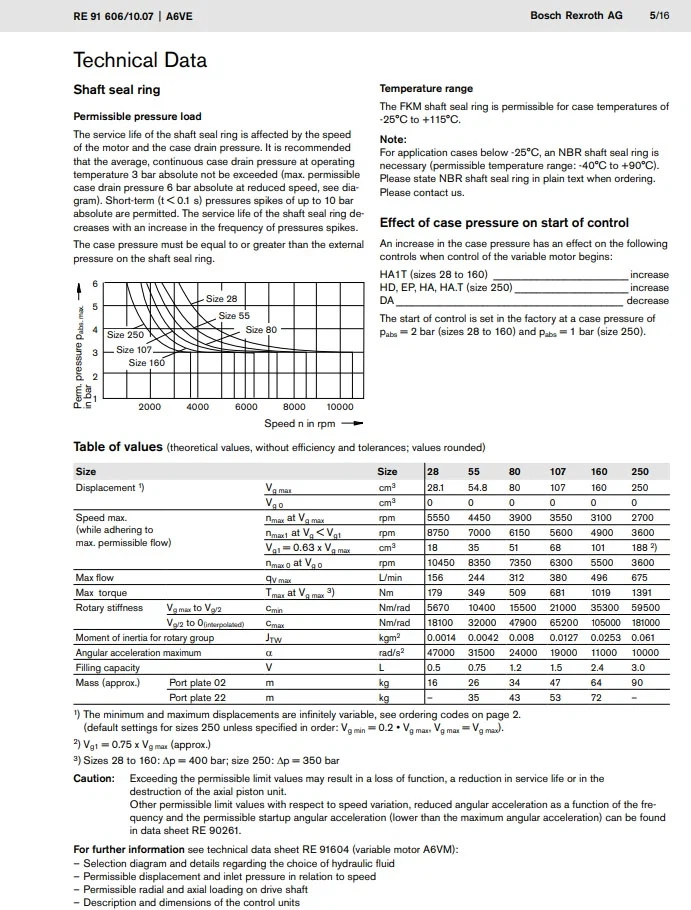

XLF-A6VE Axial Piston Fixed Pump Technical data
| RE 91606/10.07 |A6VE Bosch AG 5(16 | ||||||||
| Technical Data Shaft seal ring |
Temperature range | |||||||
| Permissible pressure load | The FKM shaft seal ring is permissible for case temperatures of -25°℃ to +115°C. |
|||||||
| The service lifte of the shaft seal ring is affected by the speed of the motor and the case drain pressure.It is recommended that the average,continuous case drein pressure at operating temperature 3 bar absolute not be exceeded (max.permissible case drain pressure 6 bar absolute at reduced apeed,see dia- gram).Short term(t<0.1 s)pressures spikes of up to 10 bar absalute are permitted.The service life of the shaft seal ring de- creases with an increase in the frequency of pressures spikes. The case pressure must be equal to or greater than the extemal pressure on the shaft seal ring. |
Note: | |||||||
| For application cases below-25°C,an NBR shaft seal ring is necessary (permissible temperature range:-40°℃ to +90°C). Please state NBR shaft seal ring in plain text when ordering. Please cantact us. |
||||||||
| Effect of case pressure on start of control An increase in the case pressure has an effect on the following controls when control of the variable motor begins: |
||||||||
 |
HA1T(sizes 28 to 160) | __ | increase | |||||
| HD,ER,HA,HA.T(size | 250) | increase | ||||||
| __ | ||||||||
| DA_ _ | decrease | |||||||
| The start of control is set in the factory at a case pressure of Pata=2 bar (sizes 28 to 160)and Pa=1 bar (eize 250). |
||||||||
| Speed n in pm 一 | ||||||||
| Table of values (theoretical values,without eficiency and tolerances;values rounded) | ||||||||
| Size Size | 28 55 80 107 160 250 | |||||||
| Displacement 1) cm³ | 28.1 54.8 80 107 160 250 | |||||||
| Vao cm³ | 0 0 0 0 0 0 | |||||||
| Speed max. mu at y rpm | 5550 4450 390 3550 310 270 | |||||||
| (while adhering to NmtatV.cV rpm | 8750 7000 615 5600 4900 3600 | |||||||
| max.permissible flow) Van=0.63xV cm³ | 18 35 51 68 101 1882 | |||||||
| Nmwa at V rpm | 10450 8350 7350 6300 550 3600 | |||||||
| Max flow 9vm Umi | 156 244 312 380 496 675 | |||||||
| Max torgue Tma,at Va 3 Nm | 179 349 509 681 1019 1391 | |||||||
| Rotary stifiness Vema to Vgz Cmn Nm/rad | 5670 10400 15500 21000 35300 59500 | |||||||
| Vaa to Oinarpdaed Cmax Nm/rad | 18100 32000 47900 65200 105000 181000 | |||||||
| Moment of inertia for rotary group Jw kgm² | 0.0014 0.0042 0.008 0.0127 0.0253 0.061 | |||||||
| Angular acceleration maximum a md/e3 | 47000 31500 24000 19000 11000 10000 | |||||||
| Filling capacity V L | 0.5 0.75 1.2 1.5 2.4 3.0 | |||||||
| Mass(apprax.) Port plate 02 m kg | 16 26 34 47 64 90 | |||||||
| Port plate 22 m kg | 35 43 53 72 一 | |||||||
| 1)The minimum and maximum displacements are infinitely variable,see ordering codes on page 2. (default settings for sizes 250 unless specified in order:Vemn=0.2·Vama Vamar =Vg. 2)Vg₁=0.75xVgma(approx.) |
||||||||
| 3)Sizes 28 to 160:Ap=400 bar;size 250:Ap=350 bar | ||||||||
| Caution: Exceeding the permissible limit values may result in a loss of function,a reduction in service lfe or in the destruction of the axial piston unit. |
||||||||
| Other permissible limit values with respect to speed variation,reduced angular acceleration as a function of the fre- quency and the permissible startup angular acceleration (lower than the maximum angular acceleration)can be found in data sheet RE 90261. |
||||||||
| For further information see technical data sheet RE 91604(variable motor A6VM): -Selection diagrarm and details regarding the choice of hydraulic fluid -Parmissible displacement and inlet pressure in relation to apeed -Permissible radial and axial loading on drive shaft -Description and dimensions of the control units |
||||||||
XLF-A6VE Applicable model
|
R902150301 A6VE060EP100P000A/71AWV0P2Z81D0-0 R902250549 A6VE060EP100P000A/71AWV0P2Z81DV-0 R902226163 A6VE060EP100P000A/71AWV0P2Z82AH-0 R902203740 A6VE060EP100P000A/71AWV0P2Z82AV-0 R902150279 A6VE060EP100P000A/71MLV0P2Z62BU-S R902150224 A6VE060EP100P000A/71MLV0P2Z62DH-S R902155091 A6VE060EP100P000A/71MLV0P2Z62DV-S R902150280 A6VE060EP100P000A/71MRV0P2Z62BU-S R902150223 A6VE060EP100P000A/71MRV0P2Z62DH-S R902155090 A6VE060EP100P000A/71MRV0P2Z62DV-S R902248336 A6VE060EP100P000A/71MWV0P2Z62AH-S R902231160 A6VE060EP100P000A/71MWV0P2Z82AH-0 R902207454 A6VE060EP100P000A/71MWVLP2Z620F-S R902207453 A6VE060EP100P000A/71MWVLP2Z62FF-S R902150211 A6VE060EP200P000A/71MLV0P2Z61DH-S R902155124 A6VE060EP200P000A/71MLV0P2Z61DV-S R902243256 A6VE060EP200P000A/71MLV0P2Z81BV-S R902150210 A6VE060EP200P000A/71MRV0P2Z61DH-S R902155123 A6VE060EP200P000A/71MRV0P2Z61DV-S R902243372 A6VE060EP200P000A/71MRV0P2Z81BV-S R902150214 A6VE060EP200P000A/71MWV0P2Z81BH-0 R902235039 |
A6VE060EP200P000A/71MWV0P2Z82BV-0 R902155094 A6VE060EP500P000A/71MWV0P2Z82FU-0 R902227890 A6VE060EP500P000A/71MWV0P2Z82FU-Y R902275597 A6VE060EP500P000C/71MWV0P2Z81CU-0 R902194296 A6VE060EP500P000E/71AWV0P2Z82CU-0 R902275594 A6VE060EP500P000E/71AWV0P2Z82CV-0 R902237091 A6VE060EP600P000A/71MWV0P2Z610V-0 R902155075 A6VE060EP600P000A/71MWV0P2Z610V-S R902170488 A6VE060EP600P000A/71MWV0P2Z620V-S R902150345 A6VE060EP600P000A/71MWV0P2Z81AV-0 R902235187 A6VE060EP600P000A/71MWV0P2Z81BV-0 R902150281 A6VE060EP600P000A/71MWV0P2Z82CV-0 R902239710 A6VE060EP600P000B/71MWV0P2Z620V-S R902237065 A6VE060EP600P001A/71MWV0P2Z82BV-0 R902207002 A6VE060EP600P001B/71MWV0P2Z62BV-S R902227750 A6VE060EP600T000A/71MWV0P2Z820V-0 R902237028 A6VE060EZ400P001B/71MWV0P2Z82B0-0 R902241961 A6VE060EZ400P001B/71MWV0P2Z82BV-0 R902207003 A6VE060EZ800P001B/71MWV0P2Z82AV-0 R902257762 A6VE060EZ800P001F/71MWV0P2Z82AU-0 R902255744 A6VE060EZ800P001G/71MWV0P2Z810U-0 R902255742 A6VE060EZ800Q001B/71MWV0P2Z6200-S R902245739 |
A6VE060EZ800Q001B/71MWV0P2Z620U-S R902162132 A6VE060EZ800Q001F/71MWV0P2Z6200-0 R902245740 A6VE060EZ800Q001F/71MWV0P2Z6200-S R902227694 A6VE060HA2T30002F/71MWV0P2Z8200-Y R902248117 A6VE060HA2T30002F/71MWV0P2Z820U-Y R902257547 A6VE060HA2T30002F/71MWV0P2Z820U-Y R902150313 A6VE060HA2T30004B/71MWV0P2Z81A0-0 R902150233 A6VE060HA2T30004B/71MWV0P2Z82A0-Y R902150331 A6VE060HP5000001E/71AWV0P2Z81F0-0 R902150251 A6VE060HZ7000001A/71MWV0P2Z8200-0 R902200110 A6VE060HZ7000001A/71MWV0P2Z820V-0 R902243473 A6VE060HZ7000001B/71CWV0P2Z82CF-S R902208658 A6VE060HZ7000001B/71MWV0P2Z61B0-S R902249590 A6VE060HZ7000001B/71MWV0P2Z820V-0 R902155130 A6VE060HZ7000001C/71MWV0P2Z82DV-0 R902222093 A6VE060HZ7000001F/71CWV0P2S72BF-S R902150347 A6VE060HZ7000001F/71MWV0P2Z86Y0-0 R902194229 A6VE060HZ7000001G/71MWV0P2Z62A0-S R902248446 A6VE060HZ7000001G/71MWV0P2Z62AV-S R902150368 A6VE060HZ7000001G/71MWV0P2Z86Y0-Y R902211897 A6VE085EP100H004F/71MWVOY2Z9200-Y R902150309 A6VE085EP100P000A/71MLV0Y2Z92BV-S |
R902150277 A6VE085EP100P000A/71MLV0Y2Z92CU-S R902150310 A6VE085EP100P000A/71MRV0Y2Z92BV-S R902150278 A6VE085EP100P000A/71MRV0Y2Z92CU-S R902253946 A6VE085EP100P000A/71MWV0Y2Z91BV-0 R902150208 A6VE085EP100P000A/71MWV0Y2Z92AH-0 R902231162 A6VE085EP100P000A/71MWV0Y2Z92AH-0 R902150318 A6VE085EP100P000A/71MWV0Y2Z92BV-0 R902248162 A6VE085EP100P000A/71MWV0Y2Z92D0-0 R902232885 A6VE085EP100P000A/71MWV0Y2Z92FV-0 R902211532 A6VE085EP100P000A/71MWV0Y2Z92XV-Y R902275646 A6VE085EP100P000E/71MWV0Y2Z920U-0 R902243374 A6VE085EP200P000A/71MLV0Y2Z91BV-S R902243254 A6VE085EP200P000A/71MRV0Y2Z91BV-S R902150336 A6VE085EP200P000A/71MWV0Y2Z91XV-S R902150366 A6VE085EP200P000A/71MWV0Y2Z92BV-0 R902155137 A6VE085EP200P000A/71MWV0Y2Z92CV-0 R902155100 A6VE085EP200P000A/71MWV0Y2Z92XV-S R902155023 A6VE085EP200P000A/71MWV0Y2Z92XV-S R902251882 A6VE085EP200P000A/71MWV0Y2Z92XV-S R902155138 A6VE085EP200P000E/71MWV0Y2Z92CV-0 R902205905 A6VE085EP500H001F/71MWV0Y2Z9200-0 R902155133 |
|
A6VE085EP500P004F/71MWVOY2Z9200-Y R902150282 A6VE085EP600P000A/71MWV0Y2Z92CV-0 R902239711 A6VE085EP600P000B/71MWV0Y2Z920V-0 R902255842 A6VE085EP600P000B/71MWV0Y2Z920V-0 R902239836 A6VE085EP600P000B/71MWV0Y2Z92DV-0 R902220967 A6VE085EP600P000F/71MWV0Y2Z92C0-0 R902250866 A6VE085EP6D1H001E/71MWV0Y2Z97WU-0 R902162144 A6VE085EZ800Q001F/71MWV0Y2Z9200-0 R902253981 A6VE085HA100000XF/71MWV0Y2Z9200-Y R902233951 A6VE085HA2T30002F/71MWV0Y2Z920U-Y R902257676 A6VE085HA2T30004C/71MWV0Y2Z9200-0 R902251835 A6VE085HA2T30006C/71MWV0Y2Z920V-Y R902243279 A6VE085HP6000001F/71MWV0Y2Z9200-0 R902250979 A6VE085HP6D10001F/71MWV0Y2Z9200-0 R902227849 A6VE085HP6D20001G/71MWV0Y2Z9200-0 R902241811 A6VE085HZ7000001B/71MWV0Y2Z9100-0 R902222429 A6VE085HZ7000001G/71MWV0Y2Z9200-0 R902155055 A6VE085HZ7000001G/71MWV0Y2Z92B0-0 R902222443 A6VE115DA0000007C/71MWV0S2Z92C0-0 R902241817 A6VE115EP100P000A/71MLV0S2A12CV-S R902150221 A6VE115EP100P000A/71MLV0S2Z91DH-S R902155088 A6VE115EP100P000A/71MLV0S2Z91DV-0 R902247431 |
A6VE115EP100P000A/71MLV0S2Z92CH-S R902241816 A6VE115EP100P000A/71MRV0S2A12CV-S R902150222 A6VE115EP100P000A/71MRV0S2Z91DH-S R902155089 A6VE115EP100P000A/71MRV0S2Z91DV-0 R902247432 A6VE115EP100P000A/71MRV0S2Z92CH-S R902233784 A6VE115EP100P000A/71MWV0S2A12CH-0 R902231126 A6VE115EP100P000A/71MWV0S2A12CV-0 R902233791 A6VE115EP100P000A/71MWV0S2Z92BH-0 R902243267 A6VE115EP100P000A/71MWV0S2Z92CH-S R902223191 A6VE115EP100P000A/71MWV0S2Z92CH-S R902243185 A6VE115EP100P000C/71MWV0S2Z920F-0 R902243186 A6VE115EP100P000C/71MWV0S2Z92FF-0 R902150213 A6VE115EP200P000A/71MLV0S2Z91DH-S R902207038 A6VE115EP200P000A/71MLV0S2Z91DV-0 R902150288 A6VE115EP200P000A/71MLV0S2Z91DV-S R902150212 A6VE115EP200P000A/71MRV0S2Z91DH-S R902207039 A6VE115EP200P000A/71MRV0S2Z91DV-0 R902150289 A6VE115EP200P000A/71MRV0S2Z91DV-S R902155059 A6VE115EP200P000A/71MWV0S2Z91DV-0 R902150367 A6VE115EP600P000A/71MWV0S2Z92BV-0 R902240326 A6VE115EP600P000A/71MWV0S2Z92CH-0 R902170336 A6VE115EP600P000B/71MWV0S2Z91FV-0 R902260248 |
A6VE115EP600P000B/71MWV0S2Z920V-0 R902150261 A6VE115EP600P000B/71MWV0S2Z92CF-0 R902245227 A6VE115EP600P000B/71MWV0S2Z92DV-0 R902257750 A6VE115EP600P000E/71MWV0S2Z920U-0 R902150266 A6VE115EP600P000E/71MWV0S2Z920V-0 R902250867 A6VE115EP6D1H001E/71MWV0S2Z97WU-0 R902261108 A6VE115EP6D1P001G/71MWV0S2Z9100-0 R902237289 A6VE115EZ700P001F/71MWV0S2Z92DU-0 R902150335 A6VE115EZ800P001D/71MWV0S2Z91F0-0 R902170181 A6VE115EZ800P001F/71MWV0S2A120U-0 R902205643 A6VE115EZ800P001X/71AWV0S2Z92FU-S R902248200 A6VE115HA1T30004F/71MWV0S2Z92FU-0 R902275549 A6VE115HA1T30004G/71MWV0S2Z9200-Y R902150329 A6VE115HA1T30004G/71MWV0S2Z92C0-0 R902237040 A6VE115HA2000004D/71MWV0S2A11FV-S R902227636 A6VE115HA2T30004B/71MWV0S2Z9200-0 R902251661 A6VE115HA2T30004B/71MWV0S2Z9200-0 R902241709 A6VE115HA2T30004E/71MWV0S2Z9200-0 R902255987 A6VE115HA2T3000XB/71MWV0S2Z9200-Y R902247400 A6VE115HA3T30001C/71MWV0S2A16YV-S R902241683 A6VE115HA3T30001C/71MWV0S2A16YV-S R902150325 A6VE115HA3T30001G/71MWV0S2Z96ZU-0 R902150365 |
A6VE115HA3T30001G/71MWV0S2Z96ZV-Y R902150272 A6VE115HP5D10001H/71MWV0S2Z98W0-0 R902253743 A6VE115HP5D10001K/71MWP0S2Z9200-0 R902249844 A6VE115HZ7000001C/71MWV0S2Z92AU-0 R902150275 A6VE115HZ7000001C/71MWV0S2Z96Y0-0 R902150364 A6VE115HZ7000001C/71MWV0S2Z96Y0-0 R902255847 A6VE115HZ7000001G/71CWV0S2Z96Z0-0 R902241819 A6VE170EP100P000A/71MLV0S2A12CV-S R902241818 A6VE170EP100P000A/71MRV0S2A12CV-S R902233785 A6VE170EP100P000A/71MWV0S2A12CH-0 R902231125 A6VE170EP100P000A/71MWV0S2A12CV-0 R902233526 A6VE170EP100P000A/71MWV0S2A12DH-0 R902255588 A6VE170EP200P000A/71MLV0S2A12DV-S R902255589 A6VE170EP200P000A/71MRV0S2A12DV-S R902223287 A6VE170EP200P001C/71MWV0S2A18W0-0 R902247372 A6VE170EP500P000C/71MWV0S2A12DV-0 R902150284 A6VE170EP600P000B/71MWV0S2A12IV-0 R902150350 A6VE170EP600P000C/71MWV0S2A12D0-0 R902150262 A6VE170EP600P000D/71MWV0S2A12MU-0 R902231018 A6VE170EP600P000E/71MWV0S2A220H-0 R902247426 A6VE170EP600P000F/71MWV0S2A12DV-0 R902150324 A6VE170EP600P000F/71MWV0S2A12EV-0 R902204652 |
|
A6VE170EP6D1H001F/71NWV0S2A22D0-S R902251803 A6VE170EP6D1H001F/71XWV0S2A18WU-S R902243266 A6VE170EP6D1P001C/71MWV0S2A120H-0 R902205915 A6VE170EP6D1P001C/71MWV0S2A120H-0 R902239639 A6VE170HA100000XD/71MWV0S2A11X0-S R902150334 A6VE170HA1T30004F/71MWV0S2A12G0-0 R902247367 A6VE170HA1T30004F/71MWV0S2A12GU-0 R902223215 A6VE170HA1T30004G/71MWV0S2A12GU-0 R902215203 A6VE170HA2000004G/71MWV0S2A12D0-0 R902150230 A6VE170HA2000004G/71MWV0S2A12D0-0 R902261010 A6VE170HA2000004H/71MWV0S2A11DU-0 R902150308 A6VE170HA2000004H/71MWV0S2A11GV-S R902255821 A6VE170HA200000XG/71MWV0S2A11JV-S R902150369 A6VE170HA2T30004C/71MWV0S2A12G0-0 R902241708 A6VE170HA2T30004F/71MWV0S2A1200-0 R902275609 A6VE170HA3T30001C/71MWV0S2A16Y0-0 R902150341 A6VE170HA3T30001G/71MWV0S2A16ZU-0 R902205968 A6VE170HA3T30001G/71MWV0S2A26Y0-0 R986PT0887 A6VE170HA3T30001X/71MWV0S2A16Y0-S R902240161 A6VE170HP5D10001H/71MWV0S2A18WF-S R902240111 A6VE170HP5D10001H/71MWV0S2A18WF-S R902259002 A6VE170HP5D10001X/71MWV0S2A18WF-S R902150371 |
A6VE170HP5D20001G/71MWV0S2A12D0-0 R902242658 A6VE170HP6000000C/71MWV0S2A16YV-S R902233898 A6VE170HP6000000F/71MWV0S2A2100-0 R902227759 A6VE170HZ5000000G/71MWV0S2A12D0-0 R902239753 A6VE170HZ5000001C/71MWV0S2A1100-0 R902150354 A6VE170HZ7000001C/71MWV0S2A16Z0-0 R902150285 A6VE170HZ7000001G/71MWV0S2A16Y0-0 R902220818 A6VE170HZ7000001H/71MWV0S2A16Z0-0 R902567835 A6VE280EP600P000F/71MWV0Z4A29WV-S R902550997 A6VE280HZ6000001F/71CWV0Z4A29WF-S R902518036 A6VE280HZ6000001X/71CWV0Z4T29W0-S R902518038 A6VE280HZ6000001X/71CWV0Z4T29W0-S R902150301 A6VE060EP100P000A/71AWV0P2Z81D0-0 R902250549 A6VE060EP100P000A/71AWV0P2Z81DV-0 R902226163 A6VE060EP100P000A/71AWV0P2Z82AH-0 R902203740 A6VE060EP100P000A/71AWV0P2Z82AV-0 R902150279 A6VE060EP100P000A/71MLV0P2Z62BU-S R902150224 A6VE060EP100P000A/71MLV0P2Z62DH-S R902155091 A6VE060EP100P000A/71MLV0P2Z62DV-S R902150280 A6VE060EP100P000A/71MRV0P2Z62BU-S R902150223 A6VE060EP100P000A/71MRV0P2Z62DH-S R902155090 A6VE060EP100P000A/71MRV0P2Z62DV-S R902248336 |
A6VE060EP100P000A/71MWV0P2Z62AH-S R902231160 A6VE060EP100P000A/71MWV0P2Z82AH-0 R902207454 A6VE060EP100P000A/71MWVLP2Z620F-S R902207453 A6VE060EP100P000A/71MWVLP2Z62FF-S R902150211 A6VE060EP200P000A/71MLV0P2Z61DH-S R902155124 A6VE060EP200P000A/71MLV0P2Z61DV-S R902243256 A6VE060EP200P000A/71MLV0P2Z81BV-S R902150210 A6VE060EP200P000A/71MRV0P2Z61DH-S R902155123 A6VE060EP200P000A/71MRV0P2Z61DV-S R902243372 A6VE060EP200P000A/71MRV0P2Z81BV-S R902150214 A6VE060EP200P000A/71MWV0P2Z81BH-0 R902235039 A6VE060EP200P000A/71MWV0P2Z82BV-0 R902155094 A6VE060EP500P000A/71MWV0P2Z82FU-0 R902227890 A6VE060EP500P000A/71MWV0P2Z82FU-Y R902275597 A6VE060EP500P000C/71MWV0P2Z81CU-0 R902194296 A6VE060EP500P000E/71AWV0P2Z82CU-0 R902275594 A6VE060EP500P000E/71AWV0P2Z82CV-0 R902237091 A6VE060EP600P000A/71MWV0P2Z610V-0 R902155075 A6VE060EP600P000A/71MWV0P2Z610V-S R902170488 A6VE060EP600P000A/71MWV0P2Z620V-S R902150345 A6VE060EP600P000A/71MWV0P2Z81AV-0 R902235187 A6VE060EP600P000A/71MWV0P2Z81BV-0 R902150281 |
A6VE060EP600P000A/71MWV0P2Z82CV-0 R902239710 A6VE060EP600P000B/71MWV0P2Z620V-S R902237065 A6VE060EP600P001A/71MWV0P2Z82BV-0 R902207002 A6VE060EP600P001B/71MWV0P2Z62BV-S R902227750 A6VE060EP600T000A/71MWV0P2Z820V-0 R902237028 A6VE060EZ400P001B/71MWV0P2Z82B0-0 R902241961 A6VE060EZ400P001B/71MWV0P2Z82BV-0 R902207003 A6VE060EZ800P001B/71MWV0P2Z82AV-0 R902257762 A6VE060EZ800P001F/71MWV0P2Z82AU-0 R902255744 A6VE060EZ800P001G/71MWV0P2Z810U-0 R902255742 A6VE060EZ800Q001B/71MWV0P2Z6200-S R902245739 A6VE060EZ800Q001B/71MWV0P2Z620U-S R902162132 A6VE060EZ800Q001F/71MWV0P2Z6200-0 R902245740 A6VE060EZ800Q001F/71MWV0P2Z6200-S R902227694 A6VE060HA2T30002F/71MWV0P2Z8200-Y R902248117 A6VE060HA2T30002F/71MWV0P2Z820U-Y R902257547 A6VE060HA2T30002F/71MWV0P2Z820U-Y R902150313 A6VE060HA2T30004B/71MWV0P2Z81A0-0 R902150233 A6VE060HA2T30004B/71MWV0P2Z82A0-Y R902150331 A6VE060HP5000001E/71AWV0P2Z81F0-0 R902150251 A6VE060HZ7000001A/71MWV0P2Z8200-0 R902200110 A6VE060HZ7000001A/71MWV0P2Z820V-0 R902243473 |
|
A6VE060HZ7000001B/71CWV0P2Z82CF-S R902208658 A6VE060HZ7000001B/71MWV0P2Z61B0-S R902249590 A6VE060HZ7000001B/71MWV0P2Z820V-0 R902155130 A6VE060HZ7000001C/71MWV0P2Z82DV-0 R902222093 A6VE060HZ7000001F/71CWV0P2S72BF-S R902150347 A6VE060HZ7000001F/71MWV0P2Z86Y0-0 R902194229 A6VE060HZ7000001G/71MWV0P2Z62A0-S R902248446 A6VE060HZ7000001G/71MWV0P2Z62AV-S R902150368 A6VE060HZ7000001G/71MWV0P2Z86Y0-Y R902211897 A6VE085EP100H004F/71MWVOY2Z9200-Y R902150309 A6VE085EP100P000A/71MLV0Y2Z92BV-S R902150277 A6VE085EP100P000A/71MLV0Y2Z92CU-S R902150310 A6VE085EP100P000A/71MRV0Y2Z92BV-S R902150278 A6VE085EP100P000A/71MRV0Y2Z92CU-S R902253946 A6VE085EP100P000A/71MWV0Y2Z91BV-0 R902150208 A6VE085EP100P000A/71MWV0Y2Z92AH-0 R902231162 A6VE085EP100P000A/71MWV0Y2Z92AH-0 R902150318 A6VE085EP100P000A/71MWV0Y2Z92BV-0 R902248162 A6VE085EP100P000A/71MWV0Y2Z92D0-0 R902232885 A6VE085EP100P000A/71MWV0Y2Z92FV-0 R902211532 A6VE085EP100P000A/71MWV0Y2Z92XV-Y R902275646 A6VE085EP100P000E/71MWV0Y2Z920U-0 R902243374 |
A6VE085EP200P000A/71MLV0Y2Z91BV-S R902243254 A6VE085EP200P000A/71MRV0Y2Z91BV-S R902150336 A6VE085EP200P000A/71MWV0Y2Z91XV-S R902150366 A6VE085EP200P000A/71MWV0Y2Z92BV-0 R902155137 A6VE085EP200P000A/71MWV0Y2Z92CV-0 R902155100 A6VE085EP200P000A/71MWV0Y2Z92XV-S R902155023 A6VE085EP200P000A/71MWV0Y2Z92XV-S R902251882 A6VE085EP200P000A/71MWV0Y2Z92XV-S R902155138 A6VE085EP200P000E/71MWV0Y2Z92CV-0 R902205905 A6VE085EP500H001F/71MWV0Y2Z9200-0 R902155133 A6VE085EP500P004F/71MWVOY2Z9200-Y R902150282 A6VE085EP600P000A/71MWV0Y2Z92CV-0 R902239711 A6VE085EP600P000B/71MWV0Y2Z920V-0 R902255842 A6VE085EP600P000B/71MWV0Y2Z920V-0 R902239836 A6VE085EP600P000B/71MWV0Y2Z92DV-0 R902220967 A6VE085EP600P000F/71MWV0Y2Z92C0-0 R902250866 A6VE085EP6D1H001E/71MWV0Y2Z97WU-0 R902162144 A6VE085EZ800Q001F/71MWV0Y2Z9200-0 R902253981 A6VE085HA100000XF/71MWV0Y2Z9200-Y R902233951 A6VE085HA2T30002F/71MWV0Y2Z920U-Y R902257676 A6VE085HA2T30004C/71MWV0Y2Z9200-0 R902251835 A6VE085HA2T30006C/71MWV0Y2Z920V-Y R902243279 |
A6VE085HP6000001F/71MWV0Y2Z9200-0 R902250979 A6VE085HP6D10001F/71MWV0Y2Z9200-0 R902227849 A6VE085HP6D20001G/71MWV0Y2Z9200-0 R902241811 A6VE085HZ7000001B/71MWV0Y2Z9100-0 R902222429 A6VE085HZ7000001G/71MWV0Y2Z9200-0 R902155055 A6VE085HZ7000001G/71MWV0Y2Z92B0-0 R902222443 A6VE115DA0000007C/71MWV0S2Z92C0-0 R902241817 A6VE115EP100P000A/71MLV0S2A12CV-S R902150221 A6VE115EP100P000A/71MLV0S2Z91DH-S R902155088 A6VE115EP100P000A/71MLV0S2Z91DV-0 R902247431 A6VE115EP100P000A/71MLV0S2Z92CH-S R902241816 A6VE115EP100P000A/71MRV0S2A12CV-S R902150222 A6VE115EP100P000A/71MRV0S2Z91DH-S R902155089 A6VE115EP100P000A/71MRV0S2Z91DV-0 R902247432 A6VE115EP100P000A/71MRV0S2Z92CH-S A6VE115EP100P000A/71MWV0S2A12CH-0 R902231126 A6VE115EP100P000A/71MWV0S2A12CV-0 R902233791 A6VE115EP100P000A/71MWV0S2Z92BH-0 R902243267 A6VE115EP100P000A/71MWV0S2Z92CH-S R902223191 A6VE115EP100P000A/71MWV0S2Z92CH-S R902243185 A6VE115EP100P000C/71MWV0S2Z920F-0 R902243186 A6VE115EP100P000C/71MWV0S2Z92FF-0 R902150213 A6VE115EP200P000A/71MLV0S2Z91DH-S |
R902207038 A6VE115EP200P000A/71MLV0S2Z91DV-0 R902150288 A6VE115EP200P000A/71MLV0S2Z91DV-S R902150212 A6VE115EP200P000A/71MRV0S2Z91DH-S R902207039 A6VE115EP200P000A/71MRV0S2Z91DV-0 R902150289 A6VE115EP200P000A/71MRV0S2Z91DV-S R902155059 A6VE115EP200P000A/71MWV0S2Z91DV-0 R902150367 A6VE115EP600P000A/71MWV0S2Z92BV-0 R902240326 A6VE115EP600P000A/71MWV0S2Z92CH-0 R902170336 A6VE115EP600P000B/71MWV0S2Z91FV-0 R902260248 A6VE115EP600P000B/71MWV0S2Z920V-0 R902150261 A6VE115EP600P000B/71MWV0S2Z92CF-0 R902245227 A6VE115EP600P000B/71MWV0S2Z92DV-0 R902257750 A6VE115EP600P000E/71MWV0S2Z920U-0 R902150266 A6VE115EP600P000E/71MWV0S2Z920V-0 R902250867 A6VE115EP6D1H001E/71MWV0S2Z97WU-0 R902261108 A6VE115EP6D1P001G/71MWV0S2Z9100-0 R902237289 A6VE115EZ700P001F/71MWV0S2Z92DU-0 R902150335 A6VE115EZ800P001D/71MWV0S2Z91F0-0 R902170181 A6VE115EZ800P001F/71MWV0S2A120U-0 R902205643 A6VE115EZ800P001X/71AWV0S2Z92FU-S R902248200 A6VE115HA1T30004F/71MWV0S2Z92FU-0 R902275549 A6VE115HA1T30004G/71MWV0S2Z9200-Y |
|
R902150329 A6VE115HA1T30004G/71MWV0S2Z92C0-0 R902237040 A6VE115HA2000004D/71MWV0S2A11FV-S R902227636 A6VE115HA2T30004B/71MWV0S2Z9200-0 R902251661 A6VE115HA2T30004B/71MWV0S2Z9200-0 R902241709 A6VE115HA2T30004E/71MWV0S2Z9200-0 R902255987 A6VE115HA2T3000XB/71MWV0S2Z9200-Y R902247400 A6VE115HA3T30001C/71MWV0S2A16YV-S R902241683 A6VE115HA3T30001C/71MWV0S2A16YV-S R902150325 A6VE115HA3T30001G/71MWV0S2Z96ZU-0 R902150365 A6VE115HA3T30001G/71MWV0S2Z96ZV-Y R902150272 A6VE115HP5D10001H/71MWV0S2Z98W0-0 R902253743 A6VE115HP5D10001K/71MWP0S2Z9200-0 R902249844 A6VE115HZ7000001C/71MWV0S2Z92AU-0 R902150275 A6VE115HZ7000001C/71MWV0S2Z96Y0-0 R902150364 A6VE115HZ7000001C/71MWV0S2Z96Y0-0 R902255847 A6VE115HZ7000001G/71CWV0S2Z96Z0-0 R902241819 A6VE170EP100P000A/71MLV0S2A12CV-S R902241818 A6VE170EP100P000A/71MRV0S2A12CV-S R902233785 A6VE170EP100P000A/71MWV0S2A12CH-0 R902231125 A6VE170EP100P000A/71MWV0S2A12CV-0 R902233526 A6VE170EP100P000A/71MWV0S2A12DH-0 R902255588 A6VE170EP200P000A/71MLV0S2A12DV-S |
R902255589 A6VE170EP200P000A/71MRV0S2A12DV-S R902223287 A6VE170EP200P001C/71MWV0S2A18W0-0 R902247372 A6VE170EP500P000C/71MWV0S2A12DV-0 R902150284 A6VE170EP600P000B/71MWV0S2A12IV-0 R902150350 A6VE170EP600P000C/71MWV0S2A12D0-0 R902150262 A6VE170EP600P000D/71MWV0S2A12MU-0 R902231018 A6VE170EP600P000E/71MWV0S2A220H-0 R902247426 A6VE170EP600P000F/71MWV0S2A12DV-0 R902150324 A6VE170EP600P000F/71MWV0S2A12EV-0 R902204652 A6VE170EP6D1H001F/71NWV0S2A22D0-S R902251803 A6VE170EP6D1H001F/71XWV0S2A18WU-S R902243266 A6VE170EP6D1P001C/71MWV0S2A120H-0 R902205915 A6VE170EP6D1P001C/71MWV0S2A120H-0 R902239639 A6VE170HA100000XD/71MWV0S2A11X0-S R902150334 A6VE170HA1T30004F/71MWV0S2A12G0-0 R902247367 A6VE170HA1T30004F/71MWV0S2A12GU-0 R902223215 A6VE170HA1T30004G/71MWV0S2A12GU-0 R902215203 A6VE170HA2000004G/71MWV0S2A12D0-0 R902150230 A6VE170HA2000004G/71MWV0S2A12D0-0 R902261010 A6VE170HA2000004H/71MWV0S2A11DU-0 R902150308 A6VE170HA2000004H/71MWV0S2A11GV-S R902255821 A6VE170HA200000XG/71MWV0S2A11JV-S |
R902150369 A6VE170HA2T30004C/71MWV0S2A12G0-0 R902241708 A6VE170HA2T30004F/71MWV0S2A1200-0 R902275609 A6VE170HA3T30001C/71MWV0S2A16Y0-0 R902150341 A6VE170HA3T30001G/71MWV0S2A16ZU-0 R902205968 A6VE170HA3T30001G/71MWV0S2A26Y0-0 R986PT0887 A6VE170HA3T30001X/71MWV0S2A16Y0-S R902240161 A6VE170HP5D10001H/71MWV0S2A18WF-S R902240111 A6VE170HP5D10001H/71MWV0S2A18WF-S R902259002 A6VE170HP5D10001X/71MWV0S2A18WF-S R902150371 A6VE170HP5D20001G/71MWV0S2A12D0-0 R902242658 A6VE170HP6000000C/71MWV0S2A16YV-S R902233898 A6VE170HP6000000F/71MWV0S2A2100-0 R902227759 A6VE170HZ5000000G/71MWV0S2A12D0-0 R902239753 A6VE170HZ5000001C/71MWV0S2A1100-0 R902150354 A6VE170HZ7000001C/71MWV0S2A16Z0-0 R902150285 A6VE170HZ7000001G/71MWV0S2A16Y0-0 R902220818 A6VE170HZ7000001H/71MWV0S2A16Z0-0 R902567835 A6VE280EP600P000F/71MWV0Z4A29WV-S R902550997 A6VE280HZ6000001F/71CWV0Z4A29WF-S R902518036 A6VE280HZ6000001X/71CWV0Z4T29W0-S R902518038 A6VE280HZ6000001X/71CWV0Z4T29W0-S |
