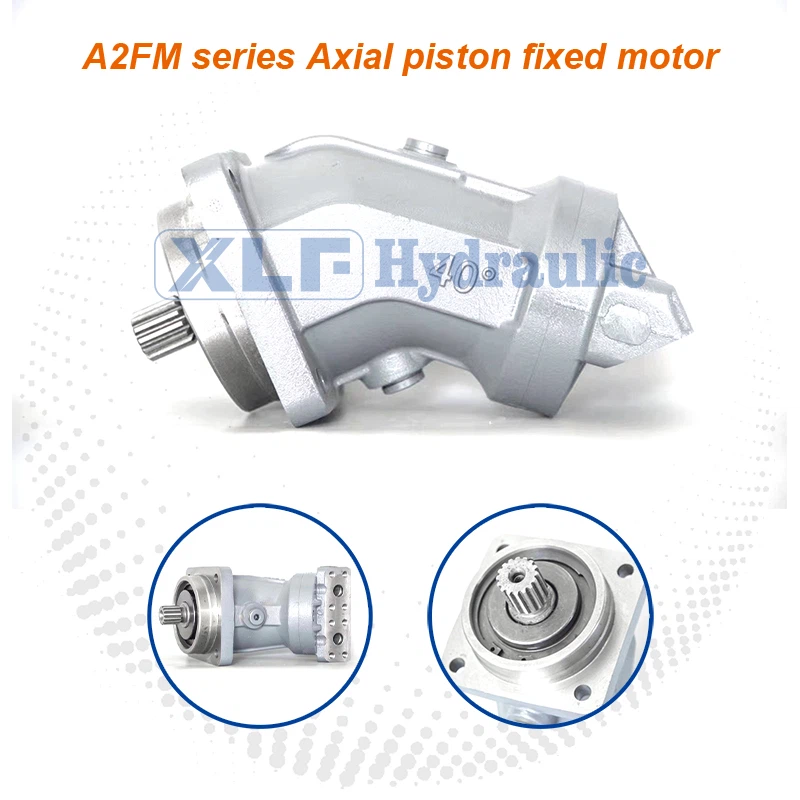

Rexroth A2FM Series 6x 4 Piston Motor For Loaders
Product Overview
If you are specifying a hydraulic motor for a loader, excavator, concrete mixer, or crane, your first question is likely: "Do I need a variable motor, or will a fixed motor do the job?"
The Bosch Rexroth A2FM Series 6x is a fixed displacement bent-axis axial piston motor-one of the most widely deployed hydraulic motor platforms in the mobile equipment industry. It is an all-purpose high pressure motor available in sizes from 5 to 1000 cc/rev, with nominal pressures up to 400 bar and maximum pressures up to 450 bar.
What makes A2FM different from variable motors like the A6VM?
A2FM is a fixed displacement motor. The displacement is constant-it does not change during operation. This means:
No control oil supply required – simpler hydraulic circuit design
Fewer moving parts – higher reliability, longer service life
Lower cost – both initial purchase and long-term maintenance
Predictable performance – torque is directly proportional to pressure
The A2FM uses a bent-axis design with an axial tapered piston rotary group. This architecture delivers higher starting efficiency and higher total efficiency than comparably sized swashplate designs. It is suitable for both open and closed circuits, making it one of the most versatile fixed motor platforms on the market.
Which A2FM do you need for your loader? That depends on three questions:
What flow does your hydraulic system deliver? → determines which displacement you need
What torque does your application require? → determines whether you need 80, 90, 107, 125, or 160
What is your mounting configuration? → determines flange and shaft options
Core technologies and parameters
2.1 Bent-Axis Design – The Foundation of A2FM Performance
The A2FM series features a 40° bent-axis design with an axial tapered piston rotary group. In a bent-axis motor, the cylinder block is angled relative to the output shaft. This fundamental architectural difference delivers several advantages over swashplate designs:
Higher starting efficiency – the piston force is applied more directly to the output shaft
Higher total efficiency – reduced internal friction means less energy loss
Compact design – high power density in a smaller package
High power-to-weight ratio – more power from less weight
2.2 Fixed Displacement – Simplicity and Reliability
A2FM is a fixed displacement motor. The geometric displacement per revolution is constant. The output speed is proportional to input flow and inversely proportional to displacement. The drive torque increases with the pressure drop across the unit.
What this means for your loader: When the operator moves the control lever, the motor responds immediately and predictably. There is no control lag, no displacement adjustment delay, no complex electronics to fail. The motor simply does what it is told-reliably, shift after shift.
2.3 Pressure Capability – Built for Heavy-Duty Cycles
The A2FM series offers pressure ratings that vary by size:
| Size Range | Nominal Pressure | Maximum (Peak) Pressure |
|---|---|---|
| Size 5 | 315 bar | 350 bar |
| Sizes 10–200 | 400 bar | 450 bar |
| Sizes 250–1000 | 350 bar | 400 bar |
For loader applications, the most commonly specified sizes (80, 90, 107, 125, 160) all fall in the 400 bar nominal / 450 bar peak category. This pressure capability exceeds the 350/400 bar ratings of most competing swashplate motors.
2.4 Speed and Flow – Matching Your System's Capacity
The speed and flow characteristics of each A2FM model are critical for proper selection:
| Model | Displacement (cc/rev) | Rated Speed (rpm) | Input Flow at Rated Speed (L/min) | Torque at 400 bar (Nm) |
|---|---|---|---|---|
| A2FM80 | 80.4 | 4,500 | 362 | 508 |
| A2FM90 | 90 | 4,500 | 405 | 572 |
| A2FM107 | 106.7 | 4,000 | 427 | 680 |
| A2FM125 | 125 | 4,000 | 500 | 796 |
| A2FM160 | 160.4 | 3,600 | 577 | 1,016 |
Selection rule of thumb: Choose the smallest displacement that meets your torque requirement. This gives you the highest possible output speed and the most compact package for your application.
2.5 Mounting and Porting Options – Installation Flexibility
The A2FM series offers flexible installation options to match your existing equipment:
Working ports: SAE flange or threaded ports
Optional integrated pressure relief valve
Optional mounted additional valves: counterbalance valve (BVD/BVE), flushing valve, and boost-pressure valve
This flexibility means the A2FM can be drop-in replacement for most existing fixed motor installations without modifying hoses or mounting brackets.
Application scenarios (Optimized for loaders)
3.1 Wheel Loader Travel Drives
Application: The motor drives the wheels of a wheel loader through a hydrostatic transmission.
Why A2FM: Wheel loader travel drives require high starting torque to move the machine from a standstill with a full bucket, and smooth acceleration for operator comfort. The A2FM's bent-axis design delivers high starting efficiency, while the fixed displacement provides predictable, responsive travel control.
| Loader Size | Recommended Model | Rationale |
|---|---|---|
| Compact wheel loaders (1–3 ton) | A2FM80 or A2FM90 | Lower torque requirements, higher speed capability |
| Mid-size wheel loaders (3–6 ton) | A2FM90 or A2FM107 | Balanced torque and speed for general-purpose loading |
| Large wheel loaders (6–10+ ton) | A2FM125 or A2FM160 | Maximum torque for heavy bucket loads and steep grades |
3.2 Loader Implement and Attachment Drives
Application: The motor powers attachments such as augers, sweepers, snow blowers, or material handlers.
Why A2FM: Attachment drives often require constant speed regardless of load variation-a perfect match for a fixed displacement motor. The A2FM's compact design allows it to be mounted in tight spaces where variable motors with additional control valves may not fit.
3.3 Track Loader and Skid Steer Travel Drives
Application: The motor drives the tracks of a tracked loader or skid steer loader.
Why A2FM: Track drives require high torque at low speeds for maneuverability and reliable operation in dusty, muddy conditions. The A2FM's rugged construction and fixed displacement design mean fewer components to fail in harsh environments.
3.4 Cross-Industry Applications
Beyond loaders, the A2FM series is also widely used in:
Excavators – travel and swing drives
Concrete mixer trucks – drum rotation
Cranes – hoist winch and swing drives
Road rollers – vibration and travel drives
Mining equipment – conveyors and drilling rigs
Agricultural machinery – harvesters and sprayers
Core advantage
Why Choose A2FM for Your Loader?
Advantage 1: Unmatched Reliability Through Simplicity
The A2FM is a fixed displacement motor. It has no control pistons, no servo valves, no feedback linkages, and no electronic controllers. The displacement is constant-it never needs adjustment, never drifts out of calibration, and never fails to respond. For loader operators working in dusty, muddy, or vibration-intensive environments, this simplicity translates directly to higher uptime and lower maintenance costs.
Advantage 2: Proven 40° Bent-Axis Design
The A2FM uses a 40° bent-axis design with axial tapered pistons. This architecture delivers higher starting efficiency and higher total efficiency than swashplate designs. More efficiency means less fuel consumption, lower operating temperatures, and longer component life.
Advantage 3: Wide Selection of Nominal Sizes
The A2FM series offers a large variety of available nominal sizes, allowing exact adjustment to your application. Whether you need the compact 80 cc model for a small wheel loader or the high-torque 160 cc model for a large mining loader, there is an A2FM that fits your requirements.
Advantage 4: Open and Closed Circuit Capability
Most hydraulic motors are designed for either open-circuit or closed-circuit systems-not both. The A2FM is suitable for both. This gives you the flexibility to use the same motor platform across different machine architectures, simplifying spare parts inventory.
Advantage 5: Flexible Installation Options
The A2FM offers SAE flange or threaded working ports, optional integrated pressure relief valves, and optional mounted counterbalance valves (BVD/BVE), flushing valves, and boost-pressure valves. This flexibility means the A2FM can be drop-in replacement for most existing installations without modifying hoses or brackets.
Advantage 6: High Power Density
The bent-axis design allows the A2FM to deliver high power in a compact package. For loader manufacturers, this means more design freedom-the motor takes up less space, leaving room for other components or allowing a more compact machine layout.
XLF-A2FM Axial Piston Fixed Pump Product detail picture









XLF-A2FM Axial Piston Fixed Pump Technical data
| Technical data | ||||||||||||||
| Table of values | ||||||||||||||
| Size | 5 | 10 | 12 | 16 | 23 | 28 | 32 | 107 | 125 | 160 | 180 | |||
| Displacement geometric, per revolution |
Vg | cm³ | 4.93 | 10.3 | 12 | 16 | 22.9 | 28.1 | 32 | 106.7 | 125 | 160.4 | 180 | |
| Nominal pressure Pnom bar | 315 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |||
| Maximum pressure Pma bar | 350 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | |||
| Nnom1) rpm | 10000 | 8000 | 8000 | 8000 | 6300 | 6300 | 6300 | 4000 | 4000 | 3600 | 3600 | |||
| Maximum speed | nmax2) rpm | 11000 | 8800 | 8800 | 8800 | 6900 | 6900 | 6900 | 4400 | 4400 | 4000 | 4000 | ||
| Inlet flow 3)at nnanQv lmin | 49 | 82 | 96 | 128 | 144 | 177 | 202 | 427 | 500 | 577 | 648 | |||
| Torque 4) at pnom M Nm | 24.7 | 66 | 76 | 102 | 146 | 179 | 204 | 679 | 796 | 1021 | 1146 | |||
| Rotary stiffness C kNm/rad | 0.63 | 0.92 | 1.25 | 1.59 | 2.56 | 2.93 | 3.12 | 11.2 | 11.9 | 17.4 | 18.2 | |||
| Moment of inertia for rotary group |
Jrw kg·m² | 0.00006 | 0.0004 | 0.0004 | 0.0004 | 0.0012 | 0.0012 | 0.0012 | 0.0116 | 0.0116 | 0.022 | 0.022 | ||
| Maximum angular acceleration |
a rad/s⊃2; | 5000 | 5000 | 5000 | 5000 | 6500 | 6500 | 6500 | 4500 | 4500 | 3500 | 3500 | ||
| Case volume V | 0.17 | 0.17 | 0.17 | 0.2 | 0.2 | 0.2 | 0.8 | 0.8 | 1.1 | 1.1 | ||||
| Weight (approx.) M kg | 2.5 | 5.4 | 5.4 | 5.4 | 9.5 | 9.5 | 9.5 | 32 | 32 | 45 | 45 | |||
| Size | 200 | 250 | 355 | 500 | 710 | 1000 | ||||||||
| Displacement geometric, Vg cm³ per revolution |
200 | 250 | 355 | 500 | 710 | 1000 | ||||||||
| Nominal pressure Pnom bar | 400 | 350 | 350 | 350 | 350 | 350 | ||||||||
| Maximum pressure Dma bar | 450 | 400 | 400 | 400 | 400 | 400 | ||||||||
| Nnom1) rpm | 2750 | 2700 | 2240 | 2000 | 1600 | 1800 | ||||||||
Maximum speed nmax2) |
3000 | |||||||||||||
| Iplet flow 3)at nnom qv lmin | 550 | 675 | 795 | 1000 | 1136 | 1600 | ||||||||
| Torque 4 at pnom M Nm | 1273 | 1393 | 1978 | 2785 | 3955 | 5570 | ||||||||
| Rotary stiffness C kNm/rad | 57.3 | 73.1 | 96.1 | 144 | 270 | 324 | ||||||||
| Moment of inertia for rotary group |
Jrw kg·m | 0.0353 | 0.061 | 0.102 | 0.178 | 0.55 | 0.55 | |||||||
| Maximum angular acceleration |
a rad/s⊃2; | 11000 | 10000 | 8300 | 5500 | 4300 | 4500 | |||||||
| Case volume V | 2.7 | 2.5 | 3.5 | 4.2 | 8 | 8 | ||||||||
| Weight(approx.) M kg | 66 | 73 | 110 | 155 | 325 | 336 | ||||||||
