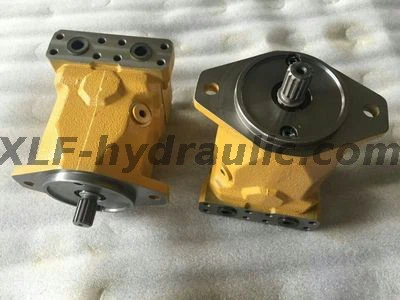

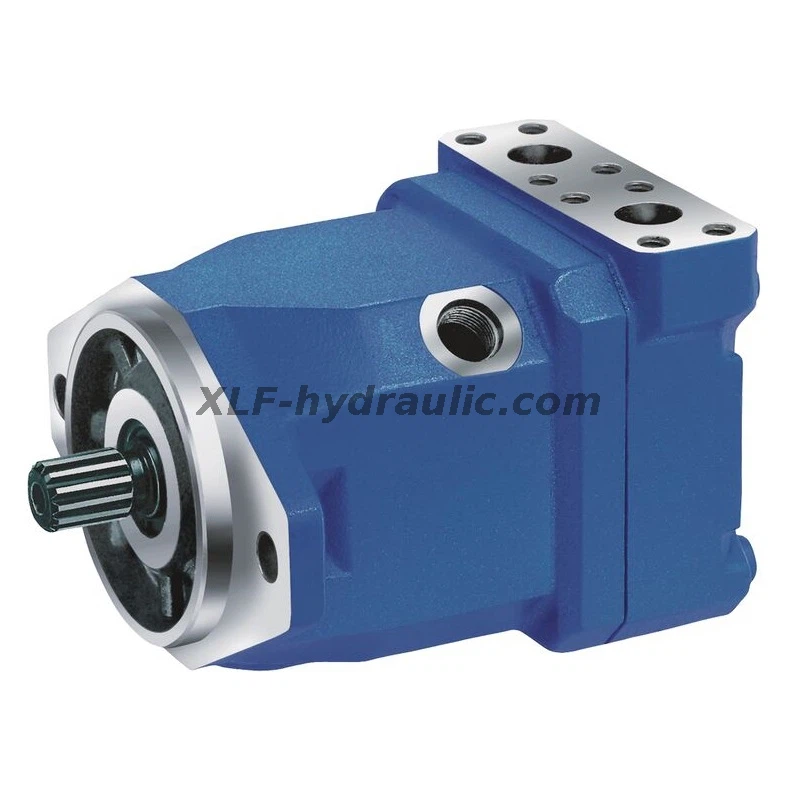

Rexroth A10FM Hydraulic Axial Pison Fixed Displacement Motor Crawler Bulldozers
2.The output speed is proportional to the input flow rate.
3.The output torque increases as the pressure gradient between the high and low pressure sides increases.
4 is used in the fields of walking machinery and industry.
5. Long service life.
6 allows for high output speed.
7 adopts mature A10 rotating component technology.
8 has a high power/weight ratio and a compact structure.
9 plug-in structure, which can save installation space.
10. Low working noise level.
11 optional speed sensors with built-in anti cavitation valves, i.e. fan drive devices.
Product Description
Detailed explanation of the technology and structure of the A10FM series axial plunger constant displacement motor
1. Axial plunger component: The A10FM series motor adopts a swashplate structure with variable displacement. The A10FM series motors have a swashplate structure and are quantitative.
2. Working mode: The A10FM series motor is a motor. The A10FM series motors are plug-in motors.
3 specifications (cc/r): There are a total of 7 displacement specifications for A10FM series motors, including displacement 18, 23, 28, 37, 45, 58, and 63. A10FM series motor displacement 10, 11, 14, 16, 18, 23
There are a total of 11 displacement specifications, including 28, 37, 45, 58, and 63.
4 series designation: Series 5, designation
5 rotations: Three rotations are available, reversible in both directions; Or right-handed; Or left handed.
6 Seal: Fluoroelastomer (FKM).
7-axis extension: Three options available, spline shaft (according to SAE J 744); Or spline shaft (according to SAE J 744); Or a tapered shaft with a flat key.
8. Installation flange: A10FM series motors are SAE 2-hole; There are three types of mounting flanges for A10FM series motors, SAE 2-hole; Or a dedicated 2-hole flange; Or a dedicated 8-hole flange.
9 ports: Port A/B on the side (same side), SAE flange (metric fixed screw hole) or metric threaded port.
10 valves: no valve or built-in flushing valve; Or built-in anti cavitation valve.
11 Speed detection: No speed detection or speed detection can be installed (for inductive sensor ID)

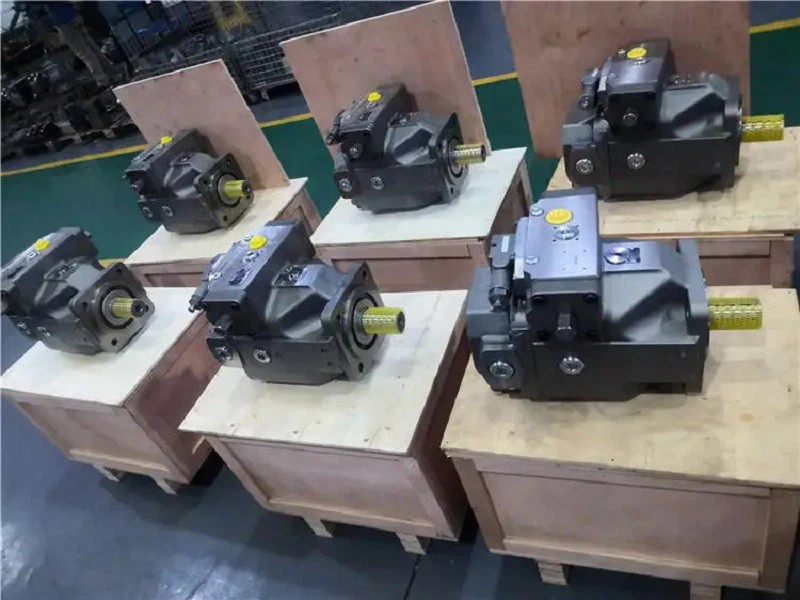

We can supply Hydraulic Piston Pump And Spare Parts
A4VSO 40/ 71/ 125/ 180/ 250/ 355
A2FE 28/ 32/ 45/ 56/ 63/ 80/ 90/ 107/ 125/ 160/ 180/ 250/ 355
A2FO 10/ 12/ 16/ 23/ 32/ 45/ 56/ 63/ 80/ 107/ 125/ 160/ 180/ 200/ 250/ 355
A2FM 12/ 23/ 28/ 32/ 45/ 56/ 80/ 107/ 125/ 160/ 180/ 200/ 225/ 250
A2F 12/ 25/ 55/ 63/ 80/ 107/ 160/ 200/ 355
A6VM 55/ 80/ 107/ 160/ 200/ 250/ 350
A7VO 28/ 55/ 80/ 107/ 160/ 200/ 250
A6VE 28/ 55/ 80/ 107/ 160
A8VO/ A8V 55/ 80/ 107/ 140/ 200
A4VG 28/ 40/ 45/ 50/ 56/ 71/ 90/ 125/ 180/ 250
A10V(S)O 31 Series 18/28/45/71/100/140
A10V(S)O 52/53 Series 10/18/28/45/63/85
A11VO 40/60/75/95130/ 190/ 260
A10VG 18/ 28/ 45/ 63
A7V 28/ 55/ 80/ 107/ 160/ 225/ 250/ 355
AP2D 12/ 18/ 25/ 32/ 36/ 42
