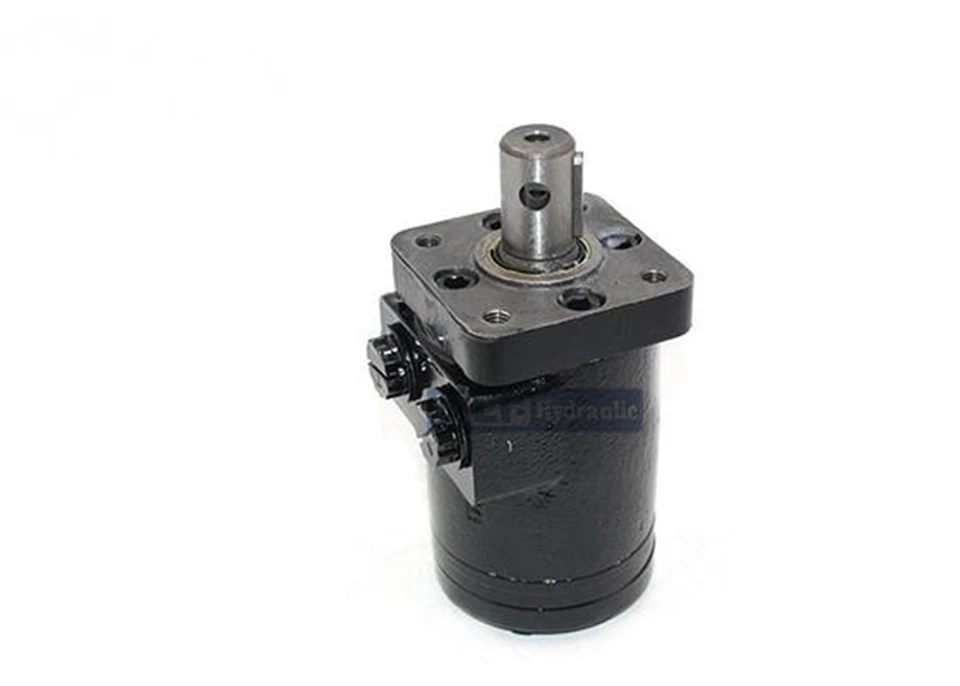

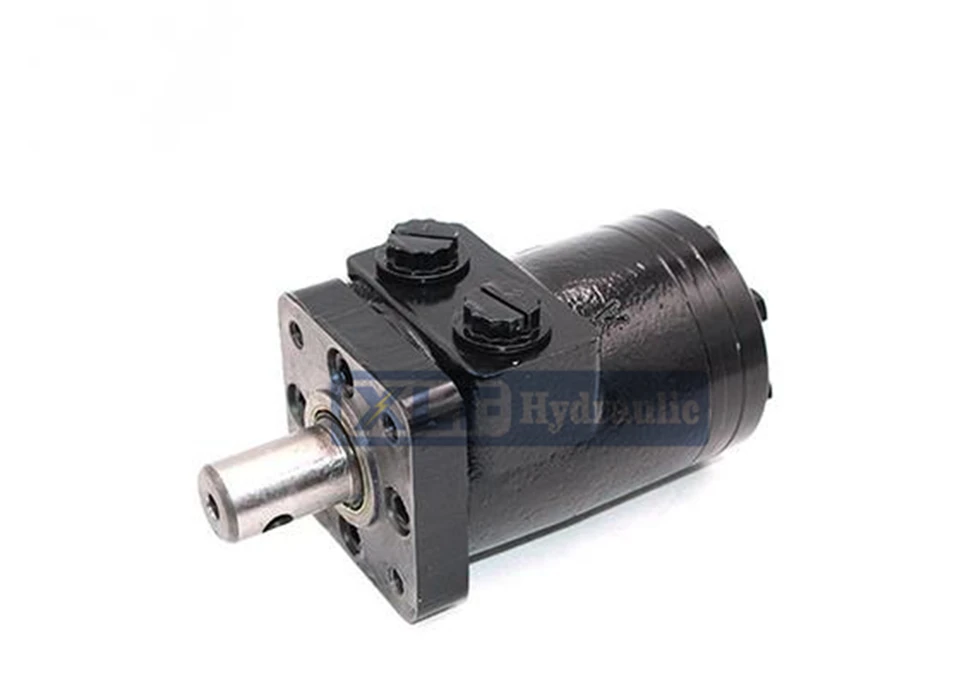

Charlynn H Series LSHT Gerotor Spool Motor 101-1857-009 Low Speed High Torque

Wuhan Xinlaifu Hydraulic Equipment Co., Ltd. is one of the leading manufacturers and suppliers of charlynn h series lsht gerotor spool motor 101-1857-009 low speed high torque in China. With abundant experience, we warmly welcome you to buy high quality customized products at competitive price from our factory. Also, OEM&ODM service is available.

Model No.	BMPH100
Displacement	100cc
Speed	615/770rpm
Torque	182/227 Nm
Max Power	11/13KW
Max Flow	60/75LPM
Highlight	Low Speed Gerotor Motor, 101-1857-009 Gerotor Motor, High Torque Gerotor Motor

Charlynn® H Series 101-1857-009 is a low-speed high-torque gerotor hydraulic motor that adopts advanced slide valve type distribution technology. As a mature product in Eaton's mobile hydraulics field, the H Series is specially designed for heavy-duty applications that require an extremely compact structure, high starting torque, and stable low-speed operation. With its excellent power density and reliable performance, this model has become a core power component for achieving direct rotary drive in many construction machinery, material handling equipment, and special vehicles, and is particularly suitable for occasions with limited space and strict requirements on torque output.

1. Advantages of slide valve distribution technology:
◦ High pressure and high efficiency: The slide valve type distribution design can withstand higher system pressure than the traditional axial distribution, with higher volumetric efficiency, and especially more stable performance under high-pressure working conditions.
◦ Excellent low-speed performance: It can still maintain extremely low torque pulsation at extremely low speeds, run extremely smoothly, and is suitable for precision control.
◦ High starting torque: High starting efficiency, can provide starting torque close to the theoretical value.
2. Compact design:
◦ High power density: Among motors with similar torque output, the H series has a smaller overall size and weight, which is very beneficial for integration in compact equipment spaces.
◦ Simplified system: Its low-speed and high-torque characteristics can usually directly drive the load, reducing or eliminating the need for additional mechanical reduction mechanisms.
3. Sturdy and durable:
◦ The shell is sturdy, and the internal gears and bearings are made of high-quality materials, which are durable.
◦ It is relatively less sensitive to oil contamination and has good adaptability.

Thanks to its characteristics of compactness and high torque at low speeds, this motor is widely used in:
• Construction machinery: slewing drive and crawler travel drive of small excavators; drive for working attachments of skid steer loaders (such as augers).
• Agricultural machinery: drive for the lifting and swinging of the header of combine harvesters; drive for the folding of the boom of large sprayers.
• Material handling: drive for the tilting or sideshifting of the mast of forklifts; winches, hoists; drive for conveyor rollers.
• Special vehicles: rotation drive of aerial work platforms; drive for auxiliary mechanisms of sanitation vehicles.
