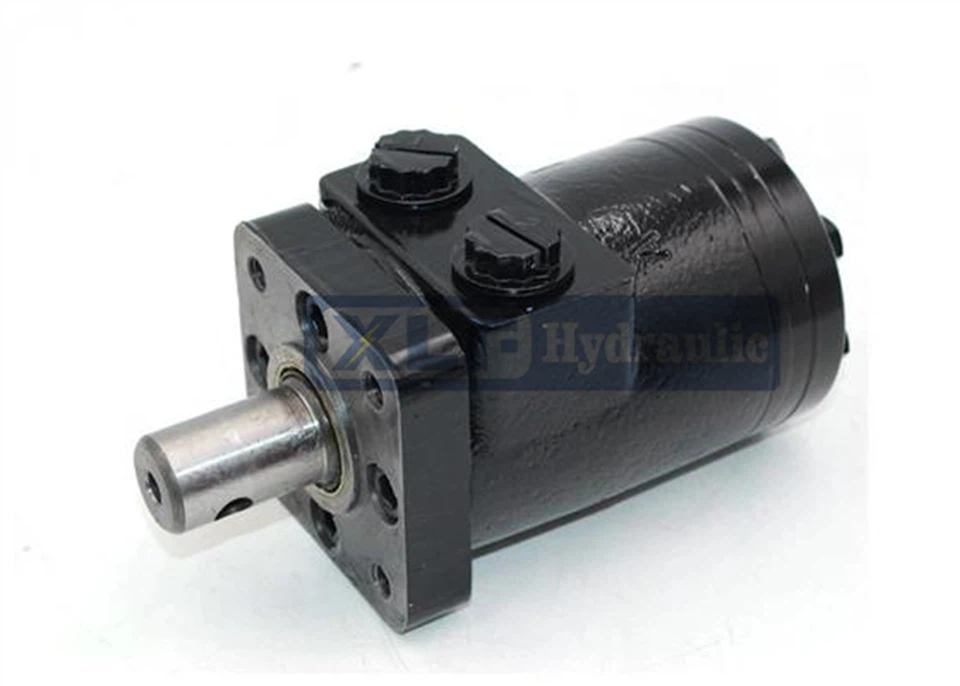

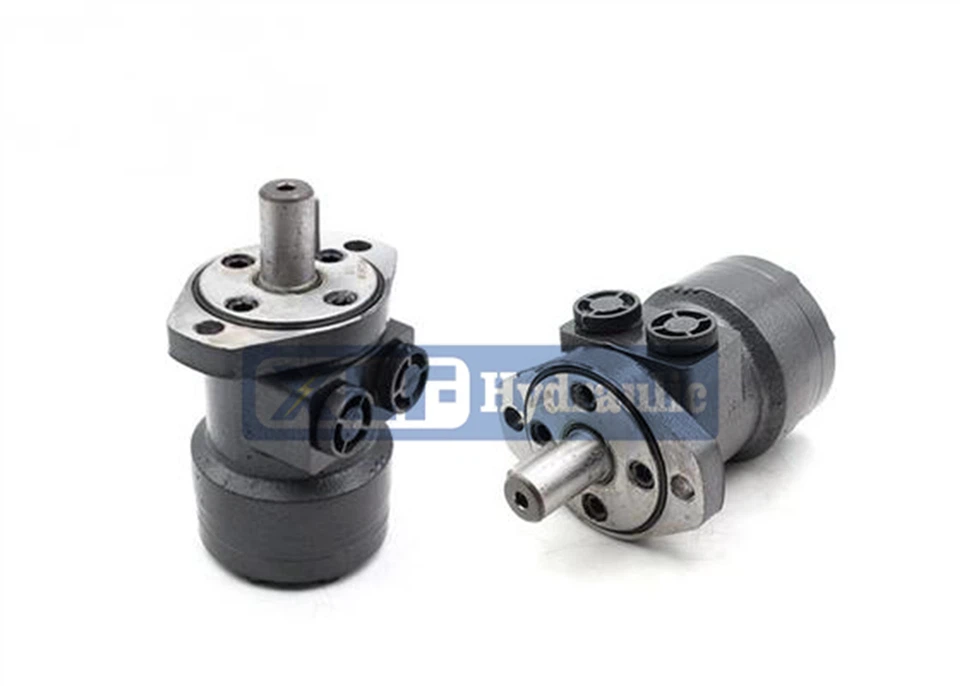

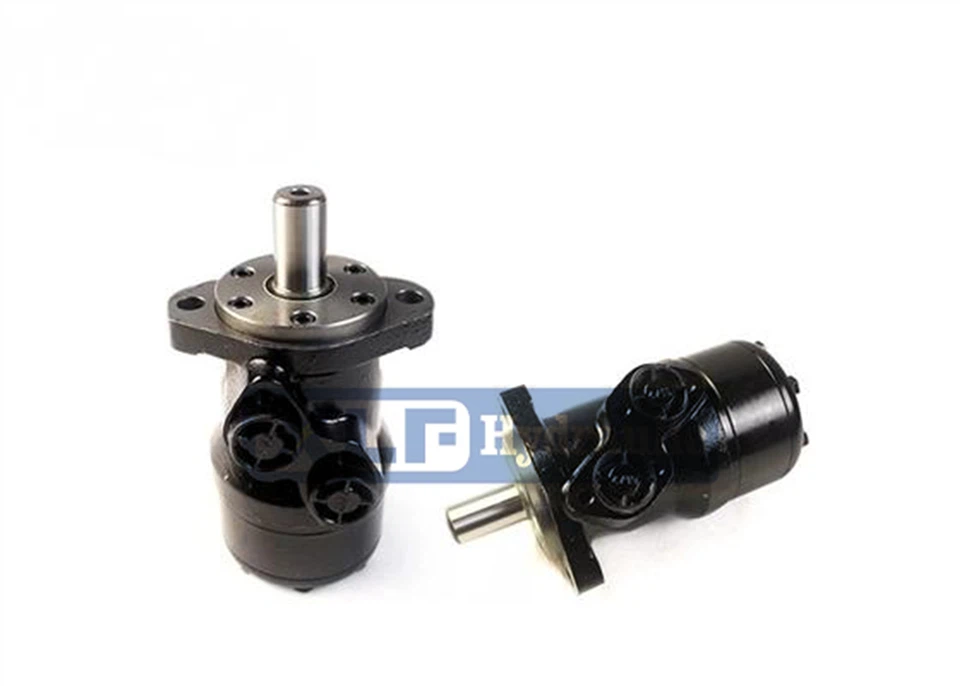

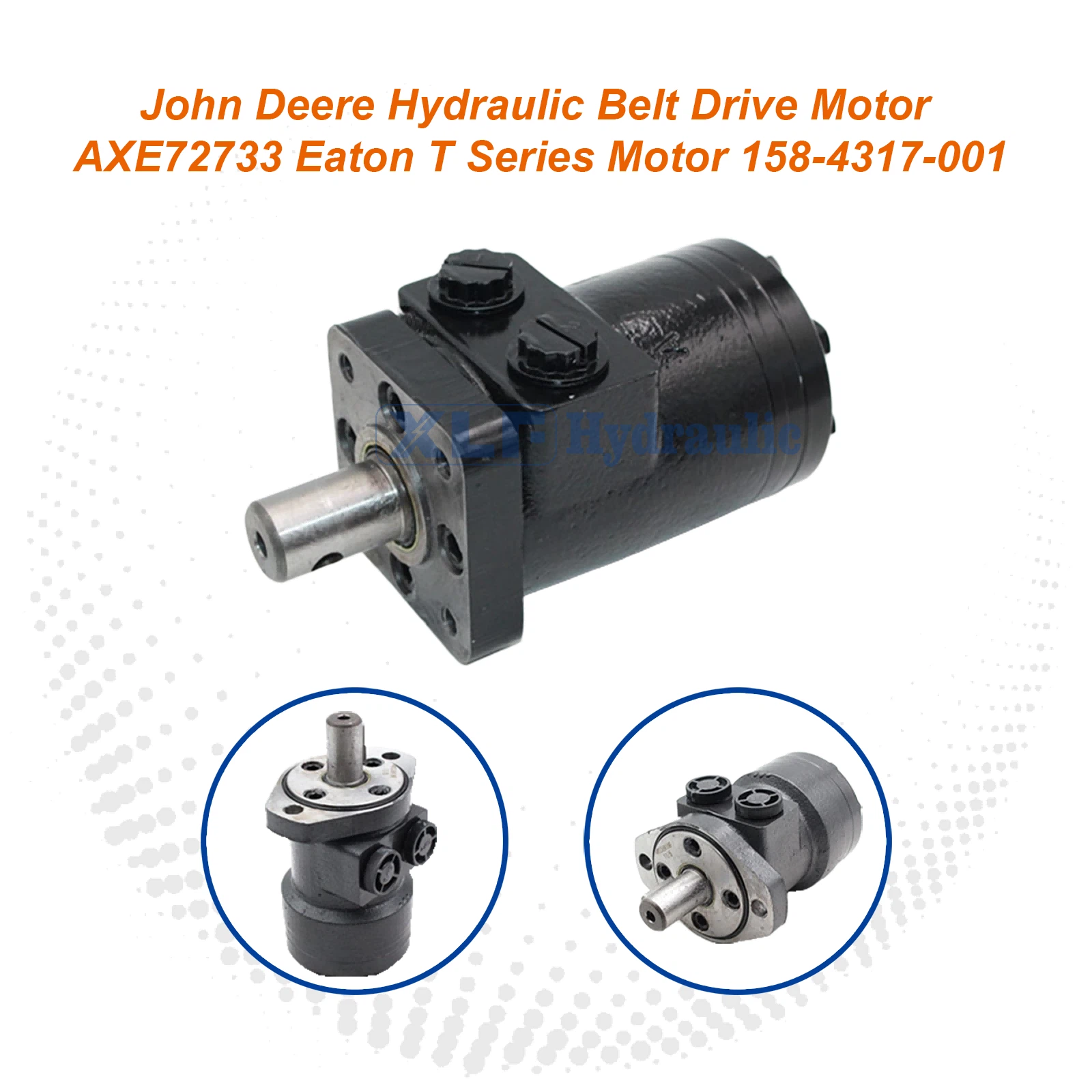

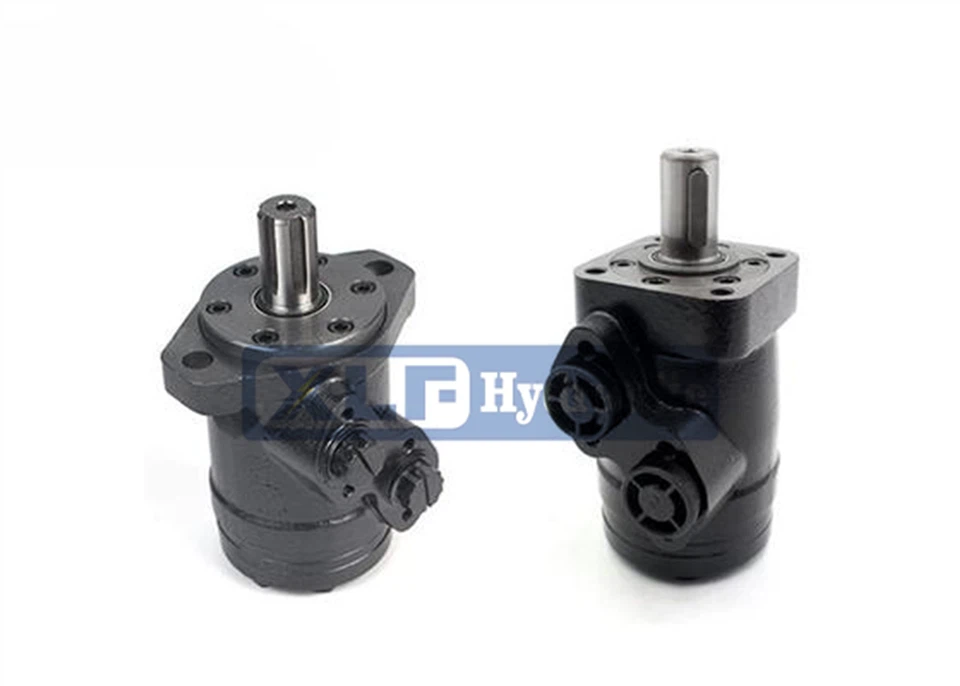

Eaton T Series 158-4317-001 Hydraulic Belt Drive Motor AXE72733

Eaton T Series 158-4317-001 Hydraulic Belt Drive Motor AXE72733

Product	Gerotor Hydraulic Motor
Replace	158-,101,103
Alternative	Danfoss, White, Eaton, Parker
Displacement	36/50/80/100/125/200/315
Flange	2 Bolt Std,Square Flange
Shaft	Spline,key Shaft
Port	3125-18 UNC,G1/2
Application	Harvester Head Belt Drive
Highlight	Belt Drive Motor AXE72733, Eaton T Series Motor 158-4317-001, Belt Drive Motor 158-4317-001

Eaton T Series 158-4317-001 is a low-speed, high-torque hydraulic motor that adopts advanced Geroler technology. As a member of Eaton's high-performance motor family, it is specially designed for belt-driven applications that require a compact structure, smooth operation, and long service life. Through its optimized internal geometry, this motor can provide excellent low-speed performance and high load efficiency in various industrial walking machinery and equipment, especially in occasions with limited space but high requirements for power density.

1. Advanced Geroler technology: Adopting a Geroler geometric structure with a constant gap and an optimized drive system, enabling a lower operating angle. This not only extends the service life of the motor but also significantly improves the smoothness and control precision during low-speed operation.
2. Excellent structural rigidity: The improved housing and smaller diameter end cover design enhance the rigidity of the overall structure. This allows the motor to maintain higher mechanical efficiency and stability when subjected to high-pressure loads.
3. Efficient pressure management: The innovative three-pressure zone design can effectively reduce the internal pressure of the housing, reduce internal leakage, improve volumetric efficiency, and ensure reliable operation even under harsh working conditions.
4. Flexible configuration options: Multiple displacement, output shaft type, and mounting seat configurations are available to meet the space layout and performance requirements of different belt drive systems.

Belt drive systems for various industrial machinery
• Agricultural machinery: such as conveyors, small harvesting devices, etc.
• Material handling equipment: such as belt conveyors, mobile conveyors.
• Other walking machinery: occasions requiring compact and efficient hydraulic drive units-.
