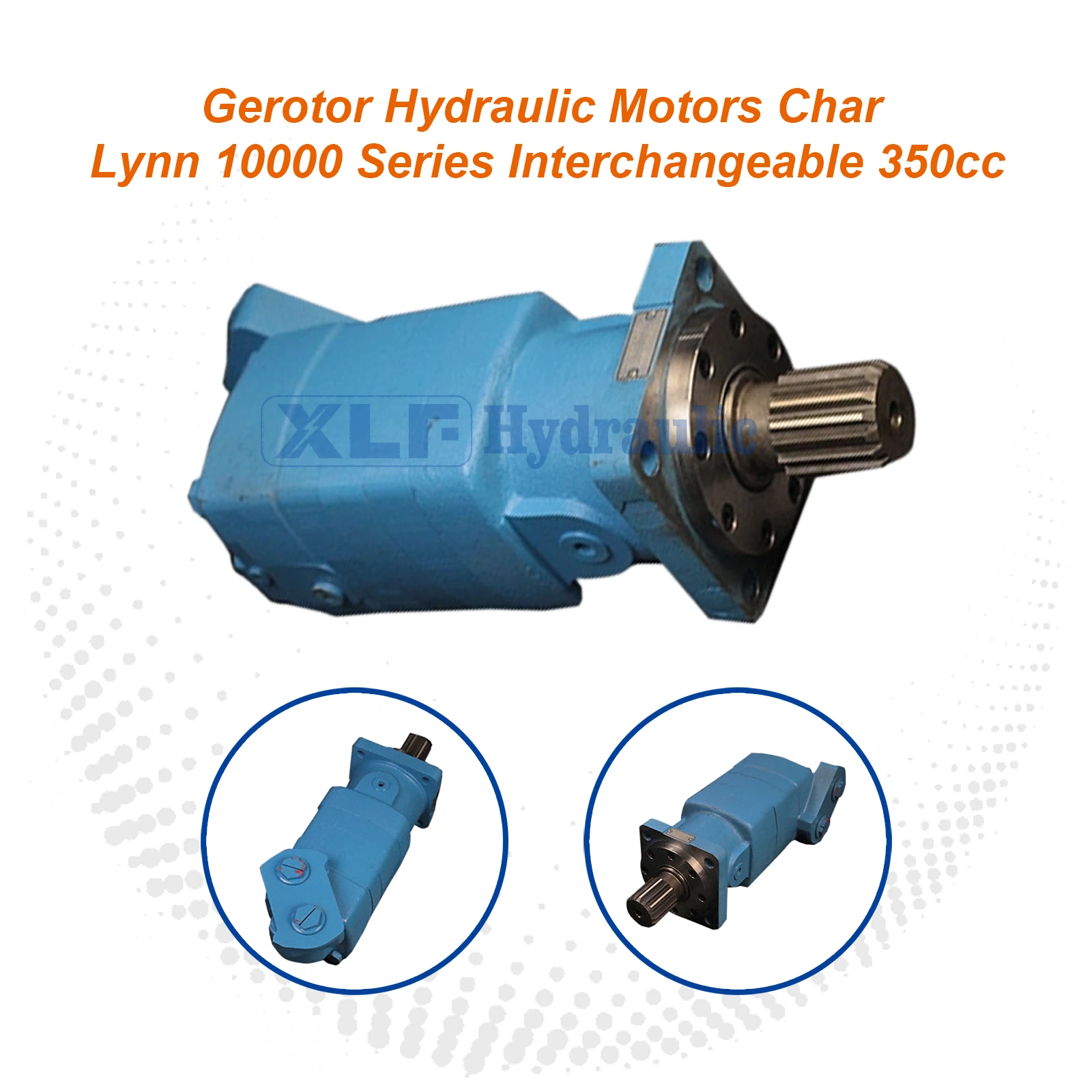

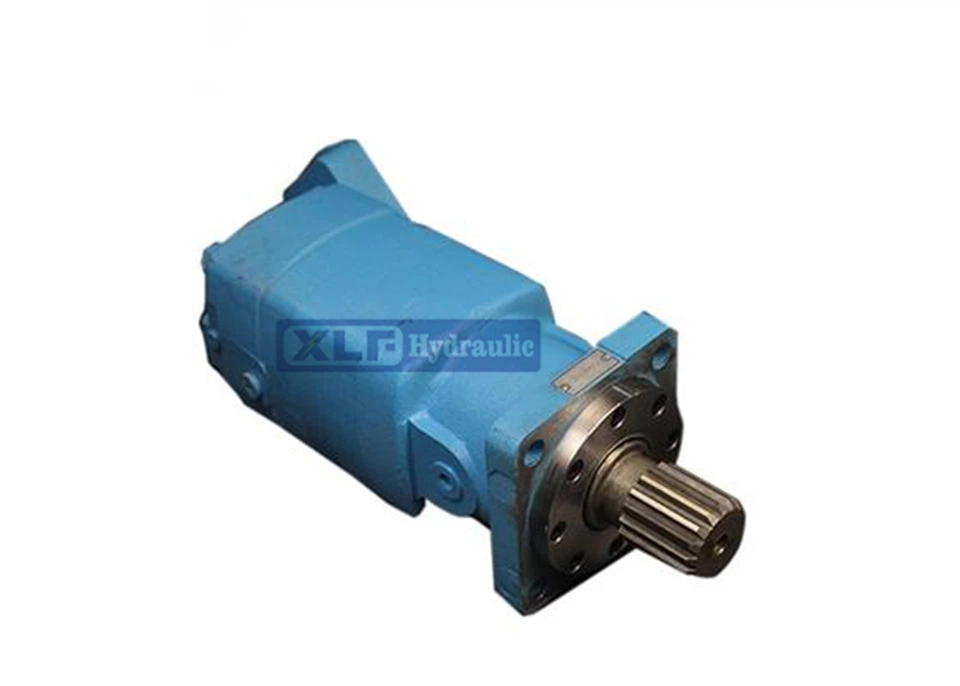

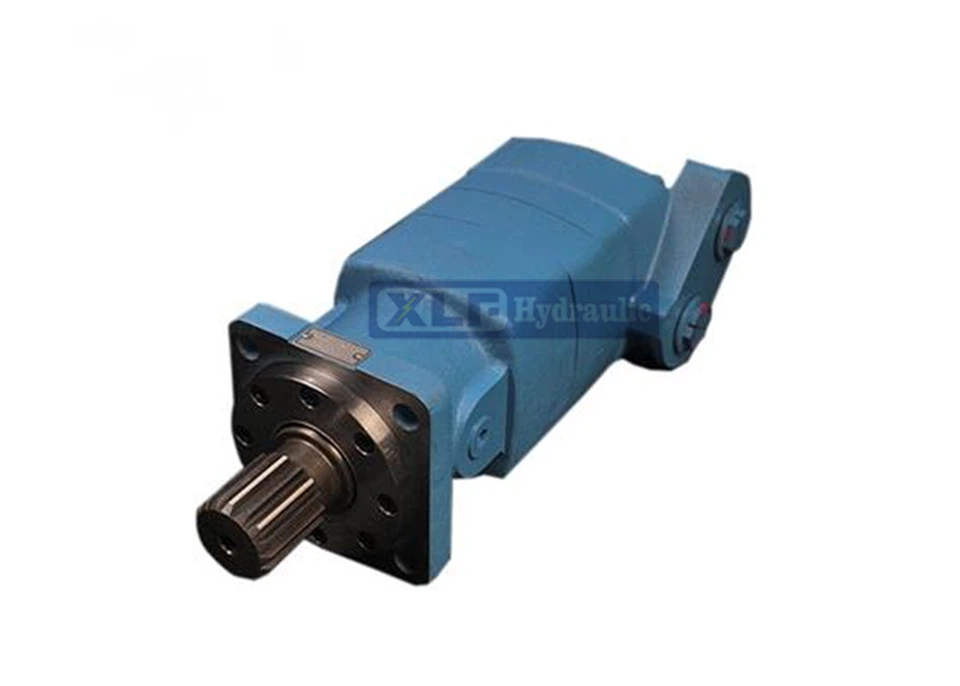

Char Lynn 10000 Series 350cc Gerotor Hydraulic Motor - Interchangeable

Char Lynn 10000 Series 350cc Gerotor Hydraulic Motor - Interchangeable

Features	Char-Lynn 10000 Series Interchangeable
Product	Gerotor Hydraulic Motors
Model No.	BMK10
Size	350 Ml/r
Flange	4 Bolt; 127.0
Shaft	53.98 Mm, 16T
Rotation	Clockwise
Port	1.3125-12 UN-2B SAE O-ing
Highlight	Clockwise Gerotor Hydraulic Motors, 350CC Gerotor Hydraulic Motors, 350CC Char Lynn 10000 Series Motors

The Char Lynn 10000 series is a classic and extremely widely used low-speed, high-torque gerotor hydraulic motor. Its displacement specification of 350cc (cubic centimeters per revolution) holds a benchmark position in the industry. This series of motors is renowned for its robustness, reliability, stable performance, and excellent interchangeability, making it the preferred core component for hydraulic rotary drives in numerous construction machinery, agricultural equipment, and industrial transmission systems worldwide. As a mature product that has undergone long-term market validation, it can directly replace old or damaged motors of the same specification in equipment from many brands, greatly simplifying maintenance and equipment upgrading processes.

• Excellent interchangeability: As one of the industry-standard designs, its mounting flange, shaft extension, and oil port dimensions are widely public and standardized. It can perfectly replace various same-type motors on the original equipment, significantly reducing the cost of spare parts inventory and the difficulty of procurement.
• Classic cycloid design: Adopting the time-tested gerotor gear pair design, it has a compact structure, can output extremely high and stable torque at low speeds, and has high starting efficiency.
• Sturdy and durable: The housing is robust, and the internal moving parts are made of high-quality alloy steel and undergo heat treatment, resulting in excellent wear resistance, a long service life, and suitability for harsh working conditions.
• Wide range of applications: After decades of market application, its performance and reliability have been verified on countless devices, and it can be used in everything from small machinery to large equipment.

Due to its characteristics of low speed and high torque, this motor is widely used in occasions requiring strong direct driving force:
• Construction machinery: crawler travel drive and slewing platform drive of small excavators; drum drive of concrete mixers; drive of vibrating wheels of road rollers.
• Agricultural machinery: header drive of harvesters, ear picking roller drive of corn harvesters, rotating spreading disc drive of fertilizer applicators.
• Sanitation and special vehicles: auxiliary engine drive of road sweepers, feeding system drive of straw balers.
• Industrial equipment: winches, capstans, conveyor line roller drives, valve opening and closing devices.
