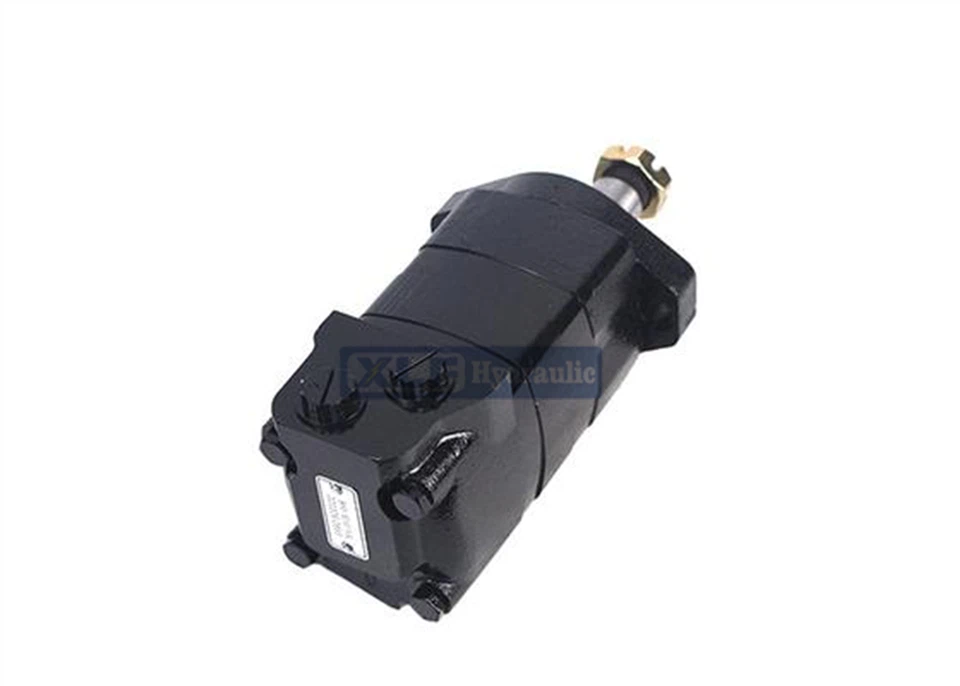

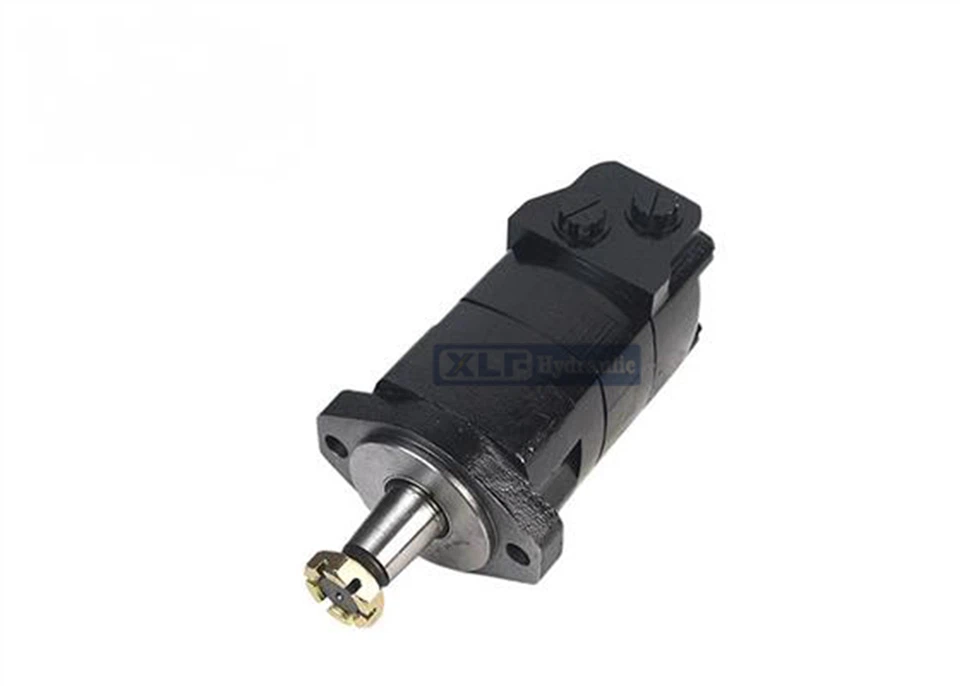

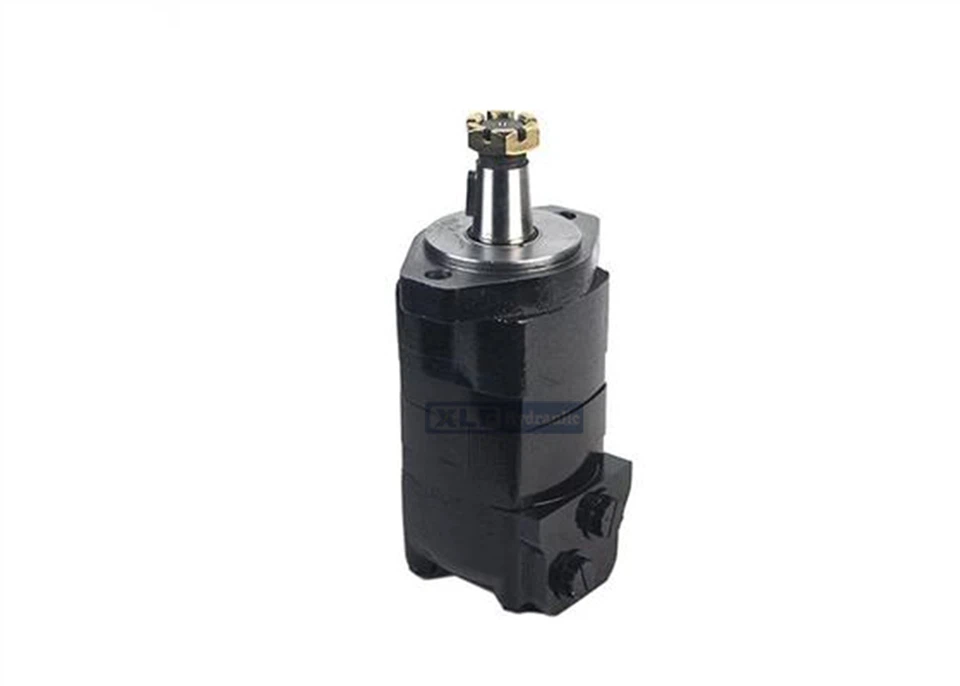

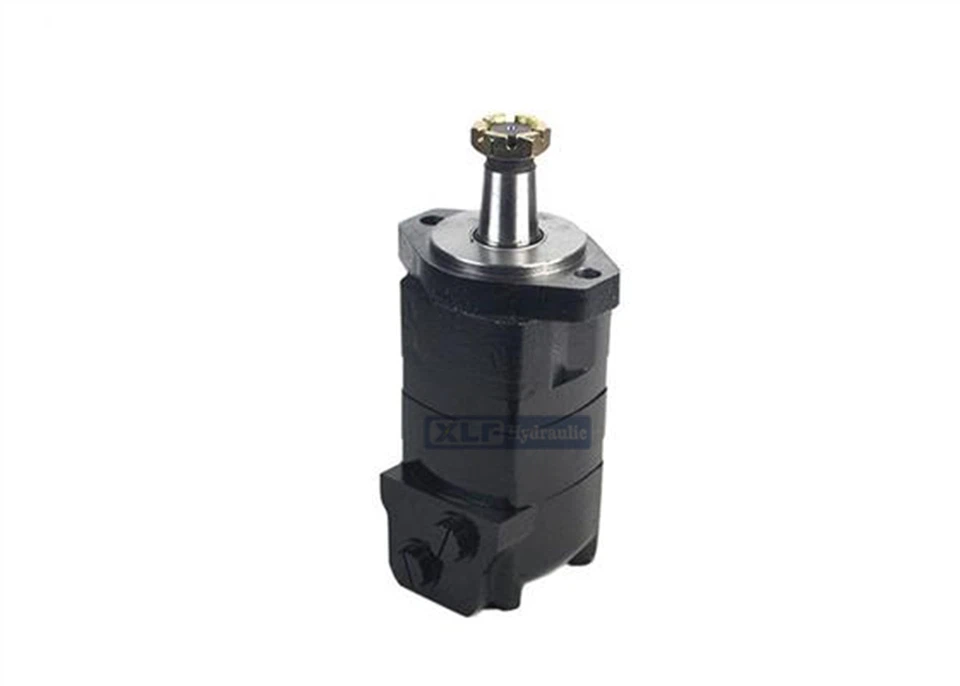

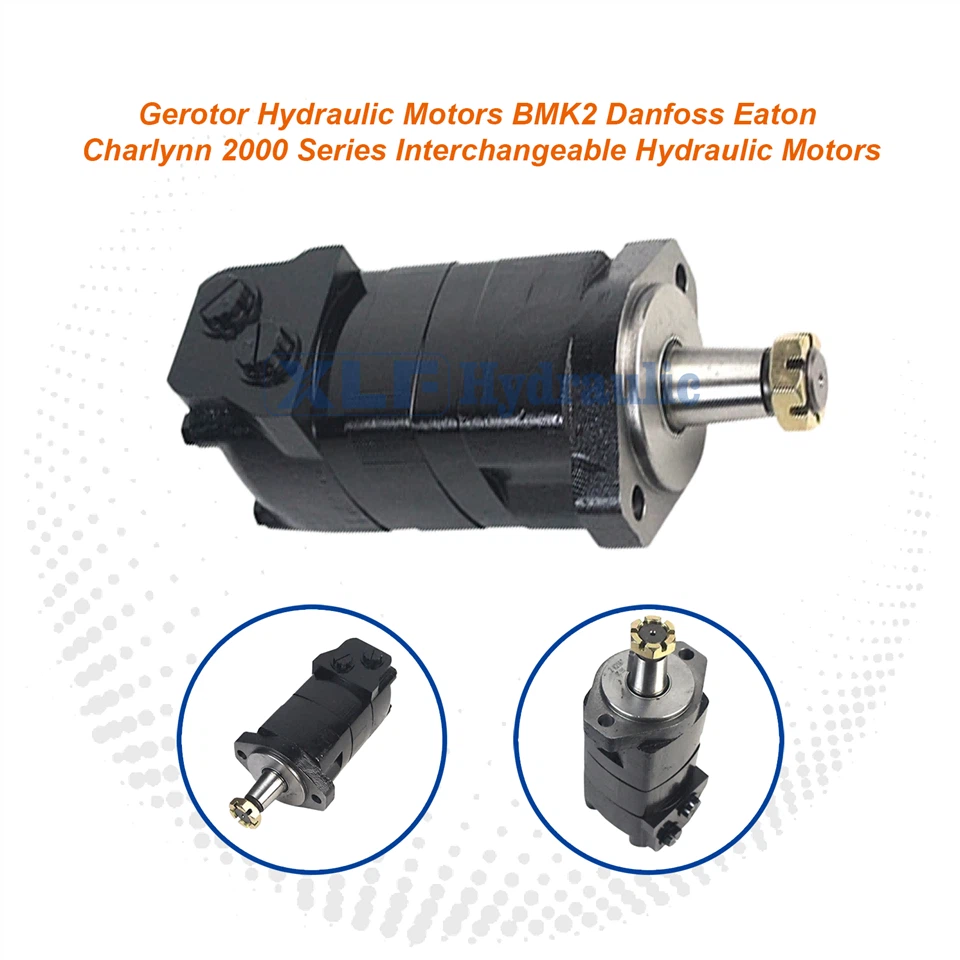

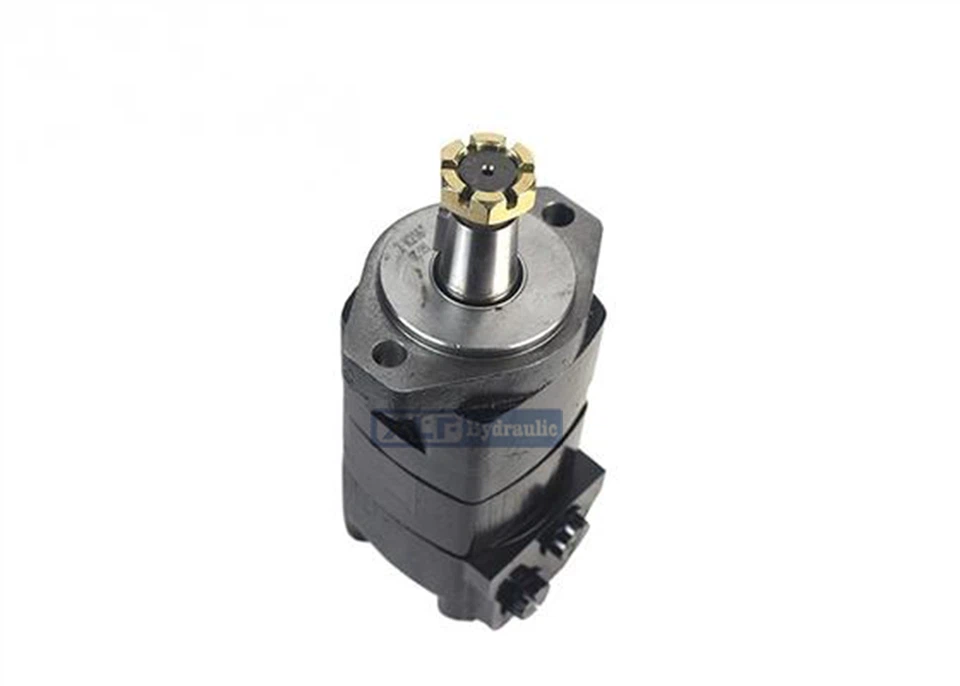

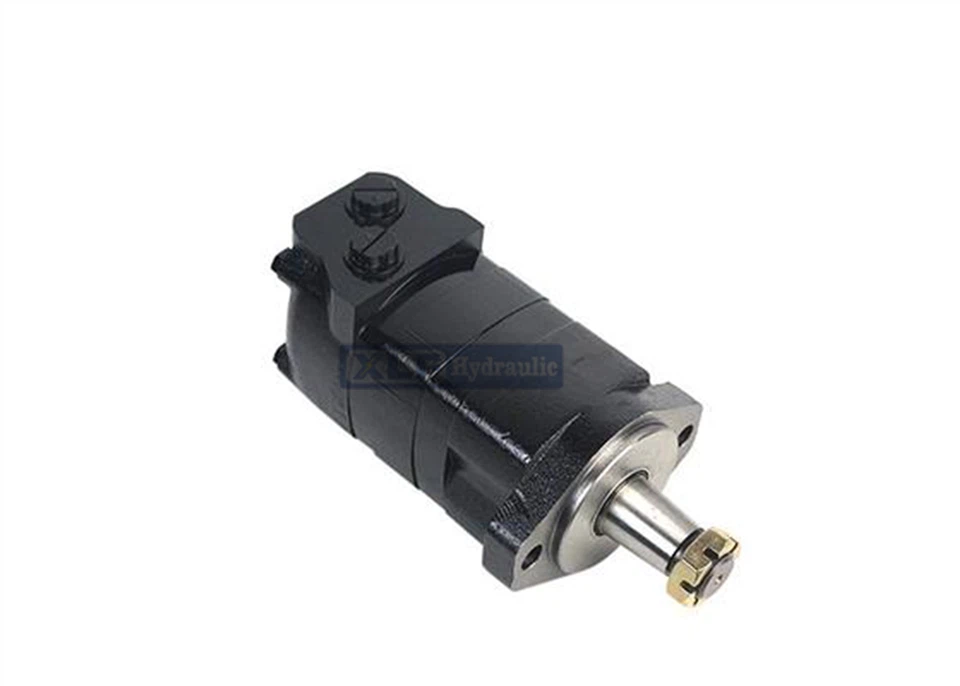

BMK2 Gerotor Hydraulic Motor - Danfoss Eaton Charlynn 2000 Series Interchangeable

BMK2 Gerotor Hydraulic Motor - Danfoss Eaton Charlynn 2000 Series Interchangeable

Features	Danfoss Eaton Charlynn 2000 Series Interchangeable
Product	Gerotor Hydraulic Motors
Model No.	BMK2-160-E2-T4-SU
Size	160 Ml/r
Flange	2× Φ13.5 Rhomb-flange Φ106.4, Pilot Φ82.5×6.4
Shaft	Cone-shaft Φ31.75 , Parllel Key 7.96×7.96×25.4
Highlight	BMK2 Gerotor Hydraulic Motors, 160 ML/R Gerotor Hydraulic Motors, 2000 Series Char Lynn Gerotor Motor

The BMK2 cycloidal hydraulic motor is an excellently designed and reliably performing low-speed, high-torque hydraulic actuator. It is specially built to meet harsh industrial environments, with its core value lying in its excellent interchangeability-it can directly replace, without any modifications, motors of the same specifications such as the widely used Danfoss and Eaton Charlynn 2000 series in the market. Whether it is for equipment maintenance, optimization of spare parts inventory, or performance upgrading, the BMK2 provides a reliable option that is comparable to or even better than original imported products, significantly reducing the equipment life-cycle cost and ensuring production continuity.

The BMK2 motor inherits the classic advantages of the BM series cycloidal motors and achieves higher comprehensive performance through optimized design:

1. Excellent low-speed and high-torque performance: Adopting a precision internal meshing cycloidal gear pair design, it can output stable and powerful torque at extremely low speeds, with large starting torque and excellent low-speed stability, completely solving the crawling problem.

Extremely high power density: Compact structure, small in size and light in weight. However, under the same displacement, its power per unit weight is much higher than that of other types of hydraulic motors, making it easy to install in equipment with limited space.

3. Robust and durable design:

• Integral port plate shaft: The porting mechanism and output shaft are integrally formed, with high oil distribution accuracy, high volumetric efficiency and reliable operation.
• Reinforced bearings and seals: Supported by double rolling bearings at both ends, it provides greater radial load-carrying capacity, allowing the motor to directly drive the working mechanism. The advanced shaft seal design enables it to withstand high back pressure.
• Inserted-tooth stator and rotor: The key friction pairs are made of high-quality alloy steel and undergo special heat treatment, resulting in high wear resistance, high mechanical efficiency and long service life.

4.Strong environmental adaptability: It has strong short-term overload capacity and can adapt to impact loads. It is recommended to use anti-wear hydraulic oil. Under normal oil cleanliness (such as ISO 18/13) and oil temperature (maximum 80°C), it can be used for long-term operation under high pressure.

Thanks to its characteristics of low speed, high torque, and sturdiness and durability, the BMK2 motor is widely used in numerous mechanical equipment:

• Construction machinery: Travel drive and slewing drive of small excavators; drum drive of concrete mixers; vibration wheel drive of road rollers.
• Agricultural machinery: Header and auger drive of combine harvesters; transmission systems of seeders and fertilizer applicators.
• Sanitation equipment: Brush drive of road sweepers; mixing drive of sludge treatment equipment.
• Fishery machinery: Fishing boat net lifters and net winders.
• Industrial equipment: Indexing of machine tools, roller drive of conveyor lines, mixers, and hoists.
