BME2-100 Series Hydraulic Torqmotor | Tapered Shaft 2 Bolts Standard Flange For Electric Forklift

Wuhan Xinlaifu Hydraulic Equipment Co., Ltd. is one of the leading manufacturers and suppliers of bme2-100 series hydraulic torqmotor | tapered shaft 2 bolts standard flange for electric forklift in China. With abundant experience, we warmly welcome you to buy high quality customized products at competitive price from our factory. Also, OEM&ODM service is available.

Type	High Torque Hydraulic Motor
Max Speed	724rpm-924rpm
Displacement	100cc
Warranty	12-18 Months
Application	Electric Forklist.
Torque	295N.M-5445N.M
Flow	75--95 L/MIN
Material	Cast Iron
Highlight	BME2-100 Series torqmotor, electric forklift motor torqmotor, 2 blots tapered shaft torqmotor

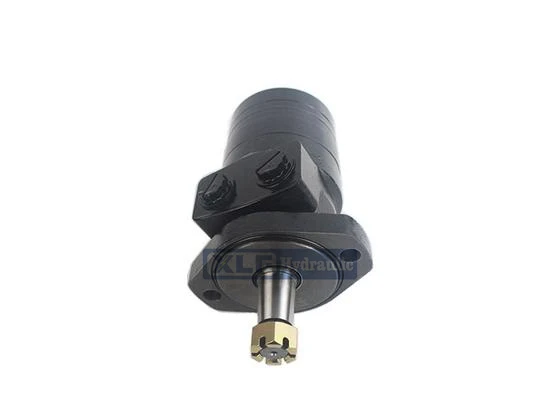

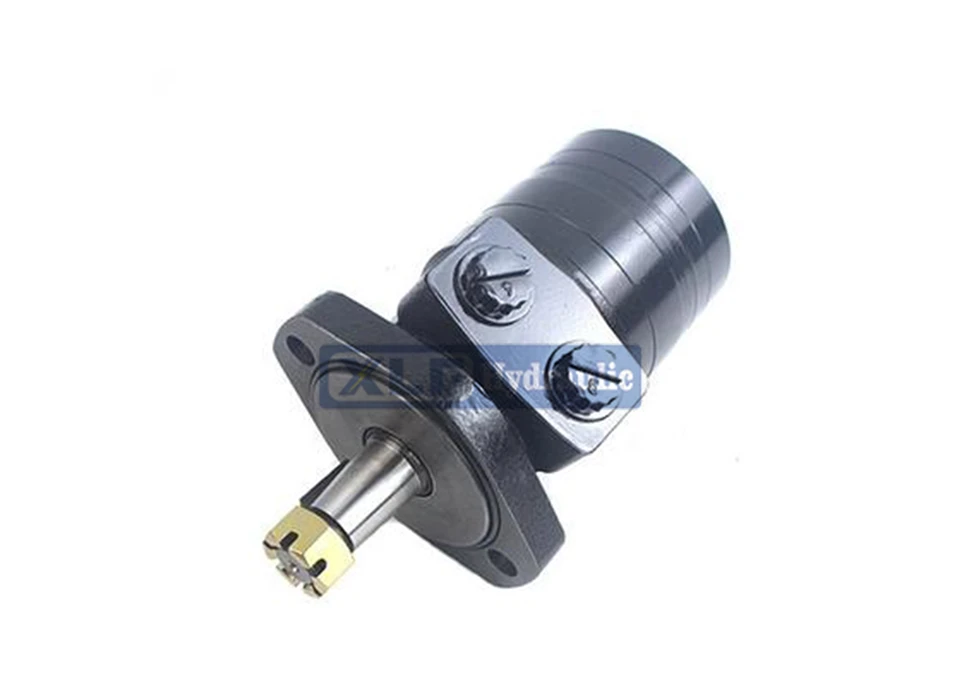

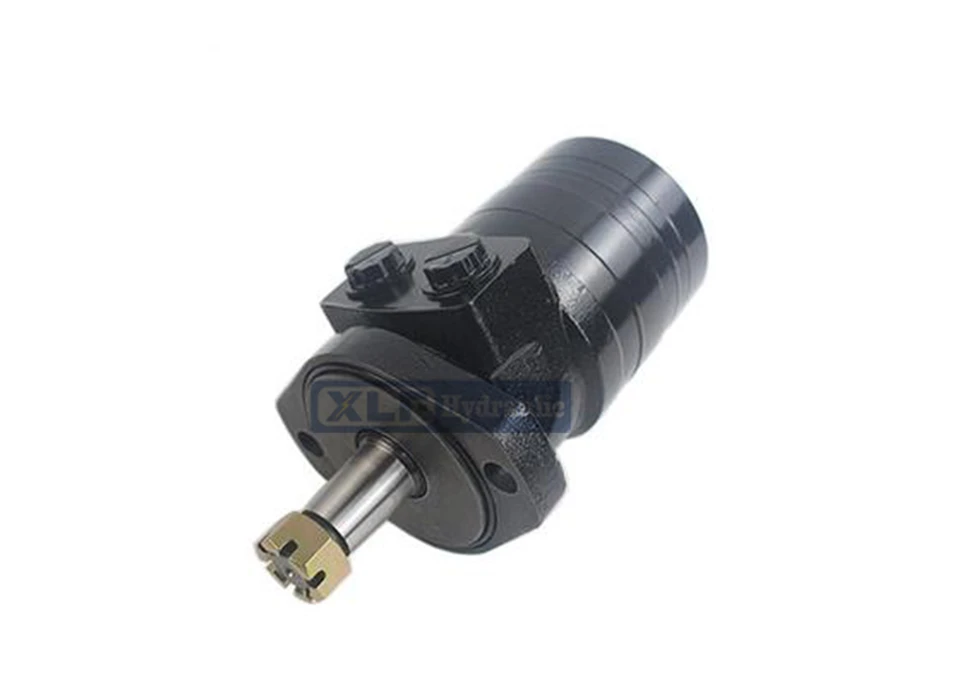

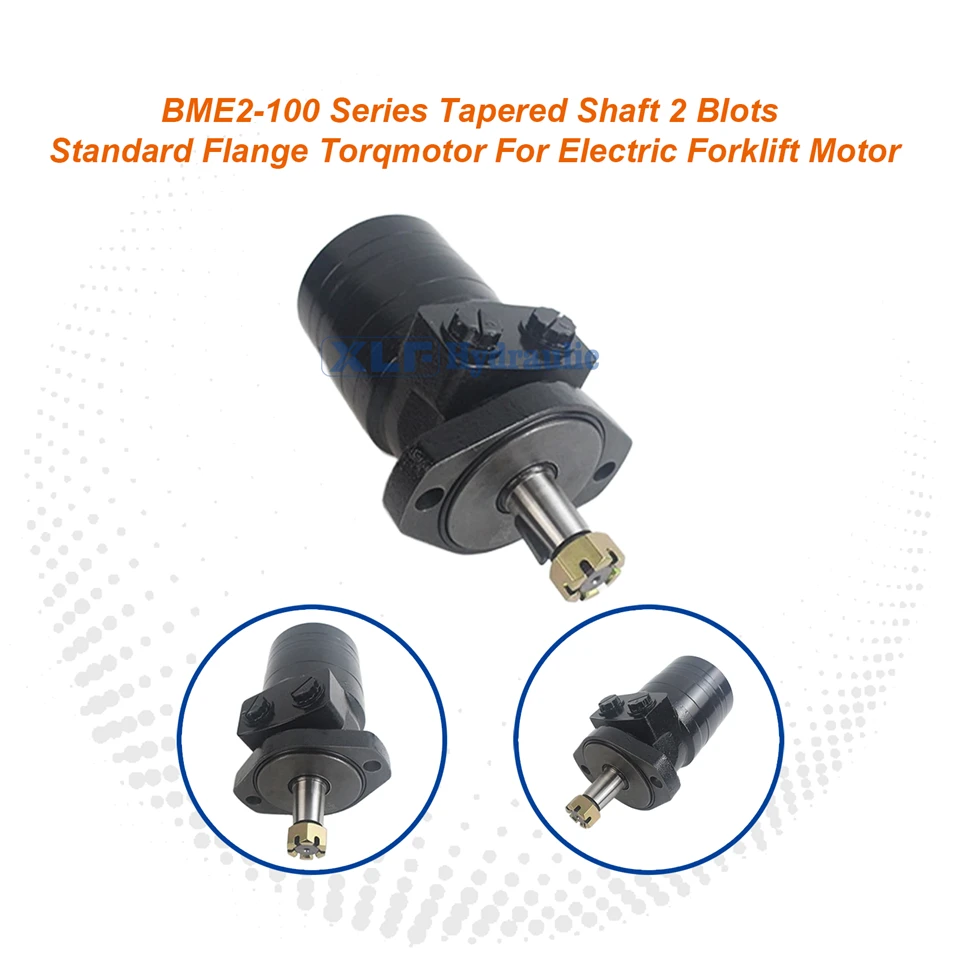

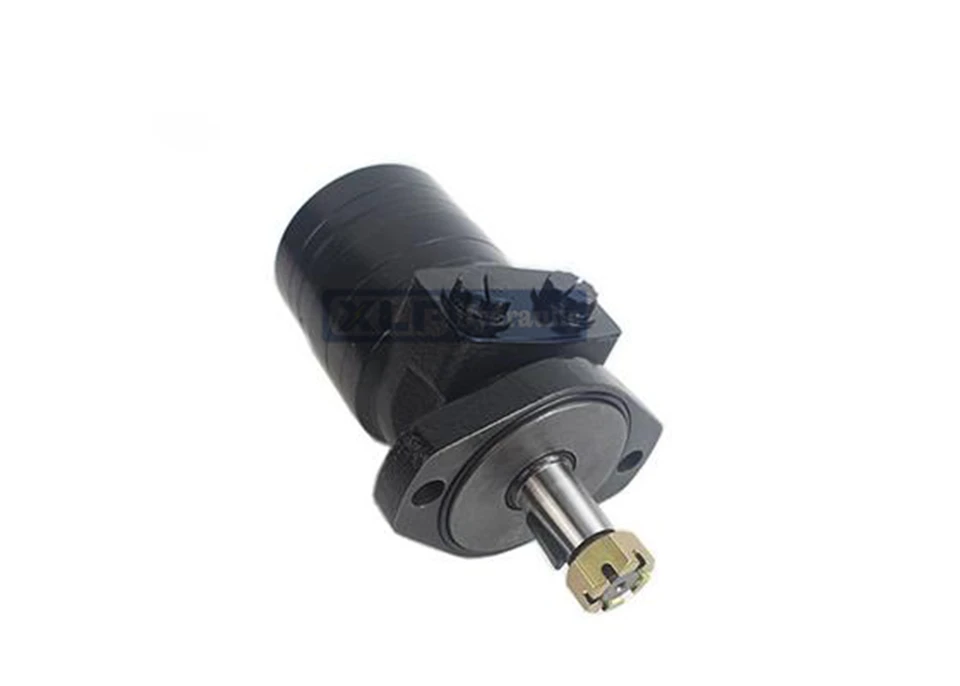

The BME2-100 series hydraulic Torqmotor is a high-performance axial ported gerotor hydraulic motor with a displacement of 100 ml/r, adopting advanced Inserted tooth type stator and rotor (Geroler) technology. This model is equipped with a 2-bolt standard mounting flange and a tapered output shaft, specially designed for the travel drive and hydraulic system optimization of material handling equipment such as electric forklifts. The motor series features high load capacity, stable operation, and high efficiency, capable of long-term reliable operation under medium and high pressure, making it an ideal choice for the steering, travel, and auxiliary mechanism drive of electric forklifts.

1. Optimized specifically for electric forklift working conditions

• Ideal displacement: 100 ml/r displacement achieves a perfect balance between output torque and speed range, with a continuous torque of up to 165 N·m, meeting the power requirements for forklift travel and steering.
• Adapting to frequent start-stop: The optimized rotor pair design provides high starting torque, ensuring stable operation under the working conditions of frequent start-stop and direction change of the forklift.
• Impact-resistant design: The internal moving pairs have undergone strengthening treatment, enabling them to withstand the impact loads when the forklift travels on complex roads.

2. Advanced shaft distribution and tooth inlay technology

• Integral forming of the distribution mechanism and output shaft: It has higher oil distribution precision and high volumetric efficiency, ensuring long-term stable performance.
• Inlaid tooth type stator and rotor: Adopting advanced Geroler inlaid tooth stator and rotor pairs, with low starting pressure, high efficiency, good retention, and long working life.
• Automatic wear compensation: The distribution system has the ability of automatic compensation after wear, ensuring the motor runs smoothly at low speeds and the load-speed characteristics are stable.

3. Robust bearing structure

• Needle bearing support: The output shaft adopts a needle bearing structure, which has strong ability to bear axial and radial loads, allowing the motor to directly drive the working mechanism and expand the scope of application.
• Dual rolling bearing design at both ends: It has greater lateral load-bearing capacity, suitable for various working conditions of forklift travel drive.
• High-strength cast iron housing: The robust housing design can withstand the harsh environment of electric forklift operations.

BME2-100 hydraulic motors are widely used in electric forklifts and various material handling equipment:
1. Electric forklift drive system

• Travel drive: Provides forward/backward travel power for the forklift
• Steering system: Power source for hydraulic power steering
• Fork lifting assistance: Drives the auxiliary lifting mechanism

2. Material handling equipment

• Pallet truck: Travel drive unit
• Stacker: Power source for the hydraulic system
• AGV (Automated Guided Vehicle): Wheel-side drive system
