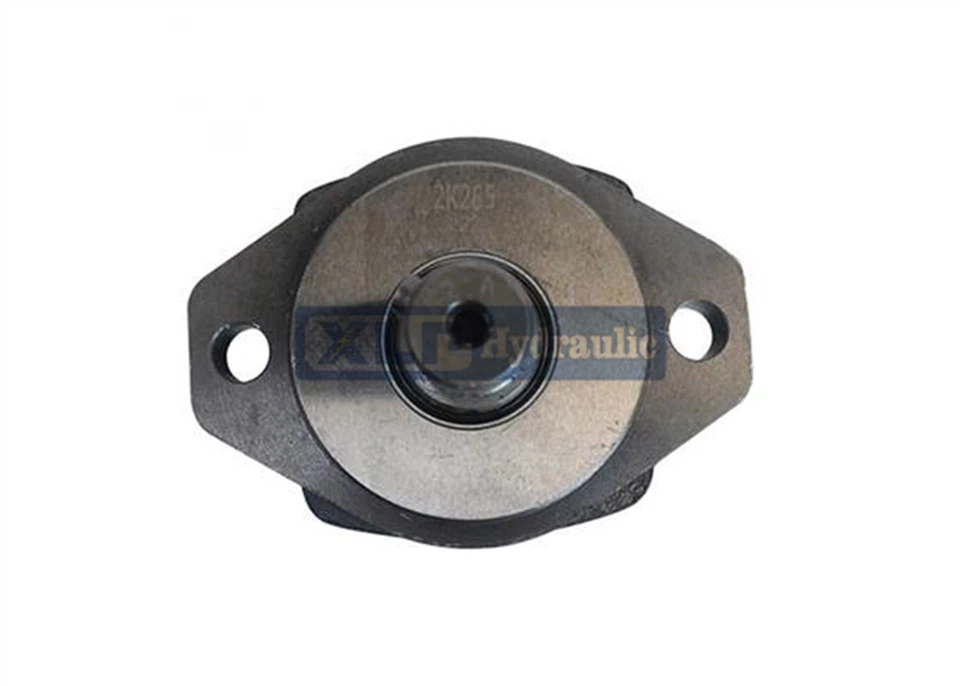

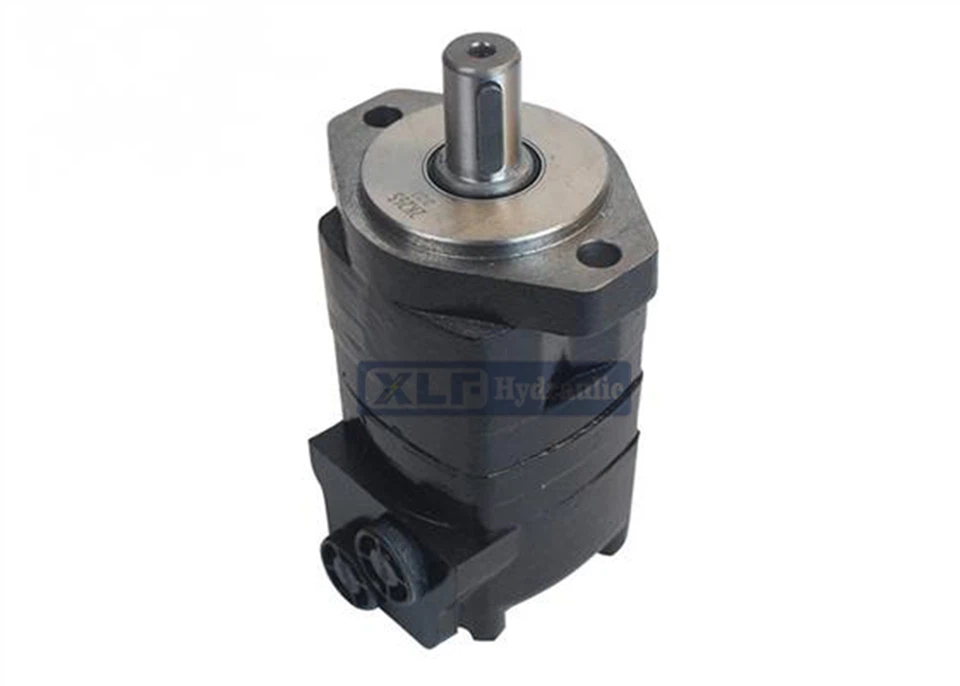

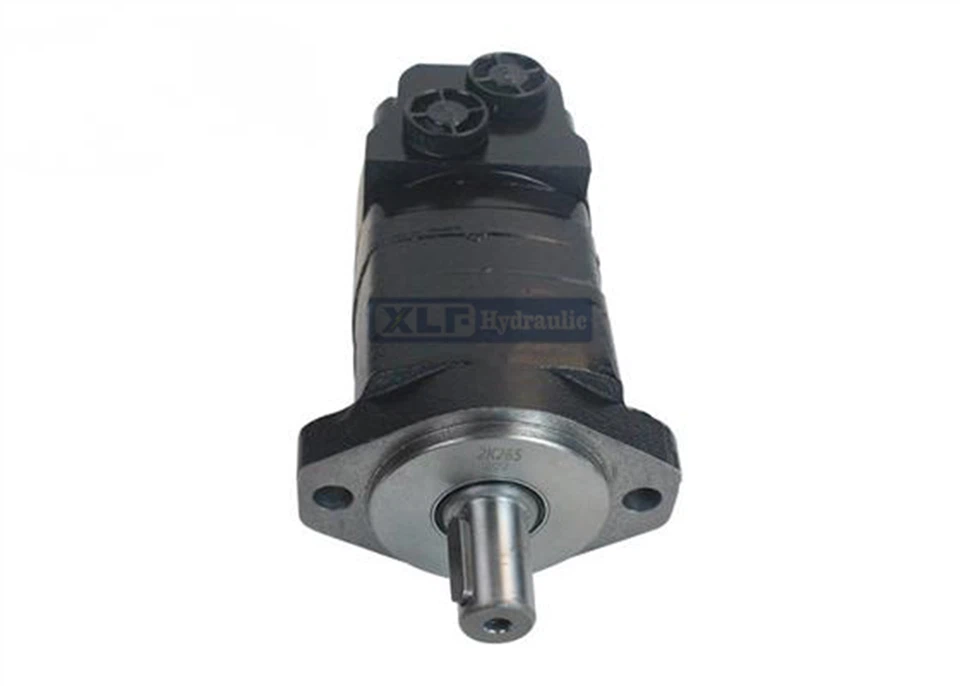

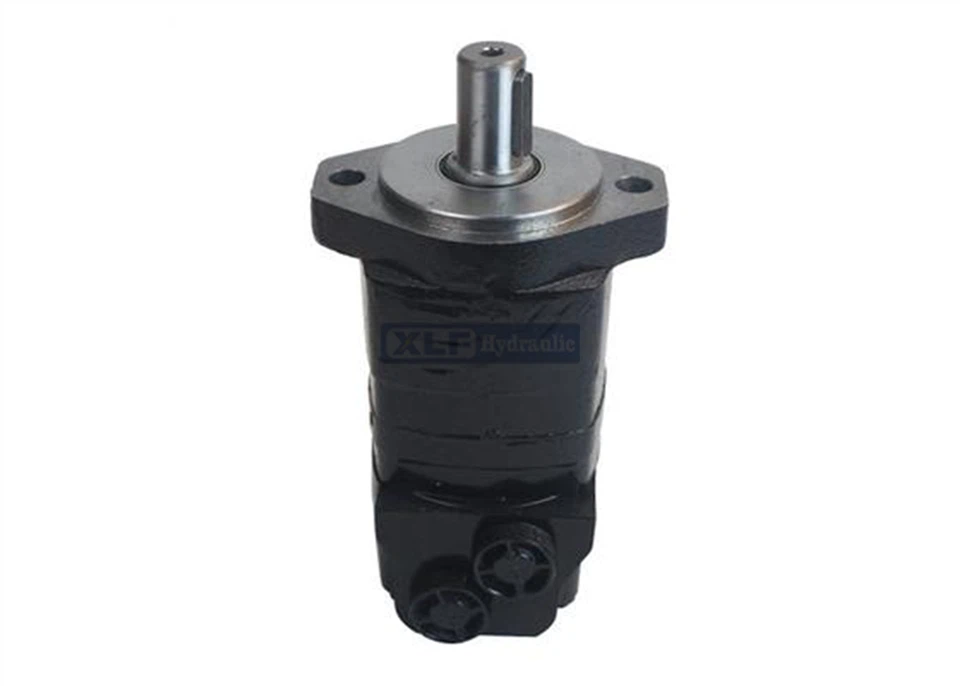

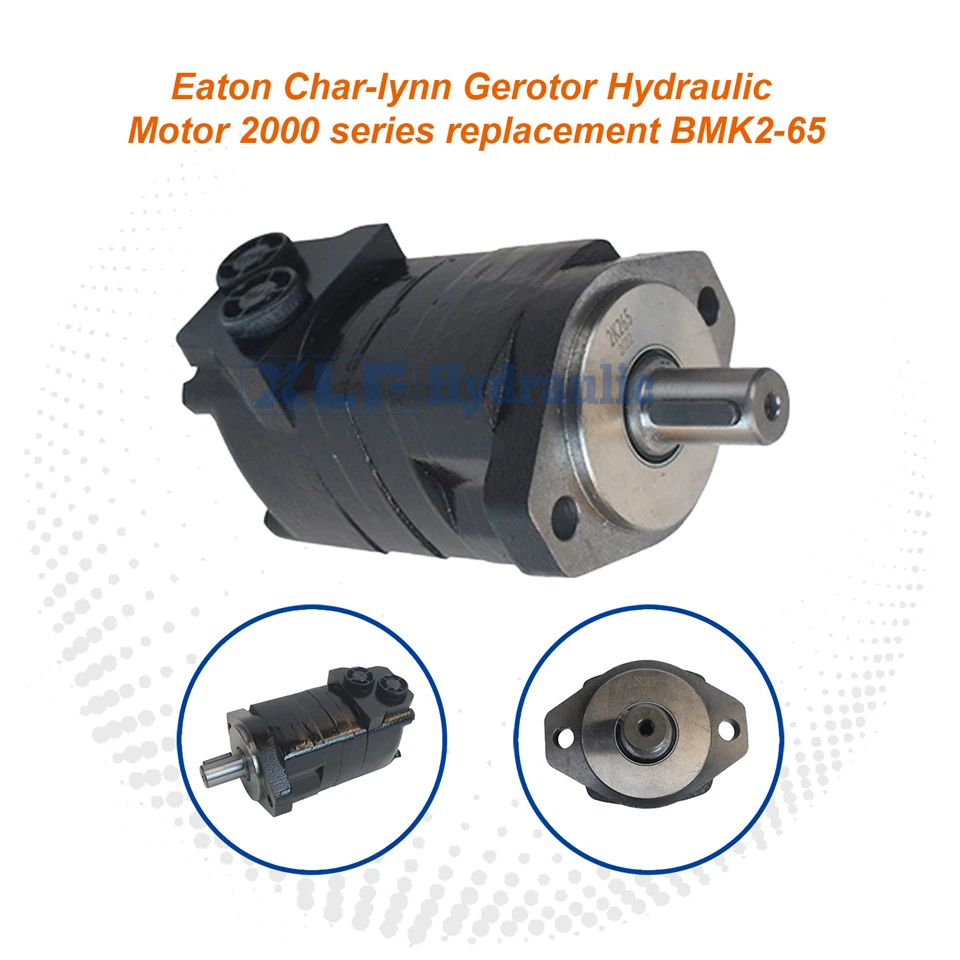

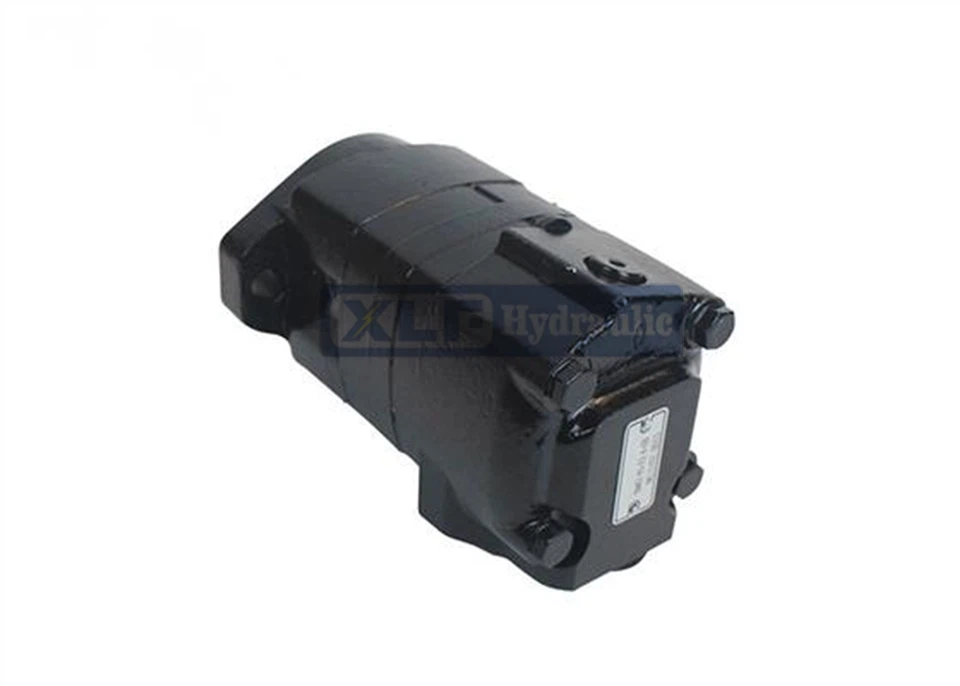

Eaton Char-Lynn 2000 Series Gerotor Motor - BMK2-65 Hydraulic Replacement

Product	Hydraulic Motor
Displacement	65 Ml/r
Shaft	Key Shaft
Rotation	CW
Highlight	Eaton Char-lynn Gerotor Hydraulic Motor, 2000 series Gerotor Hydraulic Motor, BMK2-65 Gerotor Hydraulic Motor

BMK2-65 is a high-performance gerotor hydraulic motor specifically designed as a direct replacement for the Eaton Char-Lynn® 2000 series original hydraulic motors of the same specification. With a displacement of 65cc, it is an ideal choice in this series for light to medium torque drive requirements. This product strictly adheres to industry-standard interfaces, ensuring complete consistency with the corresponding models of the 2000 series in terms of installation dimensions, shaft extensions, and oil port specifications, enabling a "plug-and-play" replacement. The BMK2 series, with its robust structure, optimized internal design, and highly competitive cost-performance ratio, serves as a reliable solution for equipment maintenance, upgrades, and spare parts optimization.

1. Seamless interchangeability: The original design intention of BMK2-65 is to serve as a direct replacement for the Eaton 2000 series (such as the 2K/2M series). The key interface dimensions of its mounting flange, shaft extension, and oil port are consistent with the original parts, eliminating the need to modify any mounting structure or pipeline.

2. Performance matching: The displacement of 65cc corresponds precisely, ensuring that the speed, torque, and power characteristics of the equipment after replacement remain consistent with the original design.

3. Cost optimization: As a high-quality aftermarket alternative, it provides a more cost-effective spare parts option while maintaining equivalent performance and reliability, effectively reducing equipment maintenance costs.

1. Robust and reliable structure:
◦ Integral housing and port plate: It has good structural rigidity, high porting precision, small internal leakage, and excellent volumetric efficiency.
◦ High-quality materials and craftsmanship: The core gear pair is made of high-quality alloy steel,经过精密研磨与热处理, featuring high wear resistance and a long service life.
◦ Heavy-duty bearings: Large-capacity needle roller bearings are adopted, which can bear large radial loads and allow the motor to directly drive the load.
2. Optimized performance:
◦ Excellent low-speed stability: The cycloidal gear design enables it to run smoothly even at extremely low speeds, with uniform output torque and no crawling phenomenon.
◦ Efficient heat dissipation design: The optimized internal flow channel and housing design are conducive to heat dissipation, ensuring the stability of continuous operation.
◦ Wide adaptability: It has relatively low requirements on oil cleanliness and is suitable for various common hydraulic systems of industrial and mobile equipment.
3. Easy maintenance: The standardized design makes it easy to install and disassemble, and the universal seals are easy to obtain and replace.

The BMK2-65 (65cc) motor is suitable for various types of equipment that require medium torque and medium-low speed drive, and is commonly used in occasions where 2000 series motors are replaced:
• Agricultural machinery: drive for seed metering devices of small seeders, drive for metering shafts of fertilizing machines, drive for folding booms of sprayers.
• Construction machinery: drive for mixing drums of small concrete mixers, light winches, drive for auxiliary functions of engineering vehicles.
• Material handling: drive for light conveyor belts, steering mechanisms of warehousing equipment, micro-motion drive wheels of electric forklifts.
• Municipal sanitation: drive for auxiliary brushes of small road sweepers, drive for cutterheads of lawn care equipment.
• Industrial equipment: indexing worktables of machine tools, mixers, valve actuators.
