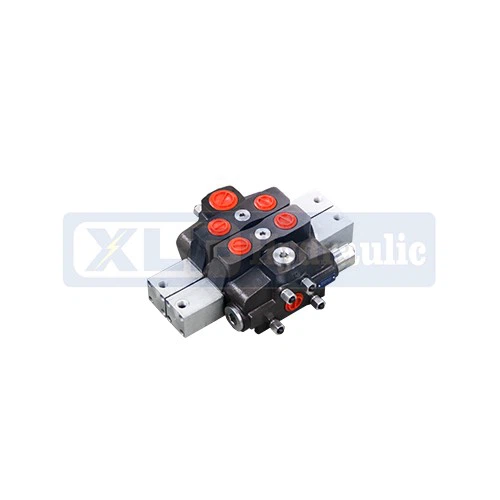

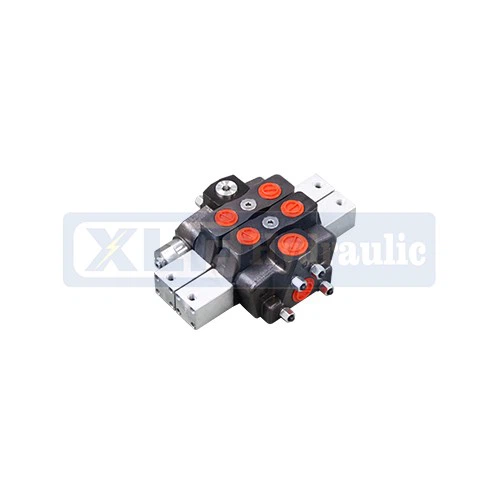

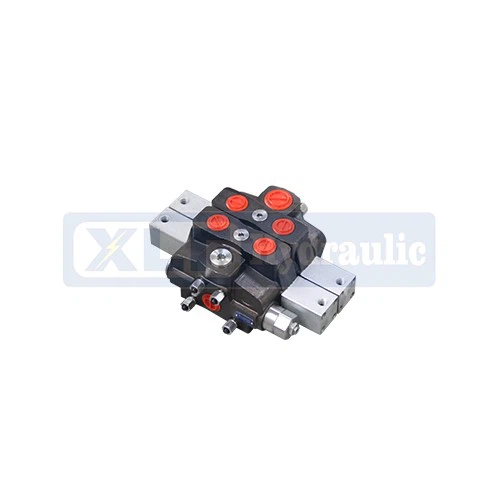

DCV60 Series Sectional Monoblock Hydraulic Selector Diverter Valve 3 Waye

DCV60 Series Sectional Monoblock Hydraulic Selector Diverter Valve 3 Waye

The DCV60 series sectional monoblock hydraulic selector diverter valve (3 - way) is a high - performance control component specially designed for complex hydraulic systems. Thanks to its monoblock structure, it has excellent sealing performance and stability, and can accurately realize the functions of fluid diversion, confluence and direction control in various industrial hydraulic scenarios. As a core control part, the dcv60 hydraulic valve adopts a three - section channel design, which can flexibly adapt to different load requirements. Moreover, the characteristics of the hydraulic selector diverter valve 3 way make it perform particularly well in multi - actuator linkage systems, effectively improving the operating efficiency of the system.​

Core Performance Parameters​

This series of valves has a rated working pressure of up to 31.5MPa and a maximum flow rate of 160L/min. It is suitable for 46# anti - wear hydraulic oil (with a viscosity range of 10 - 400cSt). The monoblock structure reduces the number of leakage points, and the pressure loss is reduced by more than 15% compared with the traditional split - type design, ensuring the maximization of energy transmission efficiency. The three - section spool design of the dcv60 hydraulic valve supports the switching of multiple working modes. Combined with a precise spring return mechanism, the response time is controlled within 0.05 - 0.1 seconds, meeting the requirements of high - frequency operations.​

The three - section layout of the hydraulic selector diverter valve 3 way includes an oil inlet (P), working ports (A/B) and an oil return port (T). It realizes the on - off of the oil circuit and flow regulation through the displacement of the spool. The monoblock valve body is made of high - strength ductile iron, and the concentricity of each oil port is ensured through precision machining, which is compatible with various installation methods.​

To meet different control needs, the dcv60 hydraulic valve supports various operation modes such as manual, pneumatic and electric. It can be optionally equipped with a position feedback device to realize closed - loop control. Its unique buffer structure can effectively reduce the commutation impact, protect system components and extend the service life of the equipment.​

Application Scenarios and Customization Services​

This valve is widely used in construction machinery, metallurgical equipment, injection molding machinery and other fields, especially suitable for hydraulic systems that require the collaborative work of multiple actuators. We provide a variety of customization options, including different voltages (12V/24V), interface forms and installation sizes, and can adjust parameters according to the specific working conditions of customers.​

As a professional manufacturer of hydraulic selector diverter valve 3 way, we are well aware of the importance of system matching. Before placing an order, please provide parameters such as working pressure, flow rate and control mode. Our technical team will provide you with the optimal solution and can complete the valve debugging in advance to ensure stable operation once it arrives.​

The normal pilot control pressure range is 5 - 30bar. If it exceeds this range, please communicate with the technical department in advance. It is recommended to refer to the product manual or consult the sales staff during installation to ensure correct pipeline connection and reliable sealing. During regular maintenance, check the wear condition of the spool and keep the oil cleanliness (NAS 8 level or above) to ensure the long - term stable operation of the valve.​

Choose the dcv60 hydraulic valve to make the diversion and control of the hydraulic system more accurate and efficient, and escort the performance of your equipment.​

1 Sectional types with 1 to 10 working sections

2 DCV60 series flow: 50l/min, max 60l/min with pressure up to 315bar;

3 DCV100 series flow: 80l/min, max 100l/min with pressure up to 315bar;

4 DCV140 series flow: 100l/min, max 140l/min with pressure up to 315bar;

5 Spool function options: O,P, Y, A and etc.

6 Nominal diameter: G3/8,G1/2; G3/4;

7 Model examples: DCV100-4OQ; DCV60-2OW.2OT; DCV100-OT-S; DCV60-4OQ; DCV100-2ODQ etc.

8 Lever side control: manual, pneumatic control, electric and pneumatic control, hydraulic and electric control, hydraulic control and remote control.
