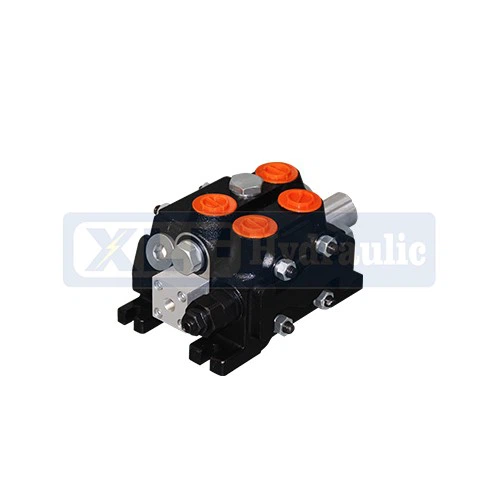

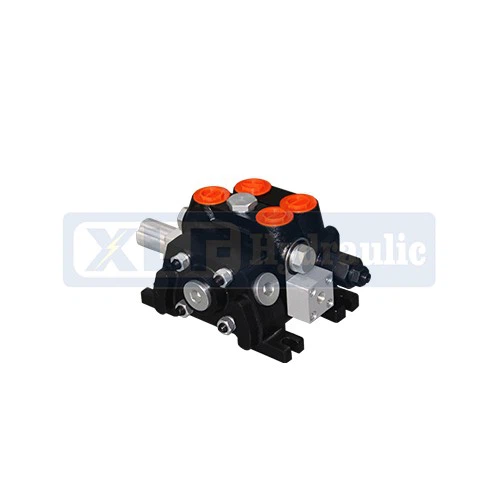

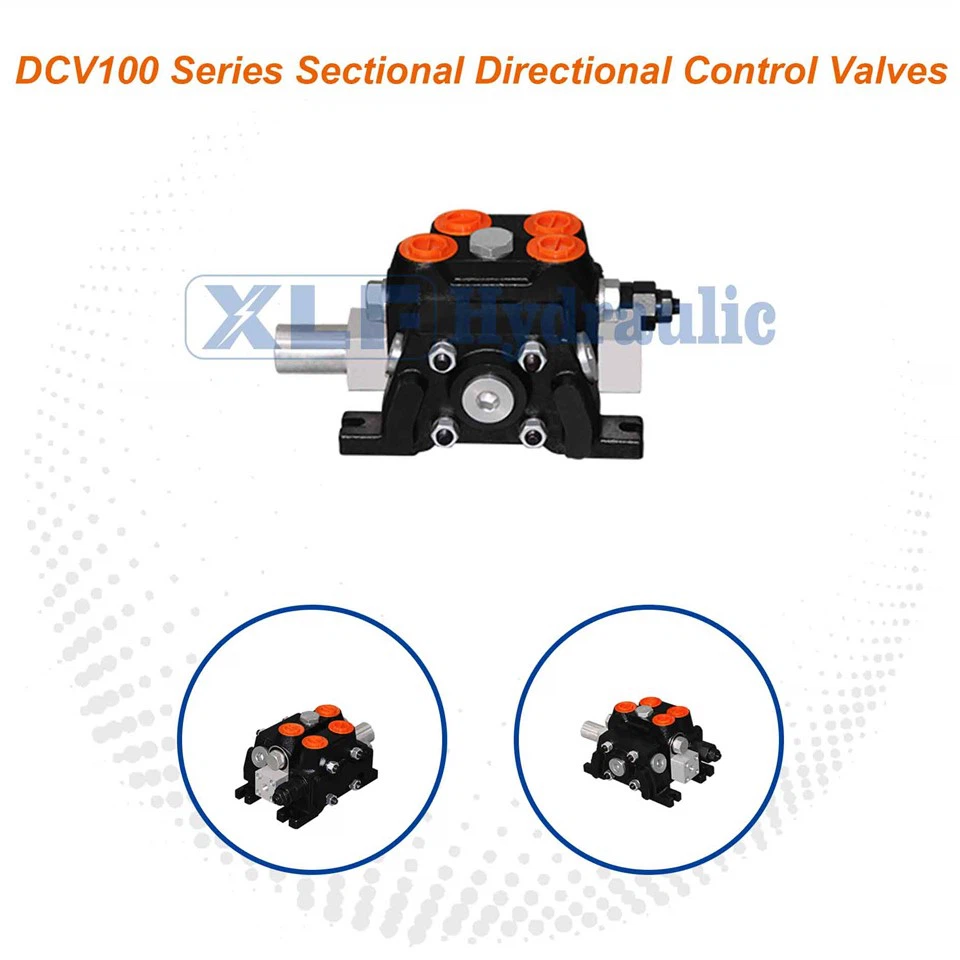

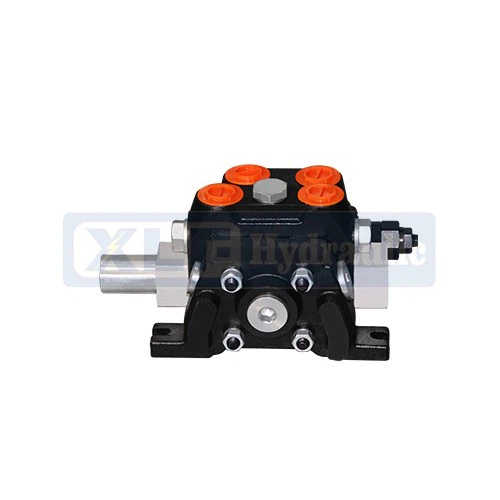

DCV100 Series Sectional Directional Control Hydraulic Direction For Trucks

DCV100 Series Sectional Directional Control Hydraulic Direction For Trucks

The DCV100 series sectional directional control valve is specially designed for truck hydraulic systems and is a core component for realizing the direction control of vehicle hydraulic actuators. It adopts a modular sectional design, which can be flexibly combined according to different hydraulic system configurations of trucks to meet diversified operation needs. The dcv100 hydraulic valve can stably adjust the on-off and flow direction of hydraulic oil by virtue of precise spool control technology, and the stability of hydraulic direction control is the key to ensuring the safety and efficiency of truck operations. Whether it is the lifting system of heavy-duty freight trucks or the hydraulic auxiliary devices of engineering trucks, this series of valves can provide stable performance support.​

This series of valves has a rated working pressure of 25MPa, a maximum flow rate of 200L/min, and is suitable for hydraulic oil with a viscosity range of 15-380cSt, and the working temperature is between -20℃ and 80℃. The response time of the dcv100 hydraulic valve is only 0.08-0.12 seconds, which ensures the rapid action of hydraulic actuators and improves the operation rhythm. The sectional structure design reduces the pressure loss to below 8%, which is better than the industry average and effectively reduces energy consumption. At the same time, its sealing performance has passed 100,000 cycle tests without leakage, ensuring long-term stable use.​

Structural and Functional Features​

Structurally, hydraulic direction control is realized through the cooperation of high-precision spool and valve sleeve. The spool is made of wear-resistant alloy material and treated with special technology, which extends the service life by more than 30%. The sectional valve body is made of high-strength aluminum alloy die-casting, which is 40% lighter than the traditional cast iron valve body, more in line with the lightweight requirements of trucks.​

The dcv100 hydraulic valve is equipped with various control methods, including manual joystick, pneumatic control and electro-hydraulic proportional control, which can be flexibly selected according to the layout of the truck cab. In addition, the valve has a built-in overload protection device, which automatically unloads when the system pressure exceeds the set value to avoid damage to hydraulic components due to overload. The modular design makes later maintenance and function expansion extremely convenient, and the replacement of a single section does not require disassembling the entire valve group.​

The DCV100 series valves are widely used in scenarios such as the cargo box lifting of dump trucks, the hydraulic drive of refrigeration units of refrigerated trucks, and the control of cleaning devices of sanitation trucks. For different brands and models of trucks, we provide customized services, which can adjust the interface size, control mode and mounting brackets to ensure perfect adaptation to the original vehicle hydraulic system.​

As a supplier focusing on hydraulic direction control solutions, we are well aware of the particularity of truck hydraulic systems. When placing an order, please provide parameters such as truck model, working pressure of the hydraulic system, and type of actuators. Our technical team will configure the most suitable dcv100 hydraulic valve and can conduct pre-commissioning to ensure that it can be put into use after installation.​

Notes​

During the normal operation of the valve, the pilot control pressure should be maintained at 4-25bar. If there are special working conditions, please communicate with the technical department in advance.​

Choose the DCV100 series sectional directional control valve to make the hydraulic direction control of the truck hydraulic system more accurate and reliable, and provide a solid guarantee for the efficient operation of trucks.

1 Sectional types with 1 to 10 working sections

2 DCV60 series flow: 50l/min, max 60l/min with pressure up to 315bar;

3 DCV100 series flow: 80l/min, max 100l/min with pressure up to 315bar;

4 DCV140 series flow: 100l/min, max 140l/min with pressure up to 315bar;

5 Spool function options: O,P, Y, A and etc.

6 Nominal diameter: G3/8,G1/2; G3/4;

7 Model examples: DCV100-4OQ; DCV60-2OW.2OT; DCV100-OT-S; DCV60-4OQ; DCV100-2ODQ etc.

8 Lever side control: manual, pneumatic control, electric and pneumatic control, hydraulic and electric control, hydraulic control and remote control.
