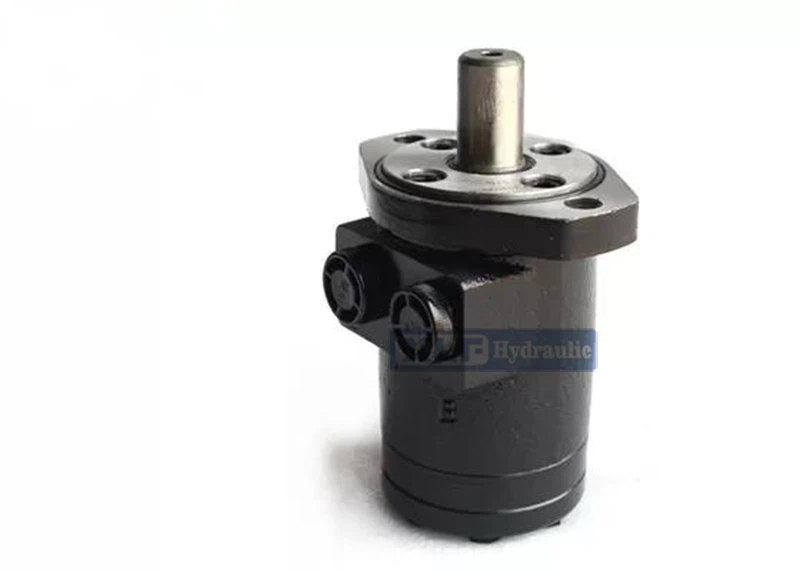

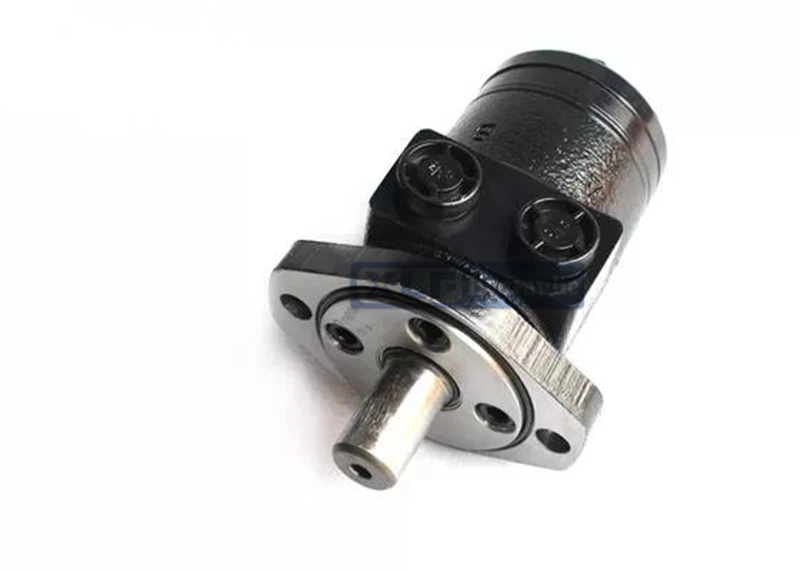

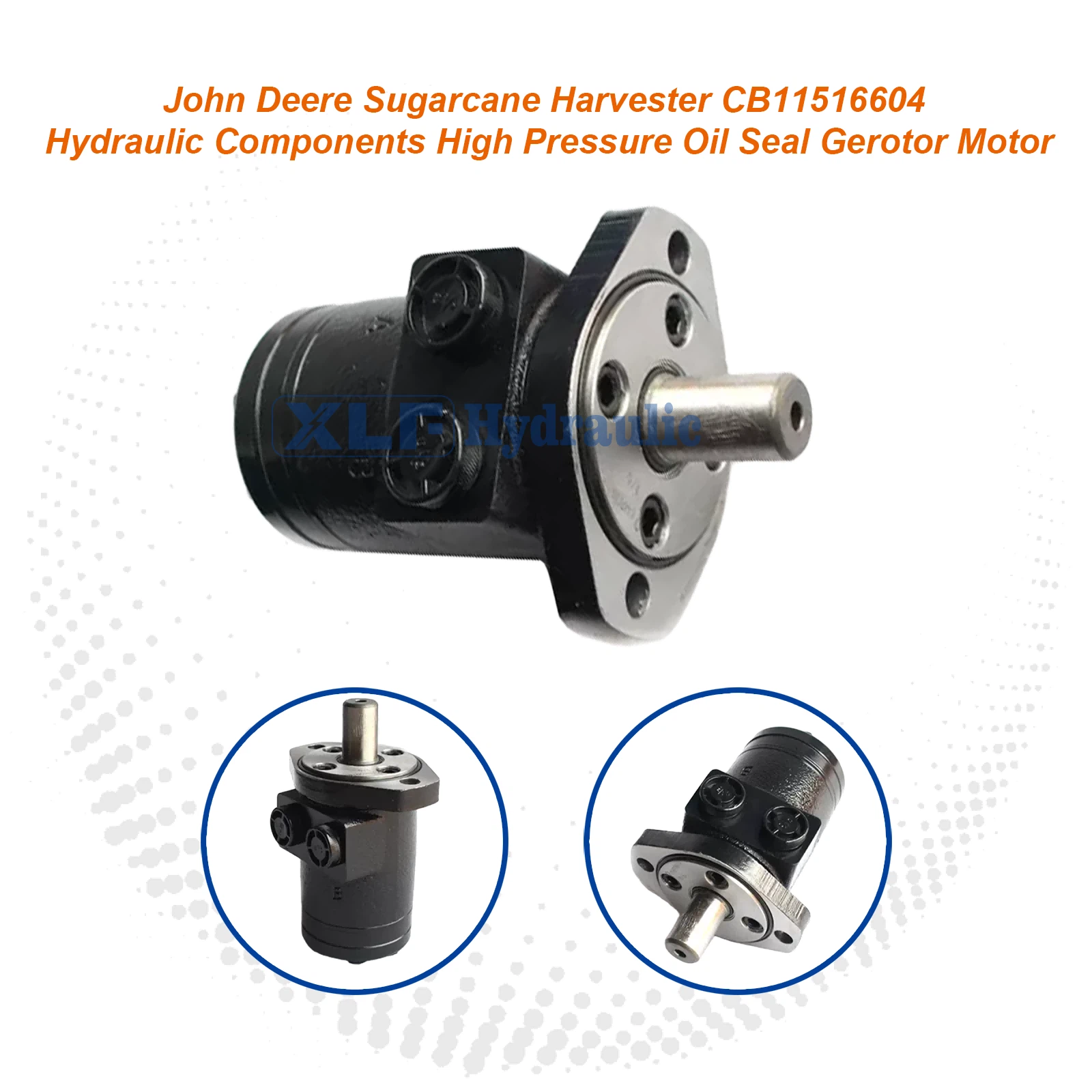

John Deere Sugarcane Harvester Gerotor Motor - CB11516604 High Pressure

John Deere Sugarcane Harvester Gerotor Motor - CB11516604 High Pressure

Model No.	BMP/BMPH
Application	Agricultural Equipment
Certificate	ISO9001-2015
Torque	182/227 Nm
Max Power	11.0/13.0KW
Max Flow	60/75LPM
Highlight	Harvester oil seal motor, oil seal motor CB11516604, CB11516604 oil seal motor

John Deere CB11516604 is a high-performance cycloidal hydraulic motor specially designed for the harsh working conditions of sugarcane harvesters. It utilizes the principle of internally meshing cycloidal gears, capable of outputting huge torque at low speeds, and can withstand frequent high-pressure impacts and heavy loads during the sugarcane harvesting process, providing reliable and efficient power for key working components of the harvester such as the feeding roller, cutter, or lifter.

• High-pressure durability design: Adopting advanced plane sealing and automatic gap compensation technology to ensure high volumetric efficiency and mechanical efficiency under continuous high-pressure operation. The optimized bearing and shaft seal system enables it to withstand high back pressure, meeting the requirements of complex hydraulic circuits.
• High torque and smooth drive: The cycloidal structure inherently has the characteristics of low speed and high torque, with high starting torque and stable operation, which can directly drive heavy-duty working components and effectively cope with the unevenly fed sugarcane load.
• High efficiency and energy saving: The precision oil distribution mechanism and high-efficiency design reduce energy loss, helping to improve the fuel economy of the whole machine
• Compact and robust structure: Compared with other types of motors with the same torque, cycloidal motors have smaller volume and weight, which is convenient for arrangement in harvesters with limited space. At the same time, the robust design can adapt to field vibration and dust environments.
•  Convenient maintenance: The modular design idea facilitates quick inspection and replacement in the field, minimizing equipment downtime.

1.Oil Products and Cleanliness: Be sure to use high-quality anti-wear hydraulic oil that meets John Deere standards. Maintaining the cleanliness of the oil is the top priority for extending the motor's service life. It is recommended to regularly test the oil products and replace the filter elements.

2.Installation Specifications:

• Alignment: During installation, ensure precise alignment between the motor shaft and the driving components to avoid lateral loads.
• Drain Pipe: If the motor has an independent oil drain port, a pipeline must be used to lead it back to the oil tank smoothly to prevent damage to the shaft seal due to accumulated housing pressure.

3.Common Fault Symptoms:

• Weak driving force or unstable speed: May be caused by internal wear of the motor (valve plate, stator-rotor pair), insufficient system pressure, or oil contamination.
• Abnormal noise or vibration: May indicate bearing damage, severe wear of internal parts, or insufficient oil intake.
• External leakage: Usually caused by aging and damage of the shaft seal or housing seals, which need to be replaced in a timely manner to prevent the intrusion of contaminants.
