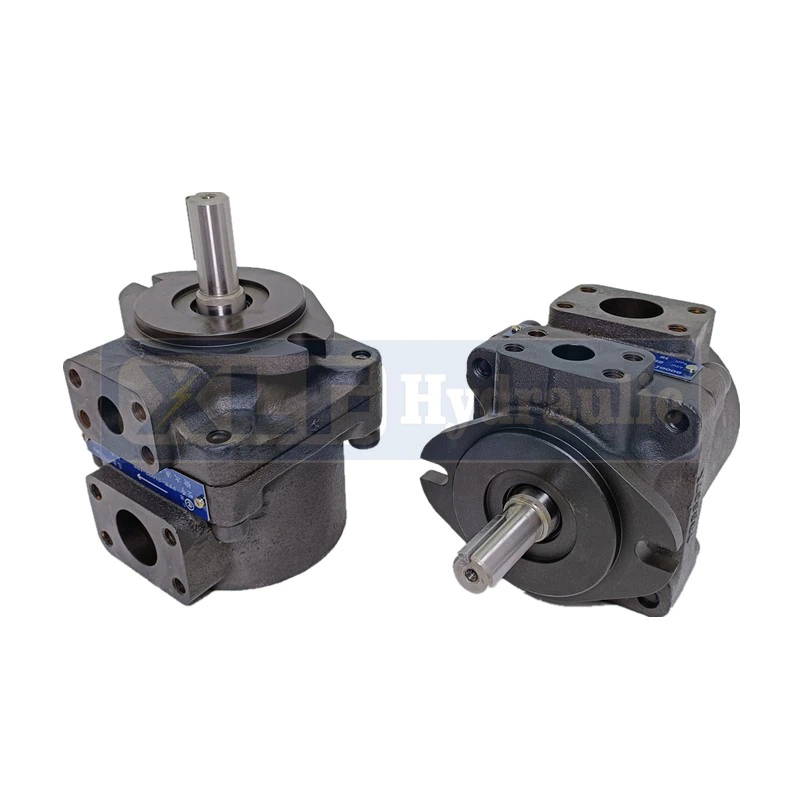

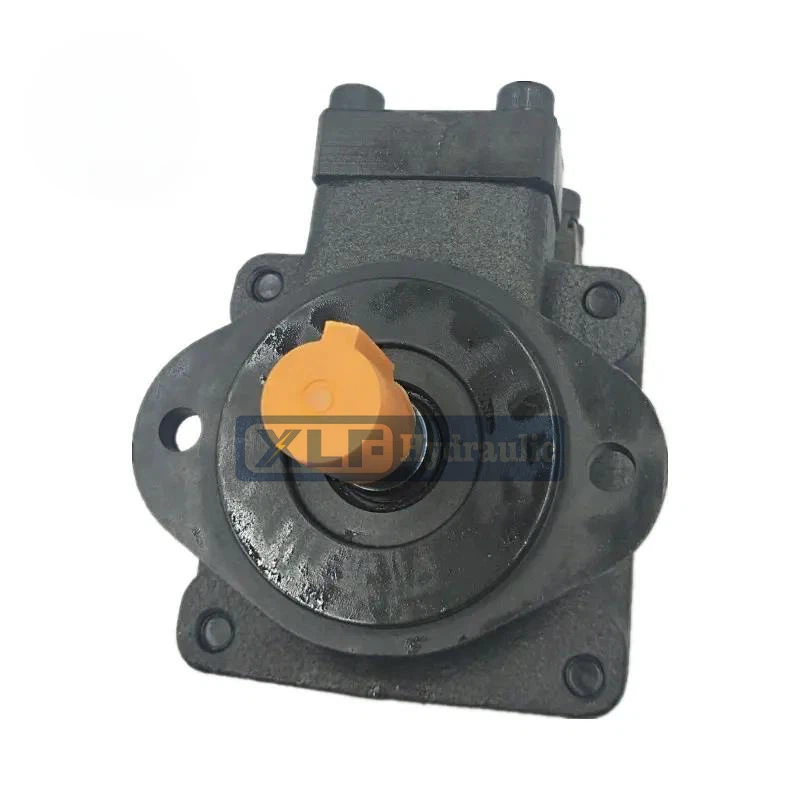

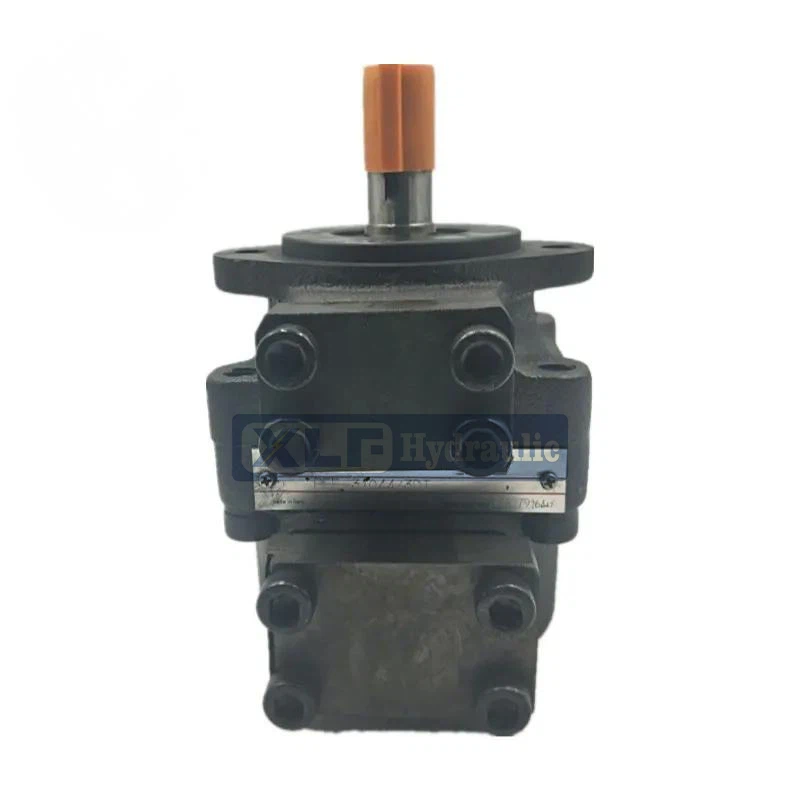

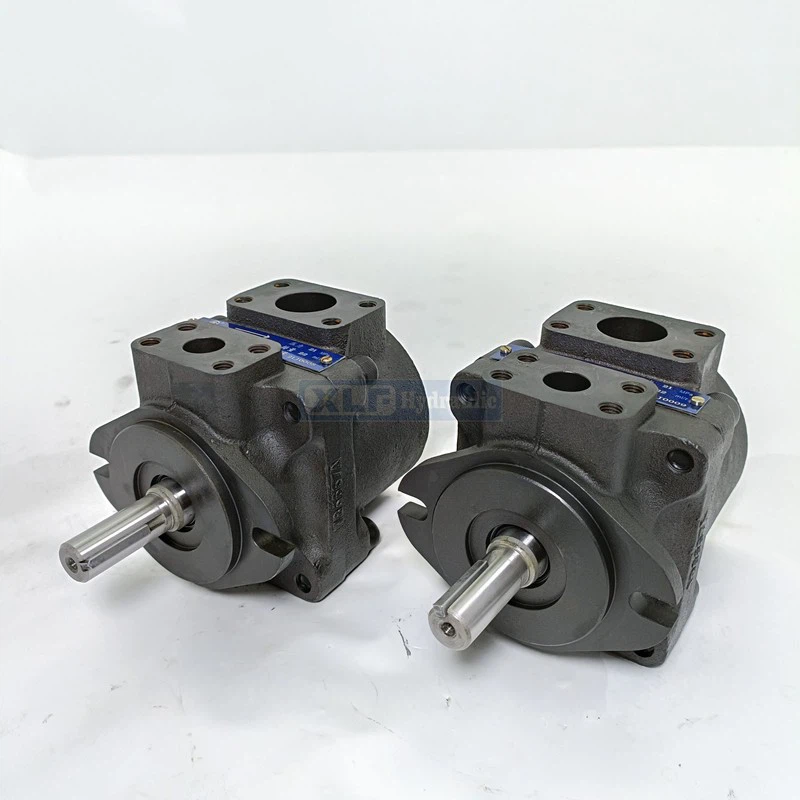

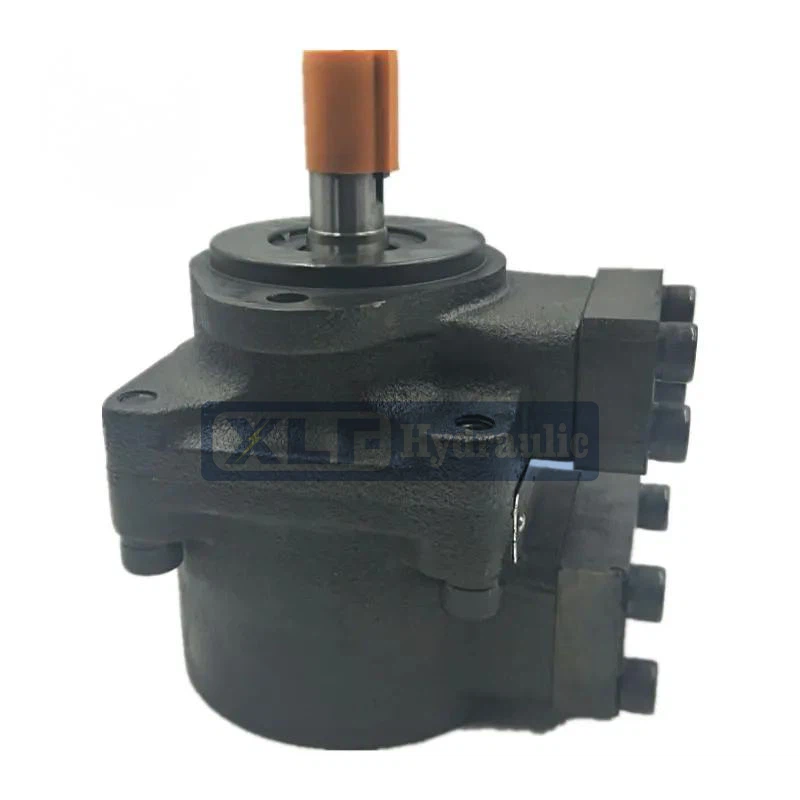

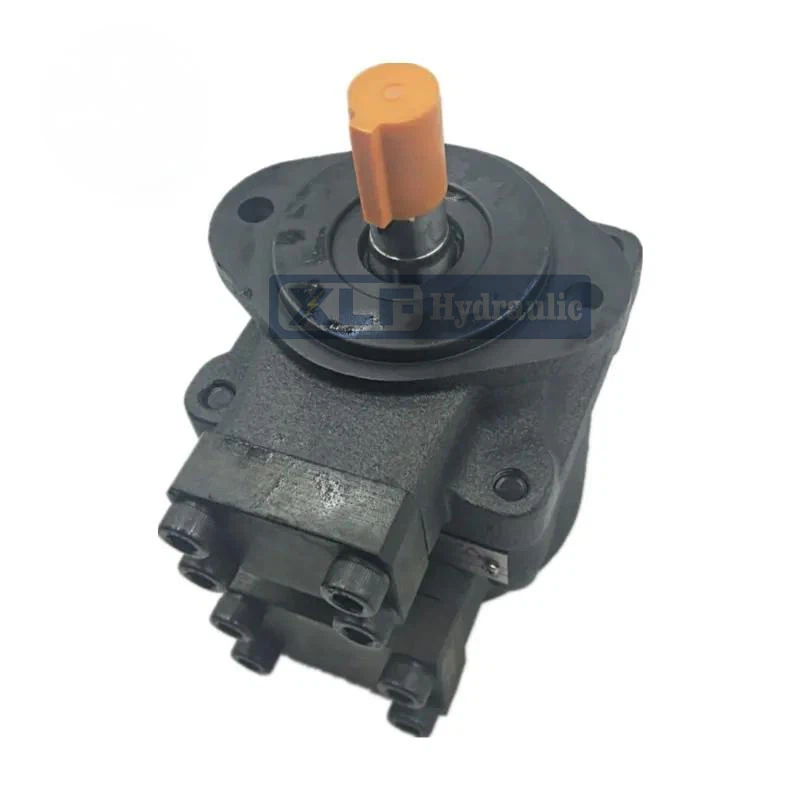

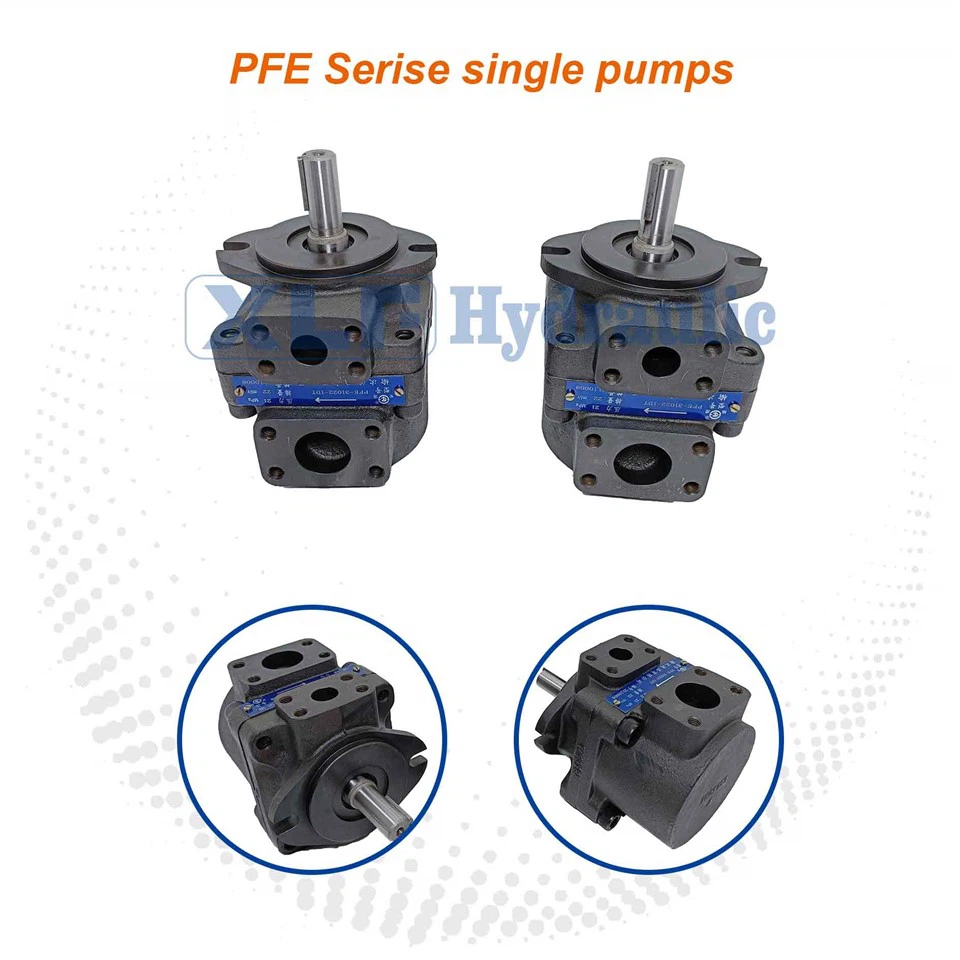

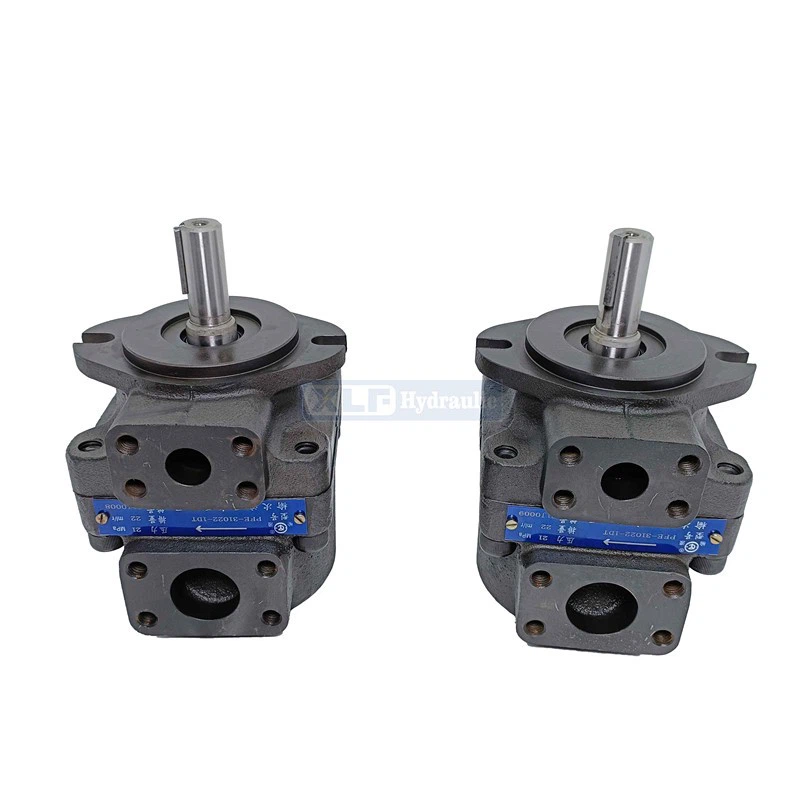

Atos PFE Series Hydraulic Rotary Piston Flow Meter Pump for Bulldozers
Key attributes：Industry-specific attributes
Warranty：1 Year
Displacement：Other
Pump Type：Vane Pump
Other attributes：Showroom Location
Place of Origin：China
Weight“25
Warranty：1 Year
Displacement：Other
Pump Type：Vane Pump
Other attributes：Showroom Location
Place of Origin：China
Weight“25
Send Inquiry
Product Introduction
Wuhan Xinlaifu Hydraulic Equipment Co., Ltd. is one of the leading manufacturers and suppliers of atos pfe series hydraulic rotary piston flow meter pump for bulldozers in China. With abundant experience, we warmly welcome you to buy high quality customized products at competitive price from our factory. Also, OEM&ODM service is available.
Model Designation
| PFE- | 41 | 045/ | 1 | D | TO |
| PEF series fixed displacement vane pump | Series | Single pump geometric displacement(ml/r) | Shaft type | Direction of rotation (viewed from shaft end) | Port orientation |
| PFE: single pump series | 21 | 5,6,8,10,12,16 | Cylindrical type (standard) 2一(ISO/DIS3019) Cylindrical type (ISO/DIS3019) 3一Cylindrical type (high torque) 5-Splined type | D： CW S： CCW | |
| 31 | 16,22,28,36,44 | See port orientation table [inlet and outlet ports can be orient- ed in any of four relative positions: [T,V,U,W] | |||
| 41 | 29,37,45,56,70,85 | ||||
| 51 | 90, 110, 129,150 | ||||
| 61 | 160,180,200,224,250 | ||||
| 22 | 8,10,12 | ||||
| 32 | 22,28,36 | ||||
| 42 | 45,56,70 | ||||
| 52 | 90,110,129 |
Technical Data
| Series | Displacement (ml/r) | RateqMFessure | Output flow Umin | Drivingpgwer | Speed range (r/min) | Weight (kg) | Port size | |
| Inlet | Outlet | |||||||
| PFE-21005 | 5 | 21 | 4.8 | 3.5 | 900-3000 | 6 | 3/4" | 1/2" |
| PFE-21006 | 6.3 | 5.8 | 4 | |||||
| PFE-21008 | 8 | 7.8 | 5.5 | |||||
| PFE-21010 | 10 | 9.7 | 6.5 | |||||
| PFE-21012 | 12.5 | 12.2 | 8 | |||||
| PFE-21016 | 16 | 15.6 | 10 | |||||
| PFE-31016 | 16.5 | 21 | 16 | 6.5 | 800~2800 | 9 | 1 1/ 4" | 3/4" |
| PFE-31022 | 21.6 | 23 | 10 | |||||
| PFE-31028 | 28.1 | 33 | 14 | |||||
| PFE-31036 | 35.6 | 43 | 18 | |||||
| PFE-31044 | 43.7 | 55 | 23 | |||||
| PFE-41029 | 29.3 | 21 | 34 | 14 | 700-2500 | 14 | 1 1/2" | 1" |
| PFE-41037 | 36.6 | 45 | 18 | |||||
| PFE-41045 | 45 | 57 | 24 | |||||
| PFE-41056 | 55.8 | 72 | 30 | |||||
| PFE-41070 | 69.9 | 91 | 37 | |||||
| PFE-41085 | 85.3 | 114 | 47 | 700~2000 | ||||
| PFE-51090 | 90 | 21 | 114 | 48 | 600~2200 | 25.5 | 2" | 1 1/4" |
| PFE-51110 | 109.6 | 141 | 58 | |||||
| PFE-51129 | 129.2 | 168 | 69 | |||||
| PFE-51150 | 150.2 | 197 | 80 | 600~1800 | ||||
| PFE-32022 | 21.6 | 30 | 20 | 15 | 1200-2500 | 9 | 1 1/4" | 3/4" |
| PFE-32028 | 28.1 | 30 | 21 | |||||
| PFE-32036 | 35.6 | 40 | 27 | |||||
| PFE-42045 | 45 | 28 | 56 | 31 | 1000~2200 | 14 | 1 1/2" | 1" |
| PFE-42056 | 55.8 | 70 | 40 | |||||
| PFE-42070 | 69.9 | 25 | 90 | 47 | ||||
| PFE-52090 | 90 | 25 | 111 | 57 | 1000~2000 | 25.5 | 2" | 1-1/4" |
| PFE-52110 | 109.6 | 138 | 69 | |||||
| PFE-52129 | 129.2 | 163 | 81 | |||||
