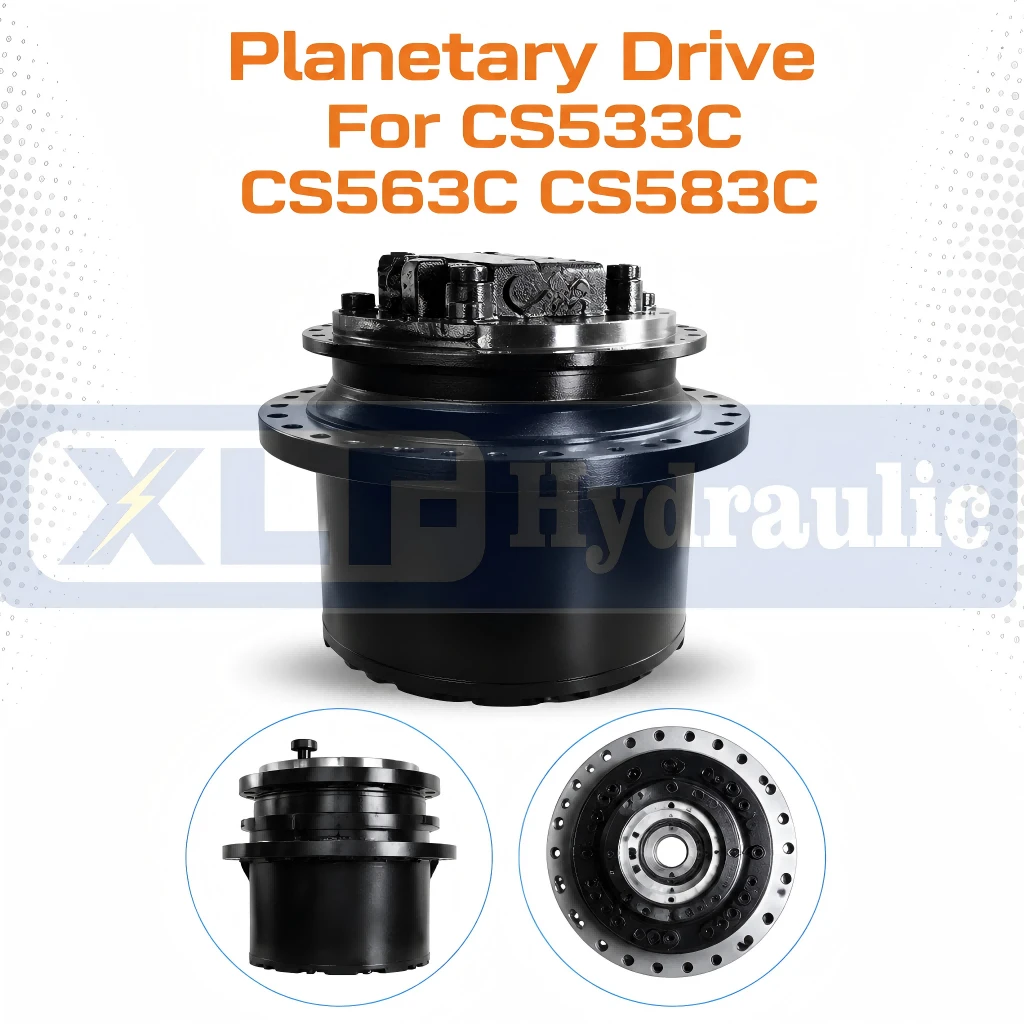

Planetary Drive For CS533C CS563C CS583C
Wuhan Xinlaifu Hydraulic Equipment Co., Ltd. is one of the leading manufacturers and suppliers of planetary drive for cs533c cs563c cs583c in China. With abundant experience, we warmly welcome you to buy high quality customized products at competitive price from our factory. Also, OEM&ODM service is available.
Specifications
| Type | 123-6826 Planetary Final Drive Gearbox (Match 110-9506 Motor) |
| Brand | XLF Hydraulic |
| Max Output Torque Range | 28500 N·m ~ 36200 N·m |
| Rated Working Pressure | 24 MPa |
| Peak Pressure | 28 MPa |
| Mount Flange | Torque Arm Side Mount Flange, MS18 Standard Motor Flange |
| Port Size | Standard CAT Motor Oil Port Matching 110-9506 |
| Built-in Parts | 3-Stage Planetary Gear Set, Heavy-duty Roller Bearings, Double Cone Floating Oil Seal |
| Recommended Oil | SAE 85W-140 TO-4 Transmission Gear Oil |
Product Overview
Product Overview for 123-6826 Final Drive Gearbox
123-6826 planetary final drive is a 3-stage drum travel reducer exclusively for CAT CS533C, CS563C, CS583C soil compactors, full OEM interchange replacement for CAT compaction equipment. Equipped with torque arm side mount flange, matched interface for 110-9506 MS18 hydraulic motor and double cone floating oil seal.
Carburized hard-tooth planetary gears and thick QT700 cast housing generate powerful low-speed torque for soil compaction, steep slope climbing and heavy vibration rolling, supporting plug-and-play direct replacement with no machine modification.
Rated working pressure 240 bar, peak pressure up to 280 bar, stable output under long continuous compaction loads. Shockproof rigid structure adapts to muddy, dusty road construction job sites.
Reinforced gear assembly and heavy-duty sealing perfectly mate with original CAT radial piston hydraulic motors without extra adapters, a durable, economical wheel drive gearbox for CAT single drum compactors.
Core Advantages
123-6826 is a 3-stage planetary final drive gearbox, fully OEM interchange replacement for CAT CS533C, CS563C, CS583C single drum soil compactors. Fitted with carburized hard-tooth planetary gears and heavy-duty composite roller bearings, this reducer outputs consistent low-speed high torque to handle heavy soil compaction and steep slope climbing loads.
It perfectly mates with original 110-9506 MS18 radial piston hydraulic motors without extra transition adapters, widely applicable to municipal, highway and infrastructure compaction projects. Thick QT700 high-strength ductile iron housing features a compact torque arm side-mount layout to fit standard compactor drum hub installation space. 1:1 identical OEM mounting flange, bolt holes and involute output splines enable plug-and-play swap, greatly shortening equipment maintenance downtime.
This heavy-duty high-torque drum drive unit operates at 240 bar rated working pressure and 280 bar peak pressure, delivering sufficient traction for continuous heavy rolling and uphill compaction work. Reinforced alloy gear pairs and double cone floating oil seals sustain reliable power transmission under constant construction impact loads. Precision ground gears reduce friction and wear to prolong service life; robust sealing effectively prevents oil leaks and mud/dust ingress on muddy, dusty job sites.
It works stably within -20℃ ~ +85℃ to adapt to all harsh outdoor construction conditions. Optimized three-stage planetary transmission achieves over 93% mechanical efficiency with low running noise, serving as a cost-effective, long-lasting travel reducer for CAT C-series soil compactors.
Q: Which machines fit this drive?
A: 123-6826 3-stage planetary gearbox fits CAT CS533C, CS563C, CS583C single drum soil compactors.
Q: Direct OEM interchangeable?
A: Yes. Torque arm flange, bolt holes, output splines and motor mounting surface 1:1 match original CAT assembly, plug-and-play without modification.
Q: Key technical specs?
A: Rated pressure 240 bar, peak 280 bar; rated torque 28500 N·m, max torque 36200 N·m. 3-stage hard-tooth planetary transmission.
Q: Compatible with original compactor hydraulics?
A: Perfectly matches 110-9506 MS18 radial piston hydraulic motor, fits factory original walking circuits without extra adapters.
Q: Stable compaction performance?
A: Precision carburized & ground alloy gears lower vibration and abrasion, delivering constant low-speed high torque for muddy, dusty construction sites.
Q: Heavy-duty upgraded options available?
A: Optional strengthened gear sets, reinforced double cone floating seals and heavy-load roller bearings for overloading & harsh working conditions.
Q: Recommended lubricant & maintenance cycle?
A: CAT TO-4 SAE 85W-140 gear oil. Check oil level and seals daily; full gear oil change every 500 working hours.
Q: Troubleshoot leakage & overheating?
A: Retighten mounting bolts for minor seepage; replace complete seal kit for severe oil leakage. Overheating results from deteriorated oil, insufficient lubricant or worn gears. Follow official maintenance rules, avoid unauthorized disassembly.
Q: Warranty terms?
A: 12-month factory warranty. Free technical consultation and replacement parts for non-artificial damage under standard operating conditions.
1. Basic Identification Data
| Parameter Item | Specification Value |
|---|---|
| Original Material Number | R916631864 |
| Complete Model Code | GFT65 T2 1006 i=55.4 |
| Product Series | HYDROTRAC GFT Planetary Travel Final Drive |
| Reduction Stage | T2 Two-stage planetary gear reduction |
| Reduction Ratio | i=55.4 |
| Flange Version Code | 1006 (Custom OEM mounting flange variant) |
| Original Manufacturer | Bosch Rexroth |
| Aftermarket Equivalent Brand | XLF Hydraulic |
2. Torque & Rotation Performance
| Parameter Item | Specification Value |
|---|---|
| Rated Continuous Output Torque | 65000 N·m |
| Max Instantaneous Peak Torque | 128000 N·m |
| Maximum Allowable Input Speed | 3500 rpm |
| Normal Output Speed Range | 0 ~ 65 rpm |
| Overall Transmission Efficiency (Rated Load) | ≥92% |
3. Hydraulic System Matching Parameters
| Parameter Item | Specification Value |
|---|---|
| Rated Continuous Working Pressure | 320 bar (32 MPa) |
| Short-Term Maximum Peak Pressure | 350 bar (35 MPa) |
| Max Permissible Housing Back Pressure | ≤10 bar |
| Standard Hydraulic Port Thread Size | G1/2 |
| Compatible Matching Hydraulic Motors | A6VE160 / A2FE180 Series |
4. Integrated Parking Brake Technical Data
| Parameter Item | Specification Value |
|---|---|
| Brake Type | Built-in Wet Multi-disc Static Parking Brake |
| Minimum Brake Release Pressure | 18 ~ 22 bar |
| Locking Mechanism | Spring-applied, Hydraulic Release (Fail-safe design) |
5. Mechanical Structure, Material & Sealing
| Parameter Item | Specification Value |
|---|---|
| Main Support Bearing | Heavy-duty Tapered Roller Bearing |
| Gear Material | Carburized & Quenched Alloy Steel, Precision Ground |
| Standard Sealing Assembly | Duo-cone Floating Oil Seal |
| Housing Material | Thick High-strength Cast Alloy Housing |
| Standard Built-in Components | Planetary Gear Set, Parking Brake Unit, Heavy-duty Main Bearings, Floating Seal Kit |
6. Lubrication, Weight & Ambient Operation
| Parameter Item | Specification Value |
|---|---|
| Gear Oil Filling Capacity | 8.5 L |
| Recommended Lubricant Grade | ISO VG220 / VG320 Heavy-duty Industrial Gear Oil |
| Net Weight (Excluding Hydraulic Motor) | 265 kg |
| Continuous Operating Temperature Range | -20 ℃ ~ +85 ℃ |
7. Installation & Compatible Machinery
| Parameter Item | Specification Value |
|---|---|
| Standard Mounting Flange | GFT65 T2 1006 OEM Standard Flange, 1:1 Interchangeable |
| Installation Feature | Plug-and-play replacement, no chassis modification required |
| Applicable Construction Equipment | Crawler Excavator, Rotary Drilling Rig, Asphalt Milling Machine, Crawler Transporter, Mining Crawler Machinery |
8. Maintenance & Warranty Standard
| Parameter Item | Specification Value |
|---|---|
| Initial Gear Oil Change Interval | 500 Working Hours |
| Routine Full Oil Replacement Cycle | 2000 Working Hours |
| Aftermarket Factory Warranty Term | 12-month Full Coverage Warranty |
