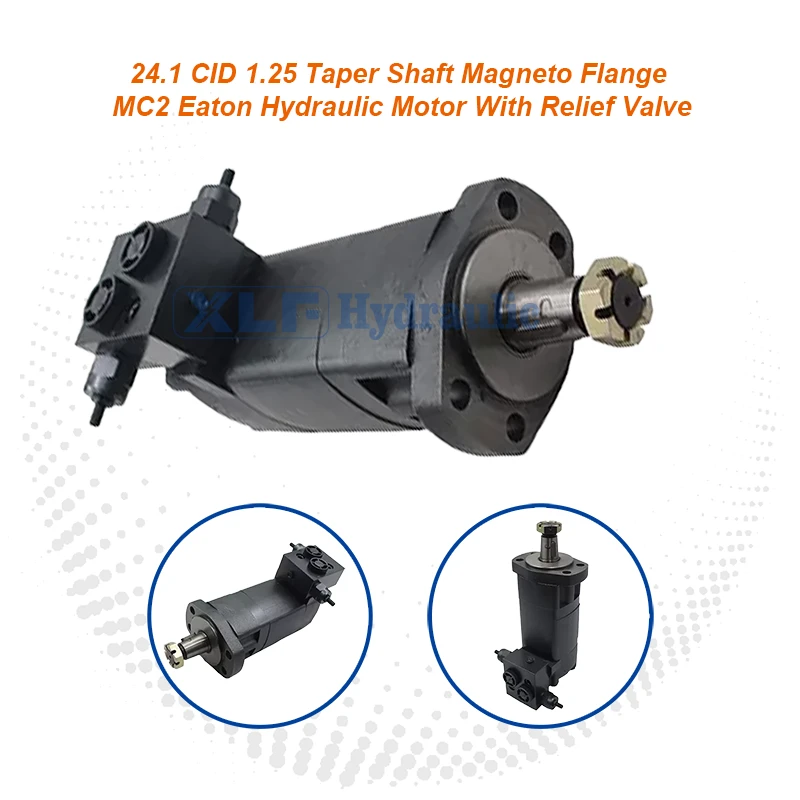

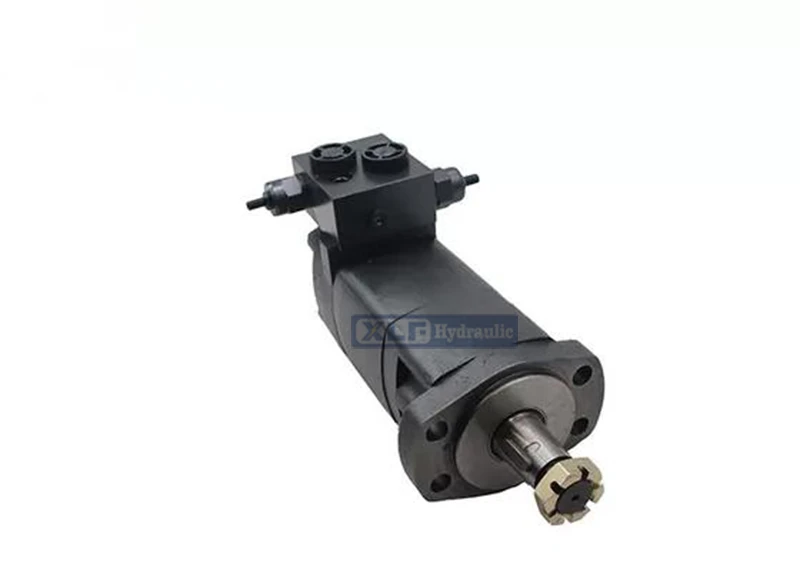

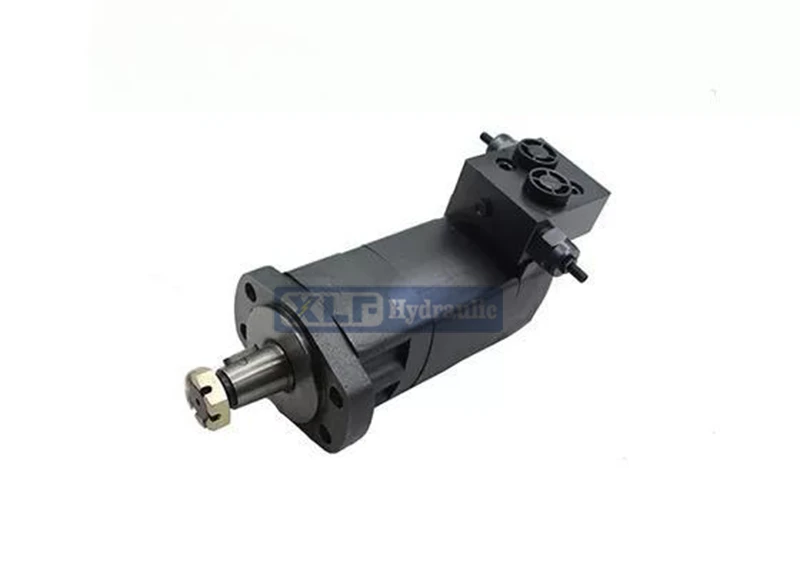

Eaton MC2 Hydraulic Motor - 24.1 CID, 1.25 Taper Shaft, Magneto Flange, With Relief Valve

Wuhan Xinlaifu Hydraulic Equipment Co., Ltd. is one of the leading manufacturers and suppliers of eaton mc2 hydraulic motor - 24.1 cid, 1.25 taper shaft, magneto flange, with relief valve in China. With abundant experience, we warmly welcome you to buy high quality customized products at competitive price from our factory. Also, OEM&ODM service is available.

Item	LSHT Motors
Model	BMK2
Fastening	4 Bolt
Rotation	CW
Shaft	Female Splined
Type	GEROLER - SPECIAL
Highlight	Magneto Flange Eaton Hydraulic Motor, MC2 Eaton Hydraulic Motor, Eaton Hydraulic Motor MC2

The Eaton Char-Lynn® MC² series hydraulic motor is a medium and high-pressure radial piston motor with high efficiency and high power density. The specific model you are interested in has a displacement of 24.1 CID (cubic inches), is equipped with a 1:25 taper spline output shaft and a magnetic speed sensor mounting flange, and integrates a bidirectional relief valve. This series of motors is specifically designed for demanding industrial and mobile applications that require outstanding low-speed performance, high torque output and precise control.

• MC² Core Design: Adopting a unique double-row plunger design and an optimized cam curve, it achieves extremely low speed fluctuation, excellent starting efficiency, and higher power density.
• High load capacity and stable operation: The robust bearing system and precision manufacturing process ensure that the motor can withstand high radial and axial loads, and run stably at extremely low speeds without the "crawling" phenomenon.
• Integrated magnetic sensor flange: The reserved standard flange interface allows for easy installation of non-contact magnetic speed sensors, providing real-time feedback signals for closed-loop control, speed monitoring, and intelligent management of the equipment.
• Built-in bidirectional relief valve: The relief valve integrated into the housing (usually plug-in type) provides direct overpressure protection, preventing the motor from being damaged due to overpressure during impact loads or braking, and simplifying the system pipeline design.
• Flexible tapered shaft connection: The spline shaft with a 1:25 taper provides a gap-free, high-torque transmission connection method. By cooperating with the tapered shaft sleeve, it can effectively transmit large torque and simplify the installation alignment process, and is often used to directly drive hubs or heavy-duty sprockets.

Thanks to its high torque, high reliability, and stable performance at low speeds, this model is particularly suitable for the following applications:
• Engineering and construction machinery: Travel drives for small excavators, skid steer loaders, and compact track loaders; slewing systems for concrete pump trucks, cranes, and drilling rigs.
• Agricultural and forestry machinery: Travel drives for large combine harvesters and sugarcane harvesters; winch and grab drives for logging machines and skidders.
• Material handling: Travel and lifting drives for heavy-duty forklifts, port reach stackers, and container stackers; main drives for mine conveyor belts.
• Special vehicles: Direct wheel hub drives for airport shuttle buses and heavy-duty trailers.
