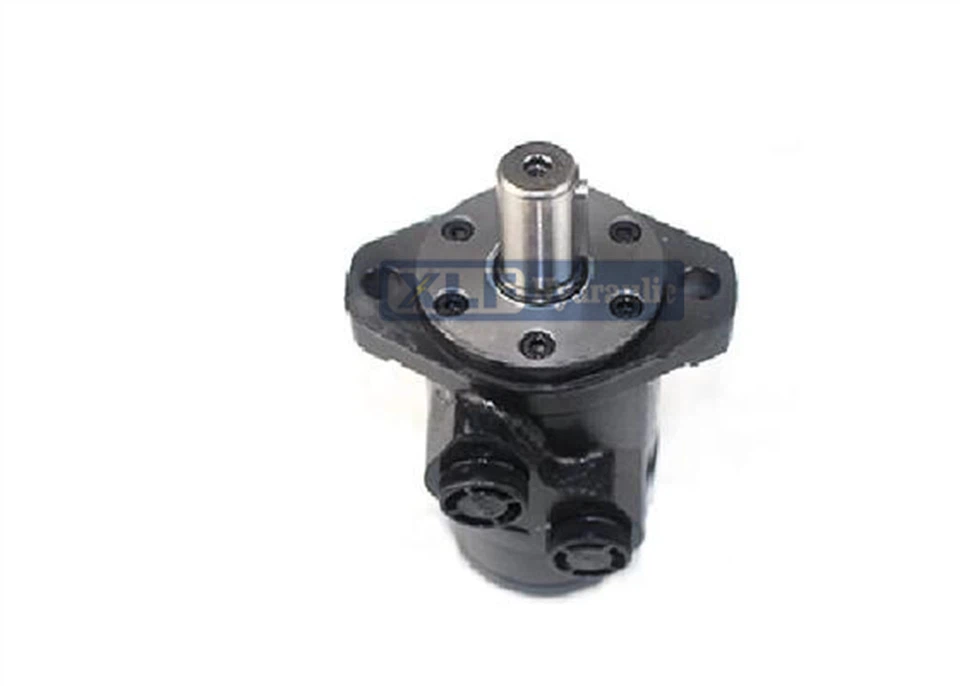

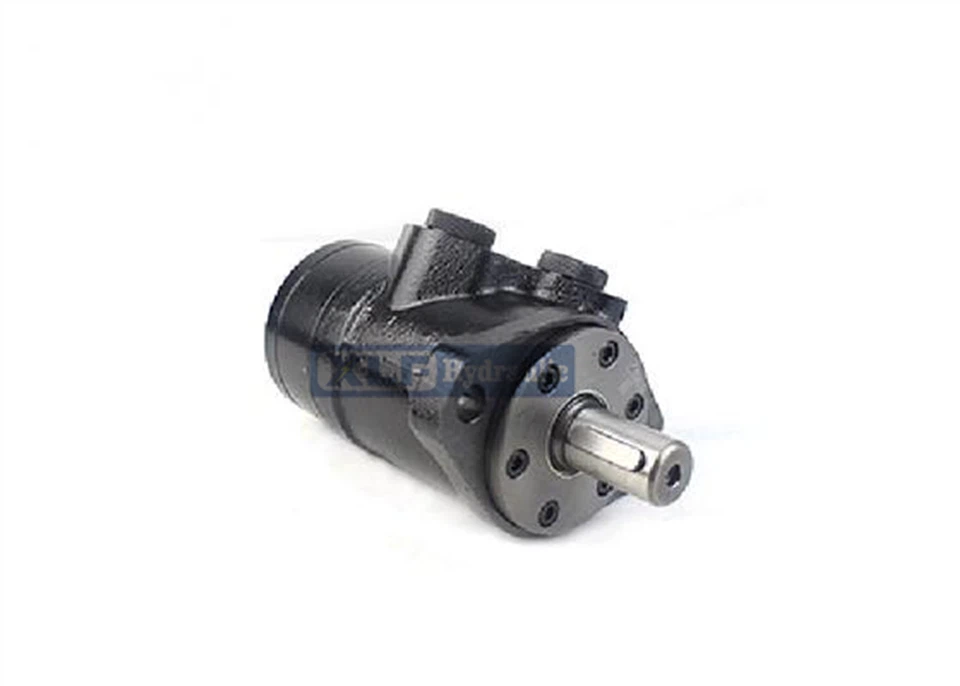

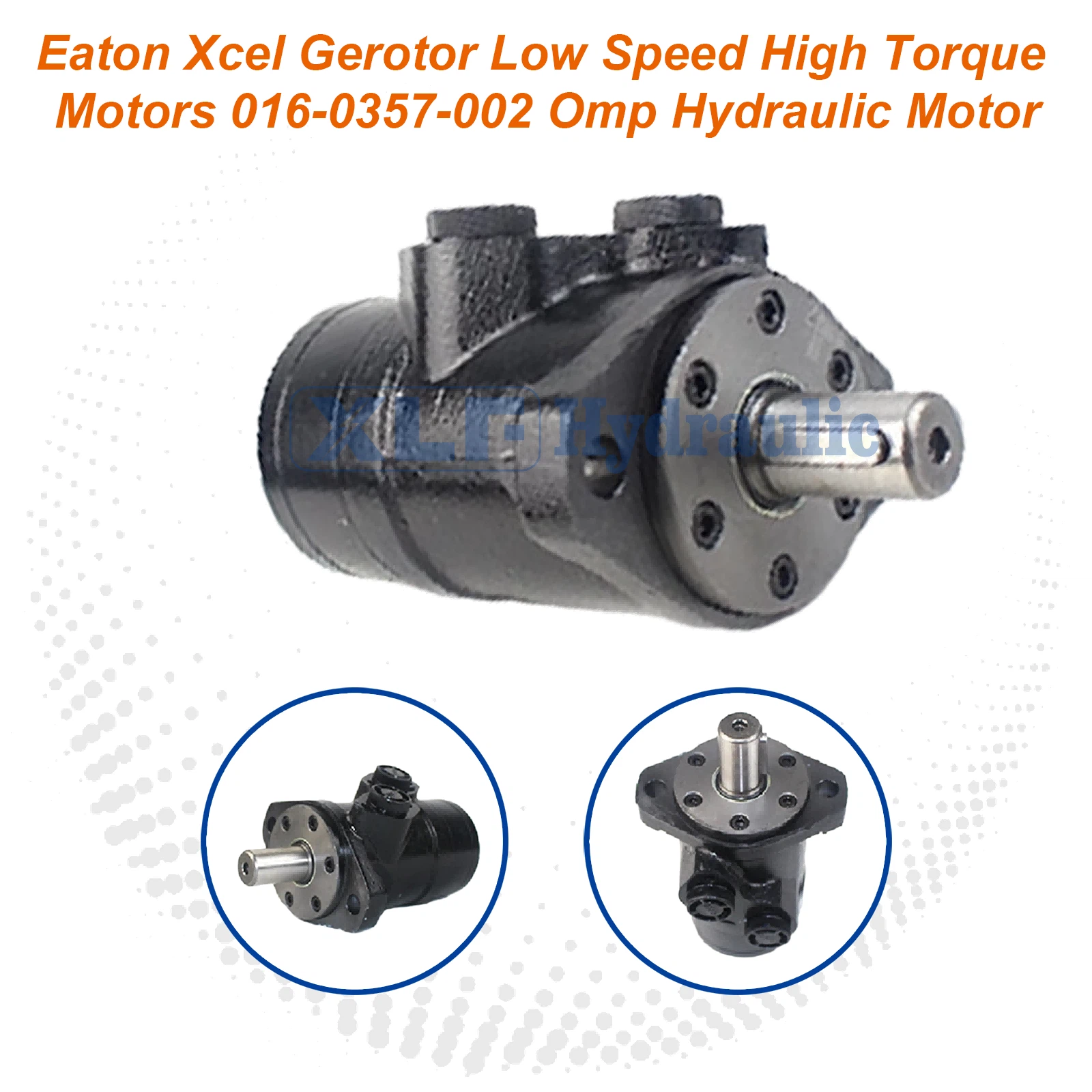

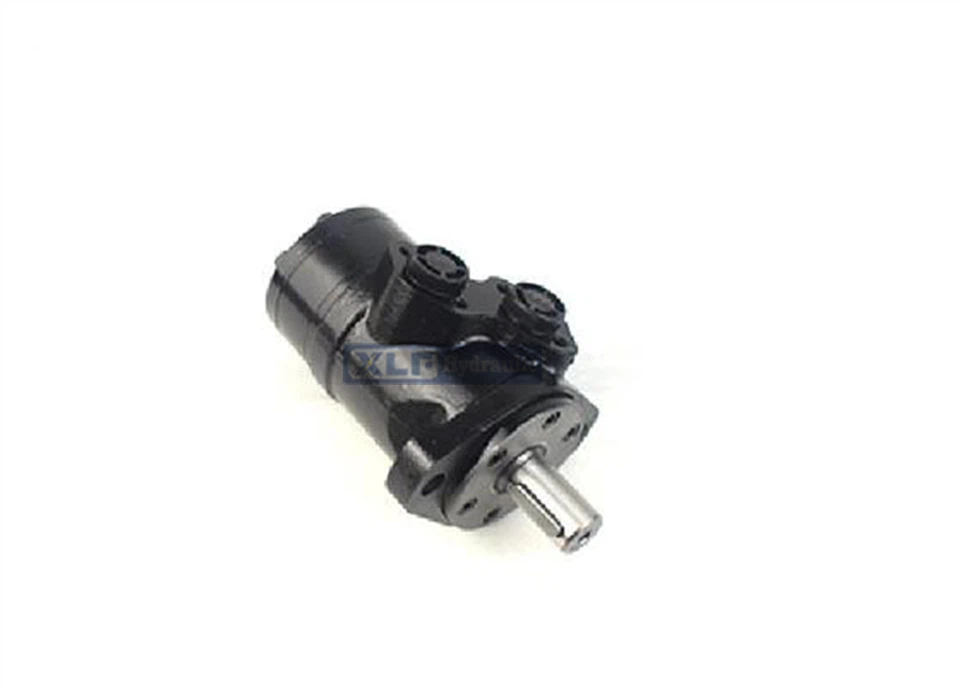

Eaton OMP Hydraulic Motor 016-0357-002 - Xcel Gerotor Low Speed High Torque

Eaton OMP Hydraulic Motor 016-0357-002 - Xcel Gerotor Low Speed High Torque

Type	Gerotor Motor
Model No.	CH-80
Speed	Cont.770/int.960rpm
Torque	Cont.146/int.186 N.m
Max Power	10/12KW
Max Flow	Cont.60/int.75LPM
Highlight	016-0357-002 eaton geroler motor, low speed eaton geroler motor

Eaton OMP 016-0357-002 is a high-performance gerotor motor belonging to the Eaton Xcel series, renowned for its excellent low-speed stability and high torque output characteristics. As a key component of Eaton's hydraulic drive solutions, this model of motor is specifically designed for heavy-duty applications that require a compact structure, strong power, and smooth operation. It represents a mature technology for achieving reliable and efficient direct drive under harsh working conditions, and is widely used in various construction machinery, material handling, and industrial equipment.

1. Genuine low-speed and high-torque: Based on the precise cycloidal gear pair design, it can output stable and continuous high torque at extremely low speeds, completely solving the "crawling" problem. It is an ideal choice for achieving smooth start-up and precise micro-movement of heavy-duty equipment.
2. Excellent power density: The structure is extremely compact. Among motors with the same displacement and torque output, it has a smaller volume and lighter weight, and its power per unit weight far exceeds that of many other types of motors.
3. Sturdy, reliable and long-lasting:
◦ Optimized shaft seal design: Provides high back pressure bearing capacity, allowing more flexible pipeline layout.
◦ Tough internal components: Key gear parts are made of high-quality alloy steel and undergo special heat treatment, with high wear resistance and the ability to withstand short-term overloads.
◦ Wide adaptability: Relatively insensitive to oil contamination and has low maintenance requirements.
4. Flexible configuration options: Two mainstream technical paths are available: shaft distribution (OMS/OMR type) and disc valve distribution (OMP/OMT type) The disc valve distribution design further improves the performance and service life under high speed and high pressure.

This series of motors is an ideal power source for the rotary, traveling, or linear drive mechanisms in the following equipment:
• Construction machinery: Track travel drive and rotary platform drive of small excavators; Drum drive of concrete mixers; Vibrating wheel drive of vibratory rollers.
• Agricultural machinery: Cutting table and auger drive of combine harvesters; Transmission systems of large seeders and fertilizer applicators.
• Material handling: Wheel hub drive of forklifts; Winches and hoists; Direct drive of conveyor line rollers.
• Industrial equipment: Machine tool indexing, valve opening and closing devices, mixers, and special operation platforms.
