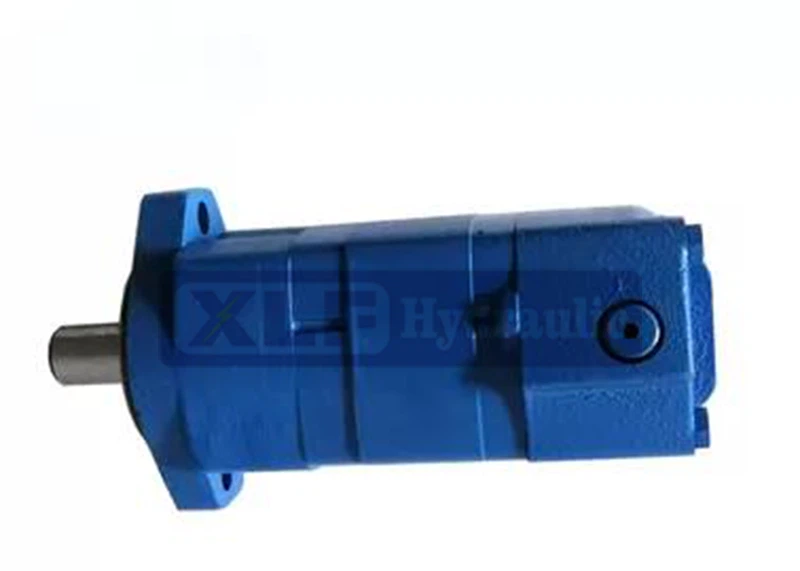

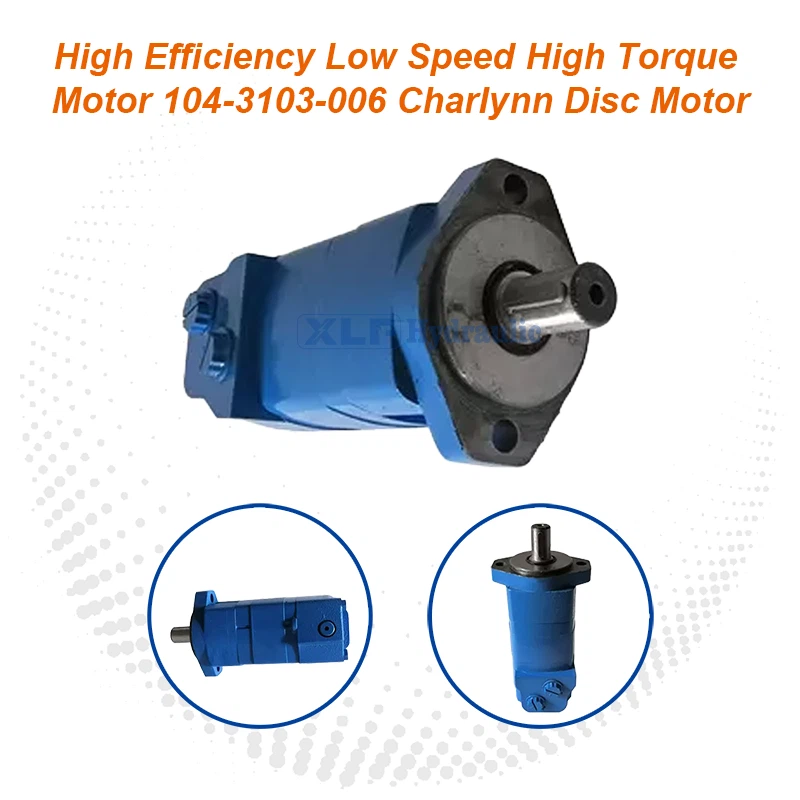

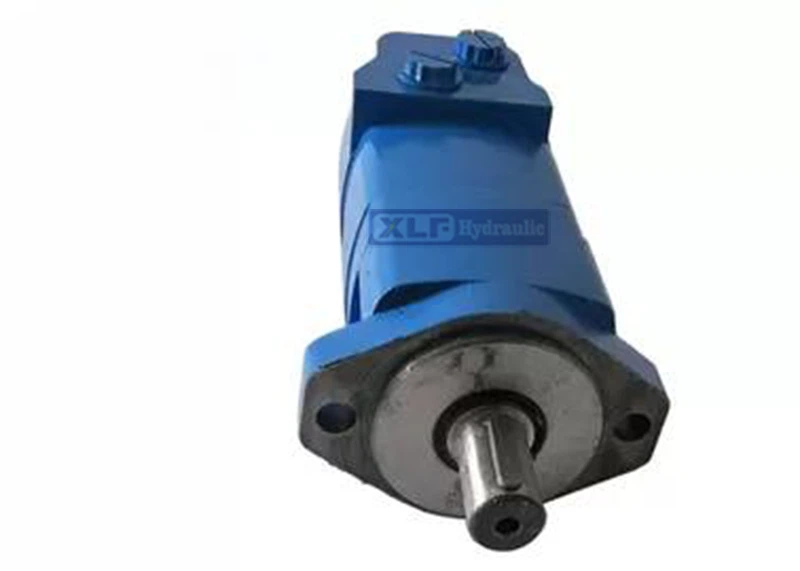

Charlynn 104-3103-006 High-Efficiency Low Speed High Torque Disc Motor

Charlynn 104-3103-006 High-Efficiency Low Speed High Torque Disc Motor

Features	Char Lynn 2000
Product Name	Gerotor Hydraulic Motor
Brand Name	XLF Hydraulic
Model Number	BMS / OMS / MS / Char - Lynn 2000 Series
Displacement	80cc - 400cc
Application	Agriculture,Mining,Forestry,fishing Machinery
Highlight	lightweight hydraulic motor, omr hydraulic motor

Eaton Char-Lynn 104-3103-006 is a low-speed high-torque hydraulic motor that adopts classic disc valve distribution technology. As a iconic product of the Char-Lynn 1000 series, it is renowned for achieving high efficiency, excellent starting characteristics, and a compact structure. It is specifically designed for industrial and mobile machinery applications that require smooth, reliable, and powerful rotational power in confined spaces. This model is a reliable choice for directly replacing motors of the same specification in numerous original equipment manufacturer (OEM) systems.

1. Revolutionary disc valve distribution technology:
◦ Compared with traditional axial distribution, the rotating disc valve core provides better distribution characteristics, significantly reducing internal leakage, and maintaining high efficiency even at low speeds and low oil temperatures.
◦ This design brings excellent starting performance, with the starting torque being very close to the operating torque, ensuring that the equipment can obtain sufficient power at the moment of startup without lag.
2. Extremely high power density and compactness:
◦ The disc valve structure itself is very compact, making the motor have advantages in volume and weight compared with many similar products under the same displacement and torque output, which is very suitable for equipment with limited installation space.
3. Excellent low-speed stability and controllability:
◦ It can achieve stable operation at a speed of one revolution per minute or even lower without crawling, providing precise control and positioning capabilities.
◦ A wide stepless speed regulation range enables it to flexibly adapt to various operating speed requirements.
4. Durability and reliability:
◦ The robust housing design and high-quality bearings can withstand considerable radial loads and adapt to harsh industrial environments.
◦ After long-term verification in the global market, it has outstanding reliability and service life performance.

Due to its characteristics of high efficiency, compactness, and stable operation at low speeds, 104-3103-006 is widely used in:

• Agricultural machinery: drum drive of combine harvesters, metering devices of fertilizer applicators, and seed meter drive of seeders.
• Construction machinery: slewing drive of small excavators, drum drive of concrete mixers, and rotation drive of aerial work platforms.
• Industrial equipment: conveyor belt drives, mixers, winches, and valve opening and closing devices.
• Marine and offshore engineering: winches, windlasses, and hatch cover drives.
