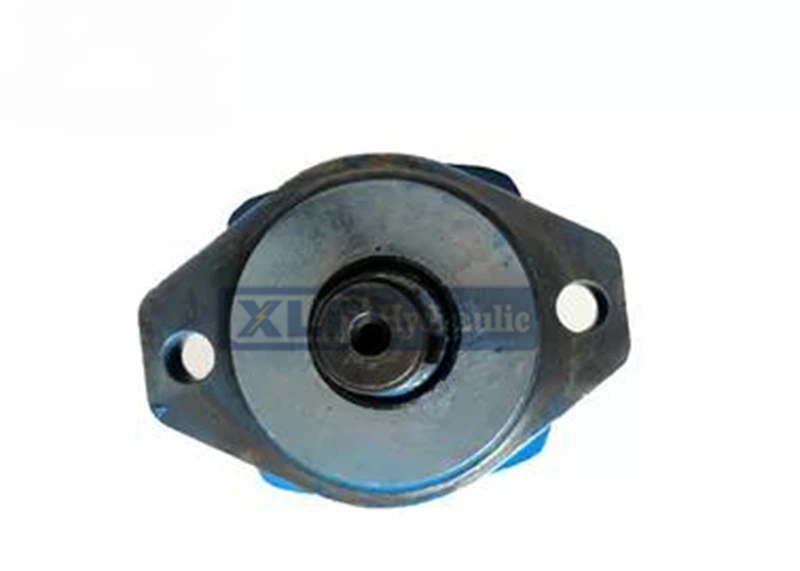

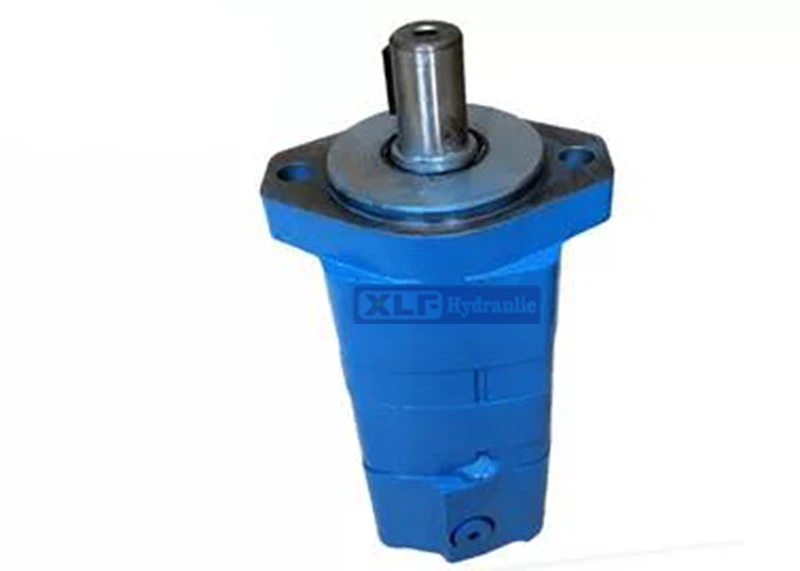

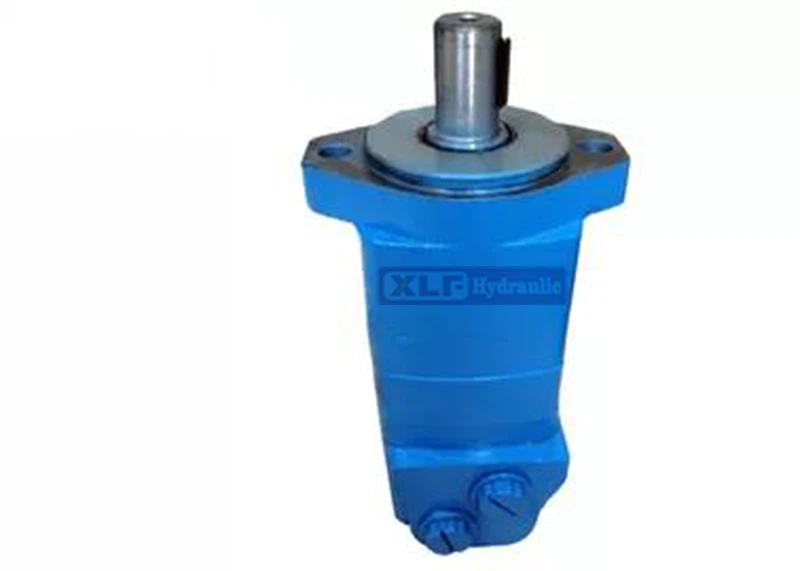

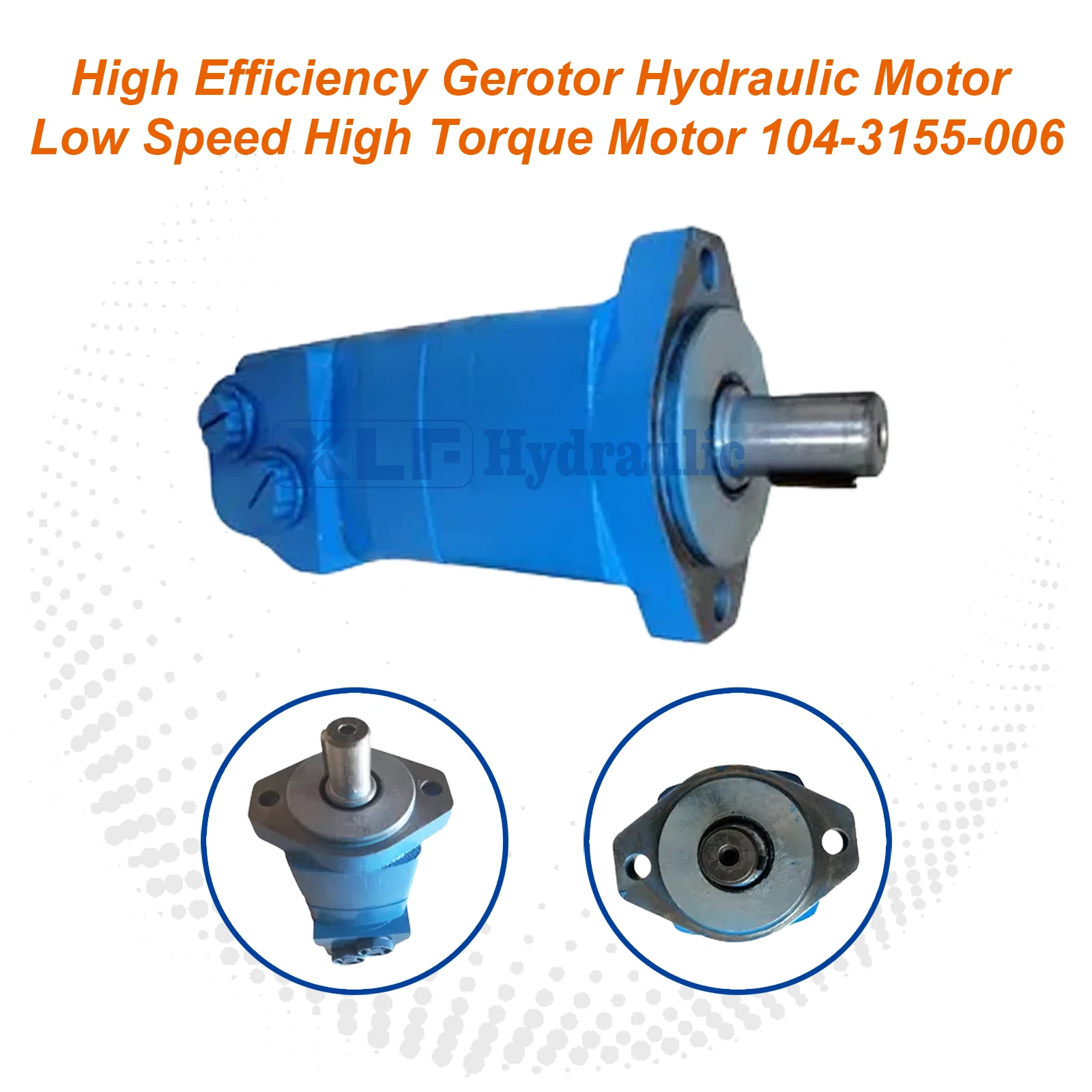

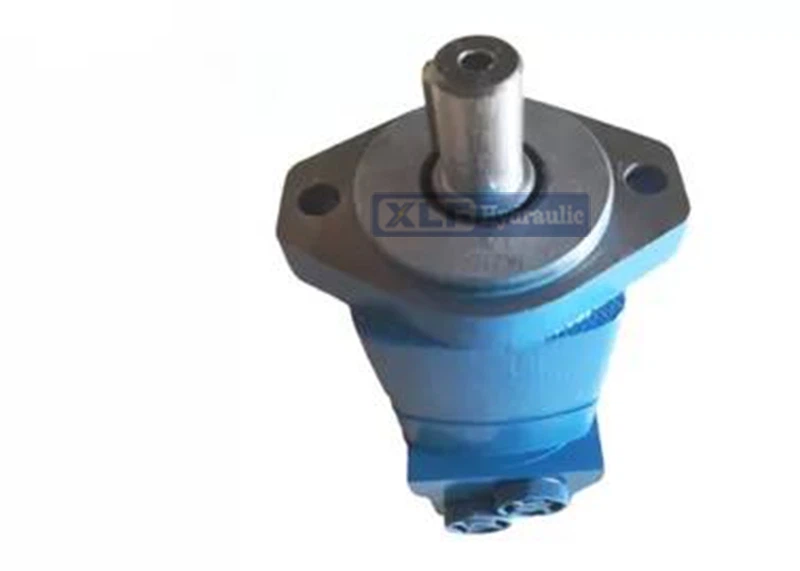

104-3155-006 High Efficiency Gerotor Hydraulic Motor - Low Speed High Torque

104-3155-006 High Efficiency Gerotor Hydraulic Motor - Low Speed High Torque

Features	Same As Eaton Char-Lynn, ,M+S
Product Name	Low Speed High Torque Motor
Brand Name	XLF Hydraulic
Model Number	BMS / OMS / Char - Lynn 2000 Series
Displacement	200cc
Application	Mining,Agriculture,Forestry
Highlight	omr hydraulic motor, bmp hydraulic motor

104-3155-006 High-efficiency cycloidal gear hydraulic motor is a hydraulic actuator specially designed for low-speed and high-torque application scenarios. Adopting advanced Gerotor technology, this motor provides stable and continuous high-torque output at low speeds, and is widely used in various construction machinery, agricultural equipment, industrial automation and special vehicle fields. Its compact structural design, excellent starting performance and reliable working performance make it an ideal choice for heavy-duty low-speed drive systems.

1. High Efficiency and Energy Saving
• Optimized gear design: The cycloidal tooth profile undergoes precise calculation and computational fluid dynamics simulation to reduce internal leakage, with a volumetric efficiency of over 92%.
• Low friction loss: High-strength wear-resistant bearings and low-friction sealing materials are selected to significantly improve mechanical efficiency.
• Wide high-efficiency range: Maintains high efficiency within the rated speed range, reducing system energy consumption and heat generation.

2. Low Speed and High Torque
• Large displacement design: The displacement per revolution reaches XXX cc/rev (specifically depending on the actual model), and can stably output high torque at speeds as low as 1-10 rpm.
• Excellent starting characteristics: The static starting torque is close to the operating torque, suitable for heavy-load starting conditions.
• Stable operation: Small torque fluctuation and smooth operation reduce equipment impact and vibration.

3. High Reliability and Long Service Life
• Robust structure: The housing is made of high-strength cast iron or steel materials, and key gear components undergo carburizing, quenching and precision grinding, featuring wear resistance and impact resistance.
• Excellent bearing and sealing system: Heavy-duty bearing configuration and multi-channel sealing design ensure long-term reliable operation under harsh working conditions.
• Wide medium compatibility: Can use mineral oil, biodegradable oil and various synthetic hydraulic oils.

4. Compact and Flexible Installation
• Compact structure: High power density, saving installation space.
• Multiple installation and connection forms: Provides various installation methods such as flange type and foot架式 (pedestal type), optional shaft extension forms (parallel key, spline, etc.), and interfaces comply with SAE or metric standards.
• Multiple configuration options: Optional integrated valves (such as overload valves, brake valves), speed sensors, thermal elements, etc.

• Construction machinery: Slewing and traveling drives for excavators, cranes, and concrete pump trucks; drive wheels for small crawler equipment.
• Agricultural machinery: Wheel-side drives or rotating working parts for harvesters, seeders, and irrigation equipment.
• Industrial automation: Low-speed rotation drives for equipment such as mixers, turntables, conveyor lines, and winders.
• Special vehicles: Drives and auxiliary systems for sanitation vehicles, port tractors, and airport ground equipment.
• Others: Ship deck machinery, wind power pitch systems, stage equipment, etc.
