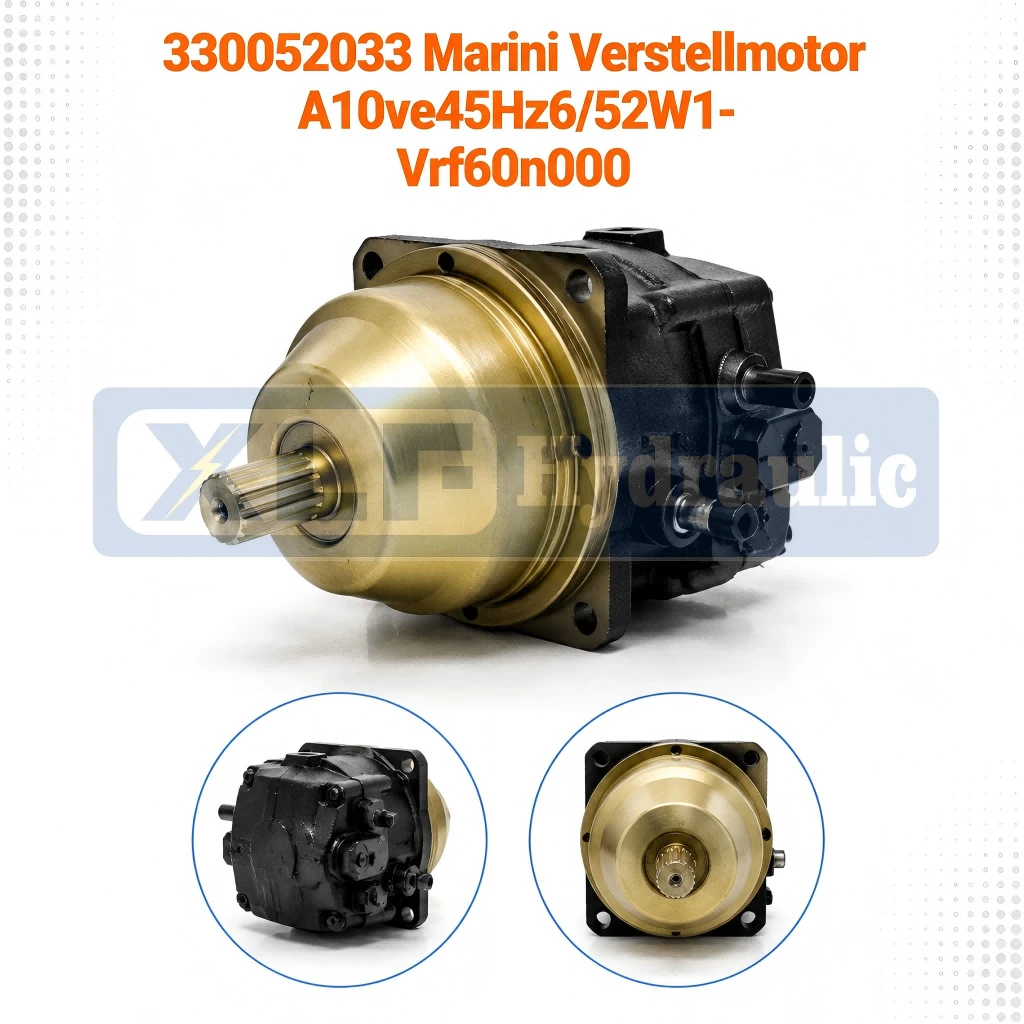

330052033 Marini Verstellmotor A10ve45Hz6/52W1-Vrf60n000

330052033 Marini Verstellmotor A10ve45Hz6/52W1-Vrf60n000

330052033 A10VE45HZ6/52W1-VRF60N000 is an axial piston variable hydraulic motor, matched for Marini asphalt mixing equipment. Adopting advanced swashplate structure, it features adjustable displacement, stable output torque and compact plug-in installation design. It withstands high working pressure, runs smoothly with low noise, and delivers reliable performance under continuous heavy-load operation. Suitable for closed-circuit hydraulic drive systems of asphalt plants.
Send Inquiry
Product Introduction

Wuhan Xinlaifu Hydraulic Equipment Co., Ltd. is one of the leading manufacturers and suppliers of 330052033 marini verstellmotor a10ve45hz6/52w1-vrf60n000 in China. With abundant experience, we warmly welcome you to buy high quality customized products at competitive price from our factory. Also, OEM&ODM service is available.



hydraulic-motor01

Technical Parameters



product-1024-1024
Type Axial Piston Variable Hydraulic Moto
Brand XLF Hydraulic
Model No. 330052033 , A10VE45HZ6/52W1-VRF60N000
Displacement 45cm³/rev
More Size A10VE series full range available
Speed Max 3200 rpm
Flow Depends on working condition
Application Marini Asphalt Mixing Plant, Asphalt Machinery
Highlight Stable variable speed, heavy load operation, long service life, interchangeable original unit

Product Overview



  The A10VE45HZ6/52W1-VRF60N000 variable hydraulic motor is an axial piston variable displacement motor designed for heavy-duty industrial machinery, with a displacement of 45 cm³/rev. It serves as a direct interchangeable spare part for Marini asphalt mixing plant. Adopting advanced swashplate structure, this hydraulic motor achieves stepless speed adjustment. It can output stable and sustained torque under long-time heavy-load working conditions, perfectly matching closed-circuit hydraulic drive systems on asphalt mixing equipment. This model supports plug-and-play installation and acts as an ideal replacement solution for the original equipment motor.



Core Features



  1. Adopts axial piston variable structure, realizing continuous displacement adjustment and flexible speed control
  2. Delivers steady torque output, equipped with good temperature resistance to adapt to long continuous operation
  3. Standard overall dimension, convenient for direct replacement of the original motor without extra modification
  4. Runs with low vibration and low noise, improving the stability of the whole equipment
  5. Reinforced bearing assembly structure, effectively extending service life under harsh working environment
  6. Strictly tested before delivery to guarantee consistent performance



Application fields





1.Asphalt Mixing Equipment

• Marini asphalt mixing plant main hydraulic drive system

• Material mixing and conveying drive assemblies for asphalt production lines

2.Road Construction Machinery

• Auxiliary driving equipment for asphalt manufacturing

• Continuous feeding and stirring drive systems of mixing machinery

3.Other Heavy-duty Hydraulic Equipment

• Closed-loop hydraulic drive systems requiring variable speed control

• Industrial equipment with long-cycle heavy load operating requirements





03

04



05

06

07

08

09

10

11

12

13

14

Main Specifications



Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5

Technical data for BMR with 31.75 and 32 shaft:
Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1250 960 750 600 475 378 310 240 190 155
int. 1520 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 380 450 540 550 580
int. 83 126 220 280 340 430 500 610 690 690
peak 105 165 270 320 370 460 560 710 840 830
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 11 10 9 7.5
int. 9.8 11.2 15 15 14.5 14 13 12 10 9
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 17.5 17.5 17.5 13.5 11.5
int. 16.5 17.5 20 20 20 20 20 20 17.5 15
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 21 17.5
Max. flow (L/min) cont. 45 50 60 60 60 60 60 60 60 60
int. 55 60 75 75 75 75 75 75 75 75
Weight (kg)   6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.
Specification Data of Hydraulic Motors
Distribution type Model Displacement Max. operating pressure Speed range Max. output power
(cm3/rev.) (MPa) (rpm) (kW)
Axial distribution BMM 8-50 14 30-1950 3.2
BMP 36-400 16.5 30-879 10
BMR 36-375 20 30-970 15
BMH 200-500 20 30-430 17

Specification Data of Hydraulic Motor
Distribution type Model Displacement Max. operating pressure Speed range Max. output power
(cm3/rev.) (MPa) (rpm) (kW)
Disc distribution BMS 80-475 22.5 30-800 24
BMT 160-800 24 30-705 35
BMV 315-800 28 10-446 43
