Specification Parameters
| Type | Orbital Motor, Hydraulic Motor |
| Brand | XLF Hydraulic |
| Model No. | 113-1163-006 |
| Displacement | 500ml/r |
| Flange | Wheel Mount |
| Shaft | 1:8 45mm Tapper Shaft |
| Port Size | 1 5/16-12UN |
| Drain Line | 7/16-20UNF |

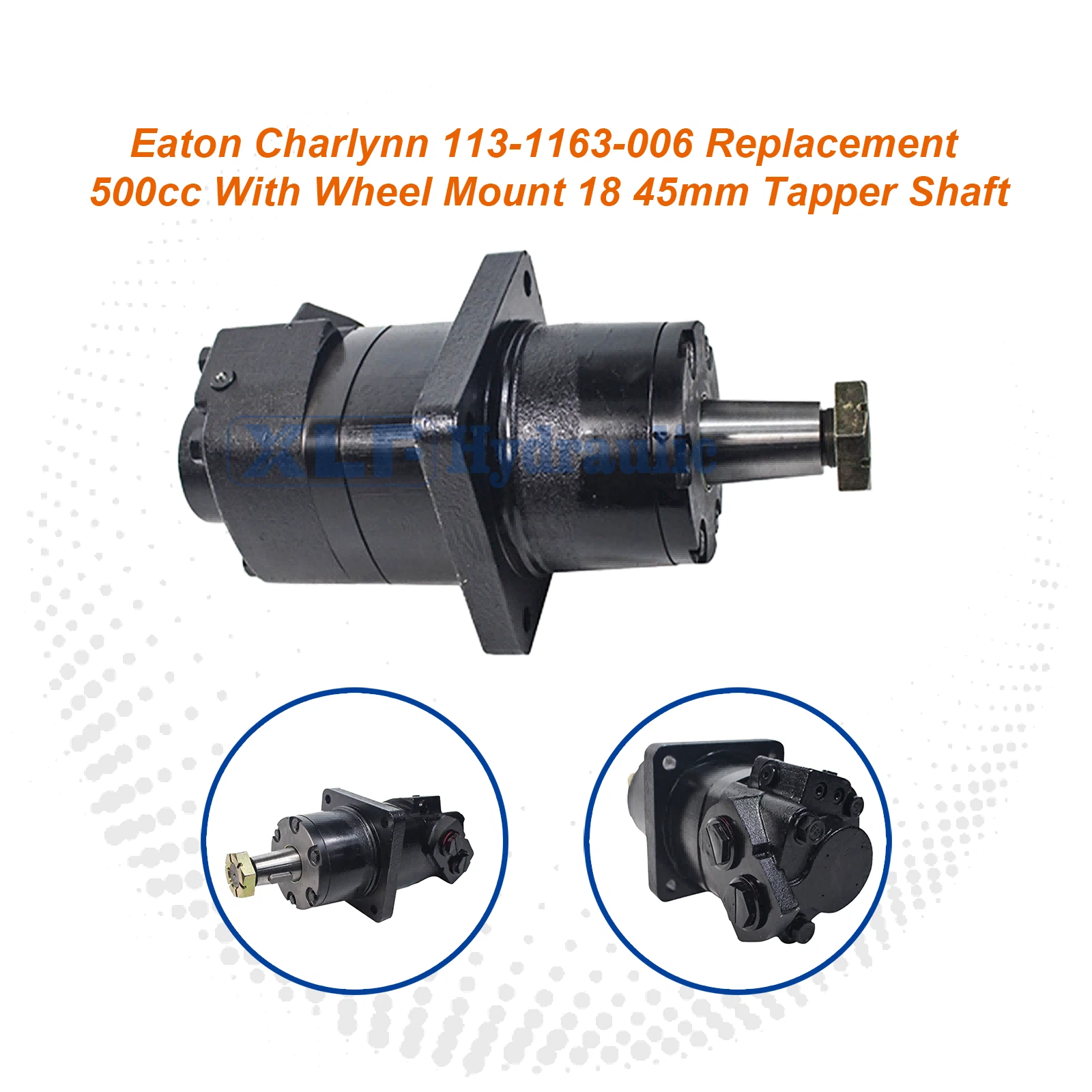

| Highlight | 500cc motor With Wheel Mount, 500cc Orbital Hydraulic motor, Eaton Charlynn 113-1163-006 Replacement motor |
Product Overview

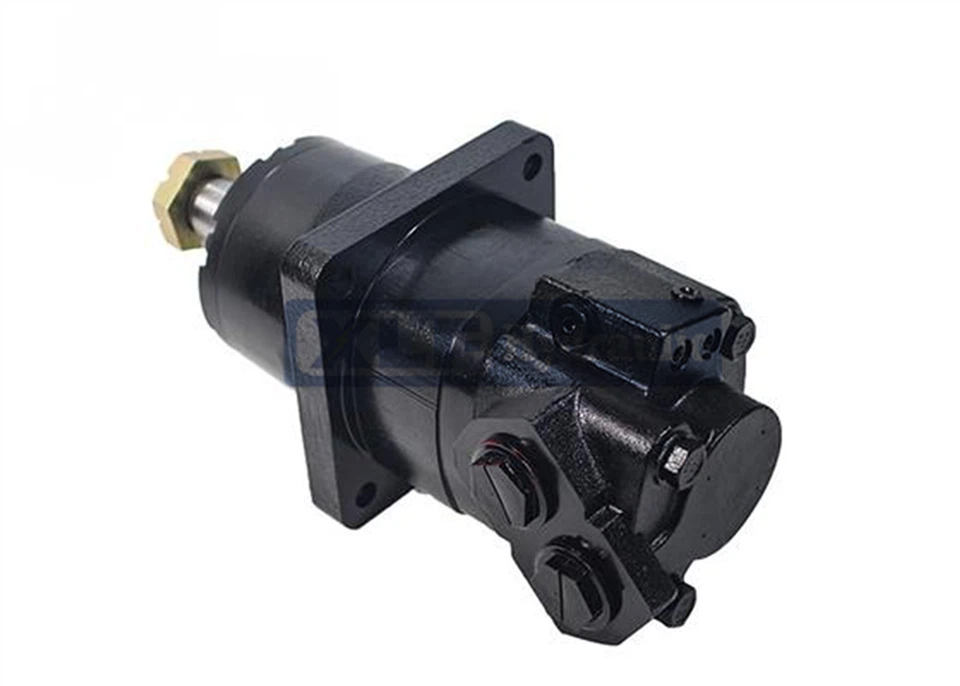

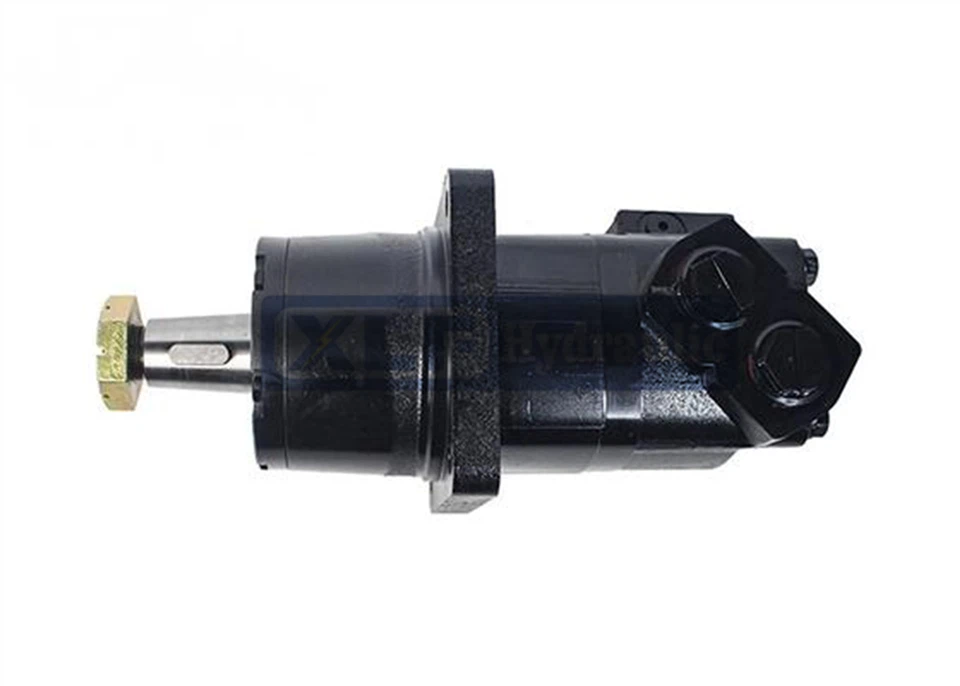

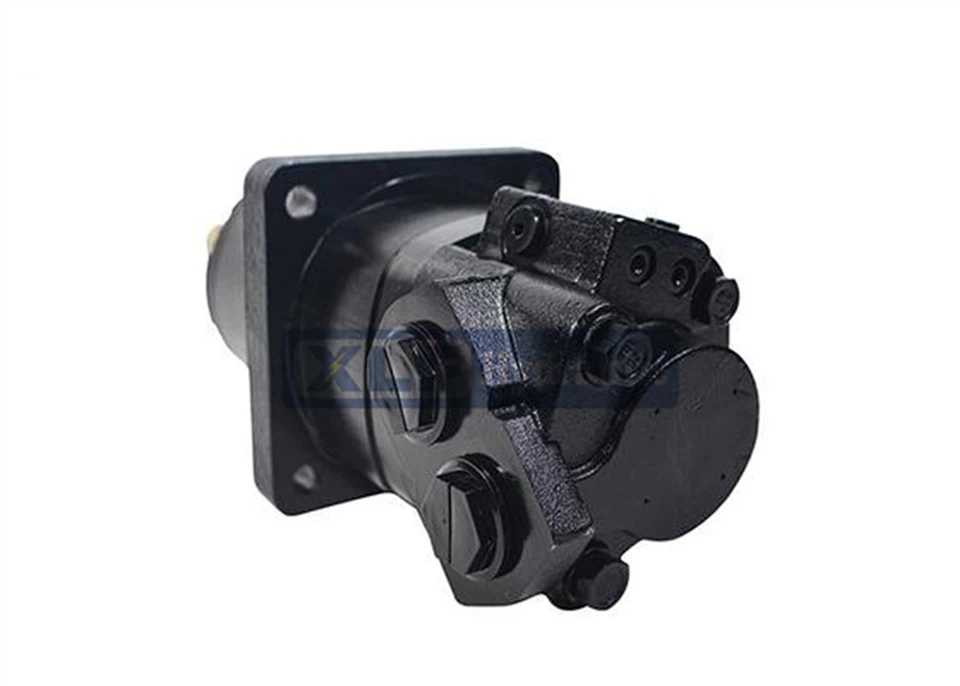

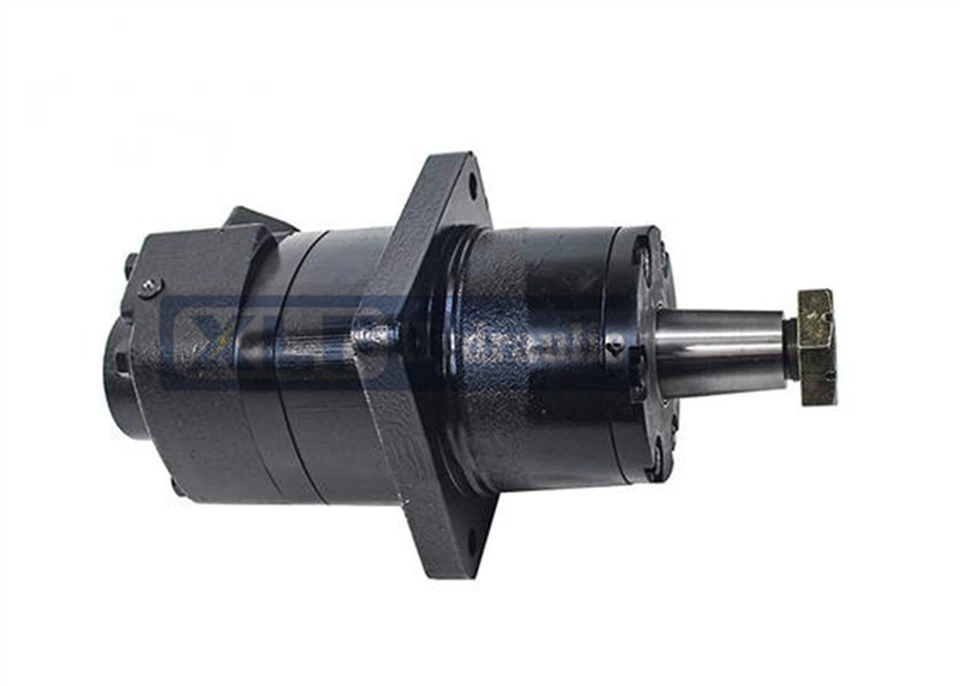

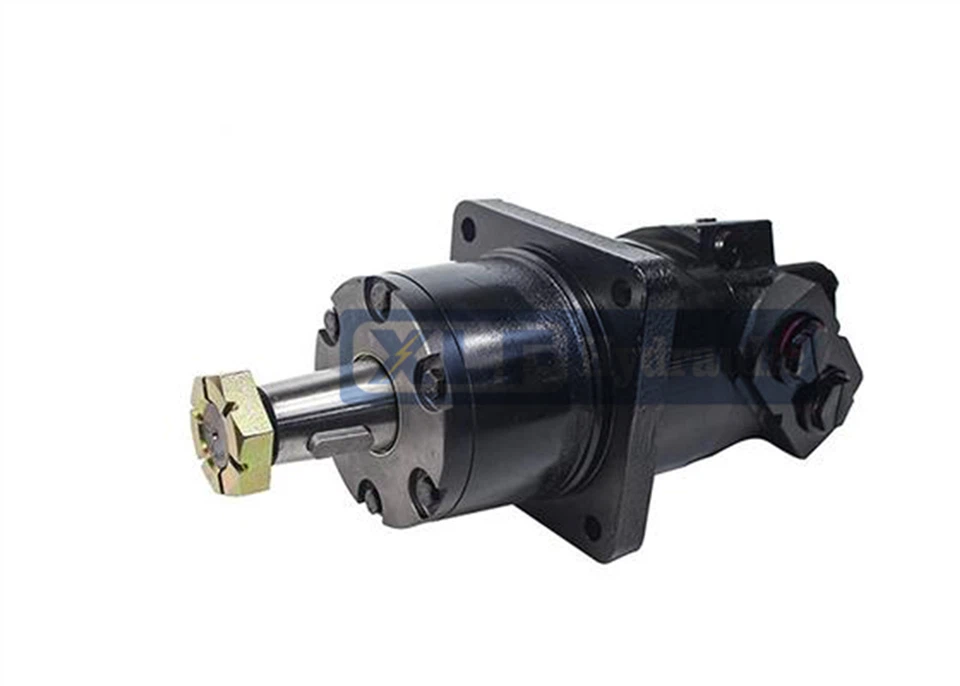

The 113-1163-006 is an Eaton Char-Lynn® 6000 Series low-speed high-torque (LSHT) gerotor hydraulic motor with 500cc displacement, serving as a direct aftermarket OEM replacement for heavy-duty mobile and industrial wheel drive systems.
Equipped with the series' disc valve technology and patented Geroler® roller gear set, this compact motor delivers over 80 HP, featuring a 4-bolt wheel flange, 45mm 1:8 tapered shaft and 1-5/16-12 UN SAE staggered ports to meet wheel drive power demands.
Its 500cc displacement provides ample torque reserve, handling shock loads and heavy-duty operations, while automatic wear compensation maintains stable high volumetric efficiency during long-term use.
Core Advantages
1. Disc Porting Technology
Upgraded disc valve structure outperforms conventional spool valve motors.
- Low pressure loss and high pressure/flow resistance for higher torque output
- Automatic wear compensation ensures long-term efficiency, stable low-speed running and no crawling
- Outstanding energy efficiency, ideal for heavy-duty and frequent reversing work
2. Geroler® Roller Cycloidal Gear Set
Patented roller friction design for high efficiency and long service life.
- Rolling friction lowers mechanical loss and improves overall efficiency
- 90%+ high starting torque for easy heavy-load start
- Reinforced bearings & hardened parts for excellent wear resistance
- Ultra-low internal wear and high power density, delivering 80 HP in compact size
Main specifiction
| TYPE | BMK6 200 |
BMK6 250 |
BMK6 315 |
BMK6 400 |
BMK6 500 |
BMK6 630 |
BMK6 800 |
BMK6 1000 |
|
| Displacement(ml/r) | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | |
| Max.speed(rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | |
Max.Pressure.Drop(Mpa) |
cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | |
| peak. | 30 | 30 | 30 | 30 | 30 | 24 | 17.5 | 17 | |
| Max.Torque(N.m) | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | |
| Max.Flow(cont.)(L/min) | cont. | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| int. | 170 | 205 | 225 | 225 | 225 | 225 | 225 | 225 | |
| Weight(kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | |
