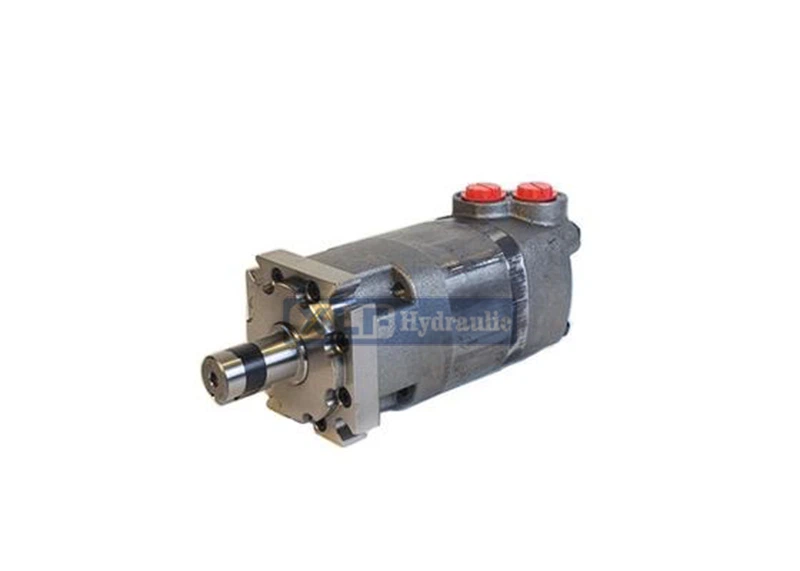

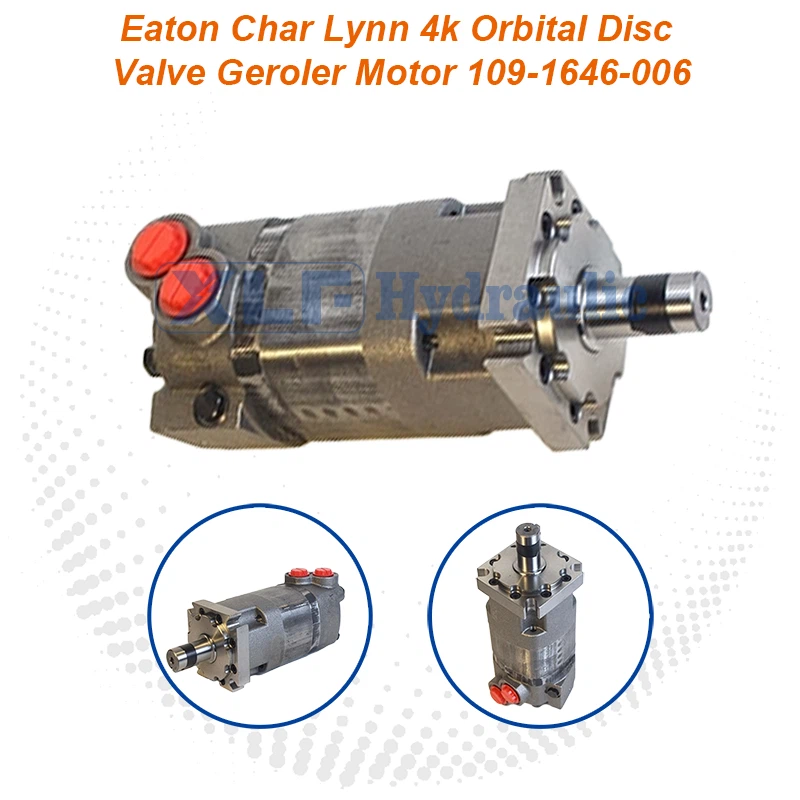

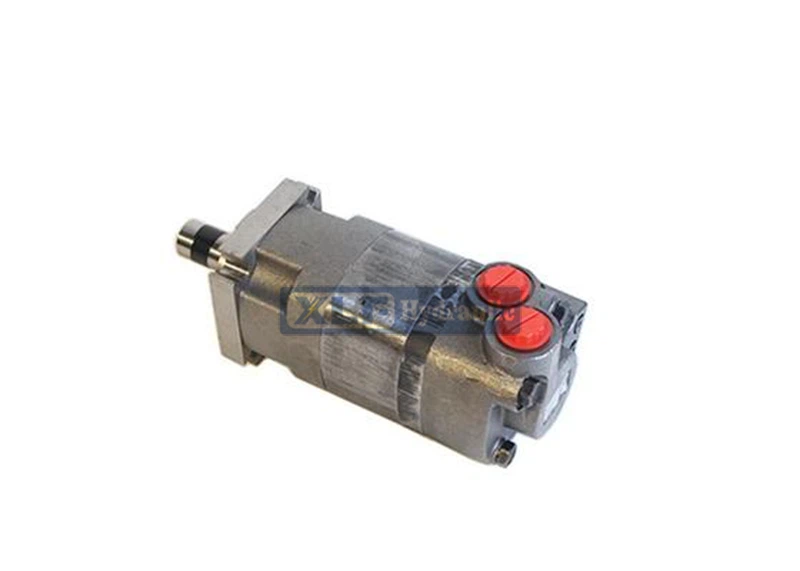

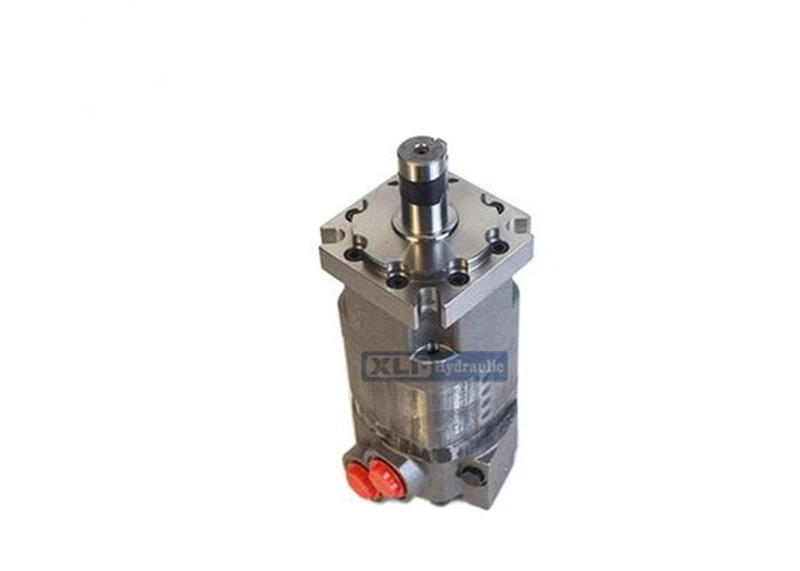

Eaton Char Lynn 4k Geroler Motor 109-1646-006 - High Torque Orbital Disc Valve

Item	Item
Model	4000 Series
Direction Of Rotation	Reversible
Fastening	4 Bolts Standard Type
Maximum Pressure	3500 Bar
Max.oil Flow	95gpm
Highlight	Disc Orbital Motor, Disc Valve Geroler Motor, 109-1646-006 Geroler Motor

Eaton Char-Lynn Series 4000 disc-valved gerotor hydraulic motors are renowned for their compact housing design and excellent high-torque output capability. Model 109-1646-006 is a typical representative of this series. It adopts Geroler (roller-type) star wheel mechanism and advanced disc-type valve technology, which can provide smooth and powerful torque at low speeds. It is particularly suitable for heavy-duty equipment with limited space and demanding power requirements.

This motor is specially designed for applications requiring high torque density and reliable durability, and is an ideal core hydraulic component for driving various types of rotary actuators.

• High torque density: It achieves a continuous output torque of up to 945 Nm within a compact size, providing powerful driving force for the equipment.
• Robust structure: The main housing is made of cast iron, ensuring structural strength and long service life under heavy loads and harsh working conditions.
• Stable and efficient operation: The unique Geroler internal mechanism and disc-type distribution design enable the motor to start and run smoothly even at low speeds, with high efficiency and low leakage.
• Flexible installation: It provides a standard 4-bolt mounting interface, which is easy to integrate and can adapt to various equipment layout requirements.
• Easy maintenance: The modular design simplifies the maintenance process, helping to reduce the full-life-cycle operating costs of the equipment.

This high-torque hydraulic motor is widely used in equipment that requires low-speed and high-torque drive. Typical application scenarios include:

• Construction machinery: concrete mixing and conveying drums, small winches, and auxiliary rotation of rotary drilling rigs.
• Agricultural machinery: driving systems of harvester headers, straw balers, and fertilizer applicators.
• Sanitation and special vehicles: snowplow brushes, sanitation vehicle brushes, and airport luggage tractors.
• Material handling: driving devices of screw conveyors, mixers, and drum screens.
