Brevini SL3002 EM1250 Series Heavy Duty For Drilling Rig Reducer

Name: China Brevini SL3002 EM1250 Series Heavy Duty For Drilling Rig Reducer Manufacturers Suppliers - Wuhan Xinlaifu
Brand: Xinlaifu
SKU: 305259768

This aftermarket replacement hydraulic planetary reducer is engineered as a direct substitute for Brevini ED/SL/EM Series. It covers the mainstream models ED2150, ED2155, ED2250, SL3002 and EM1250, featuring standardized SAE mounting flanges and spline connections with fully matched overall dimensions and installation interfaces. Adopting an optimized 2/3-stage planetary transmission structure with hardened gear teeth and inner gear rings, the reducer delivers stable high torque output (18,000-45,000 Nm), low noise operation and superior transmission efficiency, equipped with premium axial mechanical seals for outstanding dust and mud resistance. Supported by direct flange connection for various matched hydraulic motors (A6VM/A2FE/A7VO) and integrated multi-disc parking brake design, it enables easy assembly and routine maintenance, and delivers exceptional durability against harsh drilling conditions including dust, mud immersion, heavy vibration and strong impact. This reducer is widely applicable to hydraulic drive systems for rotary drilling rigs, foundation piling equipment, crawler cranes, mining machinery and heavy construction equipment.

Send Inquiry

Product Introduction

Wuhan Xinlaifu Hydraulic Equipment Co., Ltd. is one of the leading manufacturers and suppliers of brevini sl3002 em1250 series heavy duty for drilling rig reducer in China. With abundant experience, we warmly welcome you to buy high quality customized products at competitive price from our factory. Also, OEM&ODM service is available.

Specifications

Type	ED/SL/EM Series Planetary Reducer
Brand	XLF Hydraulic
Max Output Torque Range	18,000 - 45,000 Nm
Rated Working Pressure	35 MPa (350 bar)
Peak Pressure	Max 42 MPa (420 bar)
Mount Flange	SAE Standard Flange
Port Size	SAE Standard Ports
Built-in Parts	Parking Brake & Seals
Recommended Oil	ISO VG 220 Industrial Gear Oil

Product Overview

Models ED2150, ED2155, ED2250, SL3002 and EM1250 are heavy-duty hydraulic planetary reducers with 2/3-stage transmission structures, belonging to the Brevini ED/SL/EM Series. Custom configuration and production coding are available to support diverse specification variants, including different gear stages, gear ratios, output forms, parking brake setups and sealing solutions. Adopting high-precision planetary drive technology and premium hardened gear teeth plus inner gear rings that guarantee reliable operation under high torque and harsh load conditions, these reducers serve as direct aftermarket replacements for original OEM reducers with fully matched installation dimensions and interface parameters.

The Brevini ED/SL/EM Series represents premium high-efficiency planetary reducers, delivering stable high-torque output under a compact, space-saving casing. The matched hydraulic system features a standard working pressure of 350 bar, fully adapting to long-duration heavy-load operation. Deployed in severe service environments including rotary drilling, foundation piling, construction lifting and heavy engineering works, these reducers exhibit excellent load resistance and long-term operational durability. They act as the core hydraulic drive components for heavy-duty machinery such as rotary drilling rigs, piling rigs, crawler cranes, mining equipment and marine & offshore lifting facilities. Designed with standard SAE heavy-duty mounting flanges and spline connections, plus a reinforced integral housing structure, the entire series resists frequent heavy shock loads and continuous mechanical vibration, perfectly fitting the harsh operating conditions of various mobile and industrial hydraulic equipment.

This reducer range supports a wide variety of customized structural variants, including tailored gear stages, special output shafts and spline profiles purpose-built to pair with different types of hydraulic motors and integrated hydraulic transmission assemblies. Custom versions can be engineered to remove conventional intermediate connecting components, enabling direct assembly with matched hydraulic drive systems via dedicated spline and interface designs. They are ideal for hydraulic drive systems with limited installation space, or equipment adopting integrated modular and lightweight design concepts for foundation drilling machinery.

Core Advantages

Brevini ED/SL/EM Series Reducer

1. Integrated Structure Design - An Ideal Choice For Integrated Drive & Electrified Systems

Brevini ED/SL/EM Series Planetary Hydraulic Reducer adopts optimized integrated structure design, which is a dedicated configuration for integrated drive and electrified hydraulic systems:

Integrated connecting structure: Custom spline and shaft end design are adopted. External radial loads are shared by the matching hydraulic motor assembly on the user's equipment;

Direct integration with hydraulic motors & drive assemblies: The reducer can be directly flange-mounted to various fixed / variable displacement hydraulic motors without additional support bearings or couplings, perfectly matching the electro-hydraulic power module for rotary drilling rigs;

Compact overall dimension: The streamlined multi-stage planetary structure greatly shortens the overall installation size, making it particularly suitable for drilling equipment with extremely limited installation space;

Easy installation: Standard SAE heavy-duty mounting dimensions and multi-bolt fixed flange layout enable seamless matching with user equipment and ensure excellent concentricity during operation. Besides, the modular integrated design supports multiple reducers tandem installation, further expanding system configuration flexibility for foundation drilling machinery.

2. Brevini ED/SL/EM Series - High Performance Planetary Hydraulic Reducer

The Brevini ED/SL/EM Series stands for premium high-performance planetary hydraulic reducers in the product lineup:

High torque density: Delivers stable high torque output (18,000 - 45,000 Nm) within a compact housing. The matched hydraulic system features a standard continuous working pressure of 350 bar for all models;

Advanced planetary gear & housing assembly: Equipped with optimized 2/3-stage planetary transmission and reinforced hardened gear teeth & inner gear ring structure, it achieves higher mechanical efficiency and strong resistance to shock and vibration during rotary drilling operations;

High-stability gear meshing & sealing technology: Precisely machined gear sets maintain stable meshing performance with automatic wear compensation, keeps excellent transmission efficiency during long-term operation and effectively reduces power loss;

Harsh condition adaptability: Capable of working stably under rated continuous pressure and long-duration heavy load, adapting to a wide temperature range (-20°C ~ +45°C) and frequent load changes. It performs reliably on rotary drilling rigs, piling equipment and foundation machinery under severe working conditions such as dust, mud immersion and heavy vibration.

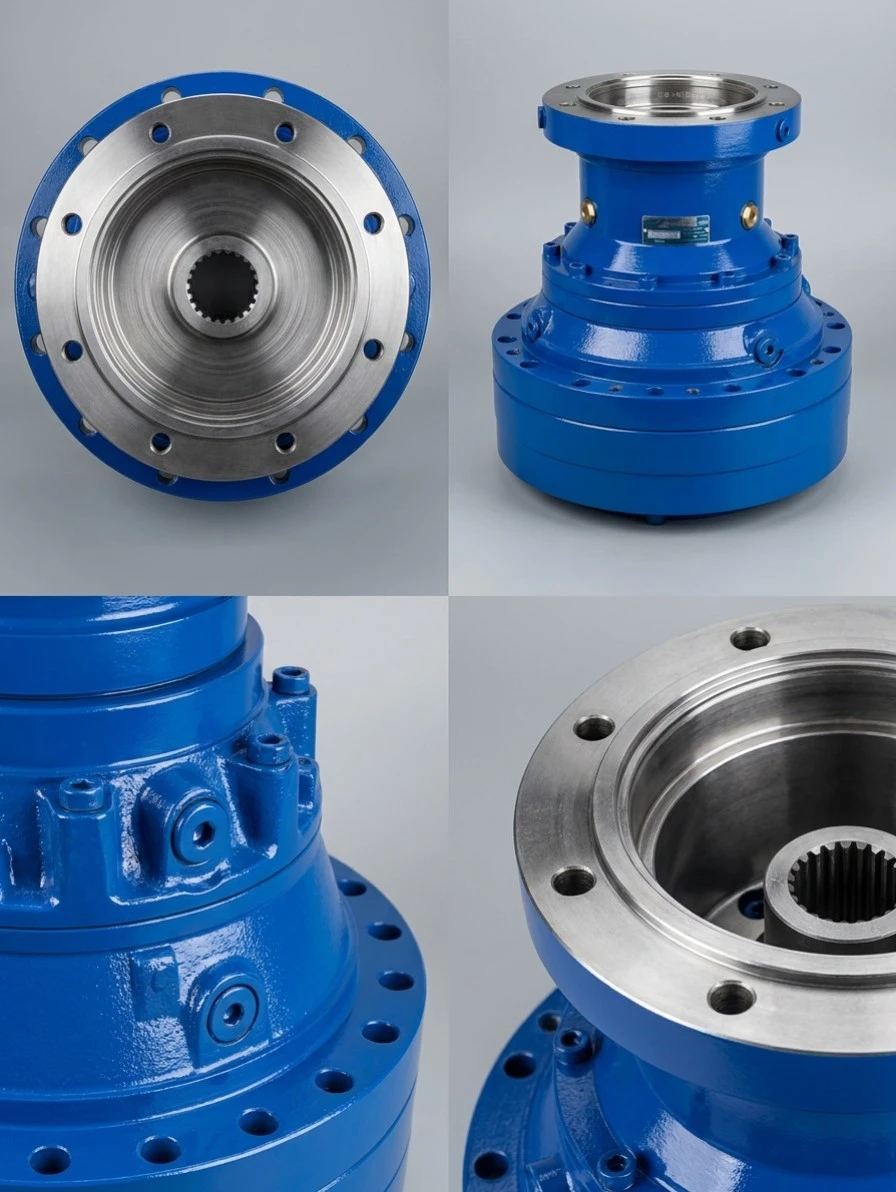

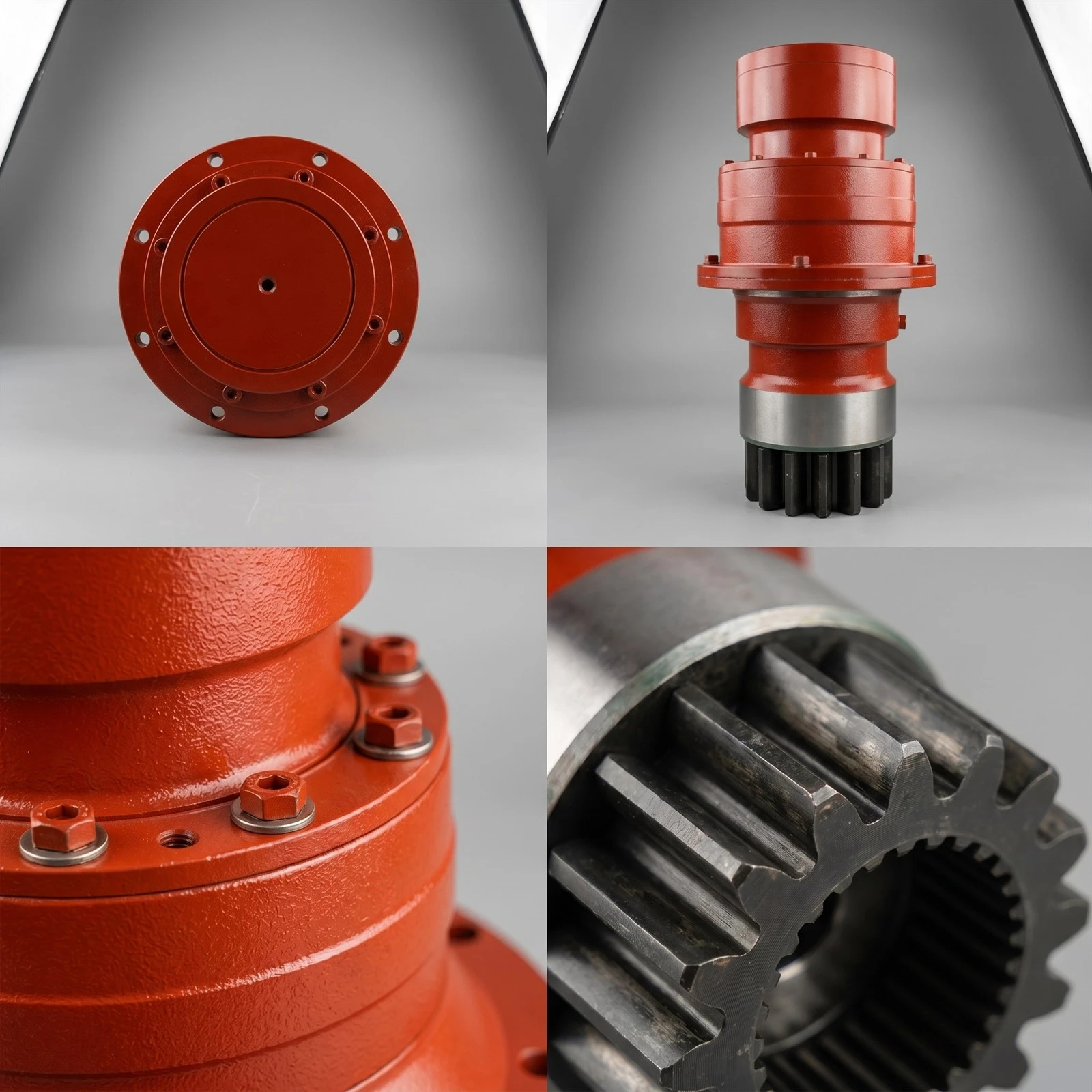

Brevini Brevini (2)

Q: ED, EM, SL series differences & applications?

A: ED/EM = standard rotary drive for drilling rigs & piling equipment. SL = extra high-torque for heavy drilling & mining machinery.

Q: Direct replacement for original Brevini reducers? Dimensions matched?

A: Yes. ED2150/2155/2250, SL3002, EM1250 fully 1:1 dimension matched. No equipment modification needed.

Q: Compatible hydraulic motors? Flange connection available?

A: Compatible with A6VM, A2FE, A7VO, A11VO motors. Standard SAE flange direct mount, no extra couplings needed.

Q: With parking brake? Brake torque calculation?

A: Equipped/optional multi-disc parking brake. ED series: 1.2× output torque; SL series: 1.5× output torque.

Q: Custom gear ratio & interface available?

A: Yes. Customizable 2/3-stage structure, ratio, output form, mounting & brake parameters.

Q: Recommended oil & maintenance?

A: ISO VG 220 EP gear oil. Check oil level & bolts regularly. First oil change after 200 working hours.

Q: Oil leakage troubleshooting?

A: Tighten all flange bolts first. If persists, replace original Brevini seal kits. Do not disassemble gears.

Q: Warranty period?

A: 12 months from receipt. Free spare parts & support for non-human damage under normal operation.

Main Specifications

I. ED/EM Series (Rotary Drilling Rig Main Models)

Model	Max Torque T₂ₘₐₓ	Gear Ratio Range	Thermal Power Pₜ	Rated Pressure	Peak Pressure	Gear Stages	Typical Application
ED2150	20,000 Nm	13.65 - 45.46	23 kW	35 MPa (350 bar)	42 MPa (420 bar)	2-stage	Rotary Drilling Rig
ED2155	35,000 Nm	16.48 - 52.20	30 kW	35 MPa (350 bar)	42 MPa (420 bar)	2-stage	Rotary Drilling Rig
ED2250	35,000 Nm	14.14 - 41.52	50 kW	35 MPa (350 bar)	42 MPa (420 bar)	2/3-stage	Heavy Drilling Rig
ED2255	35,000 Nm	16.48 - 52.20	30 kW	35 MPa (350 bar)	42 MPa (420 bar)	2/3-stage	Heavy Drilling Rig
EM1250	20,000 Nm	3.90 - 6.27	40 kW	35 MPa (350 bar)	42 MPa (420 bar)	2-stage	Slewing Drive

II. S/SL Series (High Torque Heavy Duty Models)

Model	Nominal Torque Tₙ	Max Torque T₂ₘₐₓ	Friction Coupling Torque	Housing Diameter
S300	34,000 Nm	81,000 Nm	81,000 Nm	185 mm
S400	48,000 Nm	96,000 Nm	89,000 Nm	185 mm
SL3002	64,000 Nm	137,000 Nm	137,000 Nm	220 mm
S600	64,000 Nm	137,000 Nm	137,000 Nm	220 mm
S850	90,000 Nm	180,000 Nm	180,000 Nm	240 mm
S1200	133,000 Nm	342,000 Nm	342,000 Nm	280 mm
S1800	190,000 Nm	398,000 Nm	398,000 Nm	300 mm
S2500	260,000 Nm	603,000 Nm	603,000 Nm	340 mm

III. General Technical Specifications (All Series)

Parameter	Specification
Mount Flange	SAE Standard Flange
Port Size	SAE Standard Hydraulic Ports
Parking Brake	Multi-disc Static Brake (Standard/Optional)
Recommended Oil	ISO VG 220 Extreme Pressure Gear Oil
Operating Temperature	-20°C ~ +45°C (Standard)
Compatible Motors	A6VM, A2FE, A7VO, A11VO Series
Input Speed	1500 rpm (Max Continuous)
Design Service Life	10,000 hours (Rated Conditions)
Protection Class	IP65 (Optional)
Warranty Period	12 Months

IV. ED2150 Detailed Ratio Parameters (1500 rpm Input)

Gear Ratio iₑff	Output Speed (rpm)	Output Torque (Nm)	Output Power (kW)
13.65	110	10,783	124
16.11	93	11,147	109
17.99	83	9,838	86
20.16	74	9,403	73
21.95	68	9,303	67
26.57	56	10,226	60
30.84	48.6	10,371	53
37.27	40.3	10,042	42.3
45.46	33.0	10,032	34.7
