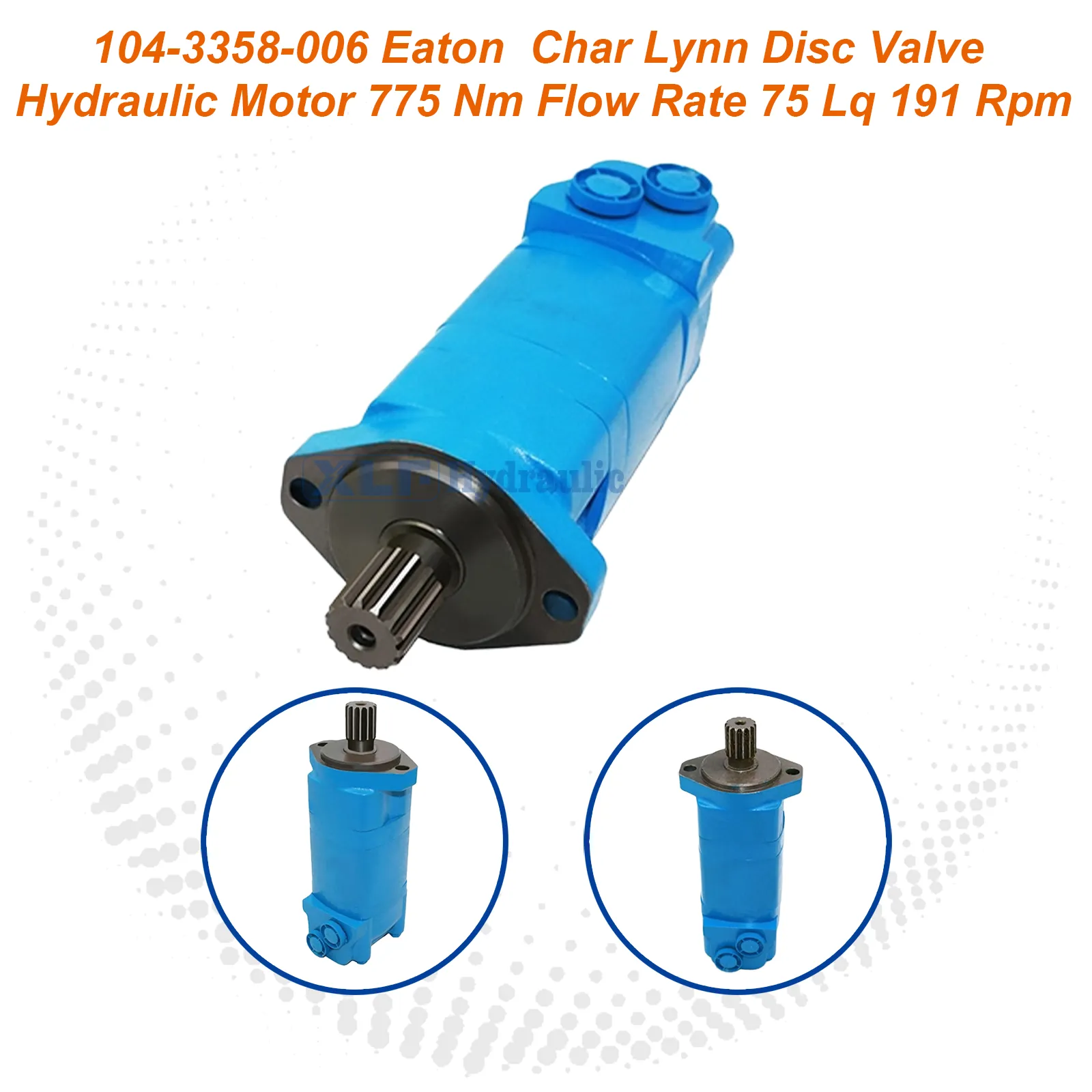

104-3358-006 Eaton Char-Lynn Disc Valve Hydraulic Motor | 775 Nm 75 L/min 191 RPM

Wuhan Xinlaifu Hydraulic Equipment Co., Ltd. is one of the leading manufacturers and suppliers of 104-3358-006 eaton char-lynn disc valve hydraulic motor | 775 nm 75 l/min 191 rpm in China. With abundant experience, we warmly welcome you to buy high quality customized products at competitive price from our factory. Also, OEM&ODM service is available.

Item	Orbit Hydraulic Motor
Model	104-3358-006
Fastening	2 Bolt
Displacement	393.8 CM3/R
Shaft	14 TOOTH
Port	Staggered Ports
Highlight	104-3358-006 disc valve hydraulic motor, char lynn disc valve hydraulic motor, 191 rpm disc valve hydraulic motor

104-3358-006 is a 2000 series disc valve gerotor hydraulic motor produced by Eaton (Eaton) Char-Lynn, and is now part of the Danfoss product portfolio. This model adopts the advanced Geroler® roller stator-rotor pair, with displacement corresponding to performance calibrations of 775 Nm continuous torque, 75 L/min maximum flow rate, and 191 RPM continuous speed. It is a typical low-speed high-torque (LSHT) hydraulic motor. With its robust disc valve design and high-efficiency Geroler technology, this motor is widely used in agricultural, construction machinery, and industrial equipment fields that require high starting torque and reliable heavy-duty operation.

1. Advanced Disc Valve Design

• Automatic wear compensation: Adopting an end face valve plate structure with high valve distribution accuracy, it can automatically compensate after wear, ensuring that the motor maintains high volumetric efficiency and stable performance throughout its service life.
• Pressure balance design: The two sealing end faces of the valve plate maintain pressure balance, minimizing internal leakage and improving overall efficiency.

2. Efficient Geroler® Stator-Rotor Technology

• Roller design: Using a inserted column type stator-rotor pair (Geroler®), the rollers reduce friction, significantly improving starting torque and operating efficiency.
• Excellent low-speed stability: It can output stable torque even at extremely low speeds, meeting the requirements of precise control.
• Bidirectional equal torque output: The motor can reverse direction quickly by changing the direction of input and output flow, and generate equal torque in both directions.

3. Heavy-Duty Bearing Capacity

• High radial load capacity: The robust bearing design can withstand high radial and axial loads, allowing direct installation of sprockets or gears without the need for external support bearings, reducing installation costs.
• Suitable for heavy-duty drives: Can be used in the drive systems of heavy-duty vehicles, adapting to shock load conditions.

4. Standardized Interfaces and Configuration Flexibility

• The 2000 series offers a variety of displacement, output shaft, oil port, and mounting flange options to adapt to different application needs.
• Optional enhanced features such as speed sensors, shuttle valves, and sealing protection are available.

1. Engineering and Construction Machinery
• Skid steer loader attachments: driving milling machines, augers, brushes and other attachments
• Small road rollers: travel drive systems
• Trenchers: heavy-duty cutting drives
2. Agricultural Machinery
• Combine harvesters: travel drives, header drives
• Feed mixers: auger drives
• Large sprayers: pesticide pump drives
3. Industrial and Material Handling
• Winches/cranes: heavy-duty traction mechanisms
• Conveyor belt drives: heavy-duty material conveying
• Mixers/blenders: industrial mixing equipment
4. Forestry and Mining Machinery
• Logging winches: log dragging drives
• Crusher auxiliary machines: feeding system drives
