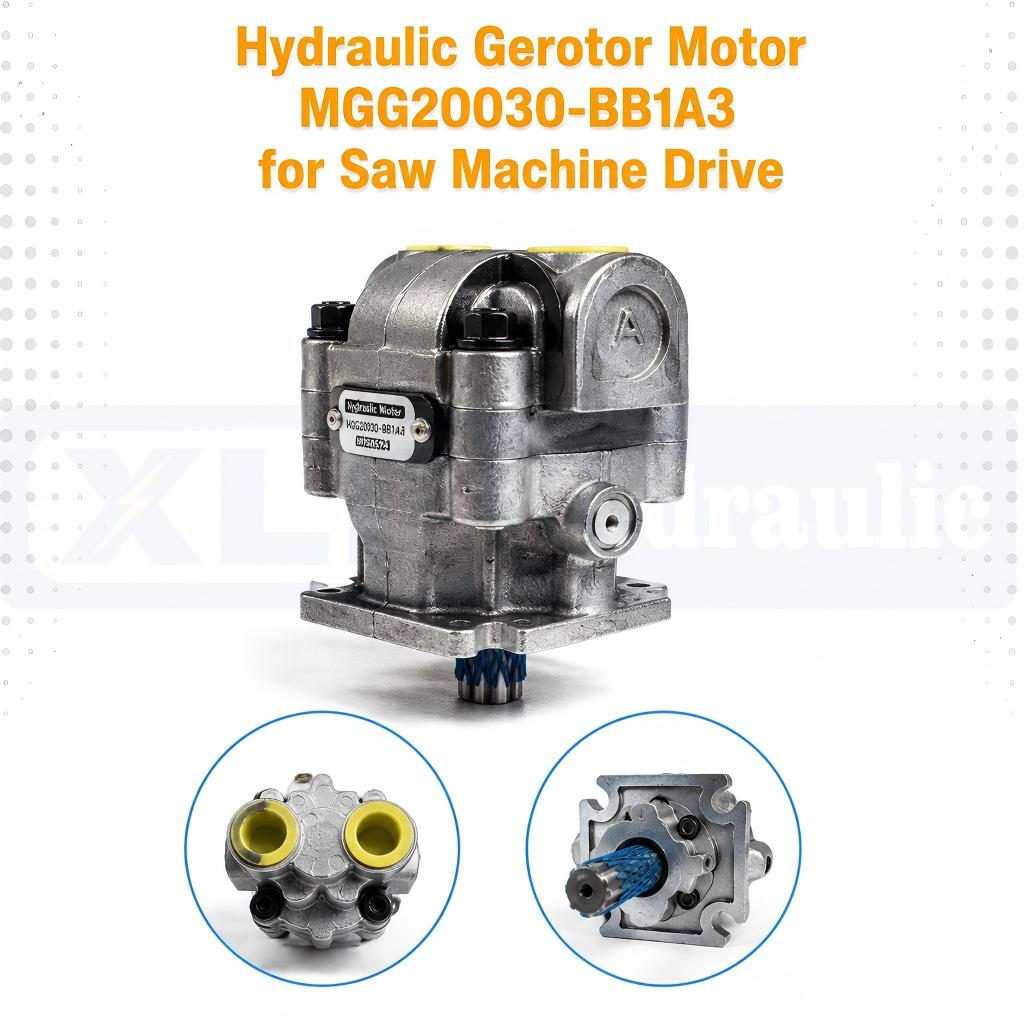

Hydraulic Gerotor Motor MGG20030‑BB1A3 For Saw Machine Drive
Wuhan Xinlaifu Hydraulic Equipment Co., Ltd. is one of the leading manufacturers and suppliers of hydraulic gerotor motor mgg20030‑bb1a3 for saw machine drive in China. With abundant experience, we warmly welcome you to buy high quality customized products at competitive price from our factory. Also, OEM&ODM service is available.
Technical specifications
| Item | Specification |
|---|---|
| Part Number | MGG 20030‑BB1A3 |
| Product Type | High‑Speed Gerotor Hydraulic Motor / Orbital Motor |
| Applicable Machine | Saw machine, brush cutter, sprayer, garden machinery, fan drive, light‑duty agricultural equipment |
| Brand Reference | MGG Series Gerotor Motor, aftermarket replacement hydraulic motor |
| Application | Hydraulic power drive for saw, brush cutter, sprayer and light agricultural machinery systems |
| Gear / Motor Structure | Aluminum body gerotor‑set high‑speed low‑torque hydraulic motor, bi‑directional rotation |
| Material | Housing: Aluminum Alloy; Gerotor set: Alloy Steel; Shaft: Alloy Steel |
| Displacement | 0.70 cu.in/rev (11.47 cc/rev) |
| Working Pressure | Continuous:1500 PSI (103 bar); Intermittent:2000 PSI (138 bar) |
| Output Torque | Continuous:166 in‑lbs (18.7 N·m); Intermittent:222 in‑lbs (25.1 N·m) |
| Max Speed | 5000 RPM (motor mode); 3500 RPM (pump mode) |
| Max Flow | 15 GPM (56.8 L/min) |
| Installation Form | 4‑bolt SAE 4F17 flange mount |
| Working Condition | Light‑medium duty intermittent operation for garden & agricultural machinery |
| Sealing Type | Standard NBR shaft oil seal |
| Rotation | Reversible / Bi‑directional |
| Max Shaft Side Load | 30 lbs (13.5 kg) |
| Weight | Approx 2.7 kg |
| Remark | Aftermarket replacement unit, support OEM supply, reversible rotation for saw, brush cutter and sprayer drive |
Product Overview
The MGG 20030‑BB1A3 is a high‑speed gerotor hydraulic motor rated for maximum 5000 RPM. Built for light‑duty hydraulic drive on saw machines, brush cutters and sprayers. This bi‑directional aftermarket replacement motor features compact aluminum housing and stable intermittent performance for garden and agricultural machinery. We support global supply and OEM customization to satisfy different regional equipment requirements.
Features and Advantages
Core Features
Ultra-High 5000 RPM Rated Speed – Engineered as a high-speed low-torque gerotor hydraulic motor, supporting a maximum working speed of 5000 RPM, perfectly matching the high-frequency operation demand of saw machines, brush cutters and agricultural sprayers.
Stable Hydraulic Performance – Features 0.70 cu.in/rev fixed displacement, 1500 PSI continuous working pressure and 2000 PSI intermittent pressure, delivering steady power output under intermittent light-duty working conditions.
Bi-Directional Reversible Rotation – Supports forward and reverse free switching, flexible to adapt to diverse hydraulic circuit designs and multi-scene drive requirements of garden and farm machinery.
Compact Lightweight Aluminum Structure – Adopts high-strength aluminum alloy housing and precision alloy steel gerotor assembly, achieving high power density with lightweight design, easy for installation and equipment modification.
Standard Industrial Configuration – Equipped with premium NBR oil seals and durable roller bearings, effectively reducing internal friction, resisting hydraulic oil corrosion and extending service life; compatible with standard 15 GPM max flow system.
Universal SAE Mounting Specification – Adopts 4-bolt SAE 4F17 standard flange mounting, fully compatible with mainstream global agricultural and garden machinery, realizing direct plug-and-play replacement.
Product Advantages
Perfect Aftermarket Replacement Compatibility – Strictly follows original MGG series dimensional and performance standards, serving as a direct drop-in replacement for old or damaged hydraulic motors on saws, brush cutters and sprayers, no extra modification required.
High Adaptability for Global Working Scenarios – Optimized for light-duty intermittent operation, stable in complex outdoor farm and garden working environments, adaptable to various regional climate and equipment standards (fit for North America, Europe and South America agricultural machinery systems).
Energy-Saving & High Efficiency – Precision gerotor structure minimizes internal leakage loss, ensuring high hydraulic transmission efficiency, reducing equipment energy consumption and lowering long-term operating costs for end users.
Cost-Effective Industrial Grade Quality – Provides OEM-grade durability with competitive pricing, solving the high-cost problem of original brand accessories, ideal for machinery maintenance dealers, equipment manufacturers and global bulk purchasers.
Reliable Continuous & Intermittent Operation – Matches actual working habits of garden machinery, supports long-time low-load continuous operation and short-time high-load intermittent operation, with stable torque output of 166 in-lbs (continuous) and 222 in-lbs (intermittent).
Global Supply & Customization Support – Supports universal standard supply and customized service, fast global delivery, meeting GEO-based regional procurement demands for agricultural hydraulic parts worldwide.
Typical applications
Typical Applications
Wood Cutting Saw Equipment – Ideal high speed hydraulic drive motor for portable saws and wood cutting machinery, delivering stable 5000 RPM high-frequency operation for continuous cutting tasks.
Brush Cutter & Trimmer Machinery – Perfectly matched for garden and lawn brush cutters, providing reliable bi-directional hydraulic power for grass trimming and field clearing equipment.
Agricultural Sprayer Systems – Widely used in farm sprayer hydraulic drive units, supporting steady fluid delivery and consistent high-speed rotation for agricultural pesticide and fertilizer spraying machines.
Garden & Lawn Maintenance Equipment – Suitable for various light-duty garden hydraulic tools, including lawn mower auxiliary drive, small fan drive and outdoor power machinery systems.
Light Agricultural & Forestry Machinery – Adaptable to global standard light-duty farm and forestry equipment, serving as universal aftermarket hydraulic drive components for regional agricultural machinery maintenance and replacement.
Core Features
Ultra-High 5000 RPM Rated Speed – Engineered as a high-speed low-torque gerotor hydraulic motor, supporting a maximum working speed of 5000 RPM, perfectly matching the high-frequency operation demand of saw machines, brush cutters and agricultural sprayers.
Stable Hydraulic Performance – Features 0.70 cu.in/rev fixed displacement, 1500 PSI continuous working pressure and 2000 PSI intermittent pressure, delivering steady power output under intermittent light-duty working conditions.
Bi-Directional Reversible Rotation – Supports forward and reverse free switching, flexible to adapt to diverse hydraulic circuit designs and multi-scene drive requirements of garden and farm machinery.
Compact Lightweight Aluminum Structure – Adopts high-strength aluminum alloy housing and precision alloy steel gerotor assembly, achieving high power density with lightweight design, easy for installation and equipment modification.
Standard Industrial Configuration – Equipped with premium NBR oil seals and durable roller bearings, effectively reducing internal friction, resisting hydraulic oil corrosion and extending service life compatible with standard 15 GPM max flow system.
Universal SAE Mounting Specification – Adopts 4-bolt SAE 4F17 standard flange mounting, fully compatible with mainstream global agricultural and garden machinery, realizing direct plug-and-play replacement.
Product Advantages
Perfect Aftermarket Replacement Compatibility – Strictly follows original MGG series dimensional and performance standards, serving as a direct drop-in replacement for old or damaged hydraulic motors on saws, brush cutters and sprayers, no extra modification required.
High Adaptability for Global Working Scenarios – Optimized for light-duty intermittent operation, stable in complex outdoor farm and garden working environments, adaptable to various regional climate and equipment standards fit for North America, Europe and South America agricultural machinery systems.
Energy-Saving & High Efficiency – Precision gerotor structure minimizes internal leakage loss, ensuring high hydraulic transmission efficiency, reducing equipment energy consumption and lowering long-term operating costs for end users.
Cost-Effective Industrial Grade Quality – Provides OEM-grade durability with competitive pricing, solving the high-cost problem of original brand accessories, ideal for machinery maintenance dealers, equipment manufacturers and global bulk purchasers.
Reliable Continuous & Intermittent Operation – Matches actual working habits of garden machinery, supports long-time low-load continuous operation and short-time high-load intermittent operation, with stable torque output of 166 in-lbs continuous and 222 in-lbs intermittent.
Global Supply & Customization Support – Supports universal standard supply and customized service, fast global delivery, meeting GEO-based regional procurement demands for agricultural hydraulic parts worldwide.
FAQ
1. What is the maximum speed of the MGG 20030-BB1A3 gerotor hydraulic motor?
The MGG 20030-BB1A3 is a high-speed hydraulic gerotor motor with a maximum rated speed of 5000 RPM. It is specially designed for high-frequency intermittent operation, perfectly meeting the high-speed power demand of saw machines, brush cutters, and agricultural sprayers.
2. What are the main applications for the MGG 20030-BB1A3 hydraulic motor?
This gerotor motor is widely applied in light-duty garden and agricultural machinery, including wood cutting saw equipment, lawn brush cutters, agricultural sprayer systems, garden lawn maintenance tools, and light forestry machinery. It serves as a core hydraulic drive component for global outdoor power equipment.
3. What are the working pressure and torque specifications of this gerotor motor?
The MGG 20030-BB1A3 features 0.70 cu.in/rev fixed displacement. It supports 1500 PSI continuous working pressure and 2000 PSI intermittent pressure, with 166 in-lbs continuous torque and 222 in-lbs intermittent torque, delivering stable and reliable hydraulic power output.
4. Is the MGG 20030-BB1A3 motor reversible and easy to install?
Yes. This hydraulic gerotor motor supports bi-directional reversible rotation to adapt to diverse hydraulic circuit designs. It adopts a standard 4-bolt SAE 4F17 flange mounting structure, featuring plug-and-play installation without extra equipment modification.
5. Can the MGG 20030-BB1A3 be used as a direct aftermarket replacement part?
Absolutely. Manufactured in strict accordance with original MGG series size and performance standards, it is a perfect drop-in replacement for worn or damaged hydraulic motors on saws, brush cutters and sprayers. It provides OEM-grade quality at a more cost-effective price for global machinery maintenance.
6. What working environments is the MGG 20030-BB1A3 suitable for?
Optimized for light-duty intermittent operation, this aluminum-alloy gerotor motor adapts to complex outdoor farm and garden working conditions. It fits the equipment and climate standards of North America, Europe, South America and other global regions, with strong environmental adaptability.
7. What are the durability and energy-saving advantages of this hydraulic motor?
Equipped with premium NBR oil seals and wear-resistant alloy steel gerotor components, it effectively reduces internal friction and extends service life. The precision internal structure minimizes hydraulic leakage, improves transmission efficiency, and reduces long-term energy consumption for mechanical equipment operation.
8. Do you support global supply and bulk customization for MGG 20030-BB1A3?
Yes. We provide standardized MGG 20030-BB1A3 gerotor motors and customized services, supporting fast global delivery. It meets the regional procurement needs of agricultural hydraulic parts for machinery dealers, equipment manufacturers and bulk purchasers worldwide.
Model Displacement
| Item | Specification |
|---|---|
| Part Number | MGG 20030‑BB1A3 |
| Product Type | High‑Speed Low‑Torque Gerotor Hydraulic Motor |
| Applicable Machine | Saw machine, brush cutter, sprayer, garden machinery, light‑duty agricultural & forestry equipment |
| Brand Reference | MGG Series Gerotor Motor, aftermarket drop‑in replacement hydraulic motor |
| Application | High‑speed hydraulic power drive for saw, brush cutter and sprayer systems |
| Motor Structure | Aluminum housing gerotor‑set construction, roller bearing supported, bi‑directional rotation |
| Material | Housing: Aluminum Alloy; Gerotor set & Shaft: Alloy Steel; Standard Seal: NBR Oil Seal |
| Displacement | 0.70 cu.in/rev (11.47 cc/rev) |
| Working Pressure | Continuous:1500 PSI (103 bar); Intermittent:2000 PSI (138 bar) |
| Output Torque | Continuous:166 in‑lbs (18.7 N·m); Intermittent:222 in‑lbs (25.1 N·m) |
| Max Speed | 5000 RPM (motor mode); 3500 RPM (pump mode) |
| Max Flow | 15 GPM (56.8 L/min) |
| Installation Form | 4‑bolt SAE 4F17 flange mount, 9/16" keyed shaft, SAE‑10 rear port |
| Working Condition | Light‑medium duty intermittent outdoor operation for garden & agricultural machinery |
| Sealing Type | Standard NBR shaft oil seal |
| Rotation | Reversible / Bi‑directional |
| Max Shaft Side Load | 30 lbs (13.5 kg) |
| Weight | Approx 3.5 lbs (1.59 kg) |
| Remark | Direct aftermarket replacement unit, support OEM supply, fit global regional agricultural machinery |
