Leakage is a common and concerning issue in small vane pumps, which can significantly affect their performance and service life. As a supplier of small vane pumps, I have witnessed firsthand the impact of leakage problems on various applications. In this blog, I will delve into what the leakage problem in a small vane pump is, its causes, consequences, and possible solutions.
Understanding the Basics of Small Vane Pumps
Before we explore the leakage problem, it's essential to understand how small vane pumps work. A small vane pump is a type of positive - displacement pump. It consists of a rotor with vanes that slide in and out of slots in the rotor. As the rotor rotates, the vanes are forced against the inner surface of the pump housing by centrifugal force and sometimes by additional springs. This creates chambers of varying volume. When the volume of a chamber increases, it draws in fluid, and when the volume decreases, it expels the fluid. This continuous process of intake and discharge enables the pump to transfer fluid from one place to another.
What is the Leakage Problem in a Small Vane Pump?
Leakage in a small vane pump refers to the unintended flow of fluid from the high - pressure side to the low - pressure side of the pump or to the outside environment. There are two main types of leakage in small vane pumps: internal leakage and external leakage.
Internal Leakage
Internal leakage occurs within the pump itself. It happens when fluid bypasses the normal flow path and moves from the discharge side (high - pressure) to the suction side (low - pressure) of the pump. This can happen through clearances between the vanes and the pump housing, between the rotor and the side plates, or through any other internal gaps. For example, if the vanes do not fit tightly in their slots or if there is excessive wear on the inner surface of the pump housing, fluid can leak back from the high - pressure area to the low - pressure area.
External Leakage
External leakage, on the other hand, is the leakage of fluid from the pump to the outside environment. This can occur through seals, gaskets, or any damaged parts of the pump housing. For instance, if the shaft seal is worn out or not properly installed, fluid can leak out along the shaft. Similarly, if there are cracks in the pump housing or if the gaskets between different pump components are damaged, fluid can escape to the outside.
Causes of Leakage in Small Vane Pumps
Wear and Tear
One of the most common causes of leakage is wear and tear. Over time, the vanes, pump housing, side plates, and other components of the pump are subject to friction and abrasion. As the vanes slide in and out of the slots and against the pump housing, they gradually wear down. This increases the clearances between the components, allowing fluid to leak. The same applies to the side plates, which can wear due to the pressure and movement of the fluid.
Contaminated Fluid
Contaminated fluid can also cause leakage problems. Particles such as dirt, sand, or metal chips in the fluid can act as abrasives, accelerating the wear of the pump components. These particles can get trapped between the vanes and the housing or in other clearances, causing damage and increasing the likelihood of leakage. Moreover, some contaminants can react with the pump materials, causing corrosion and further weakening the components.
Improper Installation
Improper installation of the pump or its components can lead to leakage. If the seals are not installed correctly, they may not provide a proper seal, resulting in external leakage. Incorrect alignment of the pump components, such as the rotor and the side plates, can also cause internal leakage by creating uneven clearances.
High Operating Pressure
Operating the pump at a pressure higher than its design rating can cause leakage. High pressure can force the fluid through small clearances that would otherwise not allow significant leakage. It can also put additional stress on the seals and gaskets, causing them to fail prematurely.
Consequences of Leakage in Small Vane Pumps
Reduced Pump Efficiency
Internal leakage directly reduces the volumetric efficiency of the pump. Since some of the fluid is leaking back from the high - pressure side to the low - pressure side, less fluid is being delivered to the intended destination. This means that the pump has to work harder to achieve the desired flow rate, resulting in increased energy consumption.
Loss of System Performance
In a hydraulic system, the leakage from a small vane pump can lead to a loss of system performance. The reduced flow rate and pressure can affect the operation of other components in the system, such as cylinders and valves. This can result in slower actuation, reduced force output, and overall poor system performance.
Environmental and Safety Risks
External leakage can pose environmental and safety risks. Leaked fluid can contaminate the surrounding area, which may be a concern in industries where environmental regulations are strict. Moreover, leaked fluid can create a slippery surface, increasing the risk of slips and falls for workers.
Solutions to Leakage Problems in Small Vane Pumps
Regular Maintenance
Regular maintenance is crucial for preventing and addressing leakage problems. This includes inspecting the pump components for wear, cleaning the fluid filters to prevent contamination, and replacing worn - out parts in a timely manner. For example, regularly checking the vanes for wear and replacing them when they reach a certain level of wear can help maintain proper clearances and reduce internal leakage.
Using High - Quality Components
Using high - quality components can significantly reduce the likelihood of leakage. High - quality vanes, seals, and gaskets are more resistant to wear and can provide a better seal. They are also less likely to be affected by contaminants and high pressures. When selecting components, it's important to choose those that are compatible with the pump and the operating conditions.
Proper Installation and Alignment
Ensuring proper installation and alignment of the pump and its components is essential. Follow the manufacturer's installation instructions carefully, and use the correct tools and techniques. Make sure that the seals are installed correctly and that the pump components are properly aligned to minimize clearances and prevent leakage.
Monitoring and Control
Monitoring the pump's operating parameters, such as pressure and flow rate, can help detect leakage problems early. If there is a sudden drop in flow rate or an increase in pressure drop across the pump, it may indicate a leakage problem. Installing sensors and control systems can help in real - time monitoring and allow for quick corrective actions.
Related Products

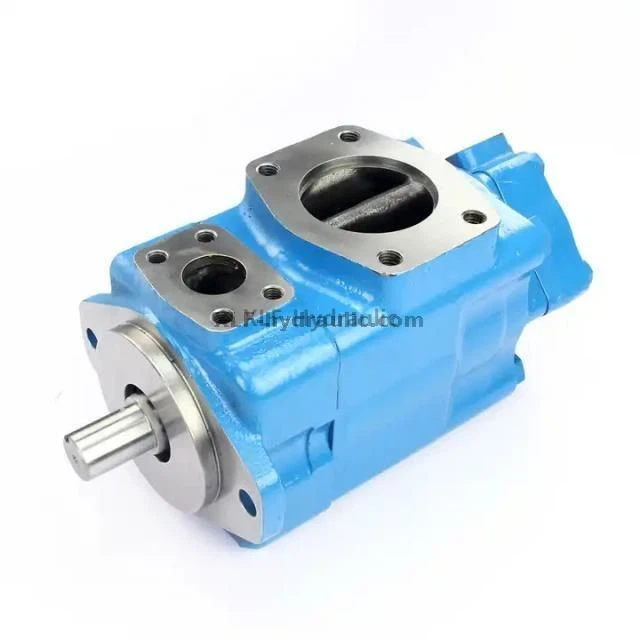

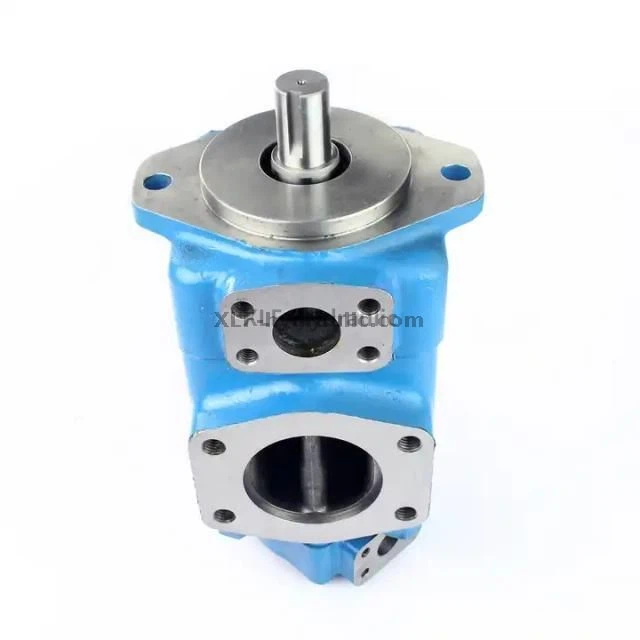

As a small vane pump supplier, we also offer a wide range of other hydraulic pump products. For example, we have the 1687873 New Aftermarket Hydraulic Triple Piston Pump Tractor Parts for 924G For CAT, which is suitable for tractors and offers reliable performance. Another product is the Rexroth JCB 3CX 4CX Hyadraulic Variable Flow Pump 20/925784 For Backhoe Loader, designed for backhoe loaders with variable flow capabilities. We also have the CAT 9J5067 Hydraulic Hand Piston Pump Group VQ Vickers Pump for Wheel Loaders, which is a great option for wheel loaders.
