XLF-PVXS series PVXS66 PVXS90 PVXS130 PVXS180 PVXS250 hydraulic PVXS piston pump

Quantity:
Warranty:	1 year
Availability:





Inquire Add to Basket

Model:
PVXS
Brand:
XLF
Code:
00001

Product Description

|

Product technical data

XLF-PVXS Axial Piston Fixed Pump Features

1. Fully interchangeable with the original brand

2. Very competitive price

3. Low noise, high efficiency, high reliability, long service life

4. Small size, high power density

5. Excellent oil absorption properties.

6.1 year warranty

7. For engineering equipment, Marine and boating and industrial equipment, etc.

8. For axial piston pump with open loop.

9. Continuous working pressure up to 280 bar, instantaneous maximum working pressure up to 350 bar.

10. Flow proportional to drive speed and displacement and can be achieved by adjusting the variable lock Angle

11. There are constant pressure, constant power pressure, constant voltage flow and other control methods, as well as the reaction rate control

12. Drive shaft can withstand axial and radial loads

13. Sae and iso mounting flange

14. For the structure of the axis of passage and for a multi-loop system

15. Start at any time under pressure.

|

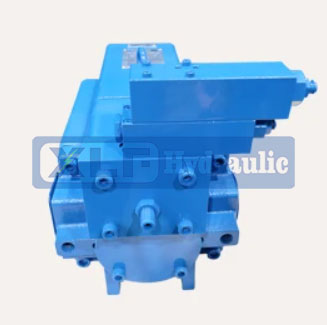

XLF-PVXS Axial Piston Fixed Pump Product detail picture

PVXS (1)

PVXS (2)

PVXS (3)

|

Application Video

|

XLF-PVXS Axial Piston Fixed Pump Technical data

MODEL

66

90

130

180

250

Design

Swashplate -Axial piston pump

Type of mounting

Flange or foot-mounted.tandem is foot mounted only

Pipe connection SAE/Flange

B

ps

11/2°=3000

2=3000

21/2'=3000

21/2"=3000

31/2"=500

A

1'=6000

1°=6000

11/4"=6000

Direction of rotation

Clockwise when viewing shaft end of pump

Counterclockwise available on request

Speed range

nmin

min⊃1;

150

Nmax

1800

nstallation position

Optional,see mounting information

Ambient temperature range

min

℃

20

max

50

Weight

m

kg

55

75

106

114

212

Mass of inertia

kg m²

0.016

0.045

0.146

HYDRAULIC CHARACTERISTICS

Nominal pressure (100%duty cycle)

pN

bar

350

nput pressure

pimin

bar

0.85 abs

p1max

bar

50

Maximum pressure to DIN 24312

p2max

bar

420

Hydraulic fluid

Hydraulic oil to DIN 51524 part 2.Refer to section Application Data-Fluid Recommendations

Hydraulic fluid temperature range

min

℃

-25 (on start up

max

90

Viscosity range for continuous operation

min

cSt

10

max

cSt

75

Maximum permissible start viscosity

max

cSt

1000

Filtering

IS04406

18/15/13

Maximum geometric n=1500 min'

Vg

cm²

66

90

130

180

250

displacement

n=1800 min

Maximum geom.

n=1500 min⊃1;

Q₇

Umin

99

135

195

270

375

pump flow

n=1800 min⊃1;

118

162

234

324

450

Case pressure

Pv max

bar

max.0,5 bar over p1.pmax =4 bar abs.

XLF-PVXS Applicable model

PVXS-066-M-R-DF-0000-000

PVXS066M02R0001R01SVVADF000A0000000000000000010

PVXS-090-M-R-DF-0000-000

PVXS090M02R0001R01SVVADF000A0000000000000000010

PVXS-130-M-R-DF-0000-000

PVXS130M04R0001A01SVVADF000A0000000000000000010

PVXS-180-M-R-DF-0300-090

PVXS180M04R0001R01SVVAD000A0000000000030009010

PVXS-180-M-R-DF-0000-000

PVXS180M04R0001R01SVVADF000A0000000000000000010

PVXS-250-M-R-DF-0000-000

PVXS250M06R0001R01SVVADF000A0000000000000000010

PVXS-066-M-R-DF-0000-000

PVXS-066M02R0001R01SVVADF000A0000000000000000010

PVXS-090-M-R-DF-0000-000

PVXS-090M02R0001R01SVVADF000A0000000000000000010

PVXS-130-M-R-DF-0000-000

PVXS-130M04R0001A01SVVADF000A0000000000000000010

PVXS-180-M-R-DF-0300-090

PVXS-180M04R0001R01SVVAD000A0000000000030009010

PVXS-180-M-R-DF-0000-000

PVXS-180M04R0001R01SVVADF000A0000000000000000010

PVXS-250-M-R-DF-0000-000

PVXS-250M06R0001R01SVVADF000A0000000000000000010

PVXS066M02R0001A01SV0ADF000A00000000000000000101

PVXS090M02R0001R01SN0ADF000A0000000000004803910

PVXS090M02R0001R01SVVADF000A0000000000000000010

PVXS130M04R0001R01SVVADF000A0000000000000000010

PVXS130M04R0001R01SV0ADF000A0000000000000000010

PVXS180M04R0001R01SVVADF000A0000000000000000010

PVXS180M04R0001R01SVVADF000A0000000000000009010

PVXS250M06R0001R01SV00DF000A0000000000002200010

PVXS250M06R0001R01SVVADF000A0000000000030209210

PVXS250M06R0001R01SCVADF000A0S00000000032209210

PVXS250M06R0011R01DVVADF000A0000000000000009210

PVXS250M06R0001R01SCVADF000A0000000000000000010

PVWS250M07R0001R01SCVADF000A0000000000000000010

PVWS250M07R0001R01SV0ADF000A0000000000000000010

PVWS250M07R0001R01SVVADF000A0000000000000000010

PVWS360M07R0001R02SVVADF000A1000000000000000010

TVWS360M07R0000C1R01SVMA30

PVXS066M02R0001R01SVVADF000A0000000000000000010

PVXS-130-L-DF-0000-000-10

PVXS130M04R000/R01SV0ADF00A

PVXS-130M04R000/R01SV0ADF00A

PVXS130M04R0001A01SVOAHG000

PVXS130M04R0001A01SVVADF00DA

PVXS130M04R0001A01SWADF00DA

PVXS130M04R0001R01SV0ALR000A20045000000000000

PVXS130M04R0001R01SV0ALR000A200450000000000001

PVXS-130M04R0001R01SVVADF000A

PVXS-130M04R0001R01SVVADF000A0000000000000000010

PVXS130M04R0001R01SVVADF000A00000000000010

PVXS-130M04R0001R01SVVADF4000A

PVXS-130M04R0001R0ISVVADF000A

PVXS-130M04RA001A02SWADF000A

PVXS130-M-DF-R-0000-000

PVXS130-M-R-0000-000

PVXS-130-M-R01SVV-DF-000-A000

PVXS-130-M-RD1SVV-DF-000-A000

PVXS130MRDF000000

PVXS130-M-R-DF-0000-00

PVXS-130-MRDF000-000

PVXS130-M-R-DF-0000-000

PVXS-130-M-R-DF-0000-000

PVXS130-M-R-DF-0000-000

PVXS130-M-R-DF-00000-000

PVXS-130-M-R-DF-0000-0000

PVXS-130-M-R-OF-0000-000

PVXS130-M-R-OF-000-0000

PVXS Axial Piston Fixed Pump PVXS hydraulic pump PVXS hydraulic pump OEM PVXS hydraulic spare parts OEM
