| Pump Model: | |
|---|---|
| Quantity: | |

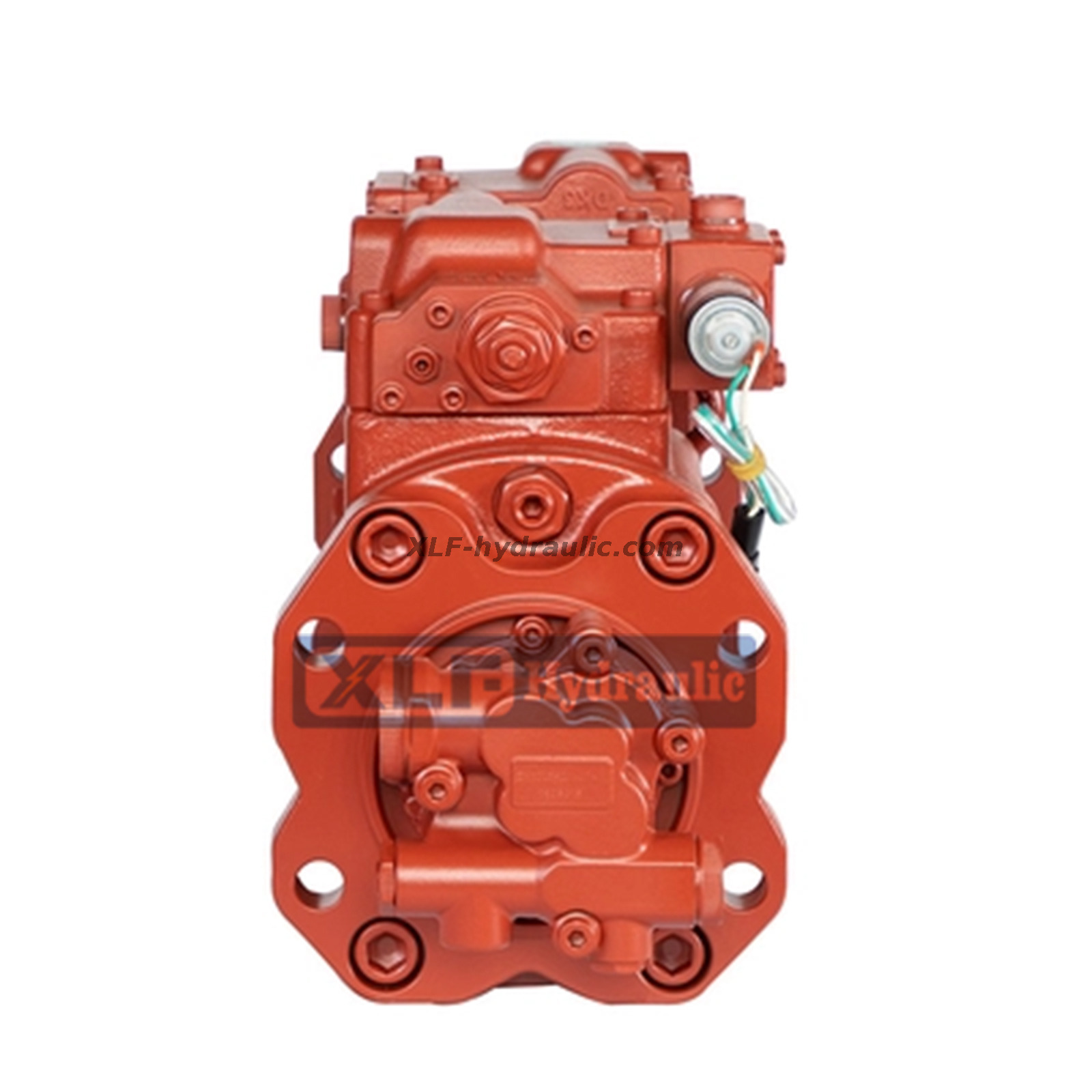

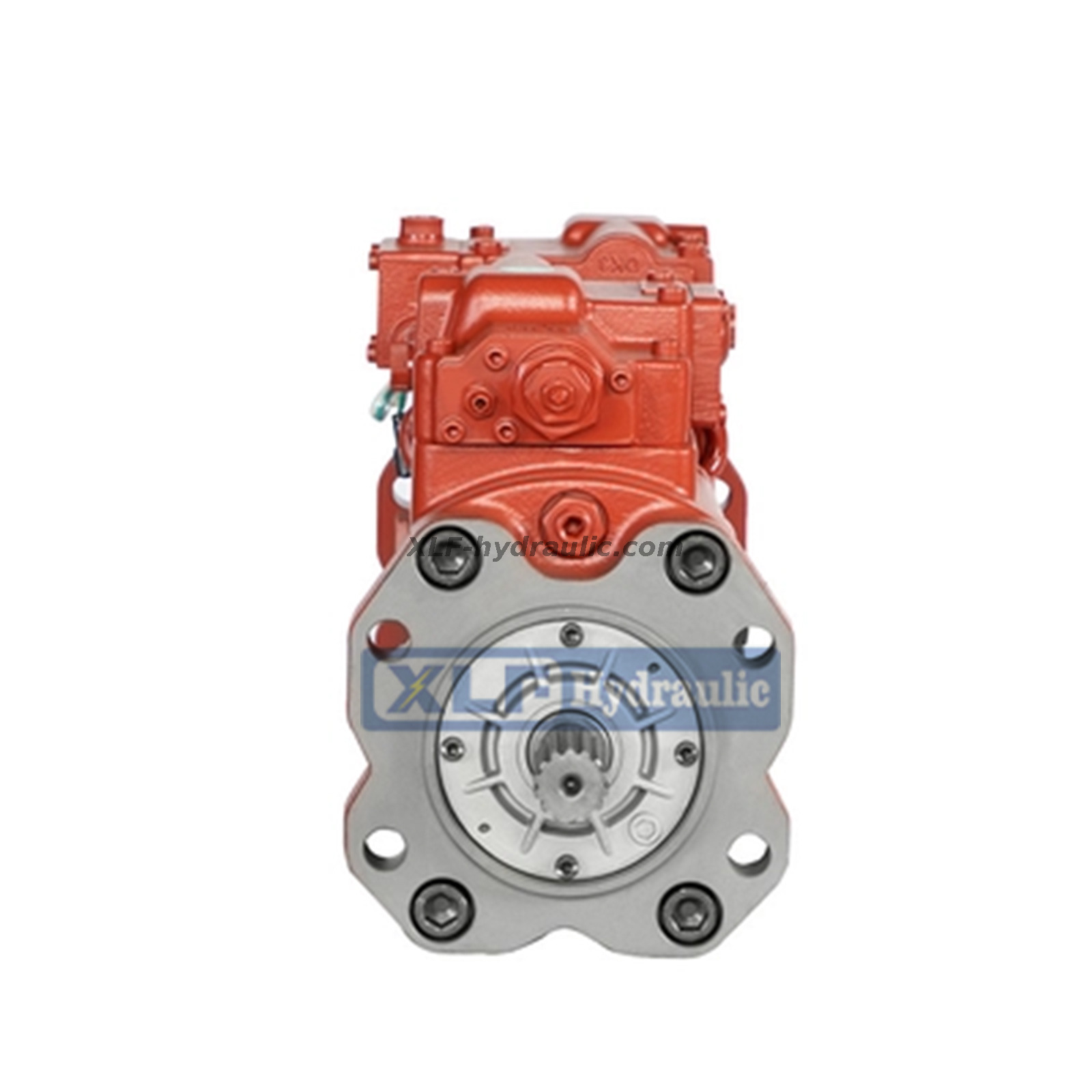

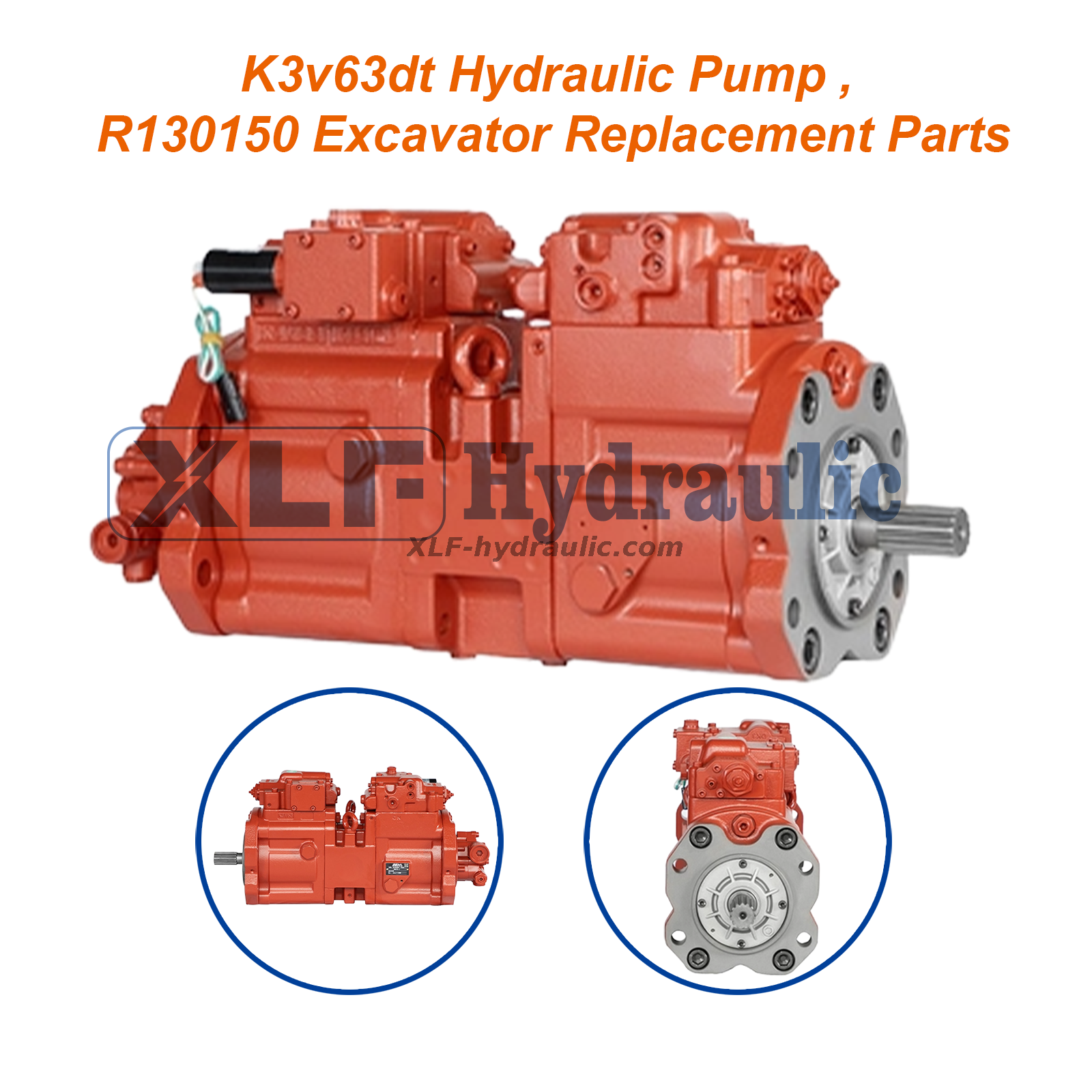

K3V63DT-9N1S/9N01
XLF
0222
Dual Main Pumps + Pilot Pump: Combines two variable displacement axial piston pumps (63 cc/rev each) with a fixed displacement gear pump for pilot control, enabling simultaneous operation of multiple hydraulic functions (e.g., boom, arm, bucket) .
High Efficiency: Achieves 126 cc/rev total displacement and 35 MPa (5,075 psi) maximum pressure, ensuring rapid cycle times for faster digging, lifting, and grading .
Load-Sensing & Negative Flow Control: Adjusts oil flow dynamically based on real-time load demands, reducing energy consumption during low-load operations while delivering maximum power during high-load tasks .
Precision Control: Equipped with a 16-tooth splined drive shaft (SAE J744) and 6-bolt SAE flange mounting for stable, low-vibration operation .
Wear-Resistant Materials: Features cast iron housing and surface-coated components (e.g., piston shoes, swash plate) to extend service life and withstand harsh operating conditions .
ISO 9001 Compliance: Manufactured under strict quality control standards, ensuring reliability and consistent performance .
Modular Design: Simplifies disassembly and repair, with rebuild kits available for cost-effective maintenance .
Filter Compatibility: Works with magnetic suction filters to trap debris and prevent premature wear .
Oil Absorption Issues: Check oil level, suction filter, and seals for air ingress. Replace worn components (e.g., piston shoes, swash plate) to prevent cavitation .
Overheating: Ensure proper oil viscosity (ISO 46) and clean hydraulic coolers to maintain optimal operating temperatures .
Regular Oil Changes: Replace oil every 1,000 hours or sooner if contaminated.
Filter Monitoring: Clean/replace suction and return filters every 500 hours.
System Checks: Verify pressure settings and inspect hoses/fittings for leaks.
Proven Reliability: Trusted by Hyundai and global construction companies for its robust performance .
Energy Efficiency: Reduces fuel costs through variable displacement technology .
Cost-Effective Maintenance: Modular design and rebuild kits minimize downtime and repair expenses .
Specifications:
| Pump Model | K3V63DT-9N1S/9N01 | DEKA Part NO. | 60100378-J(12) |
| Used for | R130/150/160 | Product class | Hydraulic pump |
| Brand | XLF | Color | Red |
| Place of origin | CHINA | Discharge Capacity | / |
| Working pressure(Mpa) | / | Maximum Pressure(Mpa) | / |
| Number of teeth(T) | / | Application(Ton) | / |
| Product Size | 61*19*29CM | Packing Measurement | 72*37*51CM |
| Net Weight | 89KG | Gross Weight | 103KG |
| Packing Method | WOODEN CASE | Certification | ISO9001 |
| Warranty Period | 6 MONTH | MOQ | 1 SET |
Dual Main Pumps + Pilot Pump: Combines two variable displacement axial piston pumps (63 cc/rev each) with a fixed displacement gear pump for pilot control, enabling simultaneous operation of multiple hydraulic functions (e.g., boom, arm, bucket) .
High Efficiency: Achieves 126 cc/rev total displacement and 35 MPa (5,075 psi) maximum pressure, ensuring rapid cycle times for faster digging, lifting, and grading .
Load-Sensing & Negative Flow Control: Adjusts oil flow dynamically based on real-time load demands, reducing energy consumption during low-load operations while delivering maximum power during high-load tasks .
Precision Control: Equipped with a 16-tooth splined drive shaft (SAE J744) and 6-bolt SAE flange mounting for stable, low-vibration operation .
Wear-Resistant Materials: Features cast iron housing and surface-coated components (e.g., piston shoes, swash plate) to extend service life and withstand harsh operating conditions .
ISO 9001 Compliance: Manufactured under strict quality control standards, ensuring reliability and consistent performance .
Modular Design: Simplifies disassembly and repair, with rebuild kits available for cost-effective maintenance .
Filter Compatibility: Works with magnetic suction filters to trap debris and prevent premature wear .
Oil Absorption Issues: Check oil level, suction filter, and seals for air ingress. Replace worn components (e.g., piston shoes, swash plate) to prevent cavitation .
Overheating: Ensure proper oil viscosity (ISO 46) and clean hydraulic coolers to maintain optimal operating temperatures .
Regular Oil Changes: Replace oil every 1,000 hours or sooner if contaminated.
Filter Monitoring: Clean/replace suction and return filters every 500 hours.
System Checks: Verify pressure settings and inspect hoses/fittings for leaks.
Proven Reliability: Trusted by Hyundai and global construction companies for its robust performance .
Energy Efficiency: Reduces fuel costs through variable displacement technology .
Cost-Effective Maintenance: Modular design and rebuild kits minimize downtime and repair expenses .
Specifications:
| Pump Model | K3V63DT-9N1S/9N01 | DEKA Part NO. | 60100378-J(12) |
| Used for | R130/150/160 | Product class | Hydraulic pump |
| Brand | XLF | Color | Red |
| Place of origin | CHINA | Discharge Capacity | / |
| Working pressure(Mpa) | / | Maximum Pressure(Mpa) | / |
| Number of teeth(T) | / | Application(Ton) | / |
| Product Size | 61*19*29CM | Packing Measurement | 72*37*51CM |
| Net Weight | 89KG | Gross Weight | 103KG |
| Packing Method | WOODEN CASE | Certification | ISO9001 |
| Warranty Period | 6 MONTH | MOQ | 1 SET |
