| Pump Model: | |
|---|---|
| Quantity: | |
K5V200DTH-9C0Z
XLF
0226

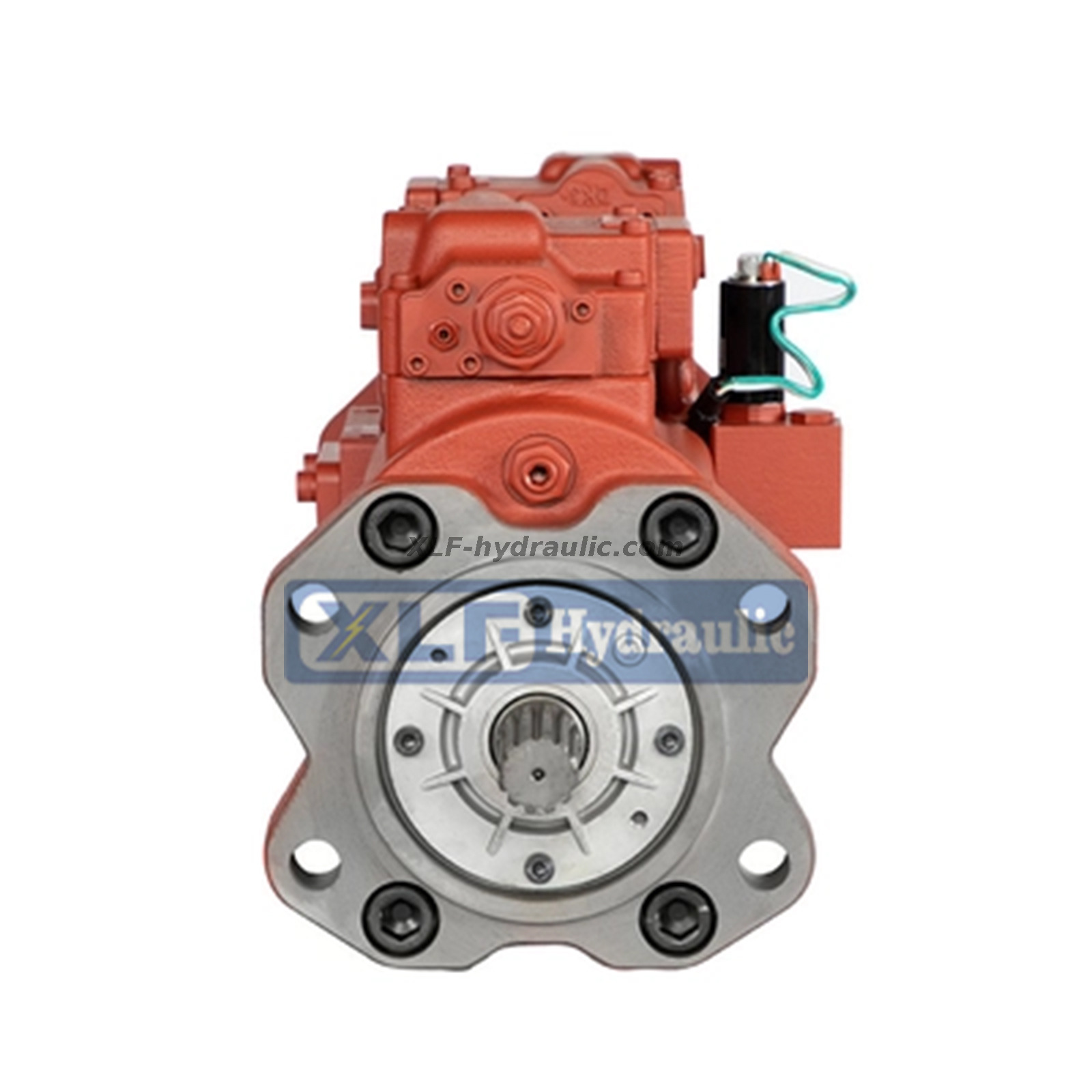

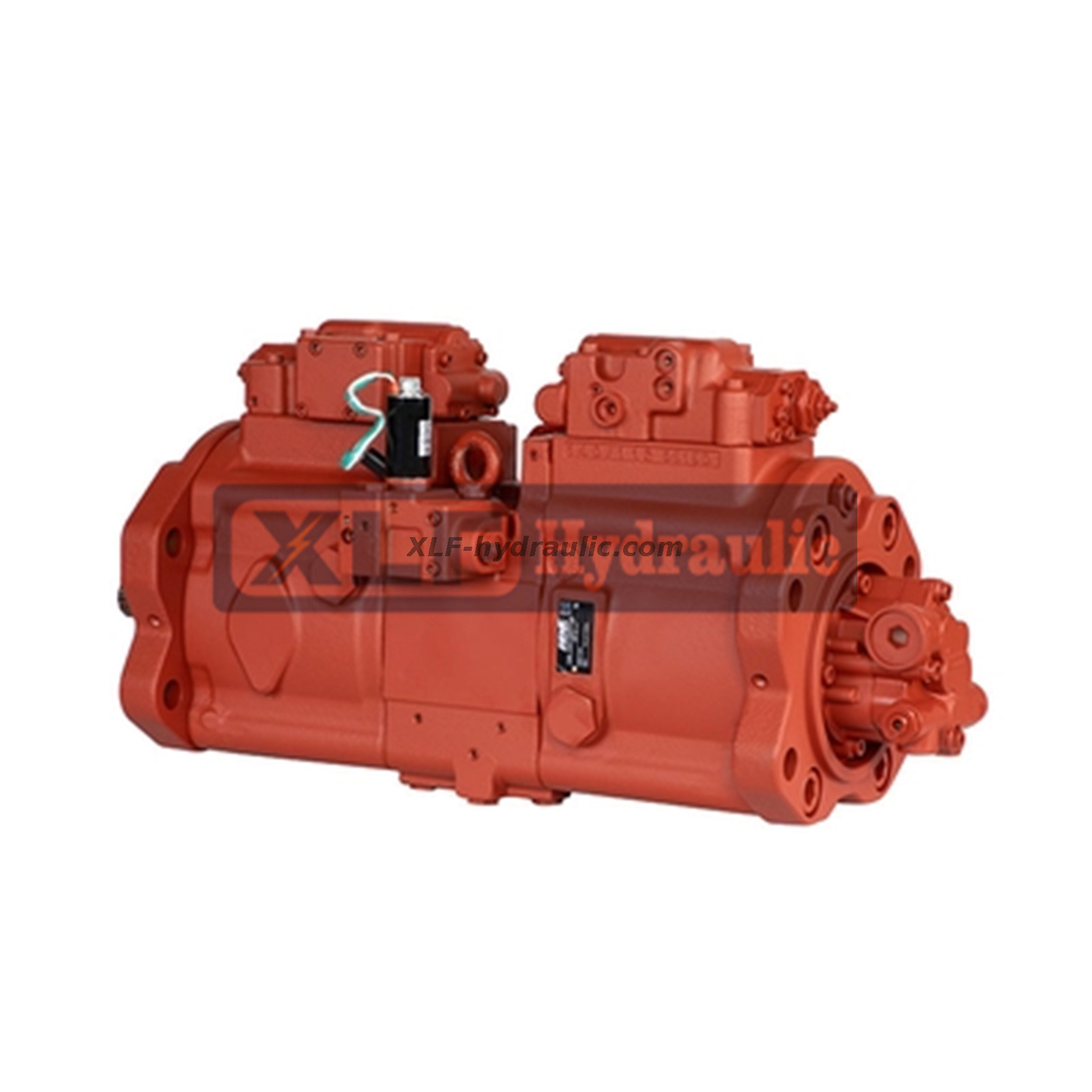

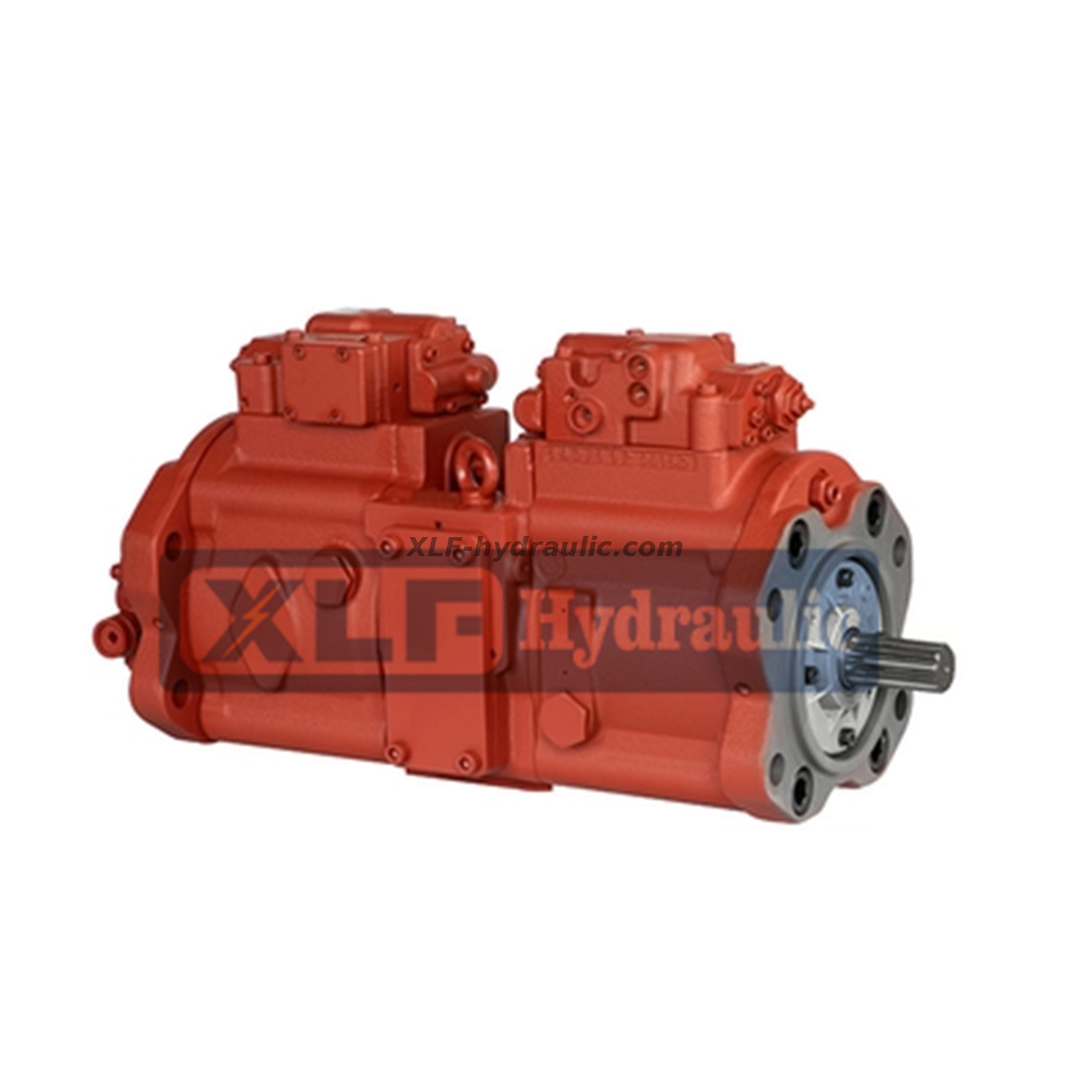

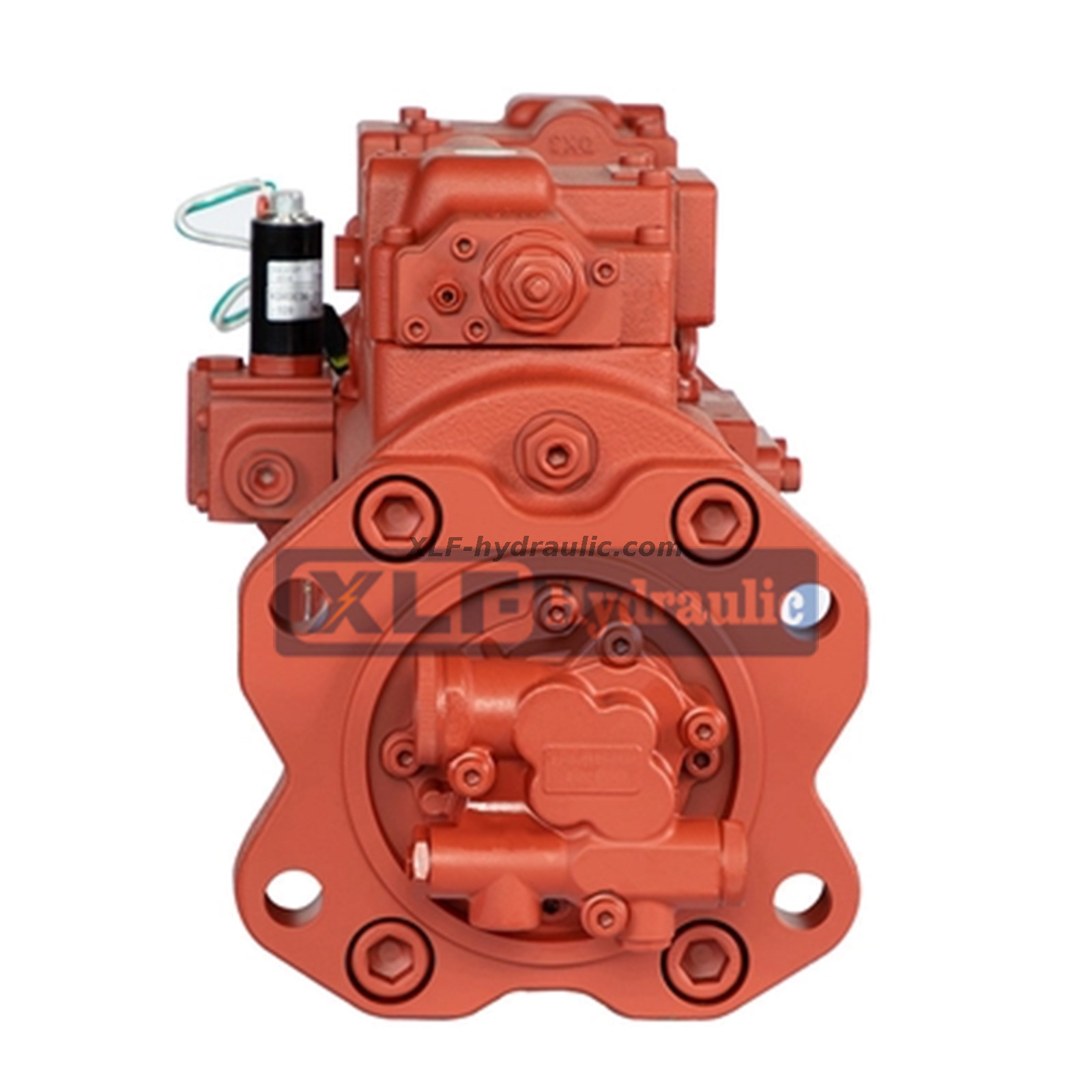

K5V200DTH-9C0Z High Pressure Axial Piston Hydraulic Pump for Hyundai R455 Excavators | Heavy-Duty Performance & Reliability
Dual Main Pumps + Pilot Pump: Combines two variable displacement axial piston pumps (200 cc/rev each) with a fixed displacement gear pump for pilot control, enabling simultaneous operation of multiple hydraulic functions (e.g., boom, arm, bucket) .
High Efficiency: Achieves 400 cc/rev total displacement and 39.2 MPa (5,685 psi) maximum pressure, ensuring rapid cycle times for faster digging, lifting, and grading .
Load-Sensing & Negative Flow Control: Adjusts oil flow dynamically based on real-time load demands, reducing energy consumption during low-load operations while delivering maximum power during high-load tasks .
Precision Control: Equipped with a 16-tooth splined drive shaft (SAE J744) and 6-bolt SAE flange mounting for stable, low-vibration operation.
Wear-Resistant Materials: Features cast iron housing and surface-coated components (e.g., piston shoes, swash plate) to extend service life and withstand harsh operating conditions .
ISO 9001 Compliance: Manufactured under strict quality control standards, ensuring reliability and consistent performance.
Modular Design: Simplifies disassembly and repair, with rebuild kits available for cost-effective maintenance .
Filter Compatibility: Works with magnetic suction filters to trap debris and prevent premature wear.
Oil Absorption Issues: Check oil level, suction filter, and seals for air ingress. Replace worn components (e.g., piston shoes, swash plate) to prevent cavitation .
Overheating: Ensure proper oil viscosity (ISO 46) and clean hydraulic coolers to maintain optimal operating temperatures.
Regular Oil Changes: Replace oil every 1,000 hours or sooner if contaminated.
Filter Monitoring: Clean/replace suction and return filters every 500 hours .
System Checks: Verify pressure settings and inspect hoses/fittings for leaks.
Compatibility Check: Confirm part number (K5V200DTH-9C0Z) with your excavator manual.
Warranty: New units include a 1-year warranty; remanufactured units offer 6–12 months.
Shipping: Expedited options available for urgent replacements.
Proven Reliability: Trusted by Hyundai and global construction companies for its robust performance in extreme conditions .
Energy Efficiency: Reduces fuel costs through variable displacement technology.
Cost-Effective Maintenance: Modular design and rebuild kits minimize downtime and repair expenses .
Specifications：
| Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining | Showroom Location: | China |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty: | 6 Months | Material: | Metel |
| Item Number: | 60100399-J | Color: | Red |
| Product Name: | Hydraulic Pump | Packing: | Wooden Box |
