PD
XLF
00001
|
Product technical data
XLF-PD Axial Piston Fixed Pump Features
1. Fully interchangeable with the original brand
2. Very competitive price
3. Low noise, high efficiency, high reliability, long service life
4. Small size, high power density
5. Excellent oil absorption properties.
6. 1 year warranty
7. For engineering equipment, Marine and boating and industrial equipment, etc.
8. For axial piston pump with open loop.
9. Continuous working pressure up to 280 bar, instantaneous maximum working pressure up to 350 bar.
10. Flow proportional to drive speed and displacement and can be achieved by adjusting the variable lock Angle
11. There are constant pressure, constant power pressure, constant voltage flow and other control methods, as well as the reaction rate control
12. Drive shaft can withstand axial and radial loads
13. Sae and iso mounting flange
14. For the structure of the axis of passage and for a multi-loop system
15. Start at any time under pressure.
The main hydraulic piston pumps and hydraulic motor in our factory . We can provide a pretty good replacement for these original series products, if you are looking for these models, we are just the right supplier you deserve cooperation for a long time.
|

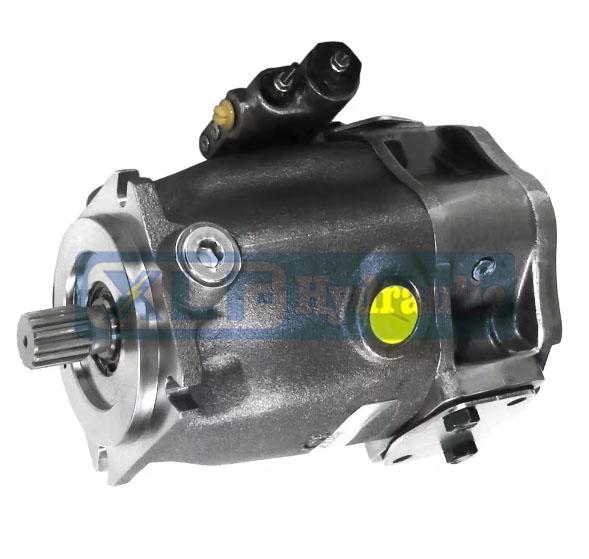

XLF-PD Axial Piston Fixed Pump Product detail picture
|
Application Video
|
XLF-PD Axial Piston Fixed Pump Technical data
| Technical Data | |||||||
| Model | P1/PD 018 | P1/PD 028 | P1/PD 045 | P1/PD 060 | P1/PD 075 | P1/PD 100 | P1/PD140 |
| Maximum Displacement,cm/rev cu.in,/rev | 18 1.10 | 28 1.71 | 45 2.75 | 60 3.66 | 75 4.58 | 100 6.01 | 140 8.54 |
| Outlet Pressure -Continuous,bar psi | 280 4000 | ||||||
| ntermittent,bar psi | 320 4500 | ||||||
| Peak,bar psi | 350 5000 | ||||||
| P1 Maximum Speed-Boosted Inlet,rpm | 3200 | 3200 | 3000 | 2800 | 2700 | 2500 | 2400 |
| P1(1.0 bar abs inlet),rpm | 3200 | 3200 | 2600 | 2500 | 2300 | 2100 | 2000 |
| P1 (0.8 bar abs inlet),rpm | 2700 | 2800 | 2200 | 2000 | 1900 | 1800 | 1800 |
| PD Maximum Speed (1.0 bar abs inlet),rpm | 1800 | ||||||
| PD (0.8 bar abs inlet),pm | 1800 | ||||||
| Minimum Speed,pm | 600 | ||||||
| nlet Pressure -Maximum,bar psi | 10(gage 145 | ||||||
| Rated,bar psia | 1.0 absolute (0.0 gage 14.5 | ||||||
| Minimum,bar psia | 0.8 absolute (-0.2 gage 11.6 | ||||||
| Case Pressure -Peak,bar | 4.0 absolute (3.0 gage and less than 0.5 bar abovo inlot pressure | ||||||
| Raled,ba | 2.0 absolute(1.0 gage and less than 0.5 bar above inlet pressure | ||||||
| Fluid Temperature Range,"C F | 40 to +95 40 to +203 | ||||||
| Fluid Viscosity -Rated,cS | 6 to 160 | ||||||
| Max.Intermittent,cSt | 5000 (for cold starting | ||||||
| Min.Intermittent.cS | 5 | ||||||
| Fluid Contamination -Rated,ISO | 20/18/14 | ||||||
| Maximum.IS | 21/19/16 | ||||||
| SAE Mounting -Flange | 82-2(A | 101-2(B | 101-2 (B) | 127-2(C)or 127-4 (C) | 127-4(C) | 152-4(D | |
| ISO Mounting-Flange | 80 mm | 100 mm | 100 mm | 125 mm | 125 mm | 125 mm | 180 mm |
| SAE Keyed Shafts | 19-1.A | 25-1,BB | 25-1,BB | 32-1,C | 32-1,C | 38-1,CC | 44-1,D |
| SO Keyed Shafts | 20 mm | 25 mm | 25 mm | 32 mm | 32 mm | 40 mm | 50 mm |
| SAE Soline Shatts | 9T.A 11T,A | 13T.B 15T.BB | 13T,B 15T,BB | 14T,C | 14T,C | 17T,CC | 13T,D |
| Weight -End Port,kg(lb | 13.4 (29.5) | 17.7 (39.0) | 23(50) | 29 (64) | 30 (66 | 51 (112 | 66(145) |
| Side Port,kg(b | 14.2 (31.3) | 18.1 (40.0) | 24 (52) | 30 (67) | 31 (68) | 53(117) | 67(147 |
| Thru-Drive,kg (lb) | 27 (59) | 34(75) | 35(77 | 55(121) | 82(180) | ||
| Intermiltent pressure is defined as less than 10%of operation time,not exceeding 6 successive seconds | |||||||
XLF-P1/PD Applicable model
PD028PS02SRS5BC00T02B0000 02E-89011-5 PD028PS02SRS5BC10E1200000 02E-87806-5 PD028PS02SRS5BC10R0200000 02E-86679-5 PD028PS02SRS5BC10R1200000 02E-87522-5 PD028PS02SRS5BC10R120PB00 02E-86851-5 PD028PS02SRS5BC10T00A0000 02E-88528-5 PD028PS02SRS5BC10T00H0000 02E-88812-5 PD028PS02SRS5BC10T02A0000 02E-87066-5 PD028PS02SRS5BC10T02B0000 02E-87601-5 PD028PS02SRS5BC10T02BPB00 02E-87677-5 PD028PS02SRS5BL00E0200000 02E-86147-5 PD028PS02SRS5BL00E1000000 02E-87638-5 PD028PS02SRS5BL00E1200000 02E-87646-5 PD028PS02SRS5BL00R0200000 02E-87378-5 PD028PS02SRS5BL00R1000000 02E-88229-5 PD028PS02SRS5BL00R1200000 02E-87945-5 PD028PS02SRS5BL00R120PB00 02E-87535-5 PD028PS02SRS5BL00T00A0000 02E-88586-5 PD028PS02SRS5AC00T02B0000 02E-89011-5 PD028PS02SRS5AC10E1200000 02E-87806-5 PD028PS02SRS5AC10R0200000 02E-86679-5 PD028PS02SRS5AC10R1200000 02E-87522-5 PD028PS02SRS5AC10R120PB00 02E-86851-5 PD028PS02SRS5AC10T00A0000 02E-88528-5 PD028PS02SRS5AC10T00H0000 02E-88812-5 PD028PS02SRS5AC10T02A0000 02E-87066-5 PD028PS02SRS5AC10T02B0000 02E-87601-5 PD028PS02SRS5AC10T02BPB00 02E-87677-5 PD028PS02SRS5AL00E0200000 02E-86147-5 PD028PS02SRS5AL00E1000000 02E-87638-5 PD028PS02SRS5AL00E1200000 02E-87646-5 PD028PS02SRS5AL00R0200000 02E-87378-5 PD028PS02SRS5AL00R1000000 02E-88229-5 PD028PS02SRS5AL00R1200000 02E-87945-5 PD028PS02SRS5AL00R120PB00 02E-87535-5 PD028PS02SRS5AL00T00A0000 02E-88586-5 PD045PA02SRS5AC00R1000000 02E-85935-5 PD045PA02SRS5AC00R120PB00 02E-87623-5 PD045PA02SRS5AC10R0000000 02E-88670-5 PD045PA02SRS5AC10T00A0000 02E-88476-5 PD045PA02SRS5AL00E120PB00 02E-87027-5 PD045PA02SRS5AL00R1000000 02E-88126-5 PD045PA02SRS5AL00T00BPB00 02E-86724-5 PD045PA02SRS5AL00T00HPB00 02E-86801-5 | PD045PA04SRS5AAM0R320PB00 02E-86355-5 PD045PA04SRS5AC00E1000000 02E-88081-5 PD045PA08SRS5AC00R0000000 02E-87761-5 PD045PA08SRS5AL00E1200000 02E-87890-5 PD045PA08SRS5AL00R000PB00 02E-86725-5 PD045PB01SRS5AALTR0000000 02E-88371-5 PD045PB04SRS5AALTR0000000 02E-87978-5 PD045PB04SRS5AAM0T00A0000 02E-88202-5 PD045PB04SRS5AAMTR000PB00 02E-87026-5 PD045PB04SRS5AC00E1000000 02E-87367-5 PD045PB04SRS5AC00E100PB00 02E-86542-5 PD045PB04SRS5AC00R0000000 02E-86676-5 PD045PB04SRS5AC00R100PB00 02E-86624-5 PD045PB04SRS5AC00R3000000 02E-86997-5 PD045PB04SRS5AC00T00BPB00 02E-86615-5 PD045PB04SRS5AL00R1000000 02E-85774-5 PD045PB04SRS5AL20R000PB00 02E-86893-5 PD045PB04SRU5AC00R0000000 02E-87603-5 PD045PB08SRS5AALTR0000000 02E-88372-5 PD045PM04SLS5AC00R1000000 02E-86255-5 PD045PM04SRS5AC00E0000000 02E-87607-5 PD045PM04SRS5AC00R0000000 02E-87995-5 PD045PM04SRS5AC00T00A0000 02E-88059-5 PD045PM04SRS5AL00R0000000 02E-86815-5 PD045PM04SRS5AL00R1000000 02E-86570-5 PD060PC02SRS5AAM0E1200000 02E-86444-5 PD060PC02SRS5AAM0S1000000 02E-86315-5 PD060PC02SRS5AAM0S100PB00 02E-86564-5 PD060PC02SRS5AAM0T00A0000 02E-86600-5 PD060PC02SRS5AAM0T00B0000 02E-87911-5 PD060PC02SRS5AAM0T00C0000 02E-88223-5 PD060PC02SRS5AAM0T00Q0000 02E-87580-5 PD060PC02SRS5AAMTE100PB00 02E-88861-5 PD060PC02SRS5AAMTE1200000 02E-86660-5 PD060PC02SRS5AAMTE120PB00 02E-86652-5 PD060PC02SRS5AAMTE3200000 02E-88521-5 PD060PC02SRS5AAMTS1000000 02E-87243-5 PD060PC02SRS5AAMTT00A0000 02E-87474-5 PD060PC02SRS5AAN0S0000000 02E-87517-5 PD060PC02SRS5AC00E0000000 02E-86207-5 PD060PC02SRS5AC00E1000000 02E-86455-5 PD060PC02SRS5AC00E100PB00 02E-88006-5 PD060PC02SRS5AC00E1200000 02E-86309-5 PD060PC02SRS5AC00E120PB00 02E-86520-5 | PD060PC02SRS5AC00E3000000 02E-86613-5 PD060PC02SRS5AC00S0000000 02E-85985-5 PD060PC02SRS5AC00S1000000 02E-85987-5 PD060PC02SRS5AC00S100PB00 02E-85986-5 PD060PC02SRS5AC00T00A0000 02E-86051-5 PD060PC02SRS5AC00T00B0000 02E-86052-5 PD060PC02SRS5AC00T00C0000 02E-86053-5 PD060PC02SRS5AC00T00K0000 02E-88679-5 PD060PC02SRS5AC10T00B0000 02E-86891-5 PD075PA01SRS5AAM0E0000000 02E-86569-5 PD075PA01SRS5AAM0S0000000 02E-84908-5 PD075PA01SRS5AAN0S0000000 02E-83167-5 PD075PA01SRS5AC00S1000000 02E-82965-5 PD075PA01SRS5AC00S100PB00 02E-87555-5 PD075PA01SRS5AL00S0000000 02E-87548-5 PD075PA02SLS5AL00S0000000 02E-86148-5 PD075PA02SRS5AAE0S1000000 02E-82543-5 PD075PA02SRS5AAM0S1000000 02E-88320-5 PD075PA02SRS5AAM0T00CPB00 02E-85069-5 PD075PA02SRS5AAMTS0000000 02E-88424-5 PD075PA02SRS5AAMTS1000000 02E-87991-5 PD075PA02SRS5AC00E1000000 02E-84852-5 PD075PA02SRS5AC00S0000000 02E-83863-5 PD075PA02SRS5AC00S000PB00 02E-86755-5 PD075PA02SRS5AC00S1000000 02E-82499-5 PD075PA02SRS5AC00S2000000 02E-84491-5 PD075PA02SRS5AC00T00H0000 02E-84133-5 PD075PA02SRS5AC10S100PB00 02E-84353-5 PD075PA02SRS5AL00E0000000 02E-84143-5 PD075PA02SRS5AL00E1000000 02E-84973-5 PD075PA02SRS5AL00S1000000 02E-82511-5 PD075PA04SRS5AAM0S1000000 02E-88797-5 PD075PA04SRS5AAM0S3000000 02E-88595-5 PD075PA04SRS5AC00S0000000 02E-85579-5 PD075PA04SRS5AC00T00C0000 02E-83381-5 PD075PB01SRS5AAN0S0000000 02E-83169-5 PD075PB01SRS5AAN0T00C0000 02E-83166-5 PD075PB02SRS5AAM0S1000000 02E-85710-5 PD075PB02SRS5AAM0S100PB00 02E-85362-5 PD075PB02SRS5AC00S100PB00 02E-84570-5 PD075PB04SLS5AL20T00BPB00 02E-87489-5 PD075PB04SRS5AAM0E0000000 02E-83122-5 PD075PB04SRS5AAM0S0000000 02E-85905-5 PD075PB04SRS5AAM0S1000000 02E-84656-5 | PD075PB04SRS5AAM0T00APB00 02E-85547-5 PD075PB04SRS5AAM0T00BPB00 02E-85008-5 PD075PB04SRS5AAM0T00H0000 02E-88460-5 PD075PB04SRS5AAN0S0000000 02E-83983-5 PD075PB04SRS5AAN0S1000000 02E-85034-5 PD075PB04SRS5AC00E000PB00 02E-84671-5 PD075PB04SRS5AC00S0000000 02E-83981-5 PD075PB04SRS5AC00S1000000 02E-82864-5 PD075PB04SRS5AC00T00A0000 02E-84397-5 PD075PB04SRS5AC00T00APB00 02E-84848-5 PD075PB04SRS5AC00T00B0000 02E-87792-5 PD075PB04SRS5AC00T00C0000 02E-87362-5 PD075PB04SRS5AC10S0000000 02E-88730-5 PD075PB04SRS5AL00E000PB00 02E-86217-5 PD075PB04SRS5AL00S0000000 02E-83982-5 PD075PB04SRS5AL00S1000000 02E-85405-5 PD075PB04SRS5AL00S100PB00 02E-86244-5 PD075PB04SRS5AL00S3000000 02E-88005-5 PD075PB04SRS5AL00T00A0000 02E-85011-5 PD075PB04SRS5AL0TS0000000 02E-85203-5 PD075PB04SRS5AL0TT00A0000 02E-85206-5 PD075PC01SLS5AL00S1000000 02E-86683-5 PD075PC01SLS5AL00T00B0000 02E-84815-5 PD075PC01SRS5AAF0T00A0000 02E-84590-5 PD075PC01SRS5AAM0E0000000 02E-85254-5 PD075PC01SRS5AAM0S0000000 02E-86348-5 PD075PC01SRS5AAM0S1000000 02E-86583-5 PD075PC01SRS5AAM0T00A0000 02E-84589-5 PD075PC01SRS5AAM0T00CPB00 02E-88453-5 PD075PC01SRS5AC00S1000000 02E-84999-5 PD075PC01SRS5AC00S100PB00 02E-86966-5 PD075PC01SRS5AC10E1000000 02E-85469-5 PD075PC01SRS5AL00E0000000 02E-87319-5 PD075PC01SRS5AL00T00B0000 02E-85314-5 PD075PC01SRS5AL0TT00CPB00 02E-88450-5 PD075PC02SLS5AAM0E000PB00 02E-87058-5 PD075PC02SLS5AAMTE100PB00 02E-88129-5 PD075PC02SLS5AAMTS1000000 02E-84897-5 PD075PC02SLS5AC00S0000000 02E-86771-5 PD075PC02SLS5AC00S1000000 02E-86621-5 PD075PC02SLS5AC00T00C0000 02E-88045-5 PD075PC02SLS5AL00E1000000 02E-87300-5 PD075PC02SLS5AL0TS1000000 02E-84900-5 PD075PC02SRS5AAM0S0000000 02E-84687-5 |
PD075PC02SRS5AAM0S1000000 02E-85077-5 PD075PC02SRS5AAM0S100PB00 02E-88452-5 PD075PC02SRS5AAM0S2000000 02E-85795-5 PD075PC02SRS5AAM0T00A0000 02E-85664-5 PD075PC02SRS5AAM0T00B0000 02E-85372-5 PD075PC02SRS5AAM0T00C0000 02E-85282-5 PD075PC02SRS5AAM0T00J0000 02E-88374-5 PD075PC02SRS5AAM0T00Q0000 02E-86828-5 PD075PC02SRS5AAMTE0000000 02E-85815-5 PD075PC02SRS5AAMTS0000000 02E-85718-5 PD075PC02SRS5AAMTS1000000 02E-85298-5 PD075PC02SRS5AAMTT00C0000 PD075PC02SRS5AAN0S100PB00 02E-85234-5 PD075PC02SRS5AC00E100PB00 02E-86206-5 PD075PC02SRS5AC00S0000000 02E-85099-5 PD075PC02SRS5AC00S1000000 02E-85216-5 PD075PC02SRS5AC00S100PB00 02E-86967-5 PD075PC02SRS5AC00T00A0000 02E-85546-5 PD075PC02SRS5AC00T00B0000 02E-87065-5 PD075PC02SRS5AC00T00C0000 02E-85374-5 PD075PC02SRS5AC10E0000000 02E-87780-5 PD075PC02SRS5AL00S0000000 02E-85707-5 PD075PC02SRS5AL00S1000000 02E-85804-5 PD075PC02SRS5AL00T00C0000 02E-84991-5 PD075PC02SRS5AL0TS0000000 02E-86978-5 PD075PC02SRS5AL0TS1000000 02E-86688-5 PD075PC02SRS5AL20S1000000 02E-86827-5 PD075PC02SRU5AC00T00A0000 02E-86744-5 PD075PC02SRU5AL00S0000000 02E-87073-5 PD075PC04SRS5AAM0S1000000 02E-86504-5 PD075PD01SRS5AAM0S0000000 02E-85678-5 PD075PD01SRS5AC10S100PB00 02E-85698-5 PD075PD02SRS5AAM0S1000000 02E-88321-5 PD075PD02SRS5AC00E000PB00 02E-86362-5 PD075PD02SRS5AC00S0000000 02E-86691-5 PD075PD04SRS5AL20S1000000 02E-88605-5 PD075PM02SRS5AC00S1000000 02E-88036-5 PD075PM04SLS5AL00S3000000 02E-83918-5 PD075PM04SRS5AAM0S1000000 02E-85860-5 PD075PM04SRS5AAM0S3000000 02E-88295-5 PD075PM04SRS5AAMTS0000000 02E-86888-5 PD075PM04SRS5AC00E0000000 02E-84468-5 PD075PM04SRS5AC00S1000000 02E-85508-5 PD075PM04SRS5AC00S3000000 02E-88357-5 | PD100PS02SRS5AC00S1000000 02E-83181-5 PD100PS02SRS5AC00S100PB00 02E-84231-5 PD100PS02SRS5AC00T00A0000 02E-83784-5 PD100PS02SRS5AC00T00B0000 02E-83291-5 PD100PS02SRS5AC00T00BPB00 02E-84803-5 PD100PS02SRS5AC00T00C0000 02E-84238-5 PD100PS02SRS5AC00T00N0000 02E-83288-5 PD100PS02SRS5AC00T00NPB00 02E-84052-5 PD100PS02SRS5AC10E0000000 02E-83999-5 PD100PS02SRS5AC10E1000000 02E-84892-5 PD100PS02SRS5AC10E100PB00 02E-84893-5 PD100PS02SRS5AC10S1000000 02E-85326-5 PD100PS02SRS5AC10S100PB00 02E-83961-5 PD100PS02SRS5AC10S3000000 02E-84810-5 PD100PS02SRS5AC10T00A0000 02E-83377-5 PD100PS02SRS5AC10T00K0000 02E-86184-5 PD100PS02SRS5AC10T00N0000 02E-84110-5 PD100PS02SRS5AL00E0000000 02E-83206-5 PD100PS02SRS5AL00E1000000 02E-85461-5 PD100PS02SRS5AL00S0000000 02E-84121-5 PD100PS02SRS5AL00S000PB00 02E-87860-5 PD100PS02SRS5AL00S1000000 02E-83187-5 PD100PS02SRS5AL00S100PB00 02E-88939-5 PD100PS02SRS5AL00T00A0000 02E-87299-5 PD100PS02SRS5AL00T00B0000 02E-83386-5 PD100PS02SRS5AL00T00C0000 02E-83756-5 PD100PS02SRS5AL00T00CPB00 02E-83839-5 PD100PS02SRS5AL00T00N0000 02E-86920-5 PD100PS02SRS5AL00T00QPB00 02E-84019-5 PD100PS02SRS5AL0TS0000000 02E-85021-5 PD100PS02SRS5AL0TS000PB00 02E-85480-5 PD100PS02SRS5AL0TS1000000 02E-88700-5 PD100PS02SRS5AL0TT00A0000 02E-86488-5 PD100PS02SRS5ASY2E0000000 02E-87581-5 PD100PS02SRS5ASY2T00B0000 02E-88117-5 PD100PS02SRU5AAM0S0000000 02E-85628-5 PD100PS02SRU5AAM0S1000000 02E-87111-5 PD100PS02SRU5AAM0T00A0000 02E-85630-5 PD100PS02SRU5AAM0T00B0000 02E-86842-5 PD100PS02SRU5AAM0T00C0000 02E-85631-5 PD100PS02SRU5AAM0T00H0000 02E-87540-5 PD100PS02SRU5AAM0T00J0000 02E-87765-5 PD100PS02SRU5AAM0T00K0000 02E-87591-5 PD100PS02SRU5AAM0T00N0000 02E-87341-5 | PD100PS02SRU5AAM0T00Q0000 02E-85732-5 PD100PS02SRU5AAMTT00B0000 02E-87941-5 PD100PS02SRU5AAN0S1000000 02E-88577-5 PD100PS02SRU5AAN0T00B0000 02E-88057-5 PD100PS02SRU5AAN0T00J0000 02E-88029-5 PD100PS02SRU5AC00E1000000 02E-87654-5 PD100PS02SRU5AC00S0000000 02E-85618-5 PD100PS02SRU5AC00S1000000 02E-87303-5 PD100PS02SRU5AC00S100PB00 02E-88177-5 PD100PS02SRU5AC00T00C0000 02E-85621-5 PD100PS02SRU5AC00T00K0000 02E-88347-5 PD100PS02SRU5AC00T00N0000 02E-85622-5 PD100PS02SRU5AC10T00C0000 02E-87645-5 PD100PS02SRU5AL00S0000000 02E-87198-5 PD100PS02SRU5AL00S000PB00 02E-86878-5 PD100PS02SRU5AL00S1000000 02E-88062-5 PD100PS02SRU5AL20T00APB00 02E-87953-5 PD100PS04SRS5AC00E0000000 02E-88426-5 PD100PS04SRS5AC00S0000000 02E-85049-5 PD100PS06SRS5AALTT00C0000 02E-87999-5 PD100PS06SRS5AAM0S0000000 02E-85929-5 PD100PS06SRS5AAN0T00B0000 02E-88547-5 PD100PS06SRS5AAN0T00J0000 02E-88551-5 PD100PS06SRS5AC00S0000000 02E-85363-5 PD100PS06SRS5AC00S1000000 02E-87545-5 PD100PS06SRS5AL00S0000000 02E-88401-5 PD100PS06SRS5AL00T00C0000 02E-87985-5 PD100PS06SRU5AC00T00H0000 02E-87884-5 PD100PS06SRU5AL00S0000000 02E-88014-5 PD140PA01SLS5AC00E0000000 02E-84853-5 PD140PA01SRS5AC00S1000000 02E-82949-5 PD140PA01SRS5AL00E100PB00 02E-85679-5 PD140PA01SRS5AL00T00B0000 02E-87369-5 PD140PA01SRS5AL00T00CPB00 02E-87416-5 PD140PA02SRS5AAN0S1000000 02E-87494-5 PD140PA02SRS5AAN0T00APB00 02E-88982-5 PD140PA02SRS5AC00E100PB00 02E-86219-5 PD140PA02SRS5AC00S0000000 02E-83898-5 PD140PA02SRS5AC00S1000000 02E-84347-5 PD140PA02SRS5AC00T00B0000 02E-86730-5 PD140PA02SRS5AC10S0000000 02E-83899-5 PD140PS02SRS5AC00S0000000 02E-85834-5 PD140PS02SRS5AC00S000PB00 02E-88166-5 PD140PS02SRS5AC00S1000000 02E-82487-5 | PD140PS02SRS5AC00S100PB00 02E-83296-5 PD140PS02SRS5AC00S2000000 02E-88067-5 PD140PS02SRS5AC00T00A0000 02E-84461-5 PD140PS02SRS5AC00T00B0000 02E-84112-5 PD140PS02SRS5AC00T00C0000 02E-83841-5 PD140PS02SRS5AC00T00D0000 02E-85867-5 PD140PS02SRS5AC00T00DPB00 02E-88618-5 PD140PS02SRS5AC00T00N0000 02E-84647-5 PD140PS02SRS5AC00T00NPB00 02E-88619-5 PD140PS02SRS5AC00T00Q0000 02E-88915-5 PD140PS02SRS5AC10E1000000 02E-87676-5 PD140PS02SRS5AC10S0000000 02E-84104-5 PD140PS02SRS5AC10S1000000 02E-88316-5 PD140PS02SRS5AC10S100PB00 02E-86850-5 PD140PS02SRS5AC10T00B0000 02E-86461-5 PD140PS02SRS5AC10T00K0000 02E-87708-5 PD140PS02SRS5AL00E100PB00 02E-88652-5 PD140PS02SRS5AL00S1000000 02E-82423-5 PD140PS02SRS5AL00S100PB00 02E-84163-5 PD140PS02SRS5AL00T00A0000 02E-83683-5 PD140PS02SRS5AL00T00B0000 02E-82524-5 PD140PS02SRS5AL00T00BPB00 02E-85988-5 PD140PS02SRS5AL00T00CPB00 02E-87353-5 PD140PS02SRS5AL00T00K0000 02E-88495-5 PD140PS02SRS5AL00T00NPB00 02E-84961-5 PD140PS02SRS5AL0TS0000000 02E-87520-5 PD140PS02SRS5AL0TS000PB00 02E-86586-5 PD140PS02SRS5AL0TS1000000 02E-87376-5 PD140PS02SRS5AL0TS100PB00 02E-87534-5 PD140PS02SRS5AL0TS3000000 02E-88449-5 PD140PS02SRS5AL0TT00B0000 02E-85545-5 PD140PS02SRS5AL0TT00CPB00 02E-85522-5 PD140PS02SRS5AL0TT00J0000 02E-86593-5 PD140PS02SRS5AL20S1000000 02E-85835-5 PD140PS02SRS5APY2S0000000 02E-87913-5 PD140PS02SRS5ASD2E0000000 02E-88913-5 PD140PS02SRS5ASY2E0000000 02E-87164-5 PD140PS02SRS5ASY2T00B0000 02E-87352-5 PD140PS02SRS5AUD2S000PB00 02E-89043-5 PD140PS02SRS5AUD2S300PB00 02E-88692-5 PD140PS02SRU5AAM0E0000000 02E-88232-5 PD140PS02SRU5AAM0E1000000 02E-88216-5 PD140PS02SRU5AAM0S0000000 02E-85632-5 PD140PS02SRU5AAM0S1000000 02E-87495-5 |
PD140PS02SRU5AAM0T00A0000 02E-85633-5 PD140PS02SRU5AAM0T00B0000 02E-86843-5 PD140PS02SRU5AAM0T00C0000 02E-85634-5 PD140PS02SRU5AAM0T00CPB00 02E-87590-5 PD140PS02SRU5AAM0T00H0000 02E-87902-5 PD140PS02SRU5AAN0S0000000 02E-88578-5 PD140PS02SRU5AAN0S1000000 02E-88579-5 PD140PS02SRU5AAN0T00B0000 02E-87263-5 PD140PS02SRU5AAN0T00D0000 02E-87506-5 PD140PS02SRU5AAN0T00N0000 02E-88304-5 PD140PS02SRU5AC00E1000000 02E-87655-5 PD140PS02SRU5AC00S0000000 02E-85619-5 PD140PS02SRU5AC00S000PB00 02E-87974-5 PD140PS02SRU5AC00S1000000 02E-87706-5 PD140PS02SRU5AC00S100PB00 02E-87822-5 PD140PS02SRU5AC00T00C0000 02E-86745-5 PD140PS02SRU5AC00T00J0000 02E-87766-5 PD140PS02SRU5AL00S0000000 02E-87262-5 PD140PS02SRU5AL00S000PB00 02E-86880-5 PD140PS02SRU5AL00S1000000 02E-87088-5 PD140PS02SRU5AL00T00A0000 02E-86927-5 PD140PS04SRS5AAN0S3000000 02E-86719-5 P1045PS08SLM5AL20R0200000 P1045PS08SRM5AAM0E1200000 P1045PS08SRM5AAM0S1000000 P1045PS08SRM5AL00R000PB00 P1045PS08SRM5AL20R000PB00 P1060AM287000 P1060AM287001 P1060PA01SLM5AAN0T00BPB00 P1060PA01SLM5AAN0T00CPB00 P1060PA01SLM5AL00E100PB00 P1060PA01SRM5AL00S000PB00 P1060PA02SLM5AL00S000PB00 P1060PA02SRM5AL00S000PB00 P1060PC01SLM5AL00E1200000 P1060PC01SRM5AAN0T00B0000 P1060PC01SRM5AC00E1200000 P1060PC01SRM5AC00T00B0000 P1060PC02SRM5AC00E1200000 P1060PD02SRM5AALTE1400000 P1060PD02SRM5AAMTE1400000 P1060PD02SRM5AC00E1400000 P1060PS01SLM5AC00S0000000 | P1060PS01SLM5AC00T00B0000 P1060PS01SLM5AL00E0000000 P1060PS01SLM5AL00S000PB00 P1060PS01SLM5AL00T00CPB00 P1060PS01SRM5AAN0E1200000 P1060PS01SRM5AAN0T00BPB00 P1060PS01SRM5AC00E1000000 P1060PS01SRM5AC00S0000000 P1060PS01SRM5AC00T00CPB00 P1060PS01SRM5AL00S0000000 P1060PS01SRM5AL00S000PB00 P1060PS01SRM5AL00T00A0000 P1060PS01SRM5AL00T00BPB00 P1060PS01SRM5AL00T00CPB00 P1060PS01SRM5AL00T00KPB00 P1060PS02SLM5AALTE0000000 P1060PS02SLM5AL00E1000000 P1060PS02SLM5AL00S000PB00 P1060PS02SRM5AAN0S0000000 P1060PS02SRM5AL00E1000000 P1060PS02SRM5AL00S1000000 P1060PS04SRM5AL00S000PB00 P1075PA01SLM5AC00S0000000 P1075PA01SLM5AC00T00Q0000 P1075PA01SLM5AL00E0000000 P1075PA01SLM5AL00S0000000 P1075PA01SLM5AL00S000PB00 P1075PA01SLM5AL00S3000000 P1075PA01SLM5AL00T00APB00 P1075PA01SRM5AC00E0000000 P1075PA01SRM5AL00E000PB00 P1075PA01SRM5AL00E1000000 P1075PA01SRM5AL00S0000000 P1075PA01SRM5AL00S000PB00 P1075PA01SRM5AL00S1000000 P1075PA01SRM5AL00T00APB00 P1075PA01SRM5AL00T00B0000 P1075PA01SRM5AL00T00BPB00 P1075PA01SRM5AL00T00CPB00 P1075PA01SRM5AL0TS300PB00 P1075PA02SLM5AL00S000PB00 P1075PA02SLM5AL00T00B0000 P1075PA02SRM5AC00T00A0000 P1075PA02SRM5AC00T00B0000 | P1075PA02SRM5AC00T00H0000 P1075PA02SRM5AL00S0000000 P1075PA02SRM5AL00S000PB00 P1075PA02SRM5AL00T00A0000 P1075PA02SRM5AL00T00B0000 P1075PB04SRM5AC00S1000000 P1075PB04SRM5AL00S1000000 P1075PC01SLM5AC00T00A0000 P1075PC01SLM5AL00E0000000 P1075PC01SLM5AL00E000PB00 P1075PC01SLM5AL00E1000000 P1075PC01SLM5AL00S0000000 P1075PC01SLM5AL00T00A0000 P1075PC01SLM5AL00T00C0000 P1075PC01SLM5AL00T00Q0000 P1075PC01SRM5AAM0T00C0000 P1075PC01SRM5AAMTT00A0000 P1075PC01SRM5AC00S0000000 P1075PC01SRM5AC00S1000000 P1075PC01SRM5AC00T00C0000 P1075PC01SRM5AL00E0000000 P1075PC01SRM5AL00E1000000 P1075PC01SRM5AL00S0000000 P1075PC01SRM5AL00S000PB00 P1075PC01SRM5AL00S1000000 P1075PC01SRM5AL00T00A0000 P1075PC01SRM5AL00T00C0000 P1075PC01SRM5AL00T00Q0000 P1075PC01SRM5AL00T01A0000 P1075PC01SRM5AL00T01B0000 P1075PC01SRM5AL0TS100PB00 P1075PC01SRM5AL0TT00APB00 P1075PC01SRM5AL20T00B0000 P1075PC02SRM5AL00S0000000 P1075PD01SLM5AL00E000PB00 P1075PD01SLM5AL00S000PB00 P1075PD01SRM5AL0TT00APB00 P1075PM01SRM5AL00S2000000 P1075PS01SLM5AAM0T00B0000 P1075PS01SLM5AC00E0000000 P1075PS01SLM5AC00E1000000 P1075PS01SLM5AC00S1000000 P1075PS01SLM5AC00S100PB00 P1075PS01SLM5AC10T00C0000 | P1075PS01SLM5AL00E0000000 P1075PS01SLM5AL00E0100000 P1075PS01SLM5AL00E1000000 P1075PS01SLM5AL00S0000000 P1075PS01SLM5AL00S000PB00 P1075PS01SLM5AL00S1000000 P1075PS01SLM5AL00S3000000 P1075PS01SLM5AL00T00A0000 P1075PS01SLM5AL00T00B0000 P1075PS01SLM5AL00T00BPB00 P1075PS01SLM5AL00T00C0000 P1075PS01SLM5AL00T00Q0000 P1075PS01SLM5AL0TS0000000 P1075PS01SLM5AL0TT00C0000 P1075PS01SLM5AL20S000PB00 P1075PS01SLM5AL20T00APB00 P1075PS01SRM5AAE0E000PB00 P1075PS01SRM5AAE0T00BPB00 P1075PS01SRM5AAM0E0000000 P1075PS01SRM5AAM0E000PB00 P1075PS01SRM5AAM0S0000000 P1075PS01SRM5AAM0S1000000 |
|
