XLF-A4VG 32 series A4VG28 A4VG40 A4VG56 A4VG71 A4VG90 A4VG125 A4VG180 A4VG250 hydraulic Axial piston variable pump

XLF-A4VG 32 series A4VG28 A4VG40 A4VG56 A4VG71 A4VG90 A4VG125 A4VG180 A4VG250 hydraulic Axial piston variable pump

▶ High-pressure pump for applications in closed circuits

▶ Size 28 to 250

▶ Nominal pressure 400 bar

▶ Maximum pressure 450 bar

▶ Closed circuit

Quantity:
Warranty:	1 year
Availability:





Inquire Add to Basket

Model:
A4VG
Brand:
XLF
Code:
00001

Product Description

|

Product technical data

XLF-A4VG Axial Piston Fixed Pump Features

1. Fully interchangeable with the original brand

2. Very competitive price

3. Low noise, high efficiency, high reliability, long service life

4. Small size, high power density

5. Excellent oil absorption properties.

6. 1 year warranty

7. For engineering equipment, Marine and boating and industrial equipment, etc.

8. For axial piston pump with open loop.

9. Continuous working pressure up to 280 bar, instantaneous maximum working pressure up to 450 bar.

10. Flow proportional to drive speed and displacement and can be achieved by adjusting the variable lock Angle

11. There are constant pressure, constant power pressure, constant voltage flow and other control methods, as well as the reaction rate control

12. Drive shaft can withstand axial and radial loads

13. Sae and iso mounting flange

14. For the structure of the axis of passage and for a multi-loop system

15. Start at any time under pressure.

The main hydraulic piston pumps and hydraulic motor in our factory . We can provide a pretty good replacement for these original series products, if you are looking for these models, we are just the right supplier you deserve cooperation for a long time.

|

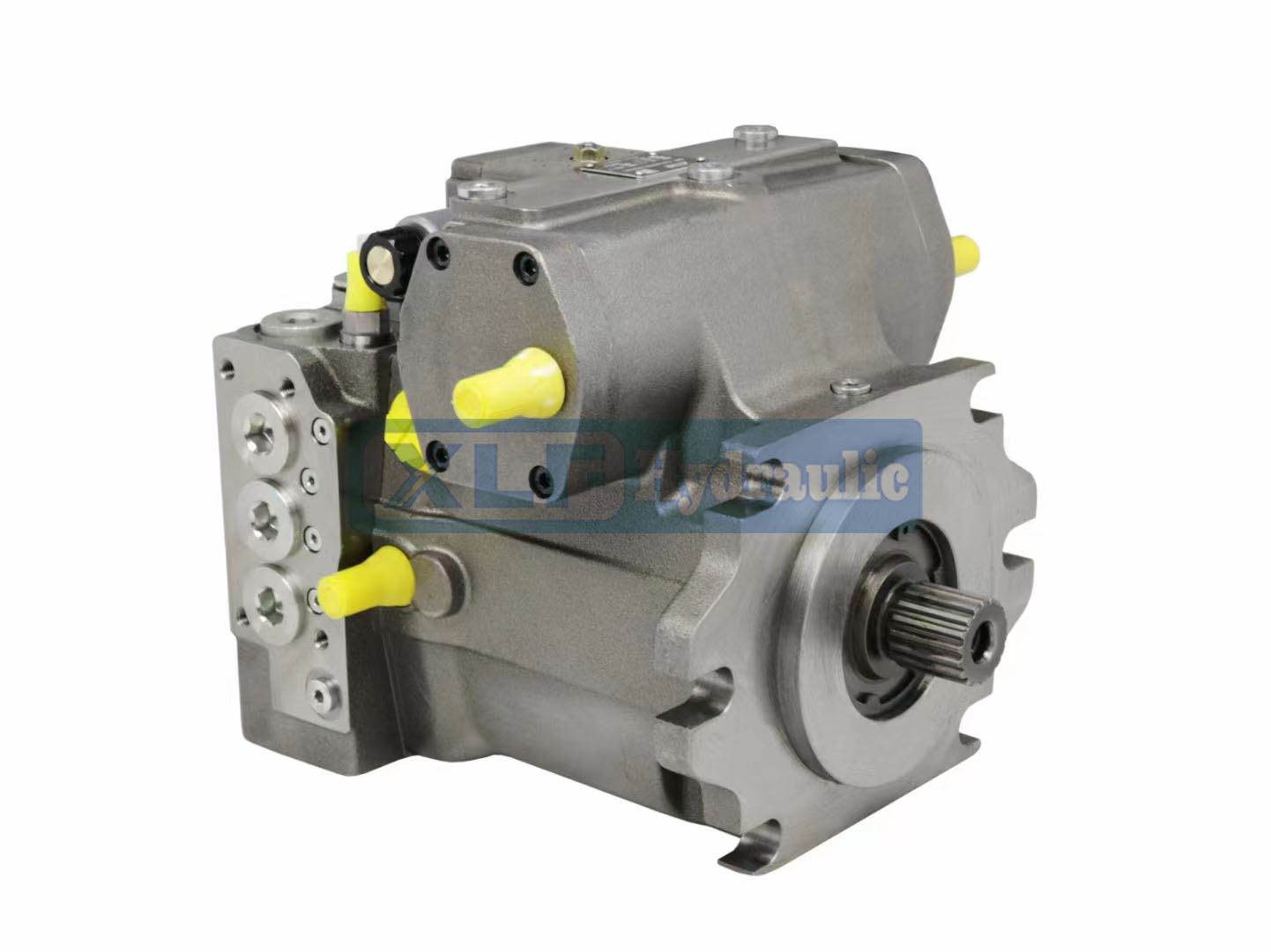

XLF-A4VG Axial Piston Fixed Pump Product detail picture

A4VG (3)

|

Application Video

|

XLF-A4VG Axial Piston Fixed Pump Technical data

Technical data
Size	NG	28	40	56	71	90	125	180
Geometric displacement,per revolution variable pump	Vg max cm³	28	40	56	71	90	125	180
boost pump (at p=20 bar)	Vg sp cm³	6.1	8.6	11.6	19.6	19.6	28.3	39.8
Rotational speed1 maximum at Vgmax	nnom rpm	4250	4000	3600	3300	3050	2850	2500
limited maximum2	nmax1 rpm	4500	4200	3900	3600	3300	3250	2900
intermittent maximum3	nmax2 rpm	5000	5000	4500	4100	3800	3450	3000
minimum	nmin rpm	500	500	500	500	500	500	500
Flow at nnom and Vgmax	Qv l/min	119	160	202	234	275	356	450
Power4 at nnom,Vg max and Ap=400 bar	P kW	79	107	134	156	183	238	300
Torque4 with Vg max and Ap=400 bar	M Nm	178	255	357	452	573	796	1146
Ap=100 bar	M Nm	45	64	89	113	143	199	286
Rotary stiffness of drive shaft S	C kNm/rad	31.4	69	80.8	98.8	158.1	218.3	244.5
T	C kNm/rad	一	一	95	120.9	一	252.1	318.4
A	C kNm/rad	一	79.6	95.8	142.4	176.8	256.5	一
Z	C kNm/rad	32.8	67.5	78.8	122.8	137	223.7	319.6
U	C kNm/rad		50.8			107.6		一
Moment of inertia of the rotary group	Jrw kgm	0.0022	0.0038	0.0066	0.0097	0.0149	0.0232	0.0444
Maximum angular acceleration⁵	a rad/s⊃1;	38000	30000	24000	21000	18000	14000	11000
Case volume	V	0.9	1.1	1.5	1.3	1.5	2.1	3.1
Weight (without through drive)approx.6	m kg	29	31	38	50	60	80	101

XLF-A4VSO Applicable model

R902063240	A4VG125HWD3L/32R-NZF02F071K	R902131523	A4VG71DA1D8/32R-NSF02F021BP
R902072787	A4VG28DGDT1/32R-NSC10F045S	R902131609	A4VG125EP4DT1/32R-NZF02F001BP
R902074032	A4VG90HWDT1/32L-NZF02F001S	R902131820	A4VG250HD3D1/32R-NZD10F011D
R902080089	A4VG56HWD2/32R-NZC02F003S	R902131969	A4VG56EP4D1/32L-NAC02F075SP
R902081217	A4VG180NVDT1/32R-NZD02F021S	R902133053	A4VG125HD3DMT1/32R-NZF02F001D
R902085521	A4VG71DA2D7/32R-NZF02F021SP	R902133113	A4VG125EP3DM1/32R-NAF02F071DP
R902085522	A4VG125DA2D7/32R-NZF02F021SP	R902133354	A4VG125HD3D1/32R-NSF02F021D
R902085703	A4VG71HWD2/32R-NZF02F071P	R902134324	A4VG250HD3D1/32L-NSD10F041D
R902085891	A4VG71HWDT1/32R-NAF02K041E	R902134481	AA4VG140EP4D1/32R-NXF63F071DP
R902088221	A4VG90HWD2/32R-NZF02F071S	R902136132	A4VG125HD3D2/32R-NAF02F021S
R902089470	A4VG71DA1D2/32R-NSF02F011PP	R902136173	A4VG71DA1D2/32R-NZF02F021SQ
R902090711	AA4VG71NVDMT1/32L-NSF52F001D	R902136204	A4VG125HD9MT1/32R-NSF02F041S
R902092401	AA4VG180DWD1/32L-NSD52F071D	R902136209	A4VG125EP0MT1/32R-NSF02F021SP
R902096442	A4VG71DA1D2/32R-NAF02F001DQ	R902136259	A4VG125HD9MT1/32R-NSF02XXX1S
R902099864	A4VG28DGDT1/32R-NSC10K043E	R902136267	A4VG140HD9MT1/32R-NSF02F021S
R902099930	AA4VG250DWDMT1/32L-NSD60F071S	R902136370	A4VG180HD3DM1/32L-NSD02F021D
R902106041	A4VG90HWD1/32R-NAF02F021P	R902137498	AA4VG180EP4D1/32R-NSD60F071DP
R902108182	A4VG56HWDT1/32R-NZC02F016K	R902138600	A4VG180EP4DT1/32L-NZD02F001PP
R902110502	A4VG125DE1D1/32R-NZF02F071FP	R902138673	AA4VG105EP3D1/32R-NXFXXF021FC
R902111154	A4VG40HD3D2/32R-NZC02F023S	R902138976	A4VG180HD3DM1/32R-VSD02F001P
R902111163	A4VG40HD3D1/32R-NSC02F025S	R902146055	A4VG140EP4D1/32L-NSF02F001FP
R902111178	A4VG40HD3DT1/32L-NAC02F043D	R902146062	A4VG125EP3D1/32L-NZF02F001FP
R902111724	A4VG56EP4DM1/32R-NSC02F025PH	R902148231	A4VG40HD3DM1/32R-NSC02F046P
R902111872	A4VG56HD3D1/32R-NSC02F003D	R902148350	AA4VG250EP4DMT1/32R-NSD60F001DRP
R902111873	A4VG56HD3D1/32L-NSC02F005D	R902148549	AA4VG250EP4DT1/32L-NSD60F071DRP
R902111874	A4VG56HD3DM1/32L-NSC02F00XD	R902148574	AA4VG250EP4DT1/32L-NSD60F071DRP
R902111985	A4VG56HD3DT1/32L-NAC02F043D	R902148634	A4VG56HD3DT1/32L-NZC02F003P
R902112689	A4VG90HWDT1/32R-NZF02F021S	R902148645	A4VG250EP4DT1/32L-NZD10N001EP
R902112943	A4VG28DA1D8/32R-NZC10F015DP	R902149552	A4VG125EP4D1/32R-NAF02F021SP
R902113140	A4VG71EP4D1/32R-NSF02F011FP	R902150598	AA4VG125DGX1/32R-NSF52F69XF
R902113146	A4VG71EP4D1/32L-NSF02F001PP	R902151174	A4VG56DWDT1/32R-NTC02F045D
R902113204	A4VG71HD3D1/32R-NZF02F001S	R902151243	A4VG71HD3D2/32L-NZF02F001D
R902113237	A4VG71HD3DT1/32L-NZF02F041D	R902153005	A4VG125EZ2D1/32R-NZF02F001DP
R902113246	A4VG71HD3DT1/32L-NSF02F001D	R902153107	A4VG125HWDL1/32R-NZF02F021S
R902113374	AA4VG71HD3DMT1/32L-NSF52F041D	R902153146	A4VG90HD3D1/32R-NZF02F021F
R902117080	A4VG56EP4D1/32L-NSC02F025SP	R902153187	A4VG250HD3DT1/32R-NSD10F001D
R902118298	A4VG71EP3DT1/32R-NAF02F071FP	R902153216	A4VG125HD3DMT1/32L-NZF02F021F
R902118457	A4VG125HWD2/32R-NZF02F071S	R902153228	A4VG90EP4D1/32R-NZF02F001SP
R902119026	A4VG71EP4D1/32L-NZF02F001SP	R902154025	A4VG125HD3DM1/32R-NSF02F041B
R902119294	A4VG71EP4D1/32R-NAF02F071PP	R902154045	A4VG140EP4DT1/32L-NAF02F021SX
R902119321	A4VG250DA2D2/32R-NSD10F001DP	R902154054	A4VG140EP4DT1/32L-NAF02K691EX
R902120195	A4VG71EP3D1/32R-NSF02F071PP	R902154356	A4VG90EP4DT1/32L-NSF02F001SX
R902120242	A4VG40EP3D2/32R-NSC02F003PP	R902154366	A4VG71HD3DT2/32R-NZF02F021F
R902120398	A4VG125DA2D8/32R-NTF02F071FP	R902154520	A4VG180HWD7/32R-NSD02F021S
R902122244	A4VG56EP3D2/32R-NSC02F025PP	R902154798	A4VG90HD3DMT1/32L-NZF02F071S
R902122404	A4VG71EP4DT1/32R-NZF02F001SP	R902154950	A4VG71EP4DM1/32R-NZF02F001FX
R902122767	AA4VG90EP4D1/32L-NSF52K021EP	R902155505	A4VG125EP4D1/32L-NAF02F001DP
D902122800	A4VG90HD3DM1/32L-NZF02F⁰7XD	R902155530	A4VG250EP4D1/32L-NTD10F001DP
R902122874	A4VG90HD3DT2/32L-NZF02F021S	R902155611	A4VG250EP4DM1/32L-NZD10K073EP
R902123351	A4VG125EP4DT1/32R-NTF02F071BP	R902155647	A4VG250EP4DT1/32L-NTD10F021SP
R902125116	A4VG125EP4D1/32R-NSF02F021DP	R902155675	A4VG180EP4DM1/32L-NSD02F00XBP
R902125209	A4VG125HD3D1/32R-NZF02F001D	R902155728	A4VG140EP4DM1/32R-VZF02F001PP
R902125252	A4VG125HD3D2/32R-NTF02F691P	R902155734	A4VG180EP4DM1/32L-NZD02K023EP
R902125253	A4VG125HD3D2/32R-NSF02F021P	R902155773	A4VG250HD3DT1/32R-NSD10F011S
R902125968	A4VG125EP0MT1/32R-NSF02F691SP	R902155815	A4VG56EZ2DM1/32R-NSC02F003FP
R902125975	A4VG140HD9MT1/32R-NSF02F691S	R902155874	A4VG180EP4DT1/32R-NZD02F011SP
R902125976	A4VG125HD9MT1/32R-NSF02F691S	R902155900	A4VG180EP4DT1/32R-NZD02F011DP
P902128419	A4VG250EP4DMM1/32L-NSD10K07XEX	R902155941	A4VG180HD3D2/32L-NSD02FXX1P
B902128426	A4VG250EP4D1/32R-NZD10F001SP	R902155968	A4VG180EP4DM1/32L-NZD02K02XEP
R902128444	A4VG250EP4DT1/32R-NSD10F011DP	R902155989	A4VG180EP4D2/32L-NZD02F071DP
R902128445	A4VG250EP4D1/32R-NSD10F001DP	R902157531	A4VG40EP3D2/32R-NZC02F023PP
R902128461	A4VG250HD3D1/32R-NSD10F021S	R902157706	A4VG56DA1D4/32R-NZC02F025SP
R902128467	A4VG250HD3D1/32R-NSD10F691D	R902157987	A4VG71NVDT1/32R-NZF02F021S
R902128469	A4VG250HD3D1/32L-NSD10F001D	R902157988	A4VG56NVDT1/32R-NZC02F025S
R902128479	A4VG250HD3D1/32L-NZD10F001S	R902158141	A4VG180EP4D1/32R-NZD02F691SP
R902128480	A4VG250HD3D1/32R-NZD10F001D	R902158201	A4VG250HD3D1/32R-NSD10F071D
R902128482	A4VG250HD3DT1/32L-NZD10F001S	R902158365	A4VG90HD3DT1/32L-NZF02F021S
R902129162	A4VG125HD3DMT1/32L-NZF02F01XD	R902158391	A4VG180EP4DM1/32L-NSD02N003EP
R902129713	AA4VG180EP4DT1/32R-NSD52F001PP	R902158393	A4VG250EP4DM1/32L-NZD10K723EP
R902129723	A4VG180EP4D1/32R-NSD02F001DP	R902159323	A4VG90EP4DM1/32R-NZF02F071SP
R902129761	A4VG180HD3D1/32L-NSD02F001D	R902159467	A4VG250EP4DM1/32L-NZD10K07XEP
R902129764	A4VG180HD3D1/32L-NSD02F021D	R902159599	A4VG71HD3DT2/32L-NZF02F021S
R902129892	A4VG180HD9XMT1/32R-NSD02F011F	R902159612	A4VG90HD3DMT2/32L-NZF02F021B
R902129894	A4VG180HD3DMT1/32R-NZD02K021E	R902159633	A4VG250HD3DM2/32R-NZD10F041D
R902129897	A4VG180HD3D2/32R-NTD02F021S	R902159671	A4VG250EP4DMTX/32L-NZD10F021DP
R902129919	A4VG180EP4MT1/32R-NSD02F041SP	R902159695	A4VG90EP4D1/32R-NZF02F001SP
R902129920	A4VG180EP4MT1/32L-NSD02F071SP	R902159726	A4VG180DWDMT1/32R-NSD02F001D
R902131020	A4VG125EP3D1/32L-NSF10F021DC ES	R902159748	A4VG56EP4DT1/32L-NAC02K025EP
R902131079	A4VG250EP4D1/32R-NSD10F021DP	R902159902	A4VG90EZ2D1/32R-NAF02F071BP
R902131364	A4VG250HD3D1/32L-NSD10F071D	R902159912	A4VG56EP4DT2/32R-NZC02F025SP
B902131508	A4VG250HD3D1/32R-NZD10F721D	R902159944	AA4VG180EP4DMT1/32L-NTD52F071PP
R902131510	A4VG250HD3D1/32R-NSD10F001D	R902159979	A4VG180DGD2/32R-NTD02F021S
