| Pressure: | |
|---|---|
| Model: | |
| Weight: | |
| Warranty: | |
| Type: | |
| Product name: | |
| Quantity: | |

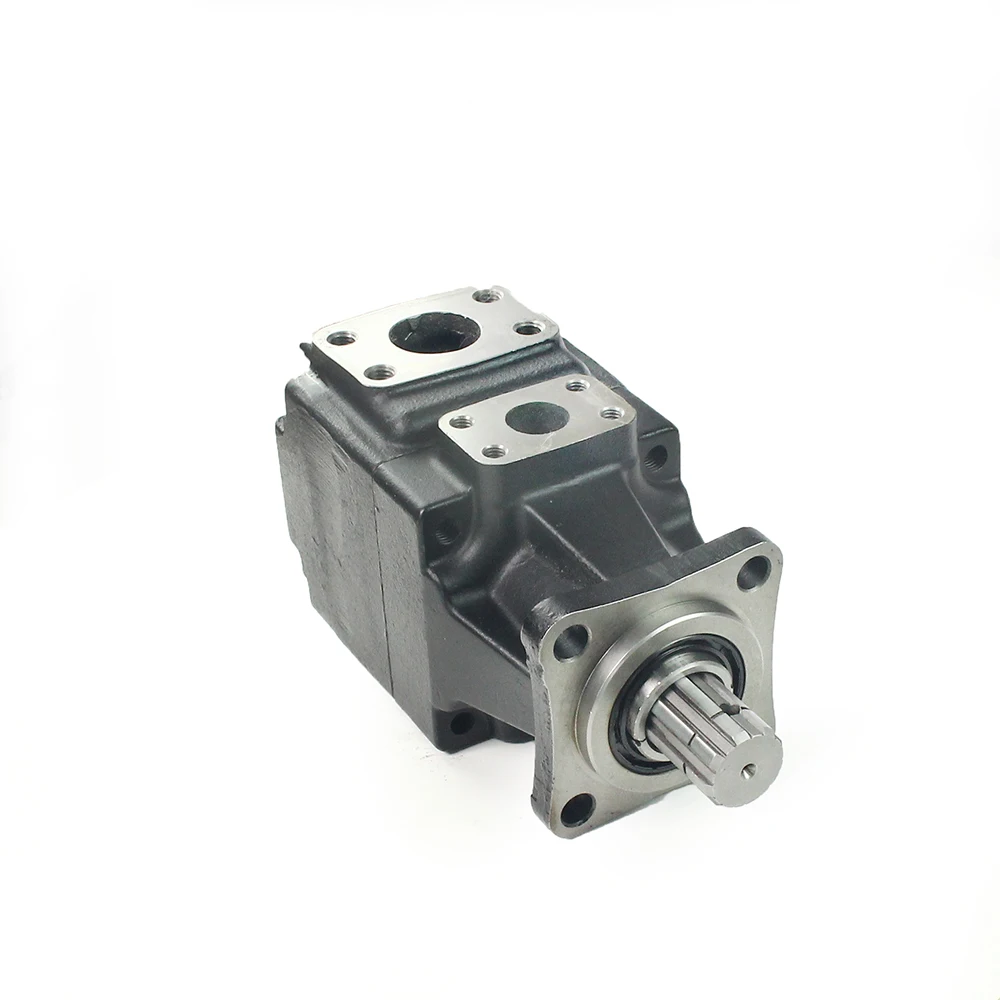

T6GC
Emanway
0053
A dowel pin vane structure that allows for operation at high pressures, low noise, and extended service life.
The ability to accommodate a wide viscosity range of hydraulic fluids, with the capability to start at low temperatures and function effectively at high temperatures.
The use of double-lipped vanes that contribute to high resistance to oil contamination and a broad operating speed range, with a maximum pressure rating of up to 32MPa and a maximum speed of 3600 rpm.
T6 Series Single Pump
| T6C | -17 | -1 | R | 0 | -A | 1 |
| Code of series | Displacement code | Shaft type | Direction of rotation | Outlet port position | Design No. | Sealing level |
| T6C | 03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31 | See of Shaft | (Viewed from the shaft end of pump) | 1-S1, NBR Nitrile rubber 5-S5, Fluoro rubber | ||
| R-Clockwise rotation L-Counterclockwise rotation | 00-Opposite inlet port 01-Inline with inlet 02-90°CCW from inlet 03-90° CW from inlet | A | ||||
| T6D | 14, 17, 20, 24, 28, 31,35,38, 42,45, 50, 61 | |||||
| T6E | 42, 45, 50, 52, 57, 62, 66, 72, 85 | |||||
| T6CC | -25 | -17 | -1 | R | 2 | -C | 1 | 10 |
| Code of series | Displacement of front pump | Displacement of rear pump | Shaft type | Rotation | Port | Design | Sealing level | Port |
| positions | number | dimensions | ||||||
| T6CC | 03, 05, 06, 08,10, 12, 14, 17, 20,22,25, 28,31 | 03,05,06,08,10,12,14, 17,20,22,25,28,31 | See of shaft | (viewed from shaft end of pump) R-Clockwise rotation L-Counter clockwise rotation | See pictures below | C | 1-S1, NBR Nitrile rubber 5-S5,Fluoro rubber | 00,01,10,11 See installation dimension No options |
| T6DC | 14, 17, 20, 24, 28,31,35, 38, 42, 45, 50, 61 | 03,05,06,08,10,12,14,17, 20,22,25,28,31 | ||||||
| T6EC | 42, 45, 50, 52,57, 62, 66, 72, 85 | 03,05,06,08,10,12,14,17, 20,22,25,28,31 | ||||||
| T6ED | 42, 45, 50, 52,57, 62, 66, 72, 85 | 14,17,20,24,28,31,35, 38,42,45,50,61 |
| T6DCC | -42 | -17 | -10 | -1 | -R | 2 | -A | 1 | 1 |
| Code of series | Displacement of front pump | Displacement of middle pump | Displacement of rear pump | Shaft type | Rotation | Port positions | Desiqn NO. | Sealing level | Port dimensions |
| T6CCC | 14, 17, 20, 24, 28, 31, 35, 38, 42, 45, 50, 61 | 03,05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31 | 03, 05, 06, 08, 20, 22, 25, 28, 10, 12, 14, 17, 31 | See of shaft | (Viewed from shaft end of pump) R-Clockwise Rotation L-Counter clockwise rotation | See pictures below | A | 1-SI NBR Nitrile rubber 5-S5 Fluoro rubber | 00,01 See installation dimensions |
| T6DCCS | 14, 17, 20, 24, 28, 31,35, 38, 42, 45, 50,61, | 14, 17, 20, 24, 28, 31, 35, 38, 42, 45, 50, 61 | 03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31 | ||||||
| T6EDC | 42, 45, 50, 52, 57, 62, 66, 72, 85 | 14, 17, 20, 24, 28, 31, 35, 38, 42, 45, 50, 61 | 03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31 | ||||||
| T6EDCS |
