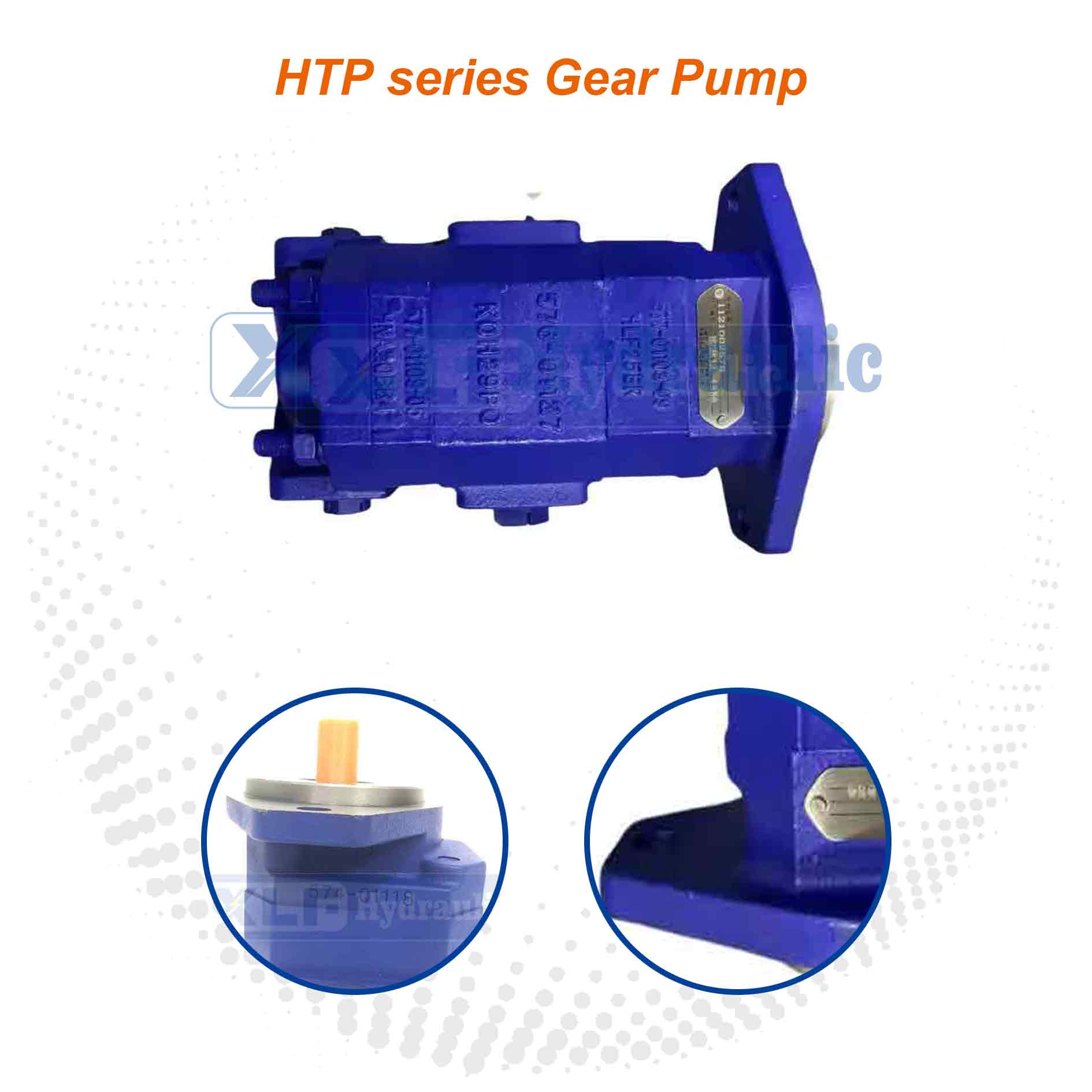

HTP Series High-pressurePump

Brand:	XLF
Condition:	New without factory packaging
Model:	0 510 525 311
Pressure:	280 BAR
RPM:	3500 RPM
Shipping Weight:	10.6 lbs
Shipping Dimensions:	8.5 x 7.75 x 6.5 in
SKU:	D963875 (VIT08)
Category:	Hydraulic Gear Pumps

Quantity:
Availability:





Inquire Add to Basket

Model:
HT0
Brand:
XLF
Code:
HT0001

Product Description

系列 Series	公称排量 Nominal Displacement (ml/r)	中泵壳体E Intermediate Shell (mm)	后泵壳体D Rear Housing （mm)	压力 Pressure (MPa)		转速Speed (r/min)		输入功率 Input Power (KW)	容积效率 Volumetric Efficiency （≥%）	总效率 Total Efficiency （≥%）	重量 Weight (kg)
系列 Series	公称排量 Nominal Displacement (ml/r)	中泵壳体E Intermediate Shell (mm)	后泵壳体D Rear Housing （mm)	额定 Rated	最高 Max	额定 Rated	最高 Max	输入功率 Input Power (KW)	容积效率 Volumetric Efficiency （≥%）	总效率 Total Efficiency （≥%）	重量 Weight (kg)
HTP1	10	105	83	23	31.5	2500	2800	9.26	91	83	12.1
	16	112	90					14.81			12.5
	20	117	95					18.52			12.8
	25	119	99					23.15			13.1
	32	122	102	23	28			29.63	92	83	13.7
	40	125	104	23	28			37.04			14.2
	45	130	108	16	20			33.33			14.6
	50	136	114	16	20			37.04			14.8
HTP2	32	78	113	23	31.5	2200	2800	26.07	92	83	20.2
	40	81	118					32.59			20.6
	50	84	122					40.74			21.2
	63	89	126	23	28			51.33			22
	80	95	138	23	28			65.19			23
	100	111	173	20	25			65.19			24.1
HTP3	63	138	99	23	28	2250	2800	52.5	92	83	29.5
	100	155	116					83.33			31.2
	125	160	121					104.17			32.5
	140	166	127					116.67			33.6
	160	172	133					133.33			34.4
	180	179	140	20	25			120			35.4
	200	188	149					116.67			36.3
	220	197	158					114.58			37.3

Notes: The upper table lists specification of single pump,the specification of double pump of multiple pump is the same as that of single pump except input power is sum of that of single pump

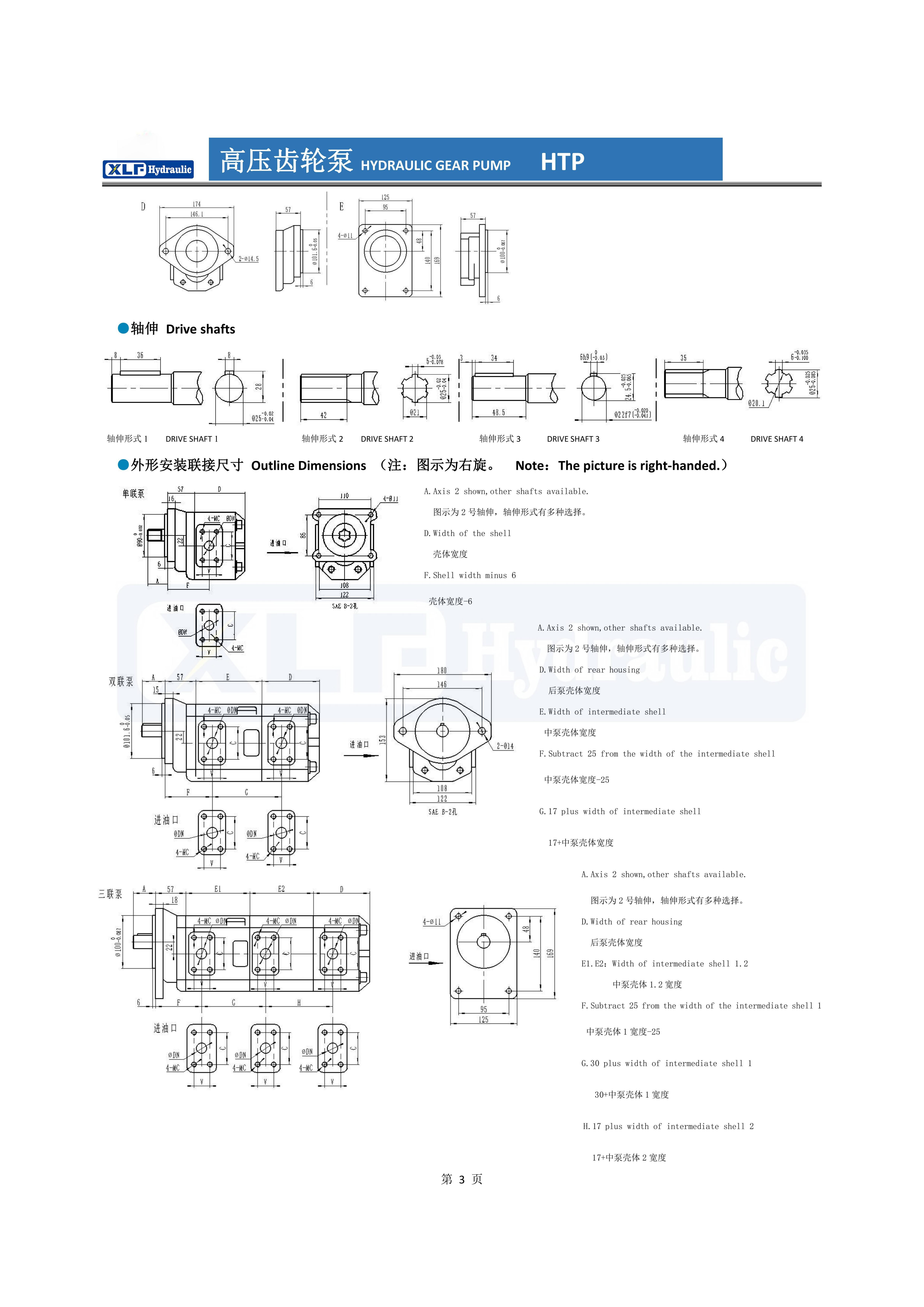

HTP齿轮泵说明书_00 HTP齿轮泵说明书_01 HTP齿轮泵说明书_02 HTP齿轮泵说明书_03 HTP齿轮泵说明书_04 HTP齿轮泵说明书_05 HTP齿轮泵说明书_06 HTP齿轮泵说明书_07 HTP齿轮泵说明书_08
