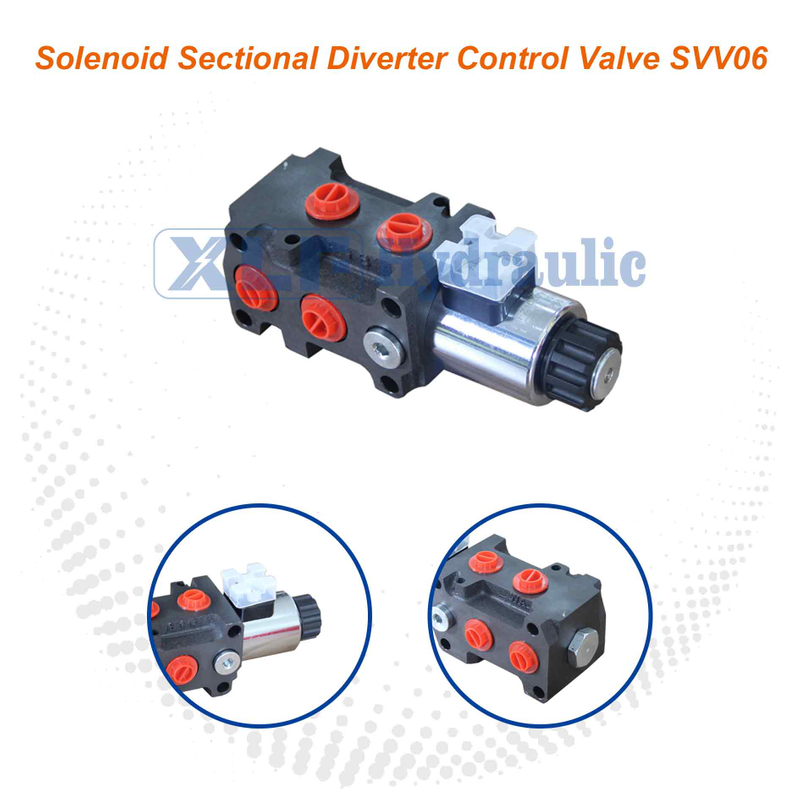

XLF-SVV06 Solenoid Sectional Diverter Control Valve SVV06

1. Functionality: The SVV06 is a 6-way valve with an alternating spool, which allows for sectional configurations to achieve 8-way or 10-way circuits. This versatility enables the valve to control multiple hydraulic functions with a single directional control valve.

2. Mounting Options: The valve can be flange-mounted, which provides a secure and stable connection in a hydraulic system.

3. Coil Voltage: The SVV06 is available with coils that support various feeding voltages, including 12V DC or 24V DC, making it adaptable to different power supply systems.

4. Applications: This valve is used in a variety of applications, including agriculture machines, construction machines, forestry machines, and drilling machines, where precise control of hydraulic flow is essential.

5. Technical Specifications:

• Maximum Flow Rate: 50 LPM

• Maximum Operating Pressure: 315 bar with load, 210 bar without load

• Oil Temperature Range: -20°C to +70°C

• Viscosity: 15-380 mm2/s, compliant with NAS 1638 standards

• Ambient Temperature Range: Up to 50°C

• Coil Temperature: Up to 180°C

• Filtration: NAS1638, 9

• Duty Cycle: 100%

6. Connections: The valve offers various thread sizes for connections, including G3/8, M18x1.5, and SAE8, with corresponding lengths (L) of G1/4, M14x1.5, and SAE4, respectively.

Sectional SVV Series

1. 6-way with alternating spool; it's sectional type to obtain 8-way or 10 way circuit.

2. It's possible to flange mounting a block with cross return anti-shock valves.

3. Coils with several feeding voltage are available.

4. They are used as link between two consumers and the basic directional valve, when we want to control both consumers alternately by means of one basic directional control valve.

5. Diverters are used to add an extra facility to the directional control valve when it is needed for a sequence of operations  such as a safety operation or to control a selected hydraulic cylinder.

6. The stackable circuit selector valves allow one single drive fo 6 users with 5 diverters connected in series.

7. Please note the drainline must be connected back to tank at all times.
